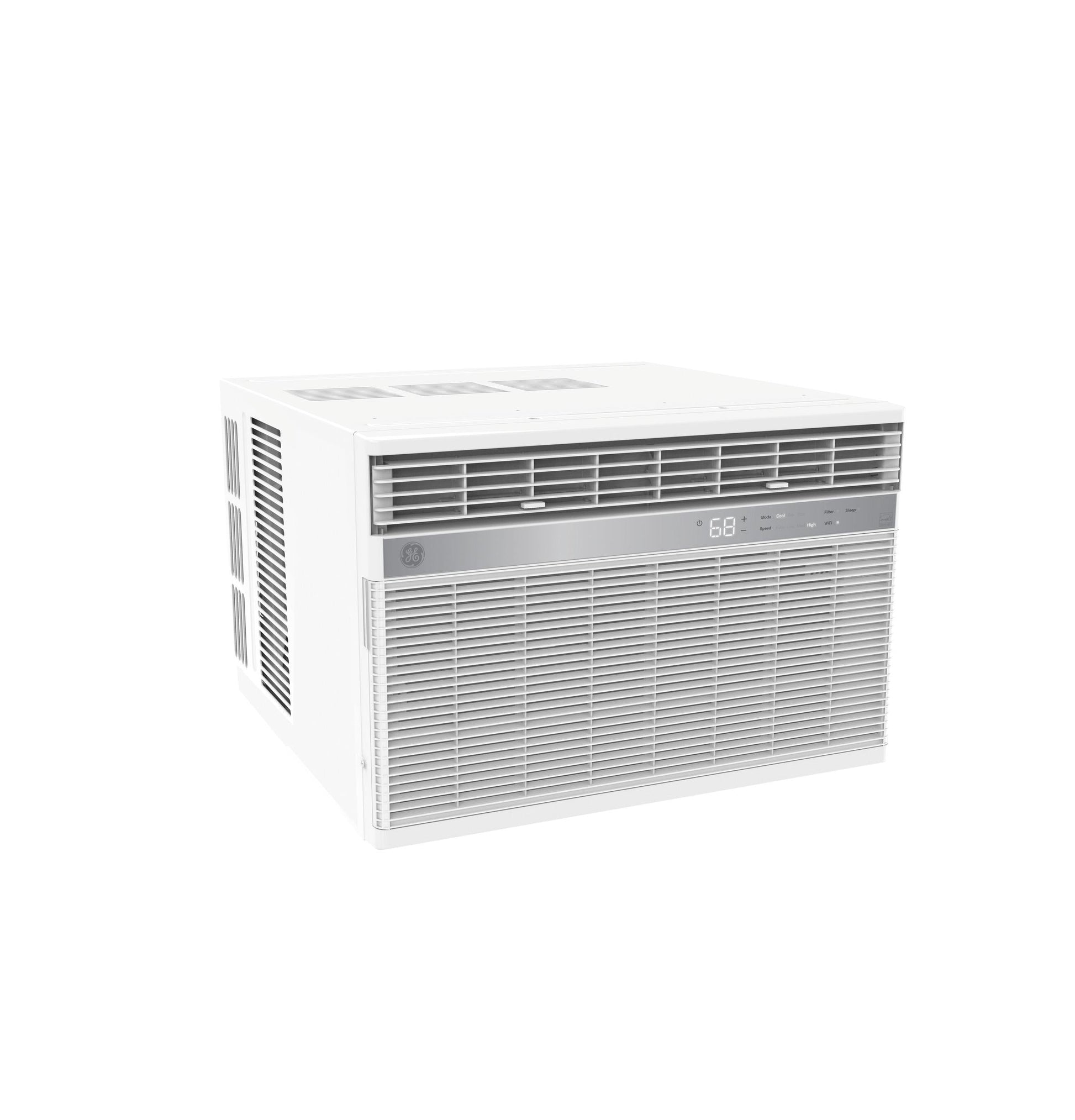

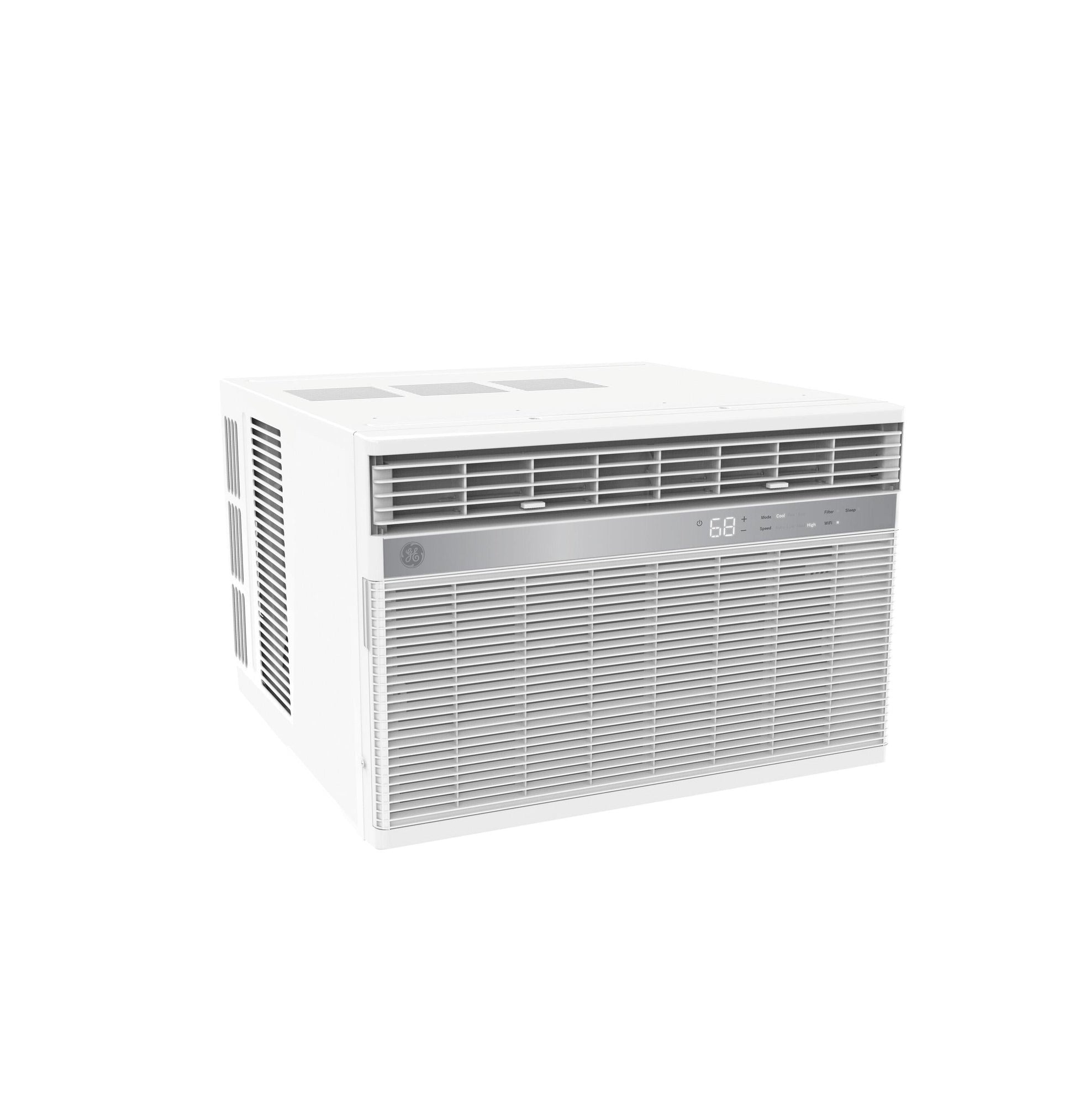

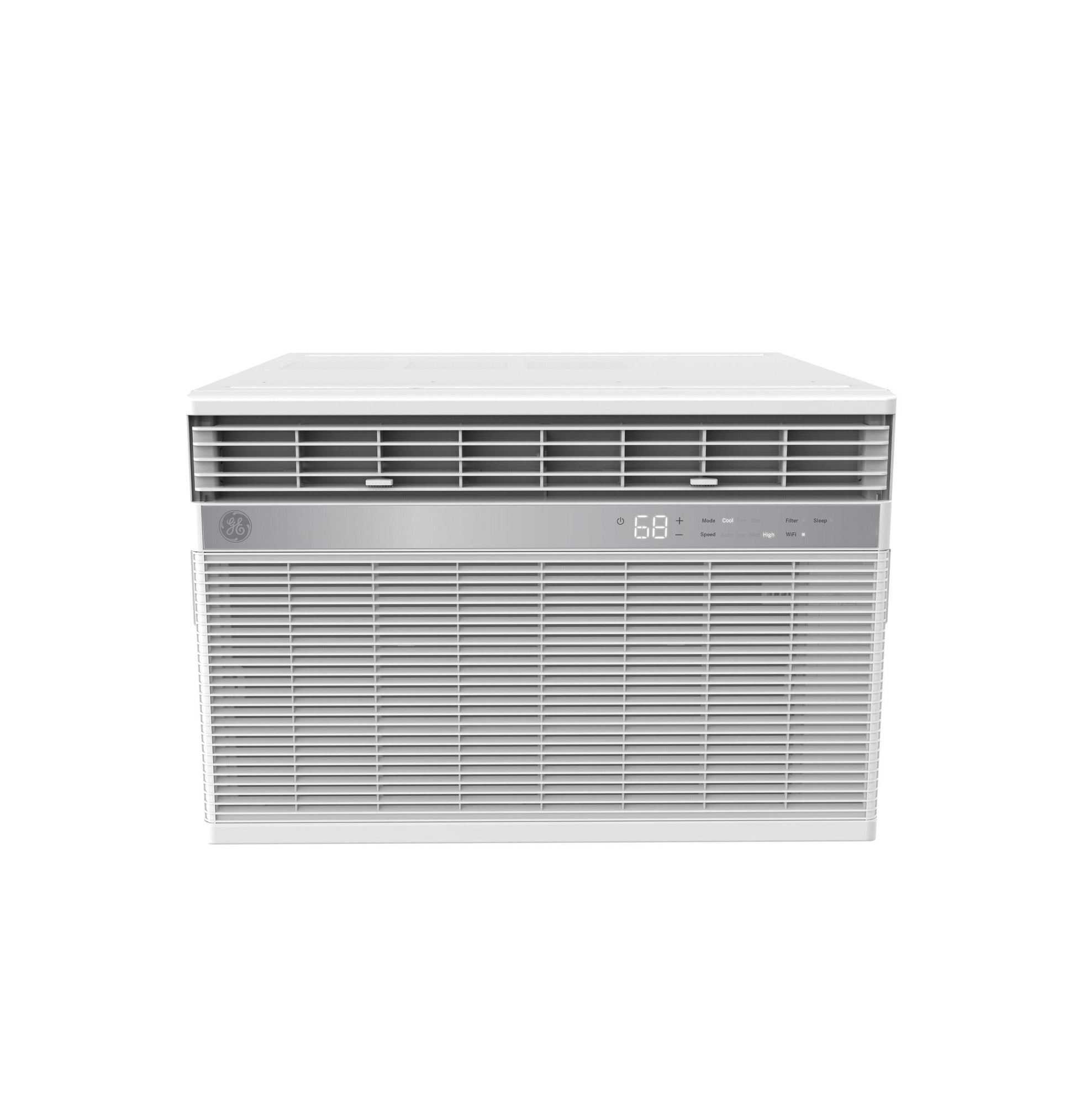

GE APPLIANCES AHFK24BA GE(R) ENERGY STAR(R) 23,700 BTU 230/208 Volt Smart Electronic Window Air Conditioner for Extra-Large Rooms - AHFK24BA
Cools Extra-Large Rooms
23,700 BTU cooling capacity offers maximum comfort in rooms up to 1,500 square feet
Built-In WiFi

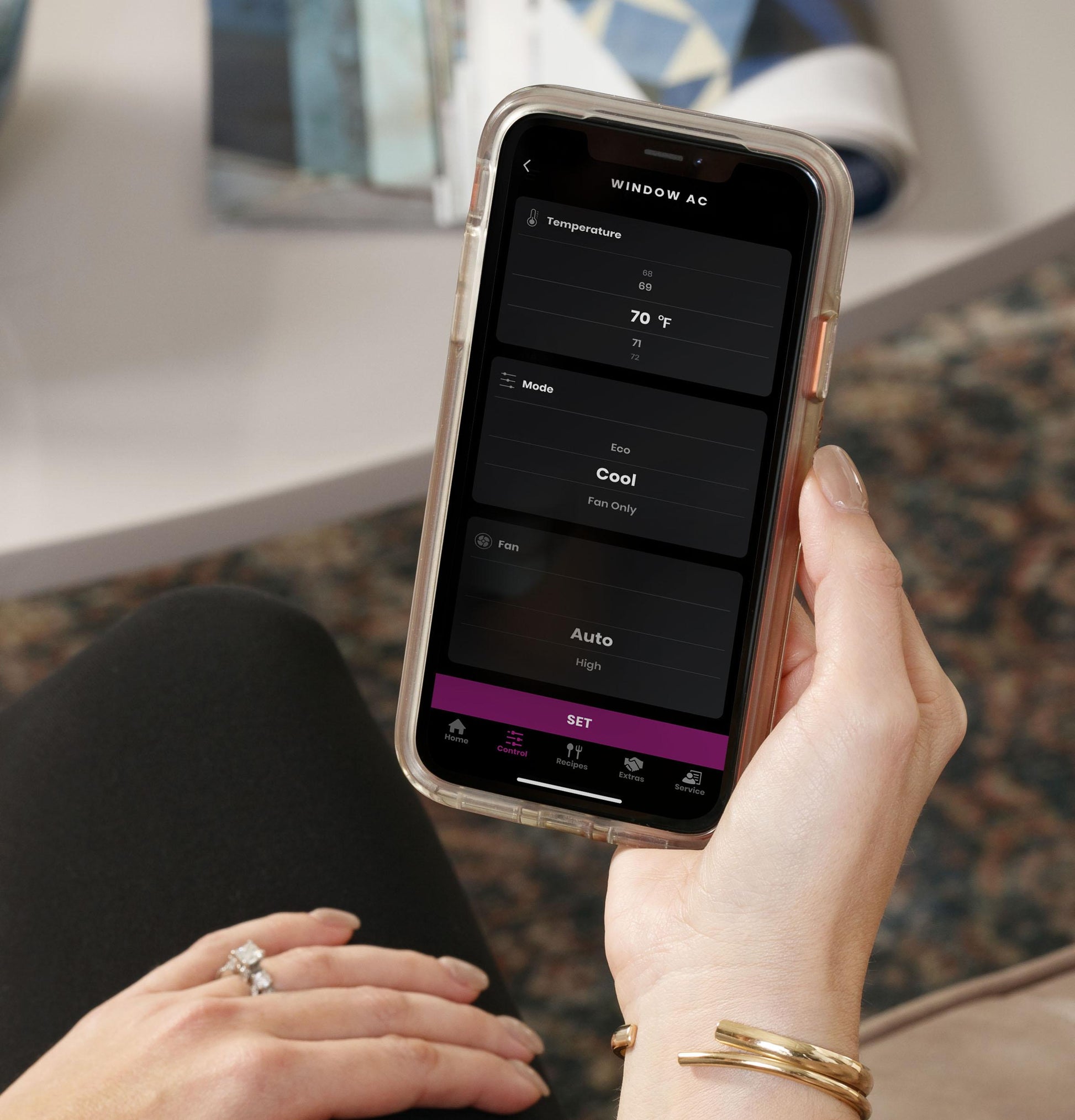

Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind
Maximum Comfort Cool
Three cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency
Voice Control
Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant
Energy Reporting
Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance
Geolocation
Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home
Eco Mode
The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs
Filter Reminder
Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

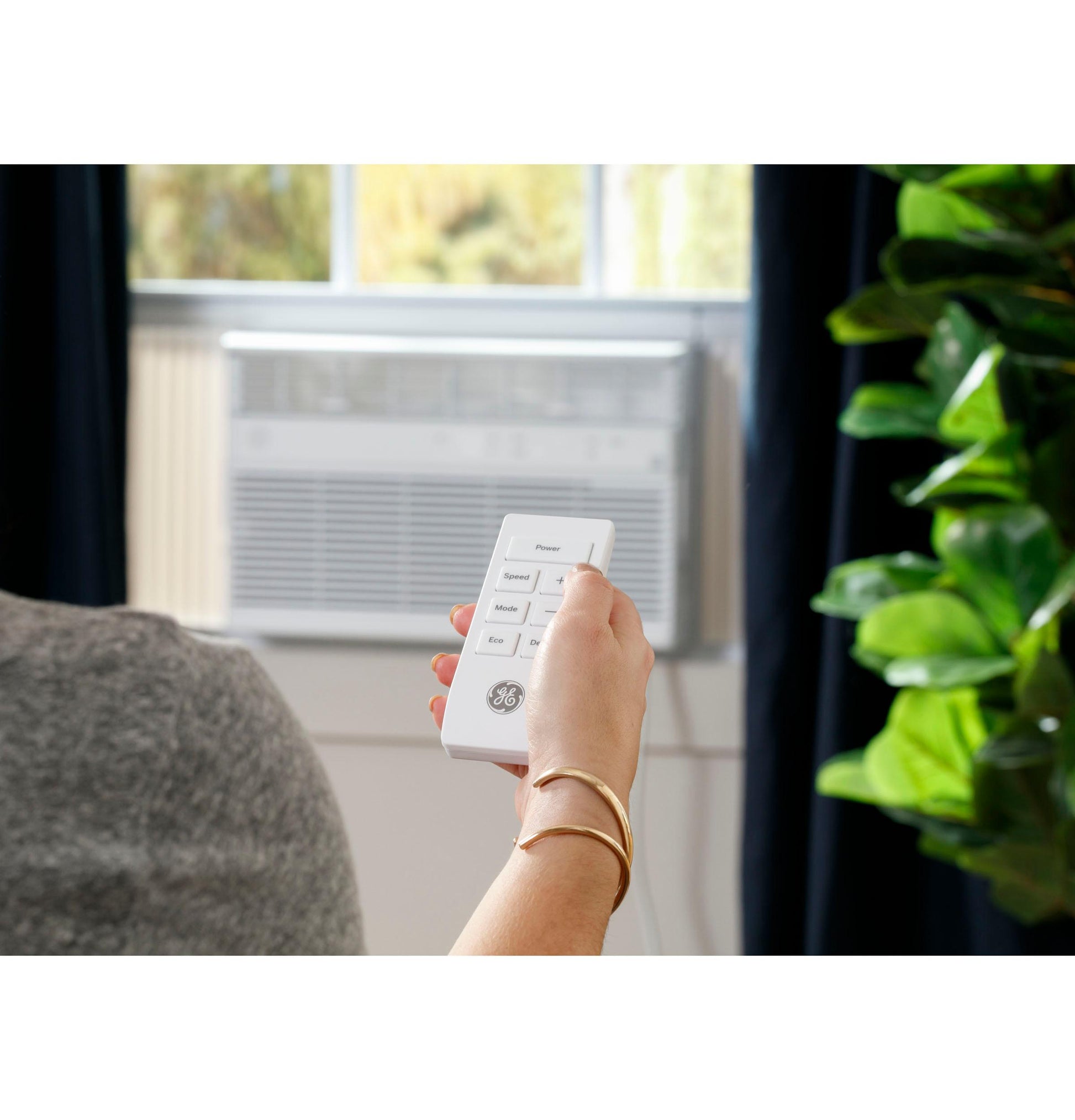

Electronic Thermostat with Remote
Digital controls with included remote make it easy to adjust and manage your settings from anywhere in your room
Energy Star
This Energy Star certified air conditioner gives you the same great cooling while using less energy and reducing utility costs
Easy Installation
This AC has a slide-out chassis and installs easily in a double hung window with included EZ Mount installation kit
Louver Style
The 4-way adjustable louvers distribute air evenly throughout the room
Features
- Cools Extra-Large Rooms
- Energy Star
- Built-In WiFi
- Maximum Comfort Cool
- Voice Control
- Energy Reporting
- Geolocation
- Eco Mode
- Filter Reminder
- Electronic Thermostat with Remote
Specifications
| Cooling Capacity |
Cooling BTUH (MIN): 17,800 |
| Cooling BTUH (MAX): 18,300 |
|
| Dehumidification |
Dehumidification (pts./hr.): 4.9 |
| Power / Ratings |
CEER: 11.3 |
| Cooling Amps (Rated): 7.0/7.5 |
|
| Cooling Watts: 1580/1540 |
|
| Voltage (MIN/MAX): 208V - 230V |
|
| Sound Level |
Sound Level (Low/High): 64/67 dBA |
| Warranty |
Parts Warranty: Limited 1-year (entire appliance) |
| Labor Warranty: Limited 1-year (entire appliance) |
|
| Accessories |
App Filter: WiFi Connect (Built-In) |
| Weights & Dimensions |
Overall Width: 25.875" |
| Overall Height: 18.25" |
|
| Overall Depth: 26.3125" |
|
| Grille Depth: 1.78" |
|
| Net Weight: 115 lbs |
|
| Shipping Weight: 133 lbs |
|
| Min./Max. Window Opening Width: 30"/39" |
|
| Minimum Window Opening Height: 19-1/8" |
|
| Features |
Airflow Direction: 4-Way Adjustable (Top) |
| Airflow (CFM): Roomside (High/Low): 461/380 |
|
| Vent/Air Exchange Exhaust: Top Air Discharge |
|
| Area to Cool: 700-1000 sq. ft. |
|
| Power Cord Length: 72" Minimum |
|
| Remote Control: Yes |
|
| LCDI / AFCI Power Cord: Yes |
|
| Mounting Type: EZ Mount |
|
| Digital Time Temp Display: Yes |
|
| WiFi Connect: Built-In |
|
| Chassis Type: Slide-Out |
|
| Rotary Compressor: Yes |
|
| Connected Capabilities: Amazon Alexa, IFTTT, The Google Assistant |
|
| Unit Type: Cool Only |
|
| Fan Speed Selections: 3 Cooling, 3 Fan Only |
|
| Plug Type: Tandem/NEMA 6-15 |
|
| Thermostat Type: Electronic |
|
| Filter Type: One Touch Lift-Out |
|
| Louver Style: 4-Way Adjustable |
|
| Room Air Conditioner Features |
Features: Electronic Control, Energy Saver, On/Off Timer, Remote Control |
Manuals
What Our Experts Think
-
Powerful Cooling – 23,700 BTU capacity effectively cools extra-large rooms up to 1,500 sq. ft.
-
Smart Technology – WiFi-enabled for remote control via the SmartHQ™ app or voice assistants.
-
ENERGY STAR® Certified – Delivers high efficiency to help reduce energy costs.
-
Custom Comfort – Multiple cooling and fan speeds with an adjustable thermostat for precise climate control.
-
Easy Installation & Maintenance – Includes a window installation kit and a washable, reusable filter for hassle-free upkeep.
Q&A
Q: What are the key features of the GE AHFK24BA Window Air Conditioner?
A: This 23,700 BTU ENERGY STAR® certified window air conditioner offers powerful cooling, smart WiFi control, electronic touch controls, multiple fan speeds, and an Eco Mode for energy efficiency—ideal for extra-large rooms.
Q: What room size does this unit cool?
A: It efficiently cools rooms up to 1,500 sq. ft., making it perfect for large living spaces, open-concept areas, and offices.
Q: Does it have smart features?
A: Yes! It includes WiFi connectivity for remote control via the SmartHQ™ app, plus compatibility with Amazon Alexa and Google Assistant for voice control.
Q: Is this unit energy-efficient?
A: Absolutely! With ENERGY STAR® certification and Eco Mode, it helps reduce energy consumption while maintaining comfort.
Q: Does it come with a remote control?
A: Yes, it includes a remote control for easy operation from anywhere in the room.
Q: Is installation simple?
A: Yes! Designed for window installation, it includes an adjustable mounting kit for a secure and hassle-free setup.
Maintenance Tipe
-
Clean the Air Filter Every 2 Weeks – Remove, rinse with warm water, let dry completely, and reinstall to maintain airflow and cooling efficiency.
-
Wipe Down Air Vents Regularly – Use a damp cloth to remove dust buildup and ensure optimal performance.
-
Inspect & Clear the Drainage System – Check for clogs in the drainage hole to prevent water buildup and leaks.
-
Clean the Coils Every 3-6 Months – Use a vacuum or soft brush to remove dust from the evaporator and condenser coils for better cooling efficiency.
-
Ensure Proper Installation & Sealing – Check for gaps around the unit and seal them to prevent warm air leaks and improve energy efficiency.
-
Use Energy-Saving Features – Enable Eco Mode and set programmable temperatures to optimize cooling while reducing energy costs.
-
Schedule Annual Professional Maintenance – Have a technician inspect refrigerant levels, electrical components, and overall unit performance.
