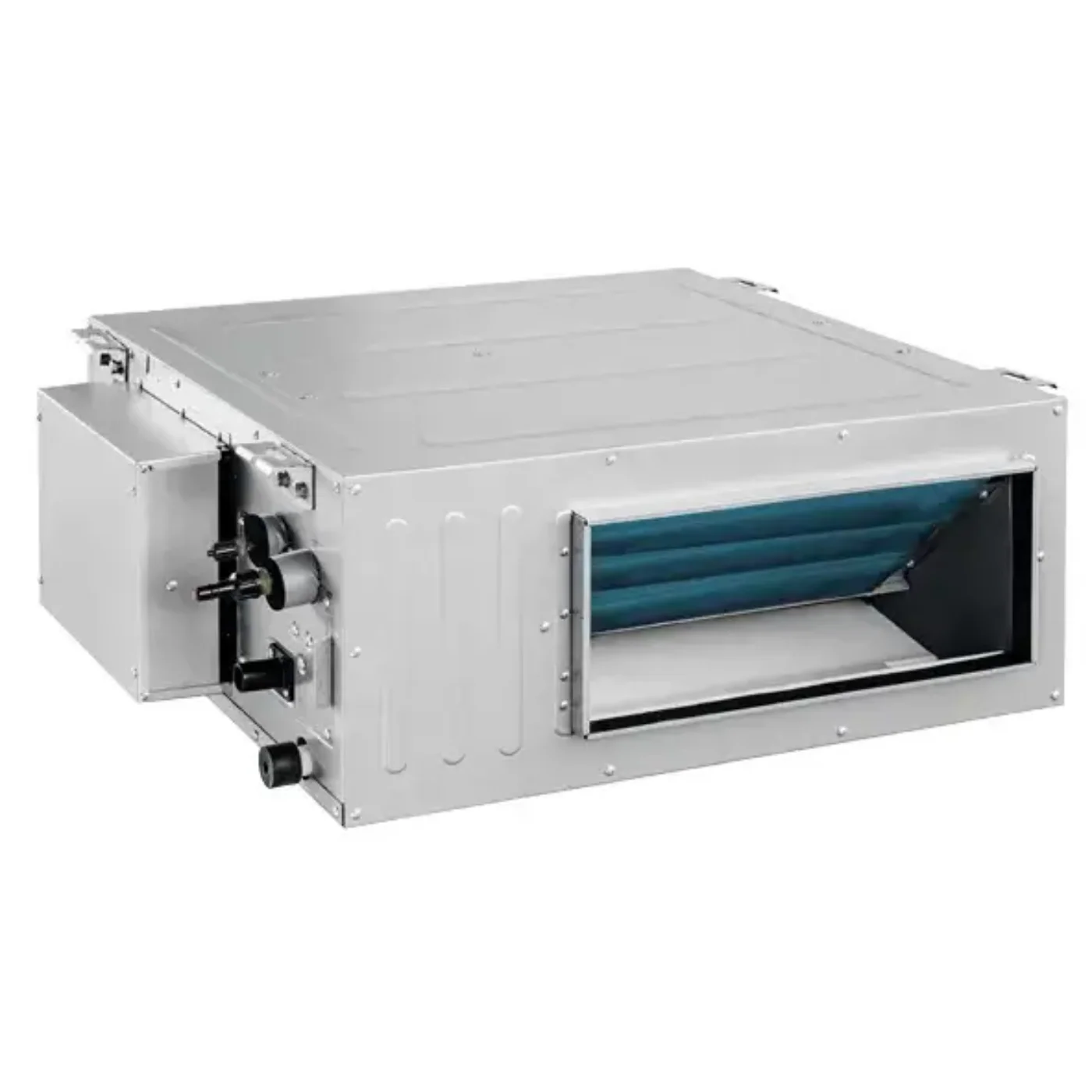

Gree High Static 24K BTU Concealed Duct Mini-Split Multi Zone Air Handler - DUCT24HP230V1BD
The Gree High Static Slim Duct indoor unit offers flexibility. It is designed to be installed above suspended ceilings, or in open closet spaces. This unit delivers conditioned air via ducting and ceiling or wall grilles. It has a high static pressure capability and is only 13-5/8" High.
The Gree High Static Slim Duct is AHRI Certified and comes with a 5-year limited warranty.
Features
- Heating, Cooling, Dry, and Fan modes
- Fahrenheit °F / Celsius °C
- Handheld IR remote control and XK-19 wall mounted control included
 Specifications
| Product Name |
24,000 BTU Concealed Duct Gree Mini-Split High Static Multi Zone Air Handler |
| SKU |
DUCT24HP230V1BD |
| Brand / Manufacturer |
Gree |
| Mini-Split Type |
Concealed Duct |
| Zone Compatibility |
Multi Zone |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
27,000 BTU |
| BTU / Tonnage |
24,000 BTU / 2 Ton |
| Maximum Airflow |
406 â 735 CFM |
| Refrigerant |
R410A |
| Electrical Requirements |
208/230V, 1 Phase, 60 Hz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Drain Size |
1" |
| Indoor Sound Level |
28 â 42 dB(A) |
| Weight |
107 lbs |
| Dimensions (H Ă W Ă D) |
13.6" Ă 44.5" Ă 29.7" |
| Warranty |
5-Year Limited Parts Warranty |
| Safety Information |
Proposition 65 Warning |
What our Experts Think
-
High Static Duct Design: Supports extended duct runs and flexible layout options, ideal for multiâzone and concealed installations.
-
Reliable Heating & Cooling: Provides robust 24,000âŻBTU cooling and up to ~27,000âŻBTU heating for consistent comfort.
-
Quiet & Efficient Operation: Multiâspeed fan delivers 406â735âŻCFM airflow with low sound levels, maintaining a comfortable indoor environment.
-
Slim, Concealed Profile: Compact construction fits above ceilings or in closets to preserve interior aesthetics.
-
Flexible Installation: Designed for return air from bottom or rear with internal drain pump and condensate protection.
-
Trusted Performance: AHRIâcertified with a 5âyear limited parts warranty for reliable longâterm operation.
Q&A
Q: What is the capacity of the Gree DUCT24HP230V1BD air handler?
A: It has a high static 24,000 BTU capacity, ideal for multi-zone cooling and heating.
Q: What type of system is it?
A: Concealed duct mini-split, designed for efficient, discreet installation in residential or commercial spaces.
Q: What voltage does it use?
A: Operates on 230V for reliable performance.
Q: Is it suitable for multi-zone setups?
A: Yes, perfect for multi-zone applications to individually control different rooms or areas.
Q: What is it ideal for?
A: Efficient heating and cooling in homes, offices, or commercial spaces while maintaining a low-profile installation.
Maintenance Tips
-
Clean or replace air filters every 1â3 months.
-
Wipe coils and drain pan with a soft cloth to prevent buildup.
-
Keep condensate drain lines clear to avoid water damage.
-
Check blower and electrical connections seasonally.
-
Schedule professional HVAC servicing annually for optimal performance.
