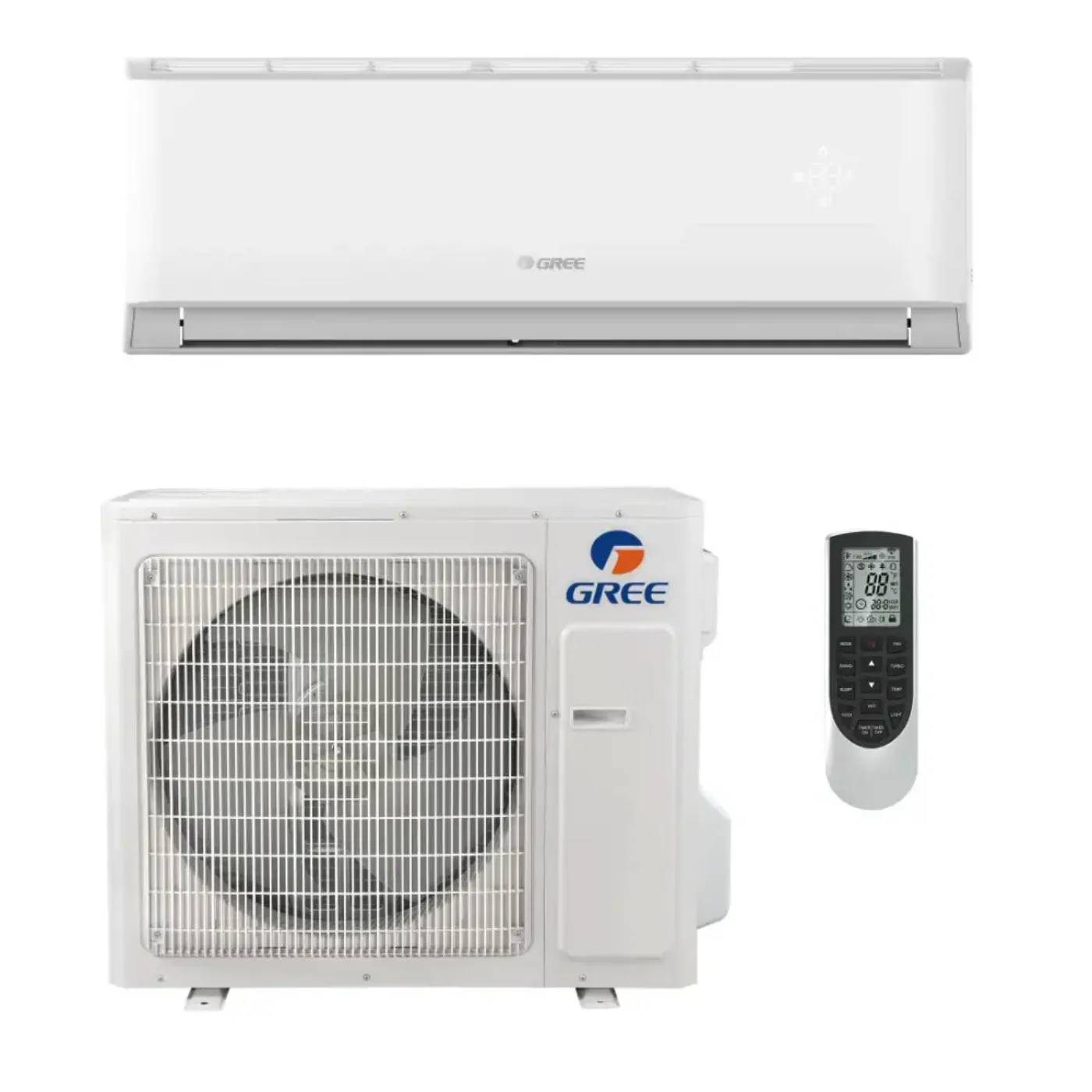

GREE Livo Gen4 24K BTU 18 SEER2 Wall Mount Mini-Split Single Zone Heat Pump - 4LIV24HP230V1A
The 4LIV24HP230V1AH / 4LIV24HP230V1AO single-zone system is one of Gree’s new 3rd generation of Livo mini splits designed to provide a convenient, efficient method to cool and heat a room.
24,000 BTU, 18 SEER2
The Gree Livo Gen4 system provides high efficiency and quiet comfort. It is both quieter and simultaneously delivers more air than the previous Livo and Lio+ generations. The compressor features Gree's G10 Inverter and variable compressor technology, which enables the unit to reach the desired temperature faster and more consistently. Maintenance is easy thanks to the self-diagnostics tool.
The Livo Gen4 features multiple fan speeds for your comfort. The indoor unit's sleep mode ensures that temperature fluctuations don't disturb your sleep. It also features a hidden backlight display on the unit which will inform you of the temperature and different modes running. A handheld remote control is included with this unit and features a programmable timer and I Feel mode, which senses temperature around the remote to adjust airflow and indoor temperature.
The 4LIV24HP230V1AH / 4LIV24HP230V1AO comes with Gree’s standard 5 year parts and 5 year compressor warranty when registered and installed in a residential application. The warranty is reduced to 1 year parts and 5 year compressor when installed in a commercial application. Controls are warrantied for 90 days from the purchase date.
If installed by a Gree Select Dealer, the residential warranty may be extended to 10 years on parts and 10 years on the compressor when registered within 60 days of installation.
Durability and Reliability
The Livo Gen4 condenser has a basepan heater to keep the unit ice free, even down to -4°F. This prevents harmful ice buildup that can damage a coil. It also has an acrylic-resin anti-corrosion coating to prevent damage over time.
If the system encounters abnormalities while operating, the display on the indoor unit will show an error code for easy diagnosis.
Smart Features
The Livo Gen4 system includes intelligent pre-heating and defrosting to prevent cold air from blowing inside while the unit is in heating mode. The system includes power failure recovery to resume function automatically after a power outage. A wireless adapter (sold separately) can be added to the indoor unit to provide control over the system from anywhere via the app for mobile phones.
Features
- Designed to heat and cool a large room
- 24,000 BTU, 18 SEER2
- 230v electrical compatible
- Heating, Cooling, Auto, Dry, and Fan modes
Specifications
| SKU |
4LIV24HP230V1AH / 4LIV24HP230V1AO |
| Brand / Manufacturer |
Gree |
| System Type |
Wall-Mounted Mini-Split Heat Pump |
| Zone Compatibility |
Single Zone |
| Cooling Capacity |
22,000 BTU |
| Heating Capacity |
24,000 BTU |
| BTU / Tonnage |
24,000 BTU / 2 Ton |
| AHRI Certificate Number |
210278972 |
| Energy Star Certified |
No |
| SEER2 |
18 |
| HSPF |
28.5 |
| Dehumidification Capacity |
0.53 gal/hr |
| Maximum Airflow |
412 – 677 CFM |
| Refrigerant |
R410A |
| Refrigerant Charge |
Pre-Charged for 25 ft |
| Compressor Type |
Rotary |
| Electrical Requirements |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Minimum Breaker Size |
19 Amps |
| Maximum Breaker Size |
30 Amps |
| Amperage Requirement |
30 Amps |
| Liquid Line Size |
1/4" |
| Suction Line Size |
5/8" |
| Minimum Line Set Length |
10 ft |
| Maximum Line Set Length |
82 ft |
| Heating Operating Range (Outdoor) |
-13°F to 75°F |
| Cooling Operating Range (Outdoor) |
0°F to 122°F |
| Indoor Sound Level |
36 – 51 dB(A) |
| Outdoor Sound Level |
57 dB(A) |
| Controller |
Wireless (Included) |
| Drain Size |
5/8" |
| Total System Weight |
148.8 lbs |
| Indoor Unit Weight |
36.4 lbs |
| Outdoor Unit Weight |
97 lbs |
| Indoor Dimensions (H × W × D) |
12-3/4" × 42-1/4" × 9-5/8" |
| Outdoor Dimensions (H × W × D) |
25-5/8" × 33-1/4" × 12-1/4" |
What our Experts Think
-
Balanced Efficiency & Performance: Provides up to 18 SEER2 cooling efficiency with reliable heat‑pump heating for year‑round comfort in single‑zone spaces.
-
Advanced Inverter Technology: G10 inverter compressor delivers energy‑efficient operation with smoother temperature control and lower power use.
-
Smart Comfort Features: Multiple fan speeds, sleep mode, and “I‑Feel” temperature sensing provide personalized comfort.
-
Built‑in Wi‑Fi & Controls: Supports remote monitoring and smart control for convenience.
-
Quiet & Stable Operation: Low‑noise indoor performance while maintaining consistent airflow.
-
All‑Season Use: Efficient heating and cooling across a broad temperature range with intelligent preheat and defrost functions.
Q&A
Q: What is the capacity of the GREE Livo Gen4 4LIV24HP230V1A?
A: It has a 24,000 BTU capacity with 18 SEER2 efficiency, ideal for single-zone heating and cooling.
Q: What type of system is it?
A: Wall-mounted mini-split heat pump for energy-efficient, space-saving installation.
Q: What voltage does it use?
A: Operates on 230V for reliable residential or light commercial performance.
Q: Is it suitable for single-zone applications?
A: Yes, designed for precise temperature control in one room or area.
Q: What is it ideal for?
A: Perfect for heating and cooling homes, offices, or small commercial spaces efficiently.
Maintenance Tips
-
Clean or replace air filters every 1–3 months to maintain airflow and efficiency.
-
Wipe coils, indoor unit, and drain pan with a soft cloth to prevent buildup.
-
Keep condensate drain lines clear to avoid water damage.
-
Inspect electrical connections and mounting brackets seasonally.
-
Schedule professional HVAC servicing annually for optimal performance and longevity.
