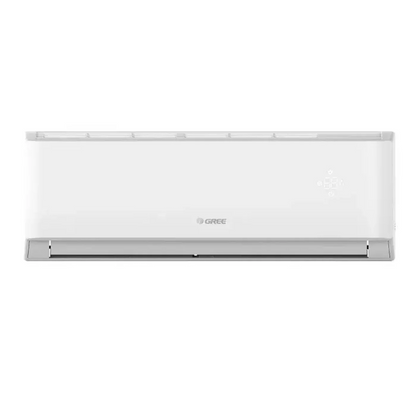

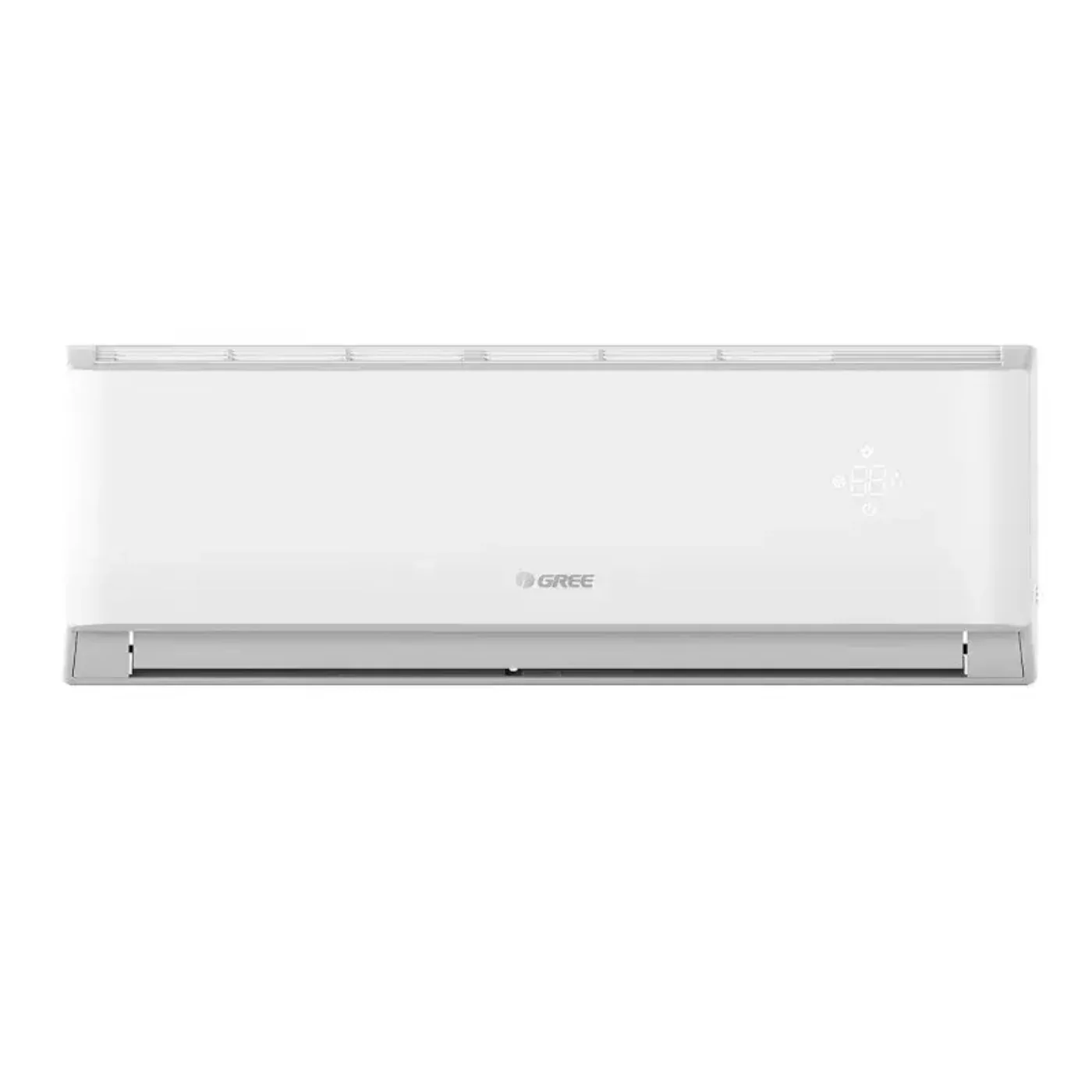

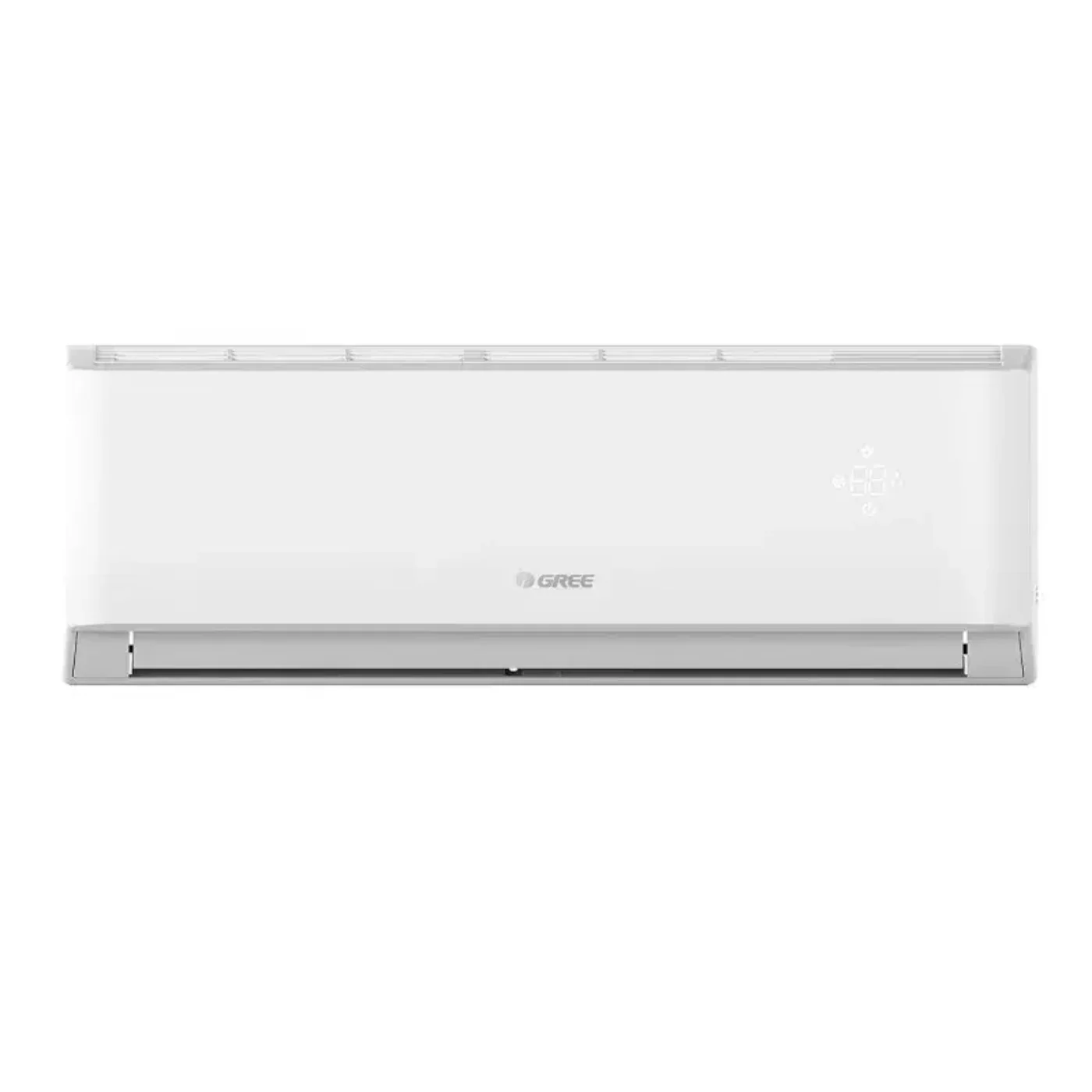

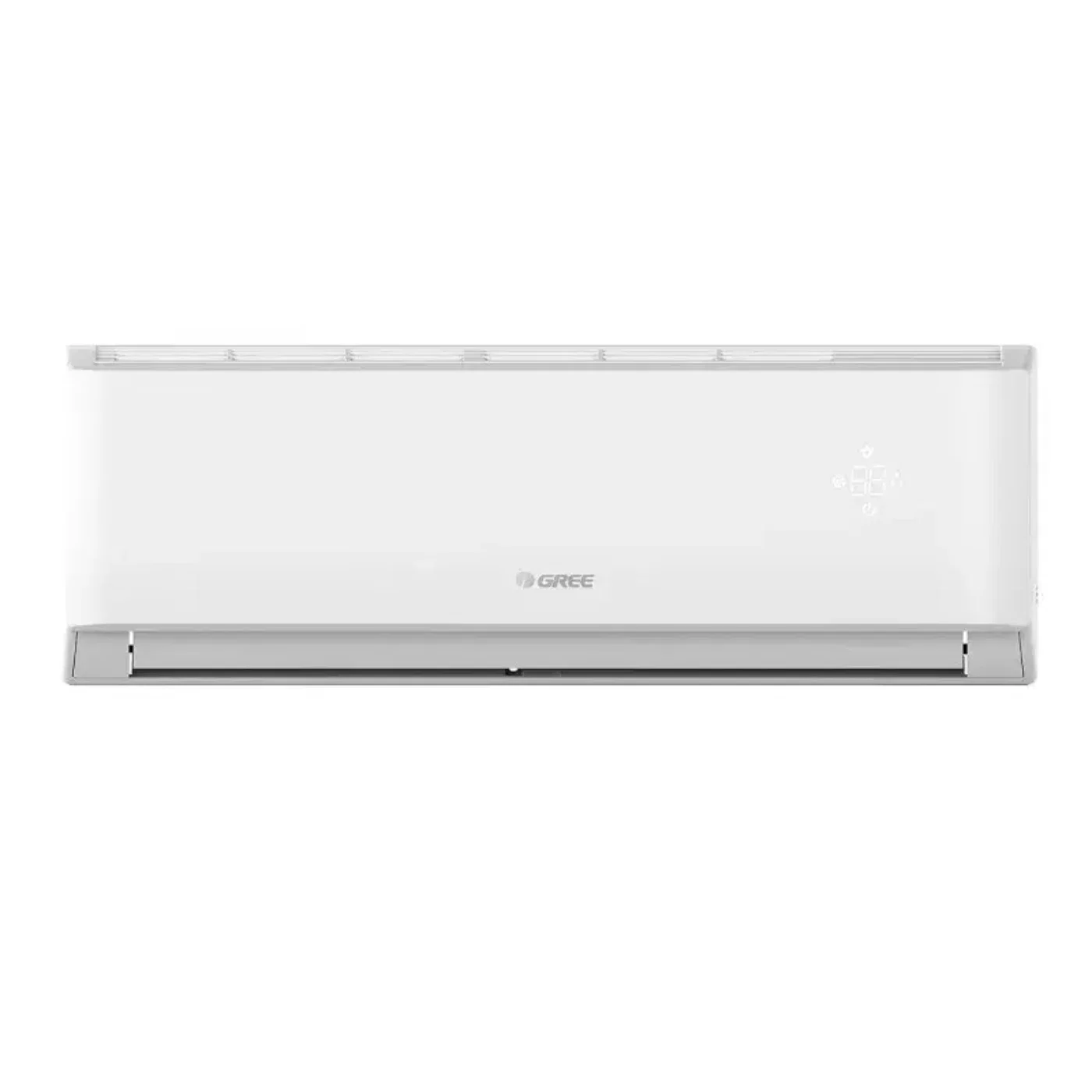

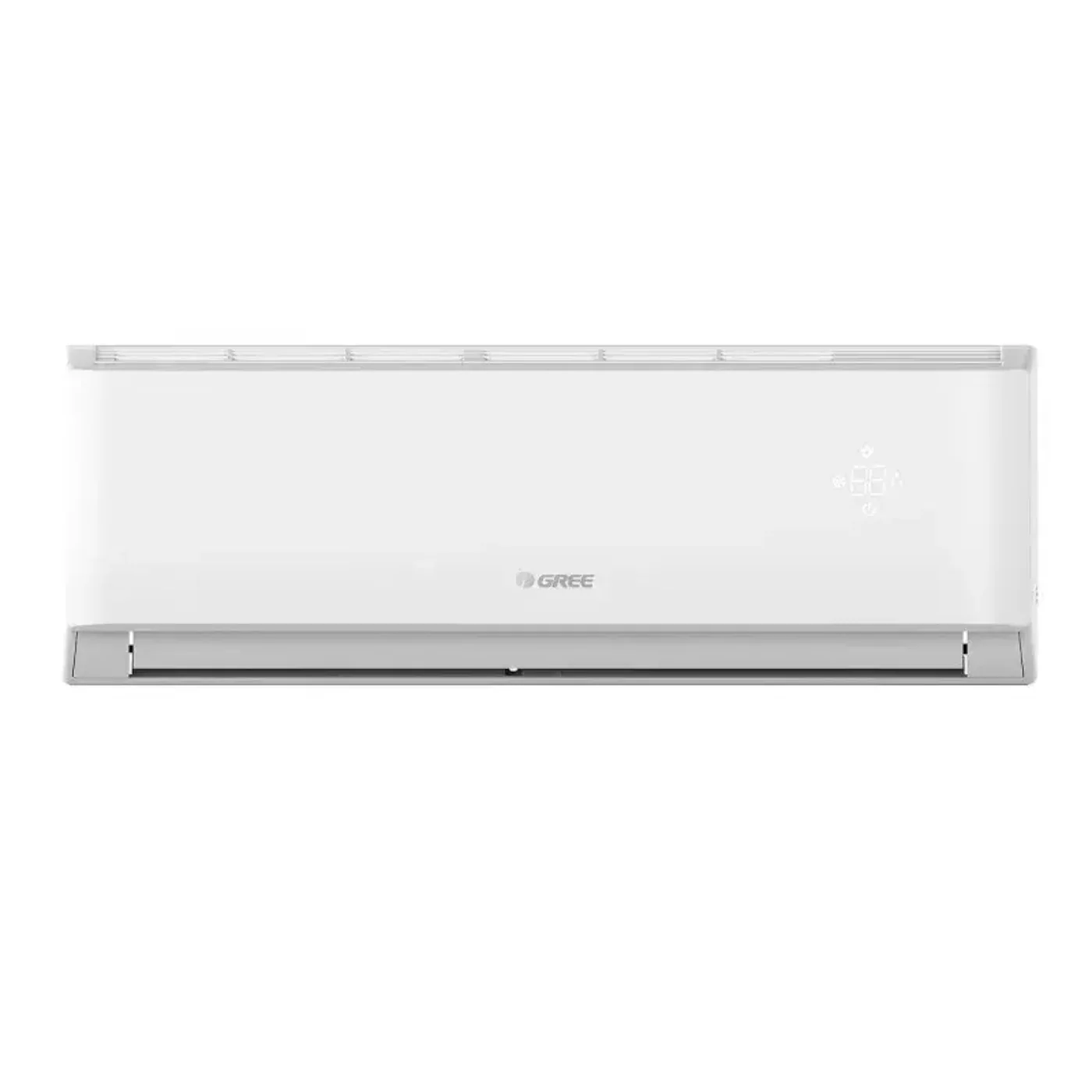

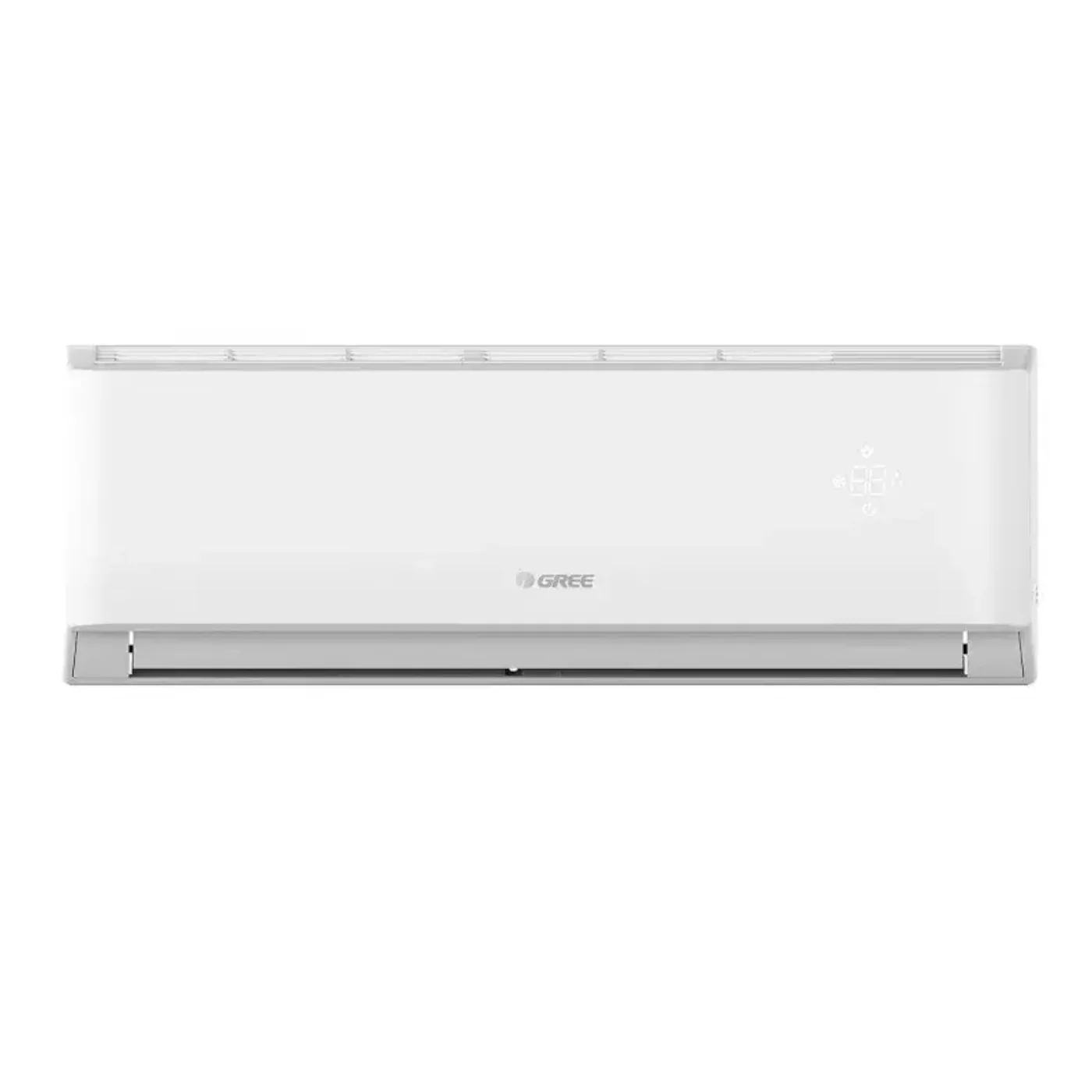

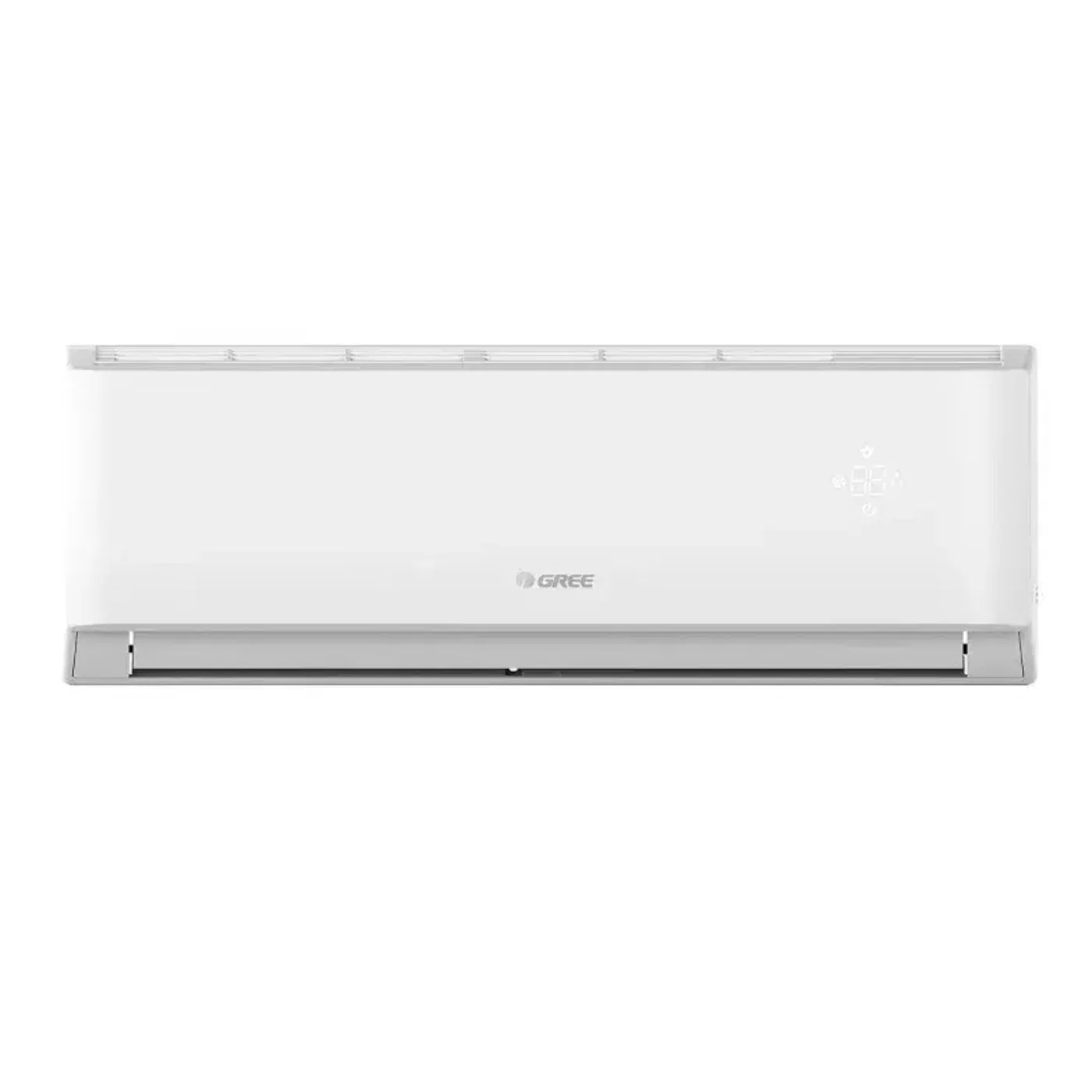

GREE Livo SEER2 Gen4 24K BTU Wall Mount Mini-Split Single Zone Air Handler - 4LIV24HP230V1AH
The 4LIV24HP230V1AH is a 24,000 BTU variable speed air handler from Gree. It is designed for use with 230V systems and features a DC inverter compressor for efficient operation. The air handler also has a compact and quiet design, making it ideal for residential and commercial applications.
24,000 BTU Single Zone or Multi Zone Indoor Unit
The Gree Livo Gen4 system provides high efficiency and quiet comfort. It is both quieter and simultaneously delivers more air than the previous Livo and Lio+ generations. Maintenance is easy thanks to the self-diagnostics tool.
The Livo Gen4 features multiple fan speeds for your comfort. The indoor unit's sleep mode ensures that temperature fluctuations don't disturb your sleep. It also features a hidden backlight display on the unit which will inform you of the temperature and different modes running. A handheld remote control is included with this unit and features a programmable timer and I Feel mode, which senses temperature around the remote to adjust airflow and indoor temperature.
The 4LIV24HP230V1AH comes with Gree’s standard 5 year parts and 5 year compressor warranty when registered and installed in a residential application. The warranty is reduced to 1 year parts and 5 year compressor when installed in a commercial application. Controls are warrantied for 90 days from the purchase date.
If installed by a Gree Select Dealer, the residential warranty may be extended to 10 years on parts and 10 years on the compressor when registered within 60 days of installation.
Smart Features
The Livo Gen4 system includes intelligent pre-heating and defrosting to prevent cold air from blowing inside while the unit is in heating mode. The system includes power failure recovery to resume function automatically after a power outage. A wireless adapter (sold separately) can be added to the indoor unit to provide control over the system from anywhere via the Gree app for mobile phones.
Features
- 24,000 BTU
- Designed to heat and cool a large room
- Heating, Cooling, Auto, Dry, and Fan modes
- DC inverter compressor for efficient operation
Specifications
| SKU |
4LIV24HP230V1AH |
| Brand / Manufacturer |
Gree |
| System Type |
Wall-Mounted Mini-Split Heat Pump |
| Zone Compatibility |
Single Zone |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
24,000 BTU |
| BTU / Tonnage |
24,000 BTU / 2 Ton |
| Controller |
Wireless (Included) |
| Maximum Airflow |
412 – 677 CFM |
| Refrigerant |
R410A |
| Capacity Dehumidification Rate |
5.28 pt/hr |
| Electrical Requirements |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Liquid Line Size |
1/4" |
| Suction Line Size |
5/8" |
| Drain Size |
5/8" |
| Indoor Sound Level |
36 – 51 dB(A) |
| Weight |
45.2 lbs |
| Dimensions (H × W × D) |
13-1/8" × 42-7/16" × 9-11/16" |
| Mini-Split Type |
Wall Mounted |
What our Experts Think
-
Ideal for Larger Spaces: 24,000 BTU delivers strong cooling/heating for bigger rooms or open layouts (~900–1,400 sq ft).
-
High Efficiency with SEER2 Gen4: Advanced design boosts energy savings and performance over older models.
-
Quiet, Stable Comfort: Smooth temperature control with low operational noise.
-
Sleek Wall‑Mounted Design: Space‑efficient installation with dependable single‑zone performance.
-
User‑Friendly Climate Control: Responsive comfort and reliable operation for everyday use.
-
SEO & Merchant Advantage: Aligns with high search demand for powerful, efficient 230 V mini‑splits with SEER2 technology — excellent value for residential upgrades.
Q&A
Q: What is the cooling capacity of the GREE Livo SEER2 Gen4 Mini-Split?
A: It delivers 24,000 BTU cooling, perfect for large rooms and open spaces.
Q: Does it provide heating as well?
A: Yes, it’s a heat pump that efficiently heats and cools.
Q: What refrigerant does it use?
A: Uses eco-friendly R32 refrigerant for energy-efficient operation.
Q: What voltage is required?
A: Operates on standard 230V power.
Q: Is installation easy?
A: Yes, designed for single-zone wall-mounted installation.
Q: How energy-efficient is it?
A: High SEER2 rating ensures lower energy costs.
Q: Can it be controlled remotely?
A: Yes, comes with remote control and supports smart control options.
Maintenance Tips
-
Clean Air Filters Monthly: Wash or vacuum filters to maintain airflow and indoor air quality.
-
Seasonal Coil Care: Check and gently clean evaporator and condenser coils to sustain peak efficiency.
-
Check Condensate Drain: Ensure the drain line is clear to avoid clogs and moisture buildup.
-
Keep Outdoor Unit Clear: Remove debris, leaves, and obstructions for effective heat exchange.
-
Annual Professional Tune‑Up: Schedule HVAC service for refrigerant check, electrical inspection, and performance optimization.
-
Address Alerts Promptly: Respond to error codes or unusual noises quickly to prevent bigger issues.
-
Use Recommended Parts & Practices: Only qualified technicians should handle SEER2‑compliant servicing and refrigerants.
