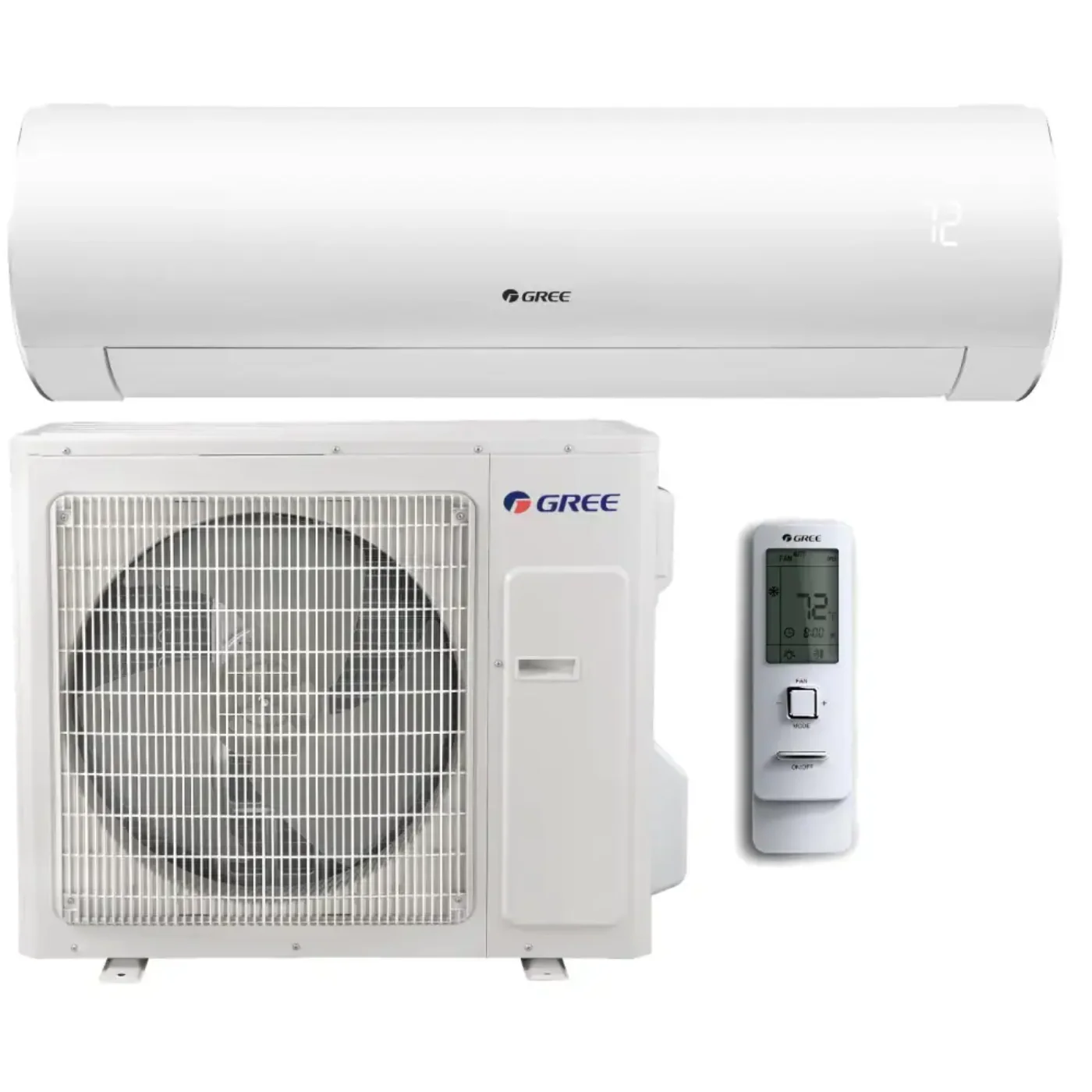

GREE Sapphire 12K BTU 30.5 SEER Wall Mount Mini-Split Single Zone Heat Pump - SAP12HP230V1A
The Gree Sapphire is an ultra high-efficiency ductless mini split system from Gree. It features a quiet, unobtrusive design with advance performance and an industry leading SEER in cooling and HSPF in heating. It also will deliver up to 90% heating capacity even in extreme cold down to -22 F. A wireless remote controller with timer is included.
With Gree's G-10 Inverter Technology, the outdoor unit can reach the desired room temperature much faster and more consistently. The outdoor unit is built of heavy gauge steel, which makes for easy maintenance and durability in all kinds of weather. The Sapphire system also has a built-in computer which continuously scans for errors, malfunctions, and fault codes to make troubleshooting and repair easy.
In addition to its quiet operation, it has a subtle appearance designed to blend into any living space. It also has up to seven fan speeds to provide maximum comfort. The Sapphire series also features washable polymeric air filters which improve air quality.
Features
- Heating, Cooling, Dry, and Fan modes
- High efficiency G-10 Inverter Technology
- Multiple speed fan
- Polymeric air filters
- I Feel mode
- IR remote control included
- Privacy lock mode
- Sleep mode
- Fahrenheit °F / Celsius °C
- Self-diagnosis
- Low voltage start-up
- Intelligent defrost
- Blue fin condenser
Specifications
| SKU |
SAP12HP230V1AH / SAP12HP230V1AO |
| Brand / Manufacturer |
Gree |
| System Type |
Wall-Mounted Mini-Split Heat Pump |
| Zone Compatibility |
Single Zone |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,200 BTU |
| BTU / Tonnage |
12,000 BTU / 1 Ton |
| AHRI Certificate Number |
10149903 |
| Energy Star Certified |
Yes |
| EER |
15.3 |
| HSPF |
14 |
| Maximum Airflow |
235 – 500 CFM |
| Refrigerant |
R410A |
| Compressor Type |
Rotary |
| Electrical Requirements |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Minimum Breaker Size |
9 Amps |
| Maximum Breaker Size |
15 Amps |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Minimum Line Set Length |
10 ft |
| Maximum Line Set Length |
98 ft |
| Heating Operating Range (Outdoor) |
-22°F – 75°F |
| Cooling Operating Range (Outdoor) |
0°F – 129°F |
| Indoor Sound Level |
22 – 49 dB(A) |
| Outdoor Sound Level |
53 dB(A) |
| Drain Size |
5/8" |
| Total Weight |
143.3 lbs (Indoor: 37.5 lbs, Outdoor: 105.8 lbs) |
| Indoor Dimensions (H × W × D) |
12.1" × 39.9" × 8.7" |
| Outdoor Dimensions (H × W × D) |
23.5" × 31.1" × 11.9" |
| Mini-Split Type |
Wall Mounted |
What our Experts Think
-
Unmatched Efficiency: 30.5 SEER rating delivers industry-leading cooling and heating while minimizing energy use.
-
Single-Zone Precision: Maintains consistent, comfortable temperatures in individual rooms or spaces.
-
Ultra-Quiet Operation: Advanced technology ensures near-silent performance.
-
Eco-Friendly Refrigerant: Uses R-32 refrigerant for a lower environmental footprint.
-
Easy Installation: Wall-mounted design simplifies setup for new or replacement installations.
-
Premium Reliability: GREE Sapphire series is engineered for durability, performance, and long-term comfort.
Q&A
Q: What is the GREE Sapphire 12K BTU Mini-Split?
A: A single-zone, wall-mounted heat pump delivering high-performance heating and cooling for medium-sized rooms.
Q: How energy-efficient is it?
A: 30.5 SEER rating ensures exceptional energy savings and lower operating costs.
Q: Can it heat and cool?
A: Yes, it provides year-round comfort with both heating and cooling modes.
Q: What size space can it serve?
A: Ideal for rooms up to 500 sq. ft.
Q: What voltage does it require?
A: Designed for 230V residential use.
Q: Why choose it?
A: Ultra-efficient, quiet operation, sleek design, and easy wall-mounted installation.
Maintenance Tips
-
Clean indoor filters every 2–4 weeks to maintain airflow and efficiency.
-
Keep the outdoor unit free of leaves, dust, and debris.
-
Check and clear the condensate drain to prevent water buildup or mold.
-
Monitor refrigerant levels; contact a certified technician if low.
-
Schedule annual professional servicing for peak performance and longevity.
-
Use recommended temperature settings and modes to maximize energy efficiency.
