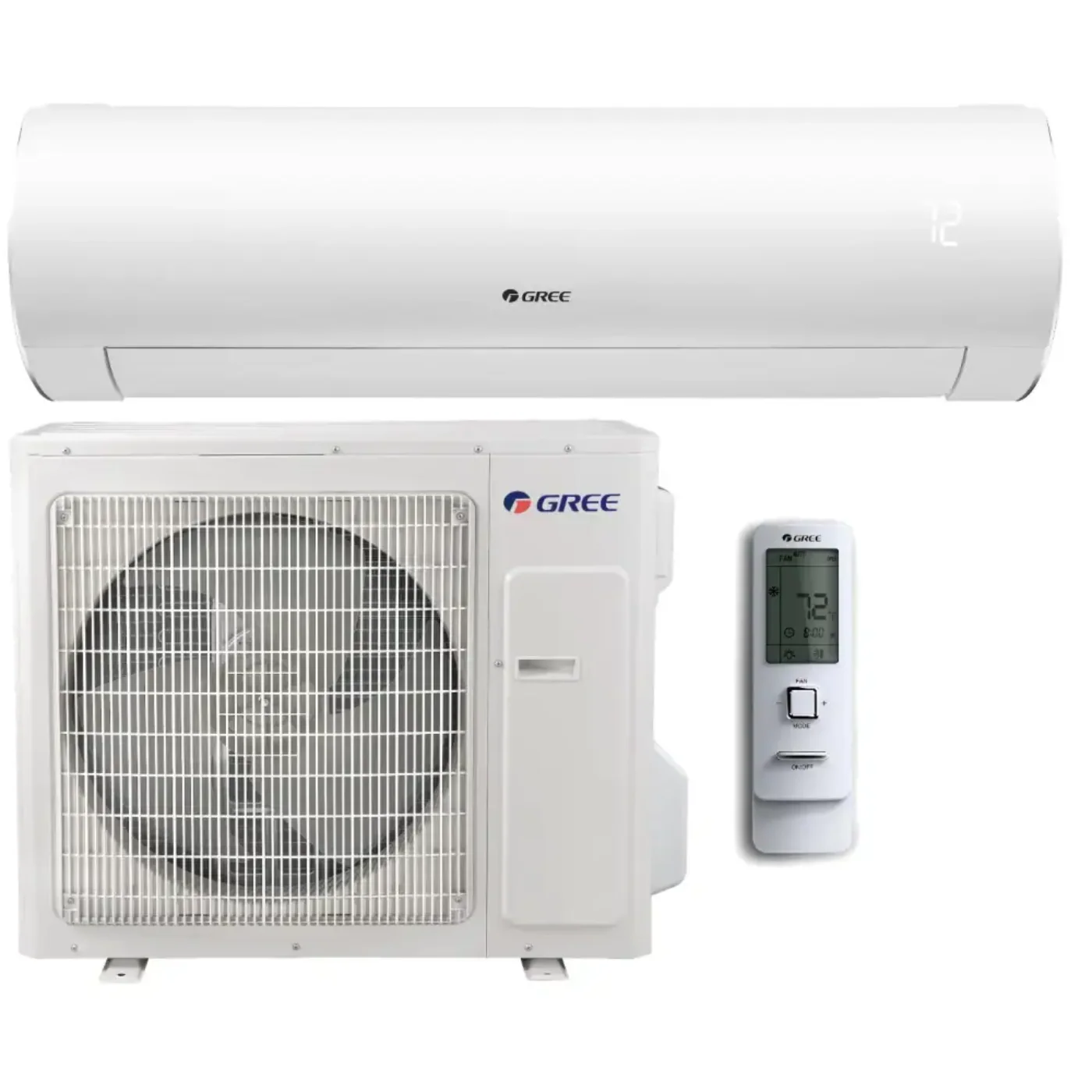

GREE Sapphire 24K BTU 21.5 SEER Wall Mount Mini-Split Single Zone Heat Pump - SAP24HP230V1A
The Gree Sapphire is an ultra high-efficiency ductless mini split system from Gree. It features a quiet, unobtrusive design with advance performance and an industry leading SEER in cooling and HSPF in heating. It also will deliver up to 90% heating capacity even in extreme cold down to -22 F. A wireless remote controller with timer is included.
With Gree's G-10 Inverter Technology, the outdoor unit can reach the desired room temperature much faster and more consistently. The outdoor unit is built of heavy gauge steel, which makes for easy maintenance and durability in all kinds of weather. The Sapphire system also has a built-in computer which continuously scans for errors, malfunctions, and fault codes to make troubleshooting and repair easy.
In addition to its quiet operation, it has a subtle appearance designed to blend into any living space. It also has up to seven fan speeds to provide maximum comfort. The Sapphire series also features washable polymeric air filters which improve air quality.
Features
- Heating, Cooling, Dry, and Fan modes
- High efficiency G-10 Inverter Technology
- Multiple speed fan
- Polymeric air filters
- I Feel mode
- IR remote control included
- Privacy lock mode
- Sleep mode
- Fahrenheit °F / Celsius °C
- Self-diagnosis
- Low voltage start-up
- Intelligent defrost
- Blue fin condenser
Specifications
| SKU |
SAP24HP230V1AH / SAP24HP230V1AO |
| Brand / Manufacturer |
Gree |
| System Type |
Wall-Mounted Mini-Split Heat Pump |
| Zone Compatibility |
Single Zone |
| Cooling Capacity |
22,000 BTU |
| Heating Capacity |
24,000 BTU |
| BTU / Tonnage |
24,000 BTU / 2 Ton |
| AHRI Certificate Number |
10157571 |
| Energy Star Certified |
Yes |
| HSPF |
12 |
| EER |
13 |
| Maximum Airflow |
383 – 765 CFM |
| Refrigerant |
R410A |
| Compressor Type |
Rotary |
| Electrical Requirements |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Minimum Breaker Size |
22 Amps |
| Maximum Breaker Size |
35 Amps |
| Liquid Line Size |
1/4" |
| Suction Line Size |
5/8" |
| Minimum Line Set Length |
10 ft |
| Maximum Line Set Length |
164 ft |
| Heating Operating Range (Outdoor) |
-22°F to 75°F |
| Cooling Operating Range (Outdoor) |
0°F to 129°F |
| Indoor Sound Level |
34 – 54 dB(A) |
| Outdoor Sound Level |
59 dB(A) |
| Total System Weight |
201.8 lbs |
| Indoor Unit Weight |
43 lbs |
| Outdoor Unit Weight |
158.8 lbs |
| Indoor Dimensions (H × W × D) |
13" × 44.2" × 9.7" |
| Outdoor Dimensions (H × W × D) |
31.1" × 36" × 14.6" |
| Drain Size |
5/8" |
| Warranty |
5-Year Limited Parts Warranty |
| Safety Information |
Proposition 65 Warning |
What our Experts Think
-
High‑Efficiency Performance: Delivers up to 21.5 SEER cooling and strong heat‑pump heating for year‑round comfort.
-
Energy Star Rated: Meets energy‑efficiency standards to reduce utility costs and environmental impact.
-
Quiet & Comfortable: Whisper‑quiet indoor operation with multiple fan speeds and precise airflow control.
-
Smart & Convenient Controls: Wi‑Fi ready with app control, remote operation, and advanced modes like “I‑Feel,” sleep, and timer.
-
Reliable All‑Season Use: Inverter technology and intelligent defrosting provide heating even in cold conditions (down to approx. ‑22 °F).
-
Sleek, Discreet Design: Slim wall‑mounted profile blends into interiors while delivering robust comfort.
Q&A
Q: What is the capacity of the GREE Sapphire SAP24HP230V1A?
A: It has a 24,000 BTU capacity with 21.5 SEER efficiency, ideal for single-zone heating and cooling.
Q: What type of system is it?
A: Wall-mounted mini-split heat pump for efficient, space-saving installation.
Q: What voltage does it use?
A: Operates on 230V for reliable residential or commercial performance.
Q: Is it suitable for single-zone applications?
A: Yes, designed for precise temperature control in one room or area.
Q: What is it ideal for?
A: Perfect for efficient heating and cooling in homes, offices, or small commercial spaces.
Maintenance Tips
-
Clean or replace air filters every 1–3 months to maintain airflow.
-
Wipe coils, indoor unit, and drain pan with a soft cloth to prevent buildup.
-
Keep condensate drain lines clear to avoid water damage.
-
Inspect electrical connections and mounting brackets seasonally.
-
Schedule professional HVAC servicing annually for optimal efficiency and longevity
