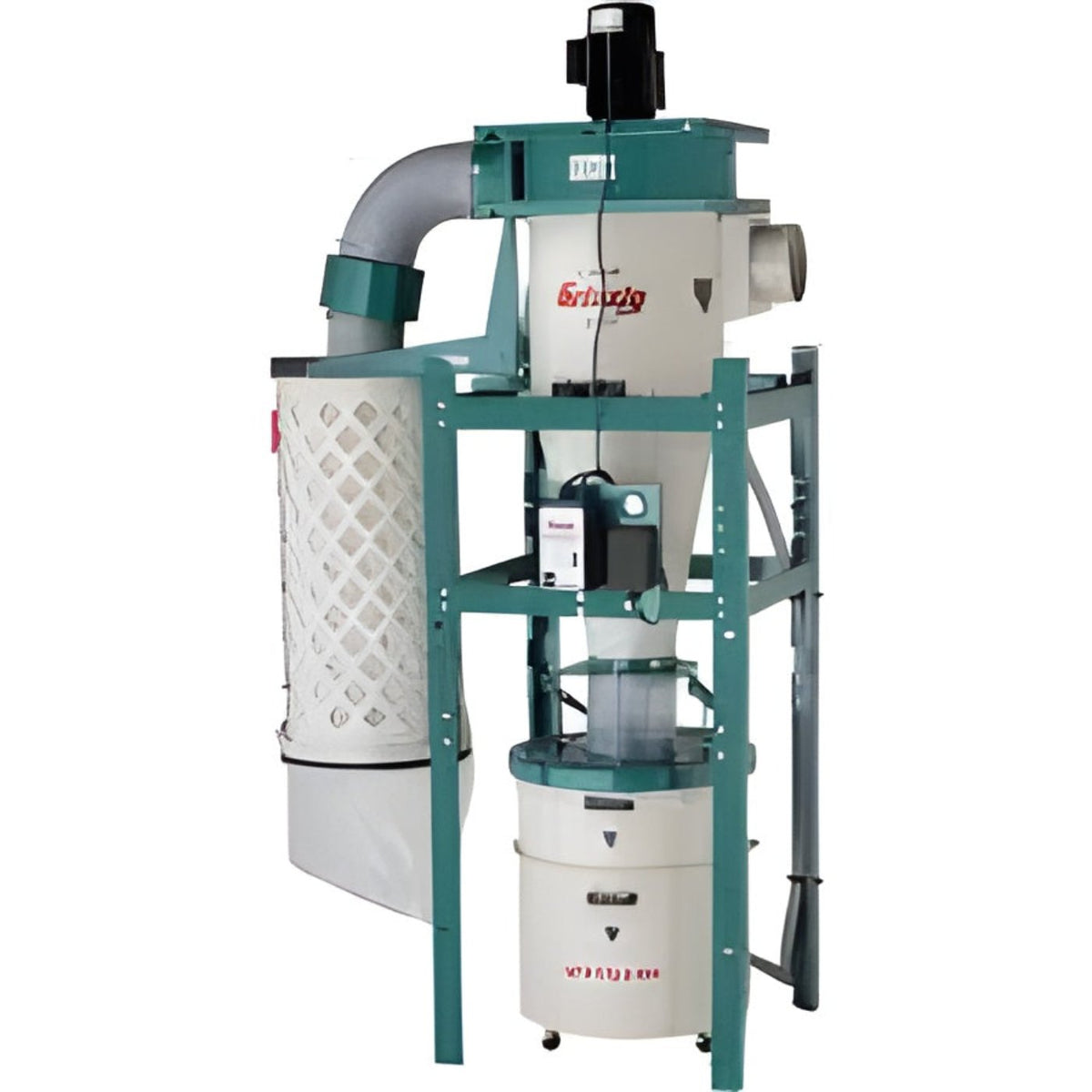

Grizzly Industrial 3 HP Cyclone Dust Collector

A dust collector ready to hook up to three woodworking machines at once.

The cyclonic action of the G0441 3 HP Cyclone Dust Collector separates the heavy dust particles from the fine particles and drops them into the 55-gallon steel drum.

The fine dust travels past the 15-1/2' diameter steel impeller and is then trapped by a cartridge filter made of spun-bond polyester that filters 99.9% of particles from 0.2 to 2 microns in size.

The cartridge filter is pleated to provide 113 square feet of surface area for efficient air movement and a clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance.

Casters mounted to the drum also make disposal of the larger chips and dust as easy as it gets.

Other features include: a vertical motor support for reduced vibration, thick walled 11-gauge steel blower housing, 14-gauge steel cyclone body, 360° blower rotation for easy connection to a duct system, TEFC Class 'F' motor, and a magnetic switch with remote control device.

Stand Sold Separately

While a stand is not included, the optional steel legs and support frame of the H7509Z would make setup of the G0441 easier and also the increase the stability of the unit.

Like all Grizzly machines, the G0441 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0441 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your dust collection system.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for your machine are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

CSA certified

Specifications

• Motor: 3 HP, 220V, single-phase, 22A
• Intake hole size: 8'
• Impeller: 15-1/2' steel
• Airflow capacity: 1654 CFM @ 2.0' SP
• Max static pressure: 14.2'
• Filter surface area: 113 sq. ft.
• Filtration: 0.2–2 micron
• Collection size: 55-gallon drum
• Sound rating: 83–85 dB
• Overall dimensions: 60-1/4' W x 38-1/2' D x 109' H
• Approximate shipping weight: 400 lbs.

Features

• Blower and barrel rotate 360° for inlet and outlet positioning
• Casters mounted on collection drum for easy moving
• Gentle brush cleaning mechanism inside cartridge filter
• Ramped inlet maximizes dust flow into collection drums
• Reinforced motor mount
• Remote controlled magnetic switch
• Wall mountable blower design

What Our Experts Think

The Grizzly Industrial 3 HP Cyclone Dust Collector is a high-performance solution for keeping your workspace clean and safe. Here’s why it’s a top choice:

• 3 HP Motor: Delivers powerful suction to handle multiple machines simultaneously, improving overall dust collection efficiency.
• Cyclone Design: Effectively separates heavy debris from fine dust, reducing wear on the filter and increasing the lifespan of the system.
• Large Capacity: Features a sizable collection bin that minimizes downtime for emptying and increases productivity.
• HEPA Filtration Option: Ensures superior air quality by capturing even the finest dust particles, ideal for environments where clean air is critical.
• Durable Build: Sturdy construction guarantees long-lasting performance, even in demanding workshop conditions.

Q&A

Q: What is the Grizzly Industrial 3 HP Cyclone Dust Collector designed for?
A: This dust collector is designed to efficiently remove dust and debris from woodworking or metalworking shops, improving air quality and maintaining a cleaner work environment.

Q: How powerful is the motor?
A: It features a 3 HP motor, providing ample suction power for handling large dust volumes from multiple machines.

Q: What is the airflow capacity?
A: The dust collector provides high airflow to capture a large amount of dust and debris, ensuring efficient collection throughout your workspace.

Q: What type of filtration does it use?
A: It uses a cyclone separation system combined with high-quality filtration bags, effectively capturing fine dust particles and improving overall filtration.

Q: Is it easy to maintain?
A: Yes, it features a large collection bin that is easy to empty, along with a durable design for minimal maintenance needs.

Q: Why choose the Grizzly 3 HP Cyclone Dust Collector?
A: With its powerful motor, efficient cyclone filtration system, and high airflow, it’s perfect for professional shops needing reliable dust collection to maintain a clean and safe working environment.

Maintenance Tips

• Clean Filters: Regularly clean the main and HEPA filters to maintain maximum airflow and dust collection efficiency. Replace filters when they show signs of wear.
• Empty Dust Bin: Empty the dust collection bin before it becomes overfilled to prevent loss of suction and reduce strain on the system.
• Inspect Hoses and Fittings: Check for leaks, cracks, or blockages in hoses and fittings, and replace any damaged parts.
• Motor Maintenance: Keep the motor clean and free of dust buildup to ensure it runs efficiently and doesn’t overheat.
• Check for Loose Parts: Tighten any loose parts, including clamps and bolts, to reduce vibrations and prevent mechanical failures.
• Dust Collection System Check: Inspect the entire dust collection system for blockages or any restrictions in airflow to ensure maximum performance.
