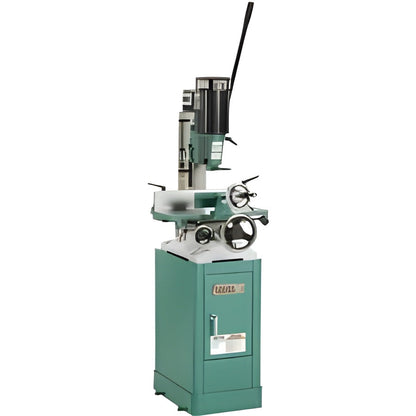

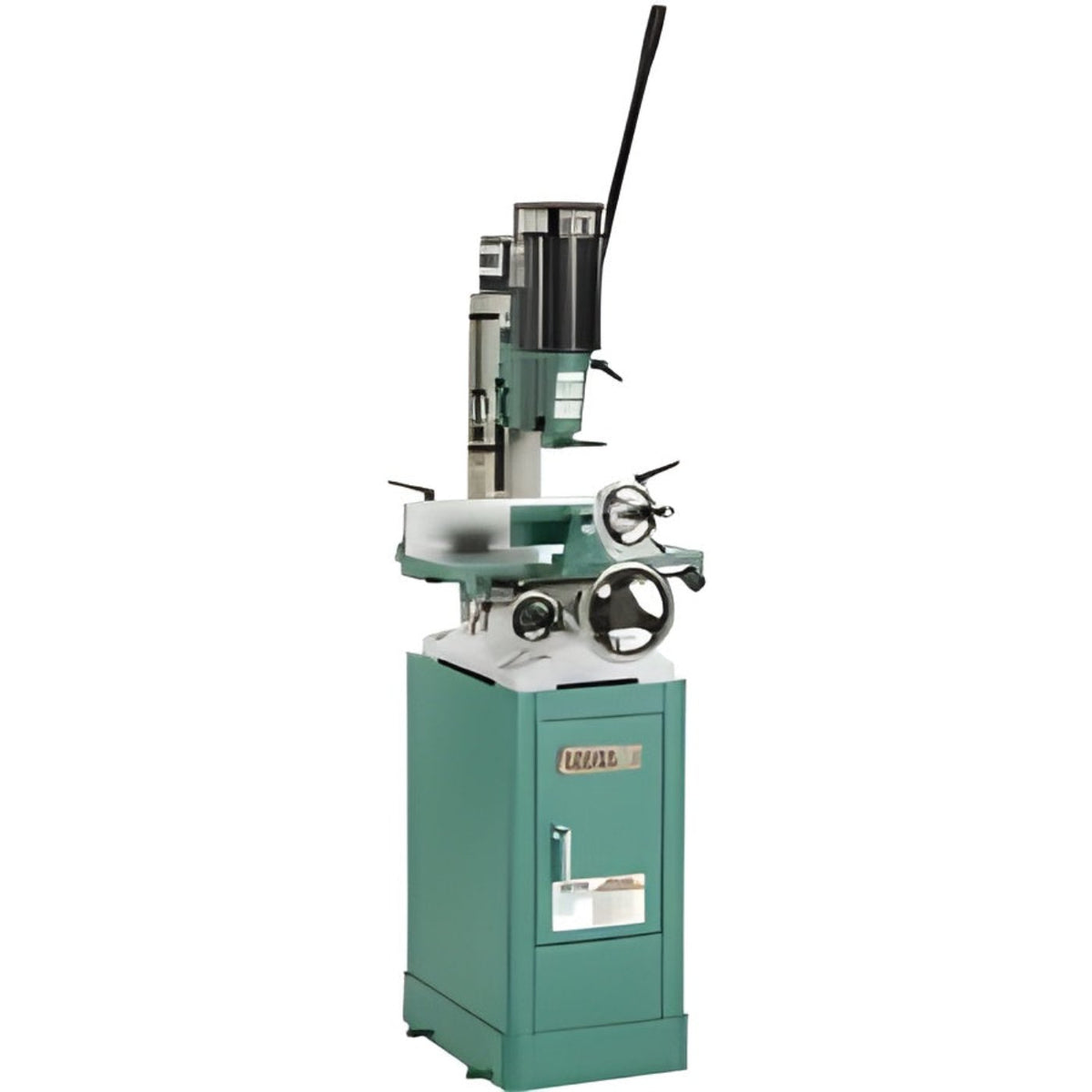

The flexibility to perform compound-angled mortises with perfect control is what sets this Heavy-Duty Mortiser apart from all others.
The G0448 Heavy-Duty Mortiser With Stand has simple adjustments allow the head to tilt up to 30° left or right, and the fence also pivots up to 30°, providing just about any combination of angles.
Handwheel controls allow you to move the table left/right and forward/backward with precision and ease.
Adjustable work stops help ensure consistent results with production runs.
Round all this out with a 1-1/2 HP motor and solid cast-iron construction, and you'll see why this has become the mortiser of choice for busy shops around the country!
Like all Grizzly mortisers, the G0448 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0448 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mortiser.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the mortiser may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Specifications
- Motor: 1-1/2 HP, 110V/220V (prewired 110V), single-phase, 14A/7A
- Table size: 19' x 12-1/2'
- Vertical spindle travel: 9'
- Head vertical travel: 3'
- Table longitudinal travel: 14-1/2'
- Table cross travel: 3'
- Column tilt: + or – 30°
- Fence angle: 0-30°
- Chisel capacity: 1/4' - 1-1/2'
- Maximum chisel stroke: 6-1/4'
- Maximum workplace width: 9'
- Chuck capacity: 1/2'
- Collar size: 5/8' and 3/4'
- Spindle speed: 1725 RPM
- Footprint: 20-1/2' x 17-1/2'
- Overall size: 71'H X 36'W X 24'D
- Approximate shipping weight: 356 lbs.
Features
- Solid cast iron construction
- Dovetail ways on column
- Rack-and-pinion headstock control
- Gas-spring assisted head return
- Work stop with extension rods for setting each workpiece exactly the same
- Quick acting rack-and-pinion drive on longitudinal slide speeds up production of wide mortises
- Tilting column
- Angled fence adjustment
- Large hold down clamp
- Steel cabinet stand with indexed storage shelf for mortising chisels
- Stand included
What Our Experts Think
The Grizzly Industrial Heavy-Duty Mortiser with Stand is designed to make mortising tasks quick and precise. Here’s why it’s a great choice for woodworkers:
-
Powerful Motor: Offers strong, reliable power to handle tough mortising tasks in hardwoods and softwoods alike.
-
Heavy-Duty Construction: Built with a sturdy frame and robust components, providing long-lasting durability and stability during operation.
-
Adjustable Fence: Allows for accurate positioning and precise mortises on a variety of workpieces.
-
Easy Operation: Features simple controls and smooth operation, making it user-friendly for both beginners and professionals.
-
Includes Stand: Comes with a sturdy stand that ensures a solid and stable working surface, reducing vibrations during use.
Q&A
Q: What is the Grizzly Industrial Heavy-Duty Mortiser with Stand designed for?
A: This mortiser is designed for creating precise mortises in wood, perfect for joinery in furniture making, cabinetry, and other woodworking projects.
Q: How powerful is the motor?
A: It features a powerful motor that provides consistent, reliable performance for heavy-duty mortising tasks.
Q: What is the capacity of the mortiser?
A: The mortiser is capable of handling large workpieces, with adjustable chisel and bit sizes to accommodate different mortise dimensions.
Q: Does it come with a stand?
A: Yes, the mortiser includes a sturdy stand that provides stability and convenience for easier use during woodworking tasks.
Q: Is it easy to adjust?
A: Yes, it offers adjustable settings for depth, stroke, and workpiece positioning, ensuring precise and customizable cuts.
Q: What types of projects is this mortiser ideal for?
A: It is ideal for creating strong, accurate mortises in furniture, cabinets, and other woodworking projects that require precise joinery.
Q: Why choose the Grizzly Heavy-Duty Mortiser with Stand?
A: It combines durability, powerful performance, and ease of use, making it a great choice for woodworkers seeking high-quality mortises and strong joinery for their projects.
Maintenance Tips
-
Chisels and Bits Inspection: Regularly inspect the chisels and bits for signs of wear or dullness. Sharpen or replace them to ensure clean, precise cuts.
-
Lubricate Moving Parts: Apply lubricant to the feed mechanism, spindle, and other moving parts to reduce friction and prevent rust.
-
Clean Debris: Remove wood chips, dust, and debris from the machine after each use to keep the motor and components clean.
-
Check Belt Tension: Inspect the drive belt for proper tension and wear. Adjust or replace the belt if necessary.
-
Check Alignment: Ensure the chisel and bit are properly aligned for accurate mortising. Periodically check and adjust the alignment as needed.
-
Inspect Stand: Ensure the stand is stable and secure. Tighten any loose bolts to prevent wobbling and maintain safety during operation.
