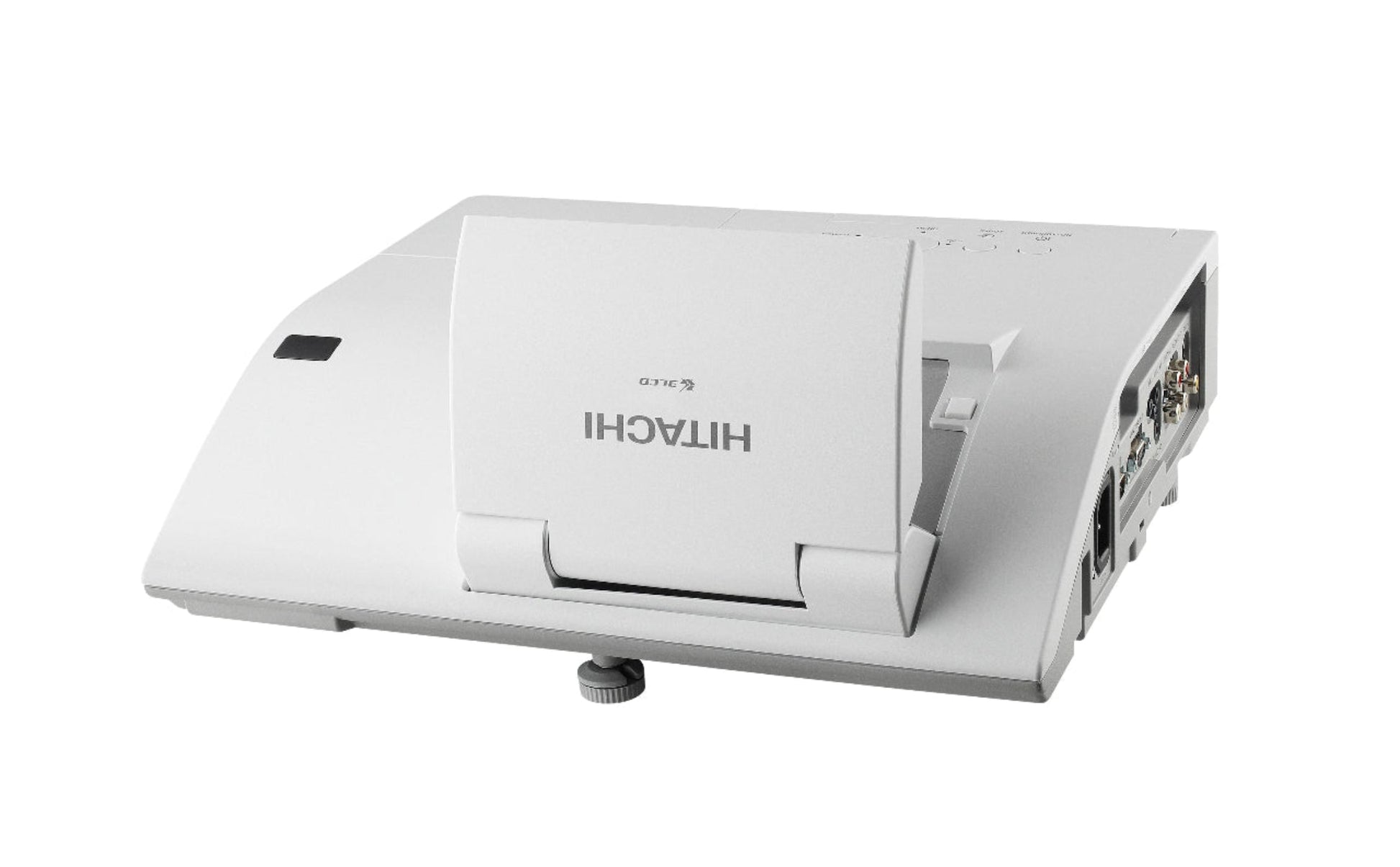

Hitachi 3LCD Short Throw Projector - CPAW312WN
Hitachi’s CP-AW312WN ultra short throw LCD projector combines an array of advanced features in a compact, portable design perfectly suited for classrooms of any size. Small in size, but big on performance, the CP-AW312WN provides vibrant image quality, cost-effective operation, and long-lasting reliability. The CP-AW312WN incorporates a cloning function which enables you to copy configuration settings from one projector to others of the same modelvia USB memory. Plus, Hitachi’s Intelligent Eco Mode with ImageCare combines optimal picture performance with energy savings for a lower total cost ofownership. For added peace of mind, Hitachi’s CP-AW312WN is also backed by a generous and our world-class service and support programs.
Features
- 3000 ANSI LUMENS
- WXGA 1280 X 800
- SHORT-THROW PROJECTOR
Specifications
| Custom Aspect Ratio |
16:10 (WXGA) |
| Native Resolution |
1280 x 800 |
| Contrast Ratio |
5000:1 |
| Throw Distance |
0.4 - 1.3 ft. |
| Lens |
Manual |
| Inputs |
HDMI x 2, 15-pin mini D-sub x 1, Mini DIN 4-pin x 1, RCA jack x 1, 15-pin D-sub x 2, 3.5 mm stereo mini jack x 2, RJ-45 port, USB Type A x 1 |
| Outputs |
1 x Stereo Mini Jack, 1 x RGB D-Sub 15pin |
| Display Technology |
LCD |
| Wireless Networking |
No |
| Speakers |
10W Mono |
| Economode |
4000 hours |
| Audible Noise |
35.0 dB |
| Lamp Life |
2500 hours |
| Short Throw |
Yes |
| Aspect Ratio |
16:10 (WXGA) |
| Image Size (Diagonal) |
60.0 - 100 in. |
| Lens Shift |
Horizontal & Vertical |
| Data/Video Signals |
720p, 1080i, 1080p/60, 1080p/50, 525p, 576i, 576p |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
9.0 lbs |
| Projector Methods |
Front, Rear, Ceiling |
| Dimensions (WxDxH) |
13.6 x 11.9 x 4.0 in. |
| Power Consumption |
310W |
What our Experts Think
-
Crisp WXGA Resolution – 1280x800 resolution with 3LCD technology for vibrant, high-quality visuals.
-
Short Throw Projection – Large, clear images from a short distance, reducing glare and shadows.
-
Bright & Clear – 3,200 lumens ensure excellent visibility in classrooms and meeting rooms.
-
Versatile Connectivity – Equipped with HDMI, USB, LAN, and wireless options for seamless integration.
-
Energy-Efficient & Durable – Long lamp life and eco-friendly features lower maintenance costs
Q&A
Q: What is the Hitachi CPAW312WN?
A: The Hitachi CPAW312WN is a 3LCD short throw projector designed for classrooms, conference rooms, and small venues, delivering high-quality visuals with minimal space requirements.
Q: What are the best use cases for this projector?
A: Ideal for classrooms, meeting rooms, and business presentations, especially where space is limited but high-quality projection is required.
Q: Is this projector ceiling mountable?
A: Yes, it can be wall or ceiling-mounted for optimal positioning.
Maintenance Tips
-
Clean Air Filters – Regularly clean or replace filters to maintain airflow.
-
Keep Vents Clear – Ensure proper ventilation to prevent overheating.
-
Wipe Lens Gently – Use a microfiber cloth to remove dust and smudges.
-
Update Firmware – Install the latest updates for optimal performance.
-
Use a Surge Protector – Protect internal components from power fluctuations.
-
Minimize Dust & Humidity – Operate in a clean, dry environment.
-
Power Down Properly – Allow proper cooldown to extend lamp life.
