Hitachi 3LCD - CPWX3011N
The WXGA-resolution (1,200 x 800) Hitachi CP-WX3011N 3LCD Projector has 3,000 ANSI lumens of projection power at a 2,000:1 contrast ratio so it will give you a brilliant image, even when you can't achieve theater-level darkness.
Its 0.63" 3LCD imaging panels (the part that creates the image) deliver sharper and brighter pictures, reproducing an amazing 16.7 million smooth, seamless colors combined with an unparalleled grayscale range. The 16:10 aspect ratio is not only widescreen-laptop friendly but is widely regarded as the most pleasing to the eye.
Images can be displayed in a wide variety of formats. Of course, the CP-WX3011N can project in 720p, 1080i and 1080p high definition. Its international credentials are equally impressive. It can project images in the NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, and SECAM video formats and it has a 100 - 240VAC 50 / 60Hz power supply.
No matter where you use it, if you need to make presentations, you'll appreciate how you can use the remote control's mouse function. Just plug one end of a USB cable (available separately) into your laptop and the other into the projector's USB type B port and you're no longer tied to your computer when presenting. If you want to go computer-less, slip a thumbdrive into the CP-WX3011N's USB Type B port and screen video or still content. At only 7.9 lb the projector is eminently portable, making multiple venue presentations plausible.
The CP-WX3011N makes your audience's life easier too. It can display all four closed captioning channels as well as all four text channels from programming sources that provide CC. CC is useful not only for the hearing impaired but also for those learning English as a second language and for everyone working in noisy environments like gyms or tradeshows.
The CP-WX3011N is seen but not heard in quiet environments. Its fan noise is a mere 35 dB in Standard mode and in Eco mode it runs at 29 dB; literally quieter than a whispered conversation.

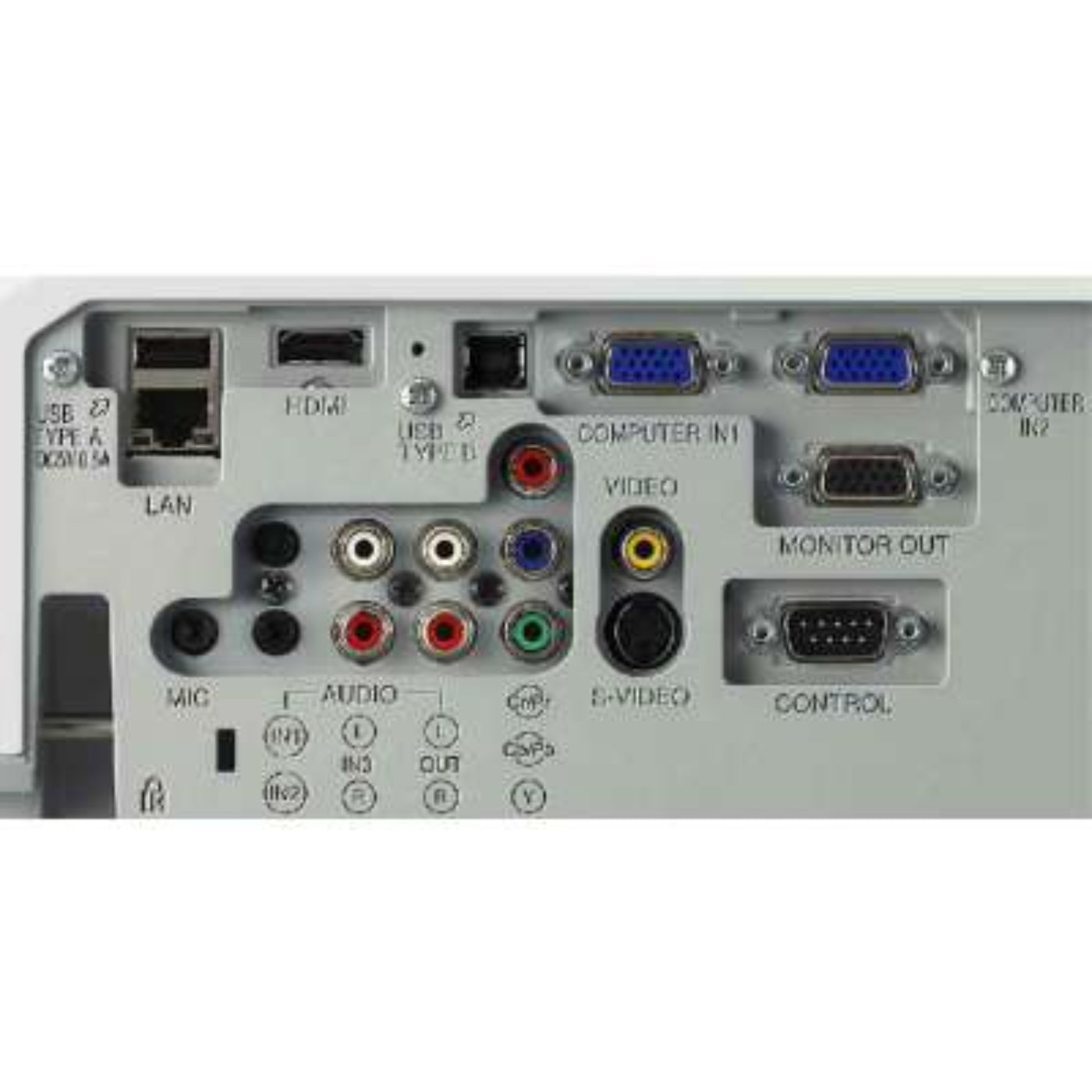

Finally, the CP-WX3011N possesses superior connectivity and control features. HDMI, 3 component inputs and a microphone input are all on board. PJlink allows network control and maintenance of multiple Hitachi projectors or any projector that is PJlink compliant. The PJMessenger even allows text message display on networked computers, which is ideal for bulletins in large institutions.
Features
- 3000 ANSI LUMENS
- WXGA 1280 X 800
Specifications
| Custom Aspect Ratio |
4:3 (XGA) |
| Native Resolution |
1024 x 768 |
| Contrast Ratio |
2000:01:00 |
| Throw Distance |
3.4 - 29.7 ft. |
| Lens |
Manual, 1.20:1 |
| Inputs |
1 x S-Video, 1 x Composite, 1 x Component, 2 x Stereo Mini Jack, 2 x RCA Audio, 2 x RGB D-Sub 15pin |
| Outputs |
2 x RCA Audio, 1 x RGB D-Sub 15pin |
| Display Technology |
LCD |
| Wireless Networking |
No |
| Speakers |
2 x 8W |
| Economode |
29.0 dB, 6000 hours |
| Audible Noise |
35.0 dB |
| Aspect Ratio |
4:3 (XGA) |
| Image Size Diagonal |
30.0 - 300.0 in. |
| Data / Video Signals |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM, HDTV (480i, 480p, 576i, 576p, 720p, 1080i, 1080p) |
| Digital Keystone |
Vertical |
| Unit Weight |
7.9 lbs. (3.58 kg) |
| Projector Methods |
Front |
| Dimensions (WxDxH) |
12.5in. x 11.3in. x 3.9in. |
| Power Consumption |
330W |
What our Experts Think
-
Clear WXGA Resolution – 1280x800 resolution with 3LCD technology for vibrant, high-quality visuals.
-
Solid Brightness – 3,300 lumens for clear images in environments with moderate lighting.
-
Multiple Connectivity Options – Offers HDMI, USB, VGA, and LAN for easy integration with a variety of devices.
-
Portable Design – Lightweight and compact, ideal for easy transport and setup in classrooms or meeting rooms.
-
Eco-Friendly & Cost-Effective – Long lamp life and energy-saving features reduce operating costs.
Q&A
Q: What is the resolution and brightness of the CPWX3011N?
A: The CPWX3011N features WXGA (1280x800) resolution with 3,200 lumens brightness, ensuring clear and vibrant images even in well-lit environments.
Q: What projection technology does the CPWX3011N use?
A: The CPWX3011N uses 3LCD technology, providing bright, accurate colors and high-quality images for professional presentations.
Q: What is the contrast ratio of the CPWX3011N?
A: The CPWX3011N has a 2,000:1 contrast ratio, delivering deep blacks and detailed image clarity.
Q: What connectivity options are available with the CPWX3011N?
A: The CPWX3011N supports HDMI, VGA, USB, and network connections, making it compatible with various devices.
Q: Is the CPWX3011N portable?
A: Yes, its compact and lightweight design makes it easy to transport and set up in different environments.
Q: What environments is the CPWX3011N ideal for?
A: The CPWX3011N is perfect for classrooms, meeting rooms, and small to medium-sized conference spaces.
Maintenance Tips
-
Clean the Lens Regularly – Use a soft, lint-free cloth to gently clean the lens and avoid scratches or dust buildup.
-
Replace the Air Filter – Clean or replace the air filter every 500-1000 hours of use to ensure proper airflow and prevent overheating.
-
Clear Dust from Vents – Use compressed air to remove dust and debris from the vents to keep the cooling system efficient.
-
Monitor Lamp Life – Keep track of the lamp's usage and replace it when the recommended hours are reached to maintain optimal brightness.
-
Turn Off When Not in Use – Always power off the projector when not in use to extend the lifespan of the lamp and air filter.
-
Ensure Proper Ventilation – Place the projector in a well-ventilated area to prevent overheating and ensure smooth performance.
