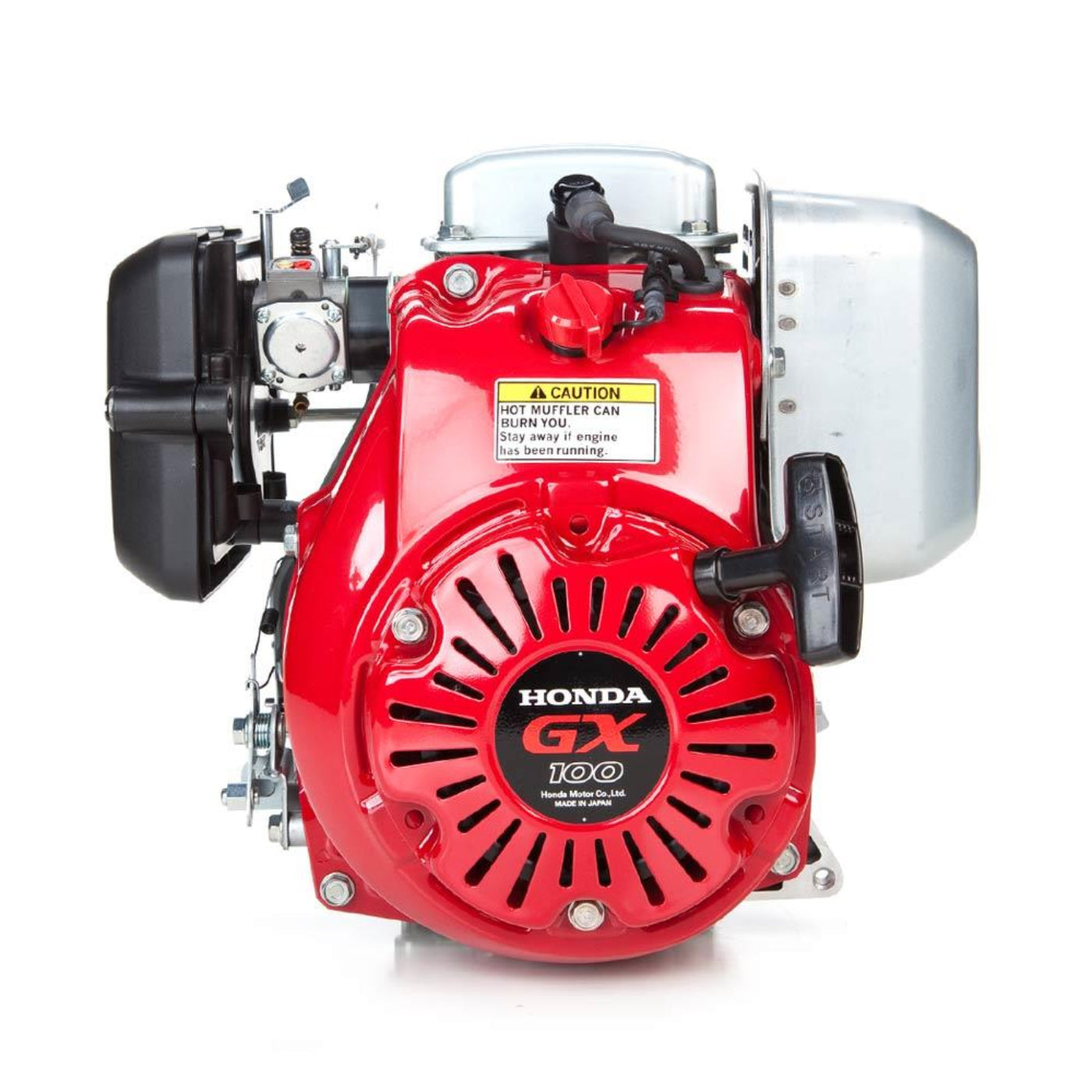

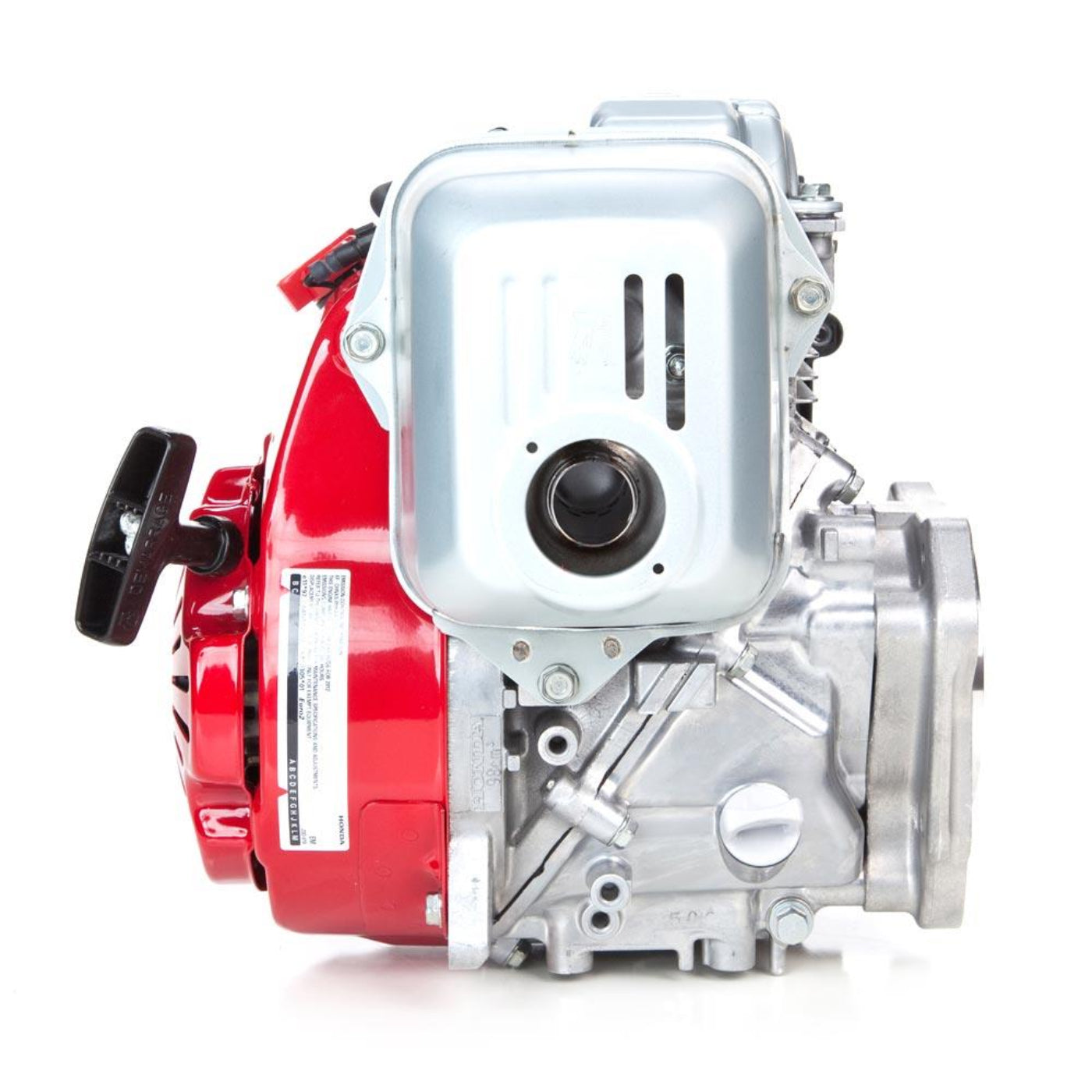

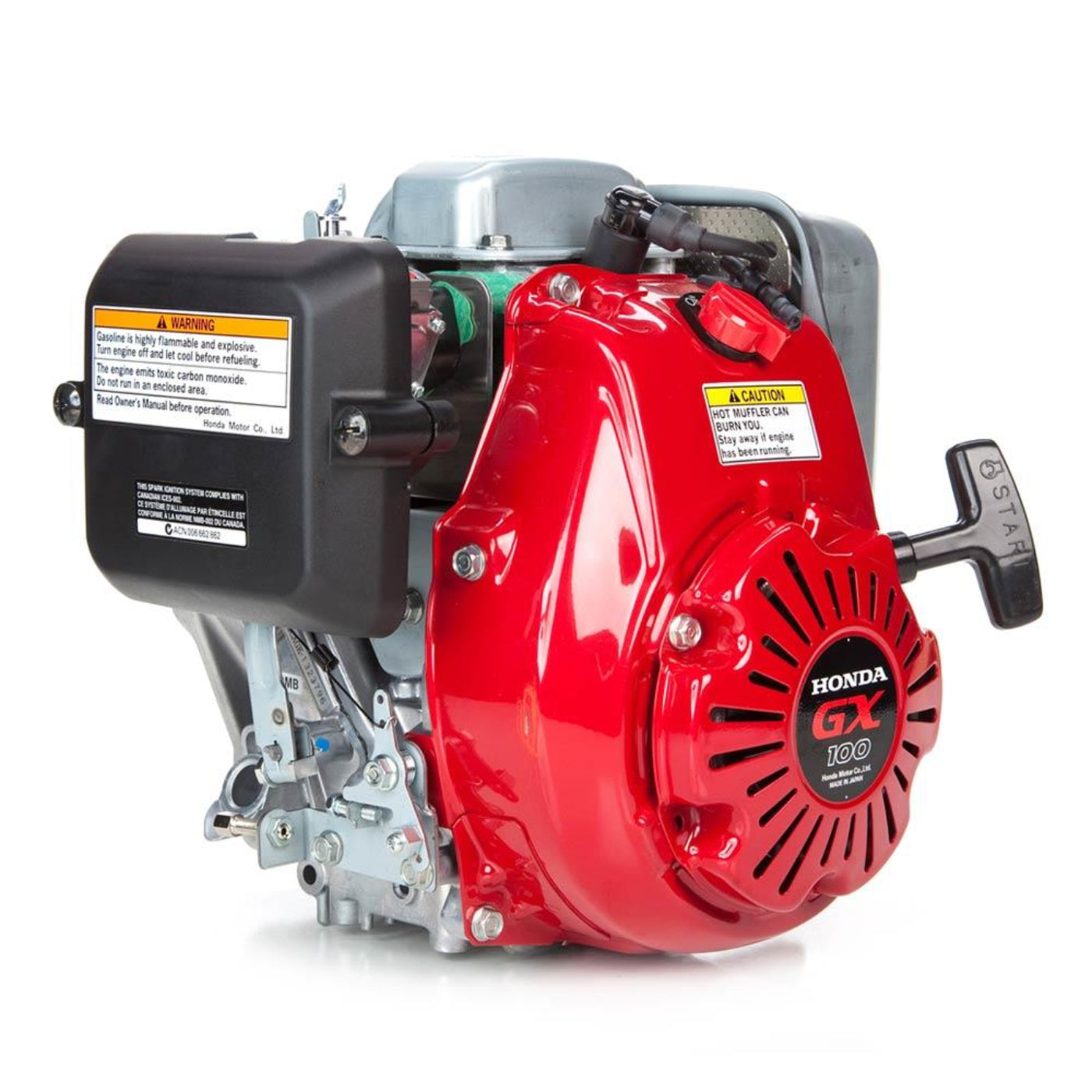

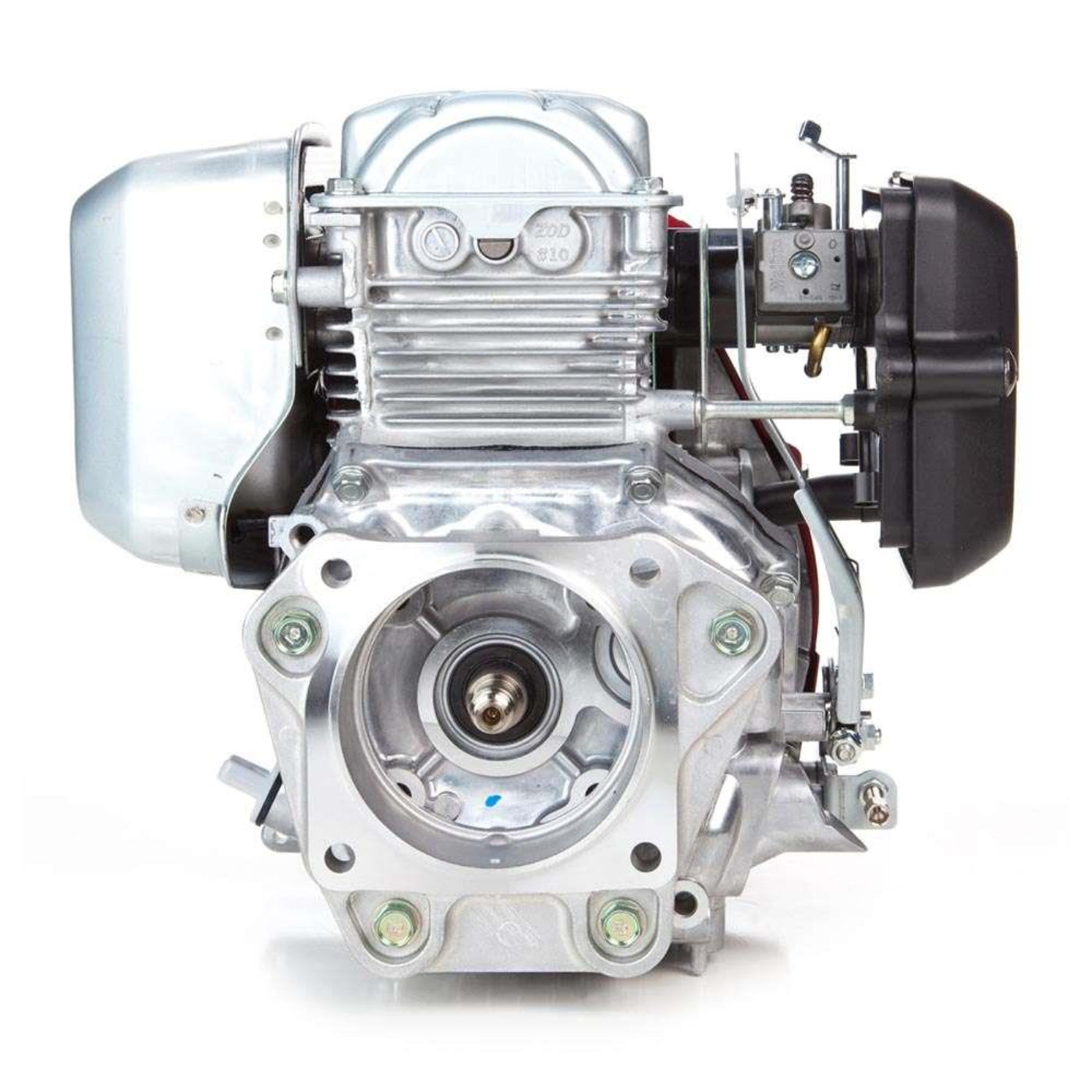

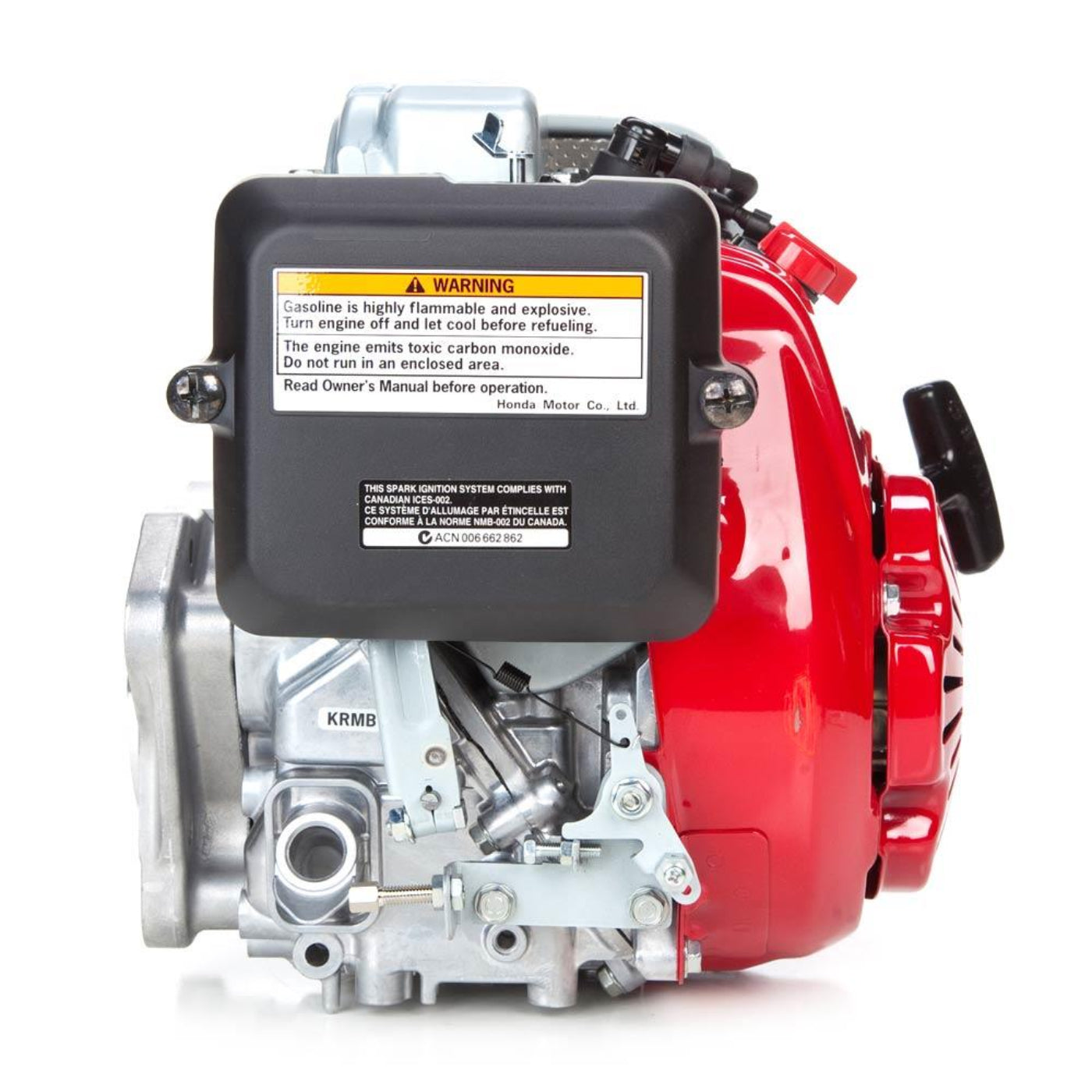

Honda Horizontal Engine - HDA,GX100-KRMB
Honda GX100 KRMB Horizontal OHC Engine, 98.5cc, 2.8 Net HP, M12 x 1.25 x 77mm Crankshaft
Features:
Precision camshaft design offers precise valve timing and optimal valve overlap, OHC design for increased efficiency and optimal power transfer, and High compression ratio for better fuel efficiency
🞽
Large fuel tank and easily accessible spark plug
🞽
Large capacity, multi-chamber exhaust system
🞽
Reduced mechanical noise due to light weight, noise-reducing materials
🞽
Ball bearing supported crankshaft for greater stability
Specifications
| Brand |
Honda |
| Model Number |
GX100RTKRMB |
| Internal ID |
HDA-GX100-KRMB |
| Warranty |
3 Year Residential | 3 Year Commercial |
| Available to California |
Not Available to Ship to California |
| Weight |
28.0 lb |
| Power Output |
2.8 HP @ 3600 RPM |
| Torque |
4.2 lb-ft (5.7 Nm) @ 3600 RPM |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Rammer Type |
| Crankshaft Diameter |
M12 x 1.25 |
| Crankshaft Length |
77mm |
| Crankshaft Dimensions |
M12 x 1.25 x 77mm |
| Crankshaft Rotation Direction |
Counter-Clockwise |
| Starter Type |
Recoil |
| Ignition System |
Transistorized Magneto |
| Carburetor |
Float Type |
| Number of Cylinders |
One |
| Cylinder Bore |
Cast Iron Sleeve |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.42 qt |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
0.81 qt |
| Fuel Pump |
N/A |
| Governor System |
Centrifugal Mechanical |
| Lubrication System |
Splash |
| Controls |
Remote Adjust Throttle |
| Bore x Stroke |
56mm x 40mm |
| Compression Ratio |
8.5 : 1 |
| Charging System |
N/A |
| Muffler |
Rammer |
What Our Experts Think
-
Reliable Power: The Honda GX100-KRMB Horizontal Engine offers consistent and dependable performance, making it ideal for light-duty equipment and small machinery.
-
Compact Design: With a compact and lightweight build, it ensures easy installation and operation in tight spaces without sacrificing power.
-
Fuel Efficiency: Designed with Honda's advanced fuel technology, this engine delivers excellent fuel efficiency, reducing operating costs.
-
Low Vibration: Engineered to minimize vibration, it provides smoother operation, enhancing comfort and reducing wear on equipment.
-
Durability: Built to withstand everyday wear and tear, this engine is known for its robust design and long-lasting performance.
-
Versatile Use: A great option for small pumps, generators, and other compact outdoor machinery, delivering reliable performance across multiple applications.
Q&A
Q: What is the Honda Horizontal Engine - HDA, GX100-KRMB?
A: The Honda Horizontal Engine - HDA, GX100-KRMB is a compact, high-performance engine designed for light-duty outdoor equipment. It offers reliable power for a range of applications like small pumps, pressure washers, and generators.
Q: What are the key features of the GX100-KRMB engine?
A: This engine features Honda’s advanced OHV (Overhead Valve) technology, ensuring excellent fuel efficiency, low emissions, and smooth operation. Its compact size and easy-start system make it perfect for smaller machinery.
Q: What are the benefits of using the GX100-KRMB engine?
A: The GX100-KRMB engine provides reliable power, efficiency, and ease of use. Its compact design allows for flexibility in various equipment types, delivering dependable performance with minimal maintenance.
Q: Is the GX100-KRMB engine easy to maintain?
A: Yes, it is designed with easy maintenance in mind, featuring easily accessible components that make regular upkeep quick and simple.
Q: Can the GX100-KRMB engine be used for different outdoor equipment?
A: Absolutely! The GX100-KRMB engine is ideal for a variety of light-duty outdoor applications, including small pressure washers, generators, and other equipment requiring a compact, reliable engine.
Maintenance Tips
-
Oil Change: Replace engine oil every 50 hours or annually, whichever comes first.
-
Air Filter: Clean the air filter regularly and replace if worn or damaged.
-
Spark Plug: Inspect and replace the spark plug annually or when performance issues arise.
-
Fuel System: Use fresh, clean fuel and drain it when the engine is not in use for extended periods.
-
Check for Leaks: Regularly inspect for any oil or fuel leaks around the engine.
-
Clean the Engine: Remove debris and ensure cooling vents are clear to prevent overheating.
