Honda Horizontal Engine with 6:1 Gear Reduction - HDA,GX160-HX2

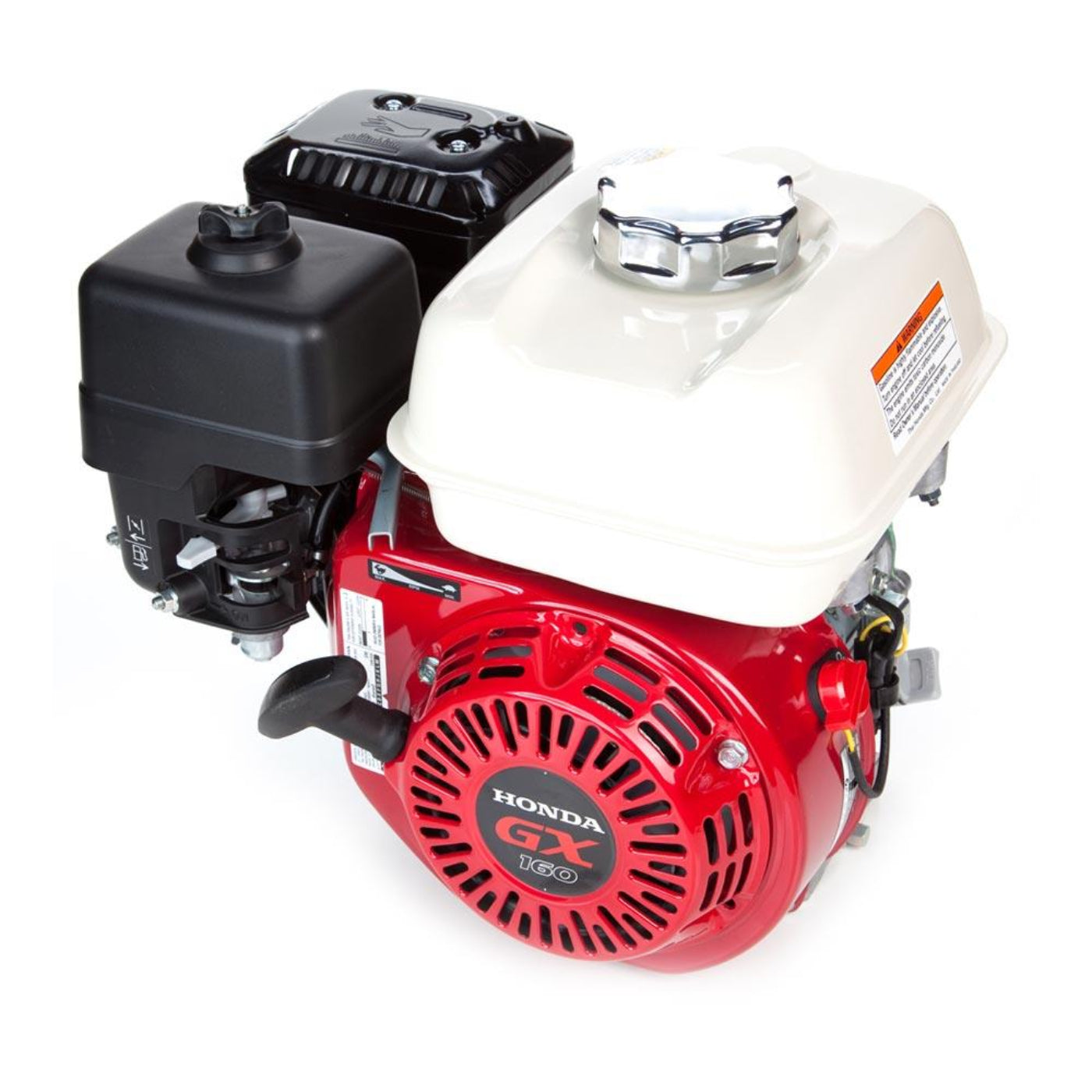

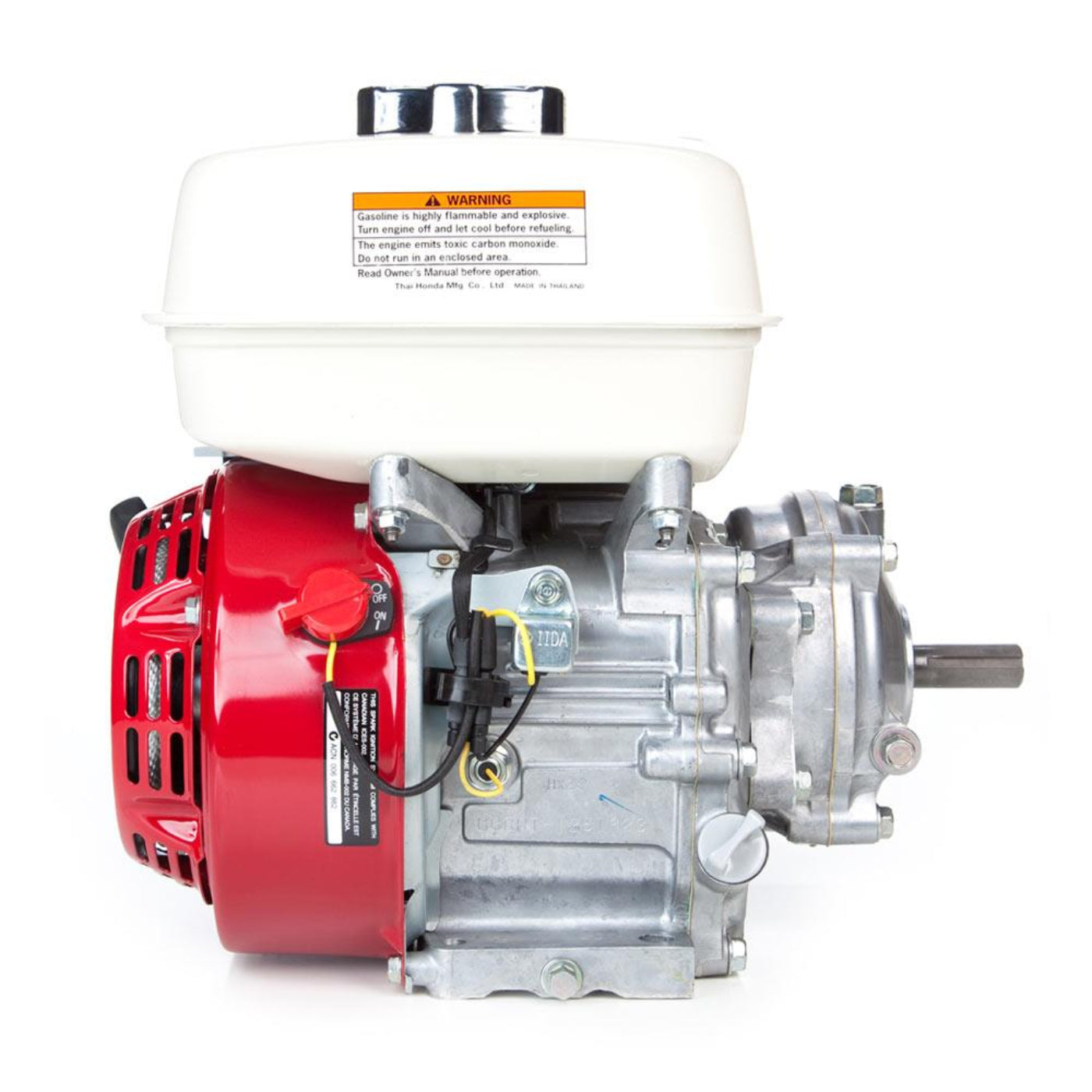

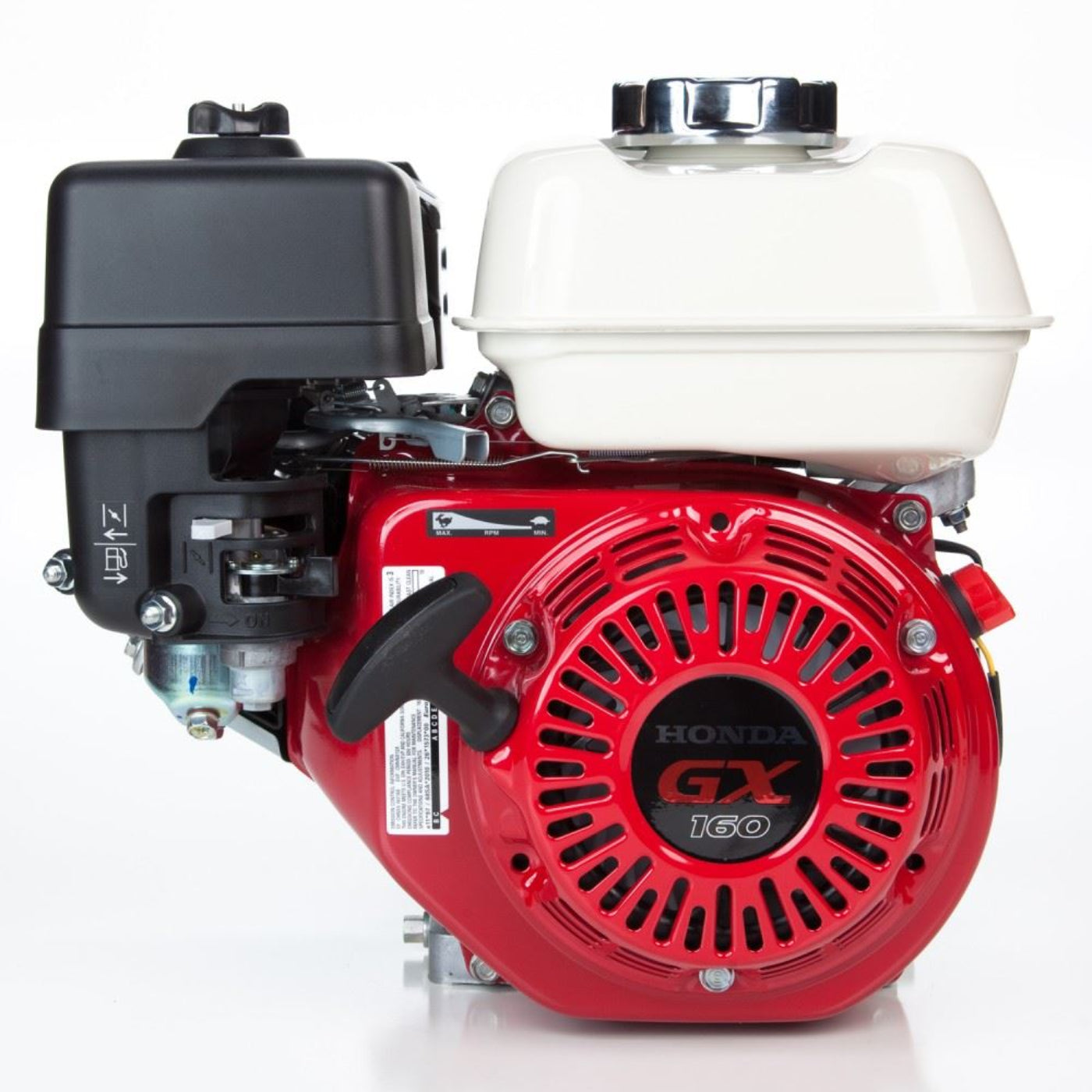

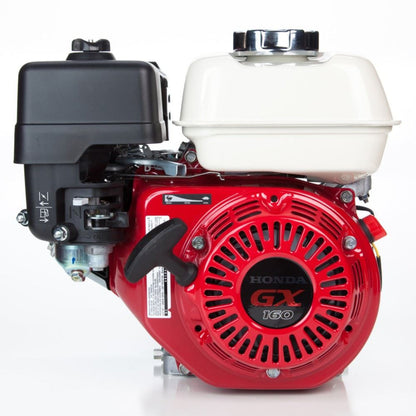

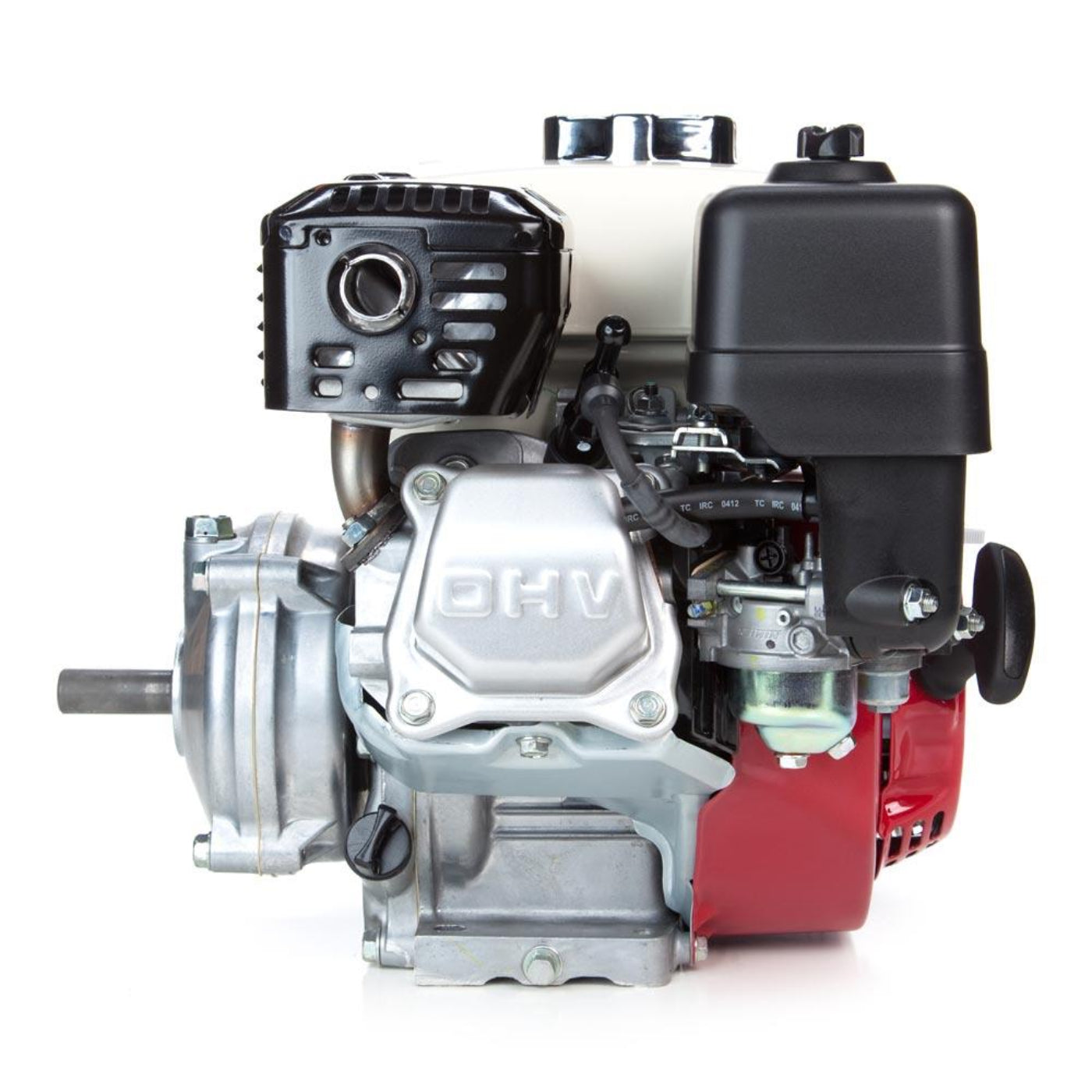

Honda GX160 HX2 Horizontal OHV Engine with 6:1 Gear Reduction, 163cc, 4.8 Net HP, 3/4" x 1-31/32" Crankshaft, Fuel Tank, Oil Alert System, No Clutch Model GX160UT2HX2
Specifications
| Brand |
Honda |
| Model Number |
GX160UT2HX2 |
| Internal ID |
HDA-GX160-HX2 |
| Replaces Models |
GX160U1HX2, GX160-HX2, GX160UT1HX2, GX160-UT1HX2,
GX160UT1-HX2, GX160UT2HX2, GX160UT2-HX2,
GX160-UT2HX2, GX160K1HX2, GX160-U1-HX2 |
| Warranty |
3 Year Residential |
| Available to California |
Not Available to Ship to California |
| Weight |
46.0 lb |
| PTO Height |
4-11/64" |
| Power Output |
4.8 HP @ 3600 RPM |
| Torque |
7.6 lb-ft (10.3 Nm) @ 2500 rpm |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Reduction Type |
| Crankshaft Diameter |
3/4" |
| Crankshaft Length |
1-31/32" |
| Crankshaft Dimensions |
3/4" x 1-31/32" |
| Keyway |
3/16" |
| Rotation Direction |
Counter-Clockwise |
| Starter Type |
Recoil |
| Ignition System |
Transistorized Magneto |
| Carburetor |
Butterfly |
| Number of Cylinders |
One |
| Cylinder Bore |
Cast Iron Sleeve |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.61 qt |
| Low Oil Alert |
Yes |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
3.3 qt |
| Fuel Pump |
N/A |
| Governor System |
Centrifugal Mechanical |
| Lubrication System |
Splash |
| Controls |
Manual Choke |
| Bore x Stroke |
68mm x 45mm |
| Compression Ratio |
9.0 : 1 |
| Charging System |
N/A |
| Muffler |
Standard, Spark Arrestor Optional |
What Our Experts Think
-
Reliable Power Output: The Honda GX160-HX2 Horizontal Engine delivers steady and efficient power, making it ideal for medium-duty applications.
-

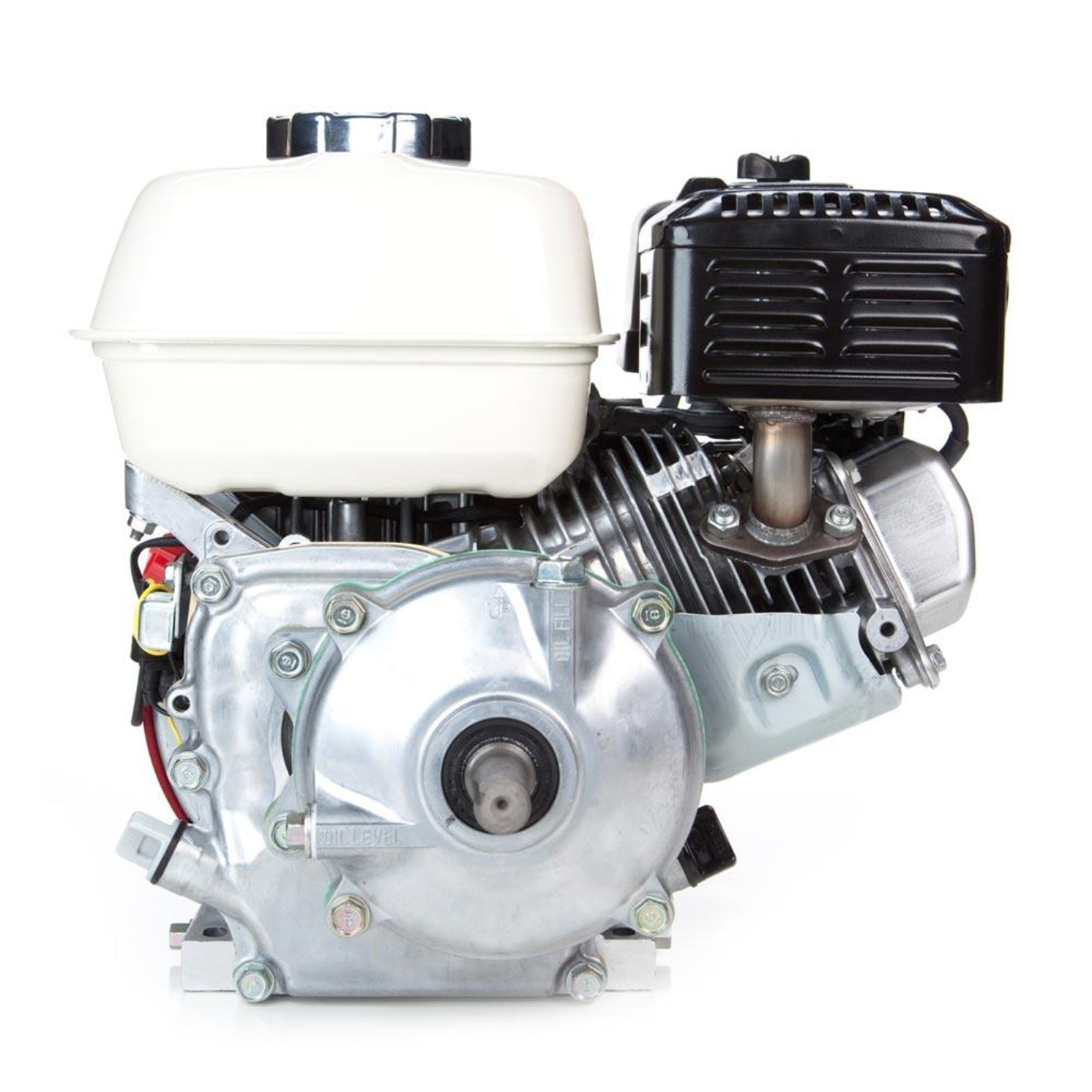

6:1 Gear Reduction: Featuring a 6:1 gear reduction system, this engine provides increased torque and controlled power output, making it perfect for equipment requiring lower RPM operation.
-
Fuel Efficient: Engineered for optimal fuel consumption, it ensures longer runtimes with fewer refuels, reducing operational costs and improving efficiency.
-
Smooth & Low-Vibration Operation: Designed to minimize vibration and noise, this engine enhances user comfort and prolongs the lifespan of connected equipment.
-
Durable & Long-Lasting: Built to withstand demanding environments, the GX160-HX2 ensures reliable performance with minimal maintenance needs.
-
Versatile Applications: Ideal for equipment such as cement mixers, compactors, and industrial machinery requiring precise torque and controlled power delivery.
Q&A
Q: What is the Honda Horizontal Engine with 6:1 Gear Reduction - HDA, GX160-HX2?
A: The Honda Horizontal Engine - HDA, GX160-HX2 is a durable and fuel-efficient engine designed for applications requiring high torque and controlled speed. Its 6:1 gear reduction system makes it ideal for equipment like conveyors, mixers, and augers that need lower RPM and increased torque output.
Q: What are the key features of the GX160-HX2 engine?
A: The GX160-HX2 engine features Honda’s OHV (Overhead Valve) technology for optimal fuel efficiency, smooth operation, and low emissions. The 6:1 gear reduction system provides high torque at reduced speeds, ensuring powerful and controlled performance for heavy-duty applications.
Q: What are the benefits of using the GX160-HX2 engine?
A: The GX160-HX2 engine offers excellent fuel economy, reduced maintenance needs, and long-lasting durability. The 6:1 gear reduction enhances torque output while maintaining efficiency, making it ideal for slow-speed, high-power applications.
Q: Is the GX160-HX2 engine easy to maintain?
A: Yes, the GX160-HX2 is designed for easy maintenance with accessible components for quick oil changes, air filter replacements, and general servicing. Its durable construction helps minimize downtime and extend engine life.
Q: What equipment is the GX160-HX2 engine best suited for?
A: The GX160-HX2 engine is perfect for applications requiring lower RPM and high torque, such as cement mixers, compactors, conveyors, augers, and other heavy-duty industrial and agricultural machinery.
Maintenance Tips
-
Oil Change: Change the engine oil every 50 hours or annually, whichever comes first. Check oil levels before each use.
-
Gear Reduction Maintenance: Inspect and lubricate the gear reduction system regularly to ensure smooth operation and prevent wear.
-
Air Filter: Clean or replace the air filter regularly to maintain proper airflow and engine efficiency.
-
Spark Plug: Check and replace the spark plug annually or if engine performance declines.
-
Fuel System: Use fresh, clean fuel and drain the tank if the engine will be stored for an extended period.
-
General Inspection: Check for leaks, loose bolts, and any unusual noises. Keep the engine and surrounding area clean.
-
Cooling System: Ensure proper airflow around the engine by keeping cooling fins and ventilation areas free from debris.
