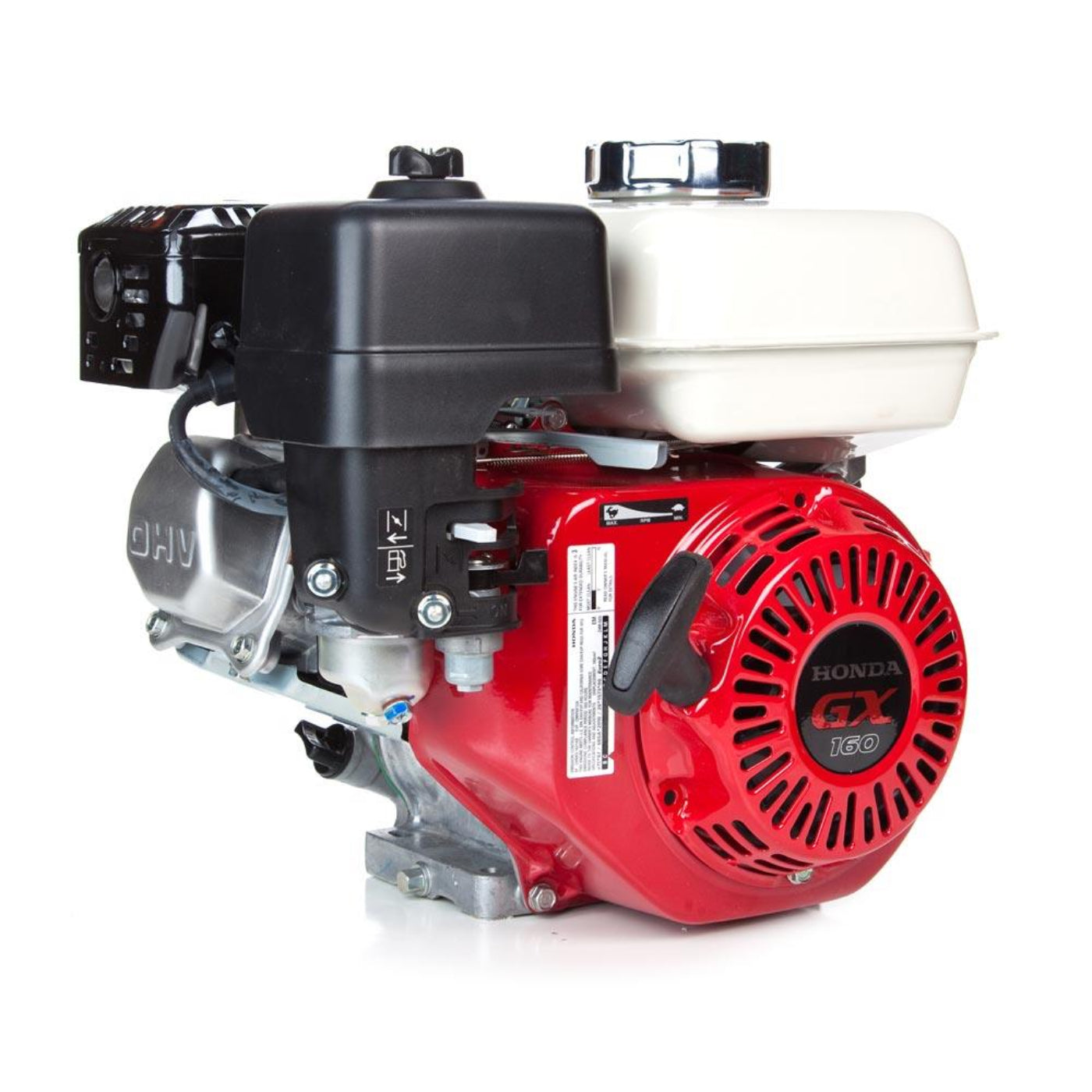

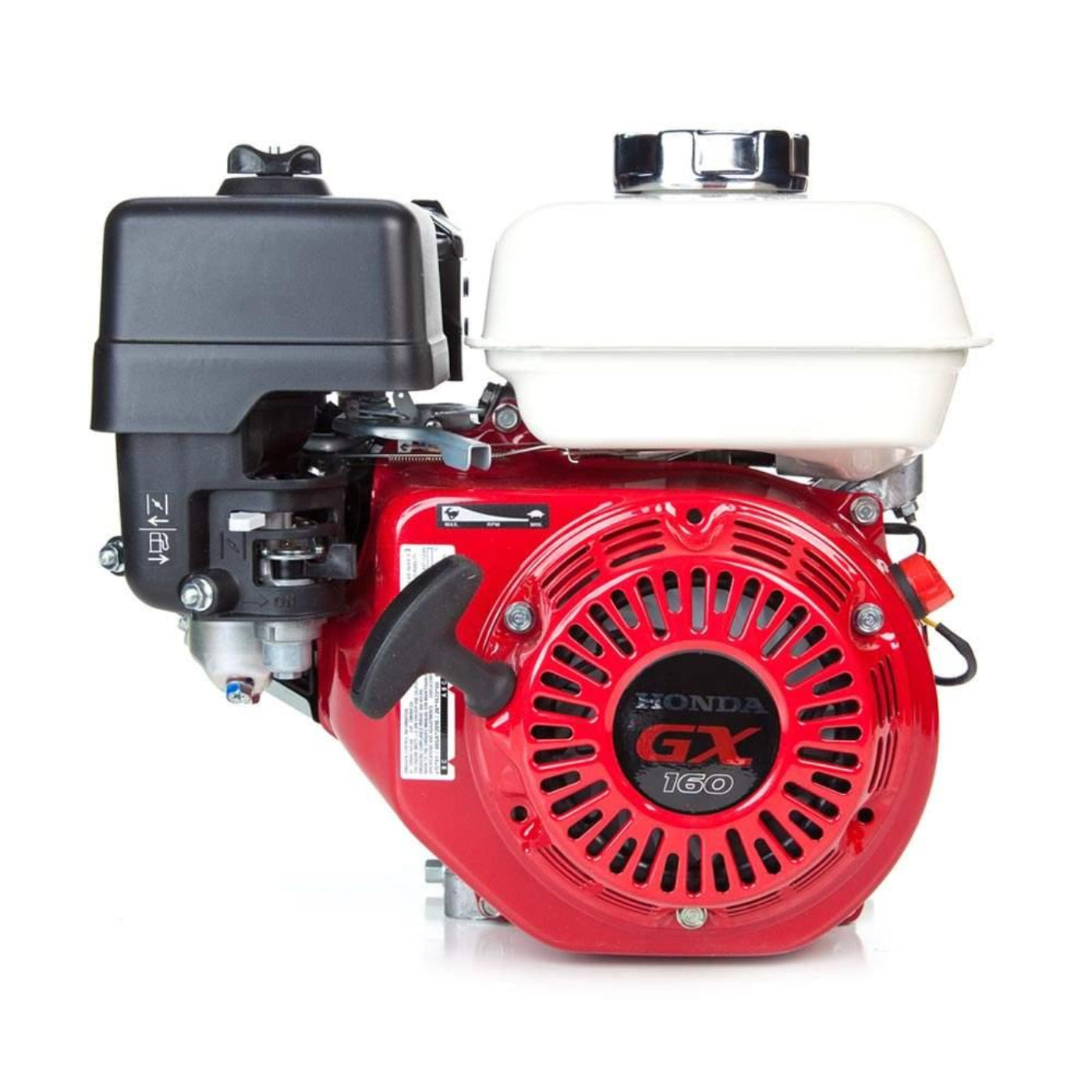

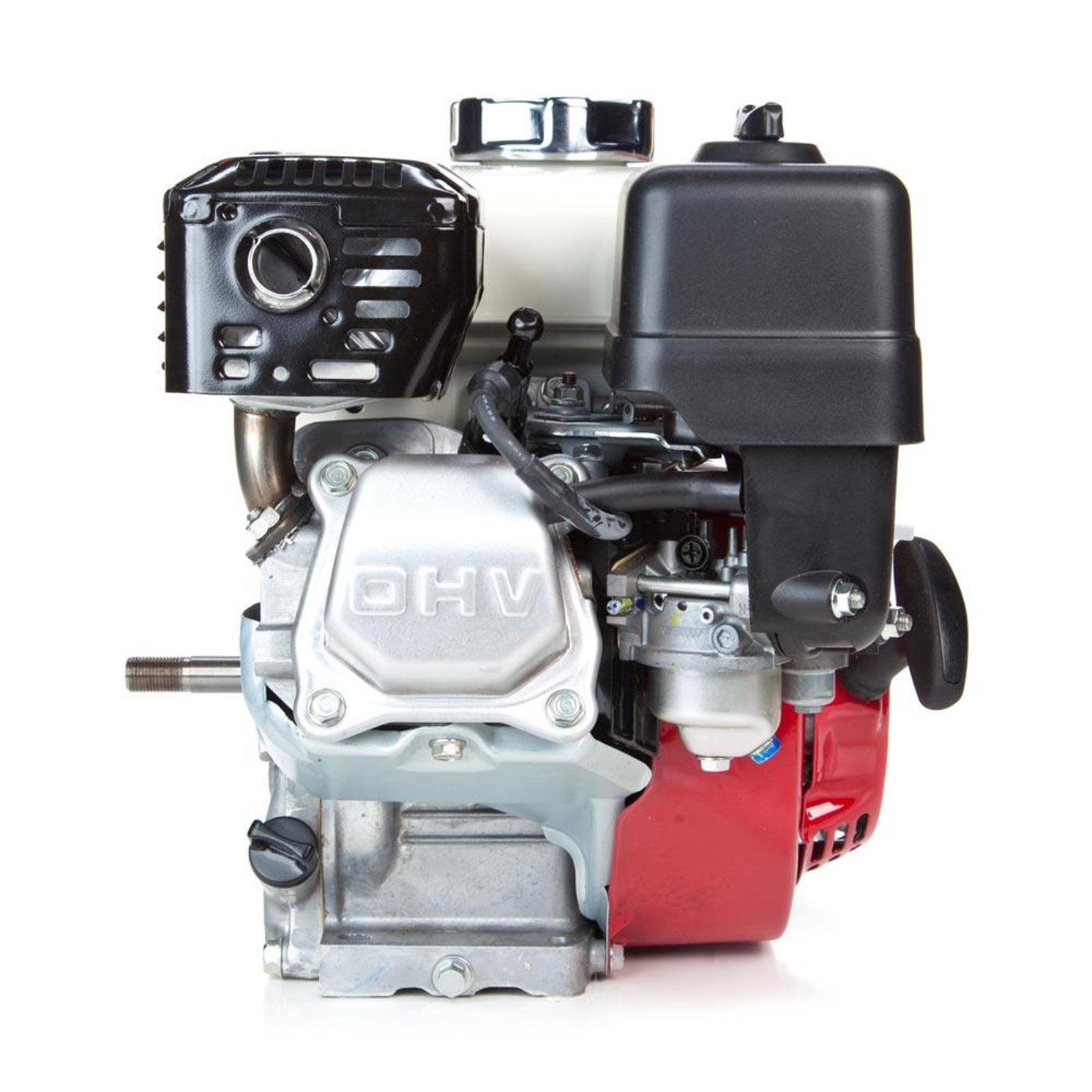

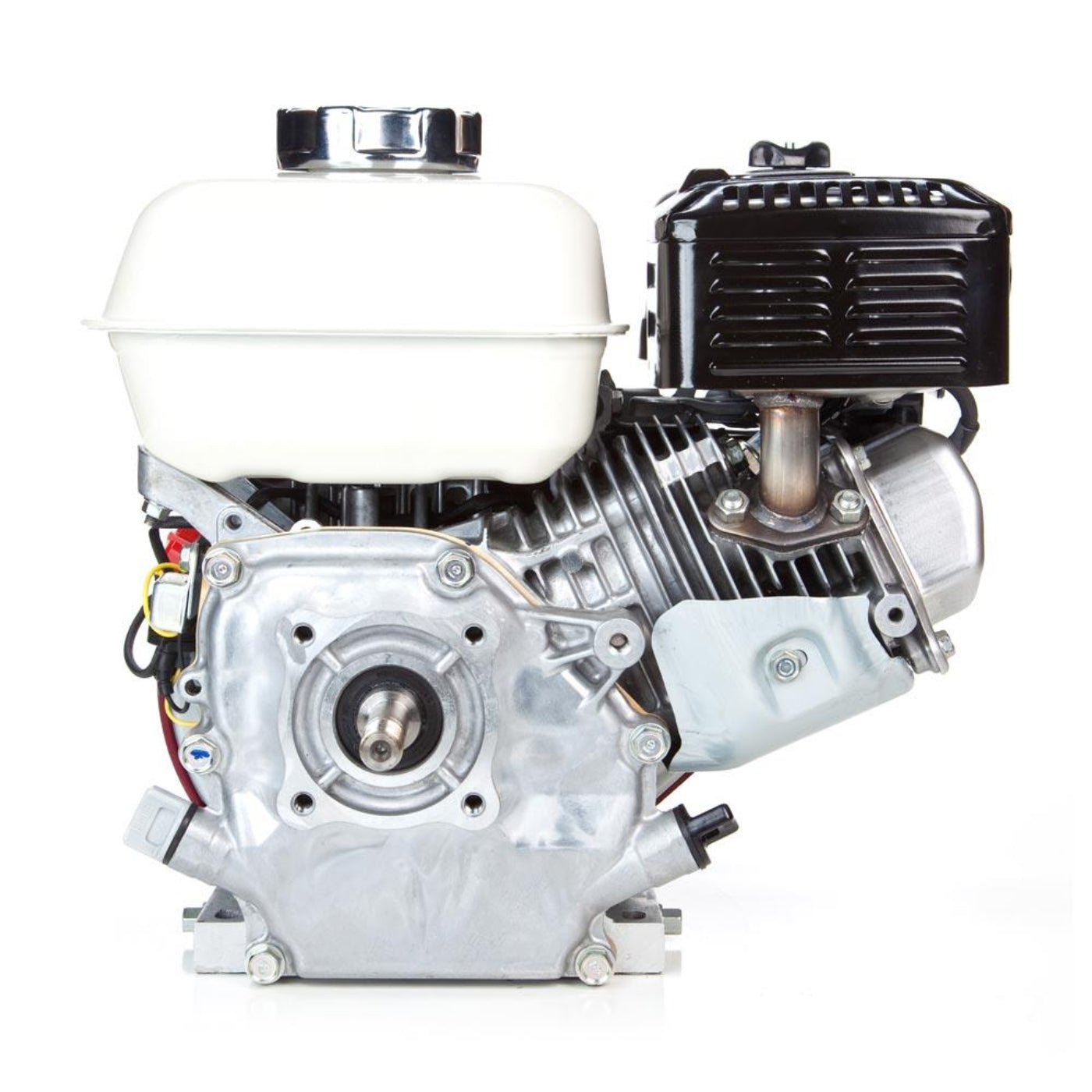

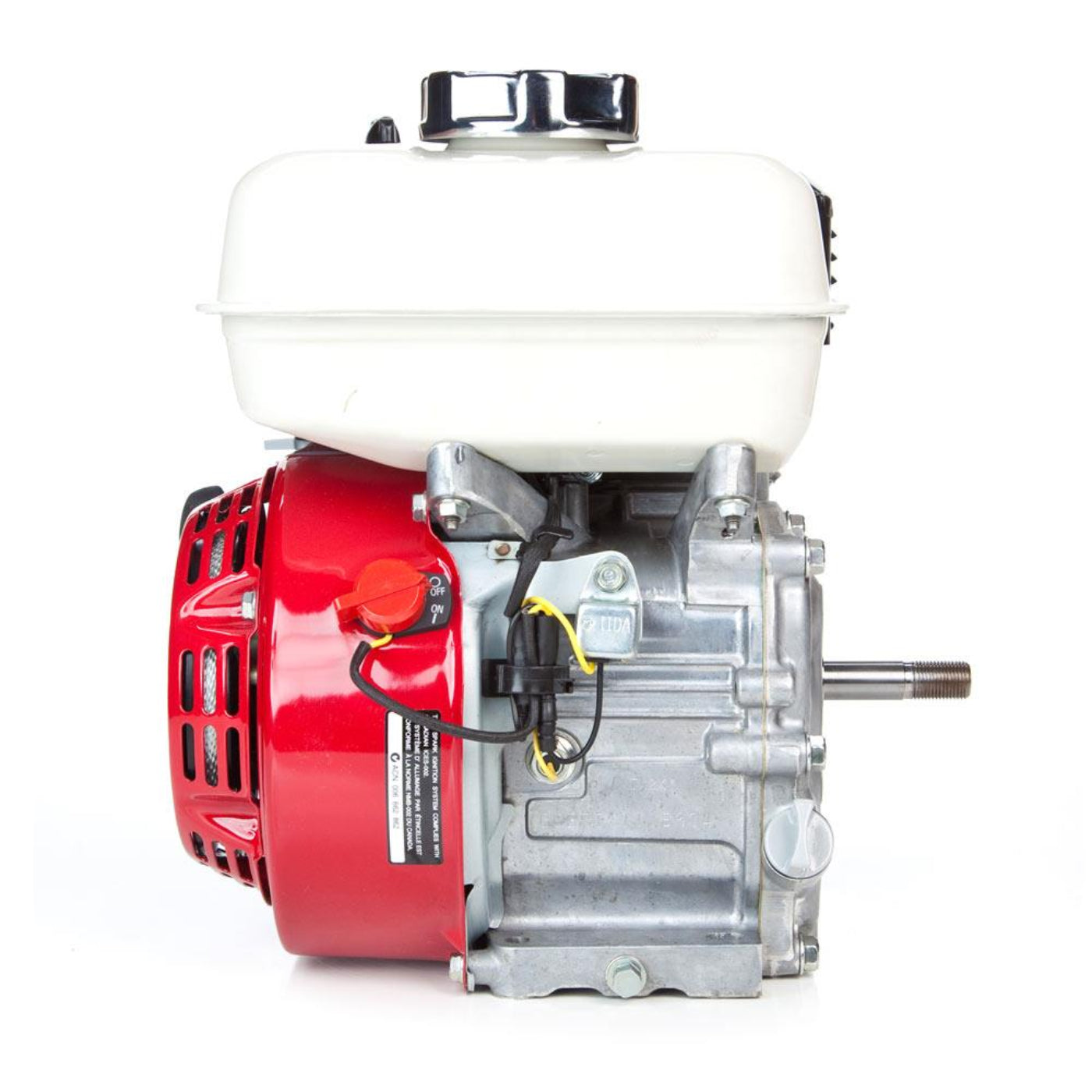

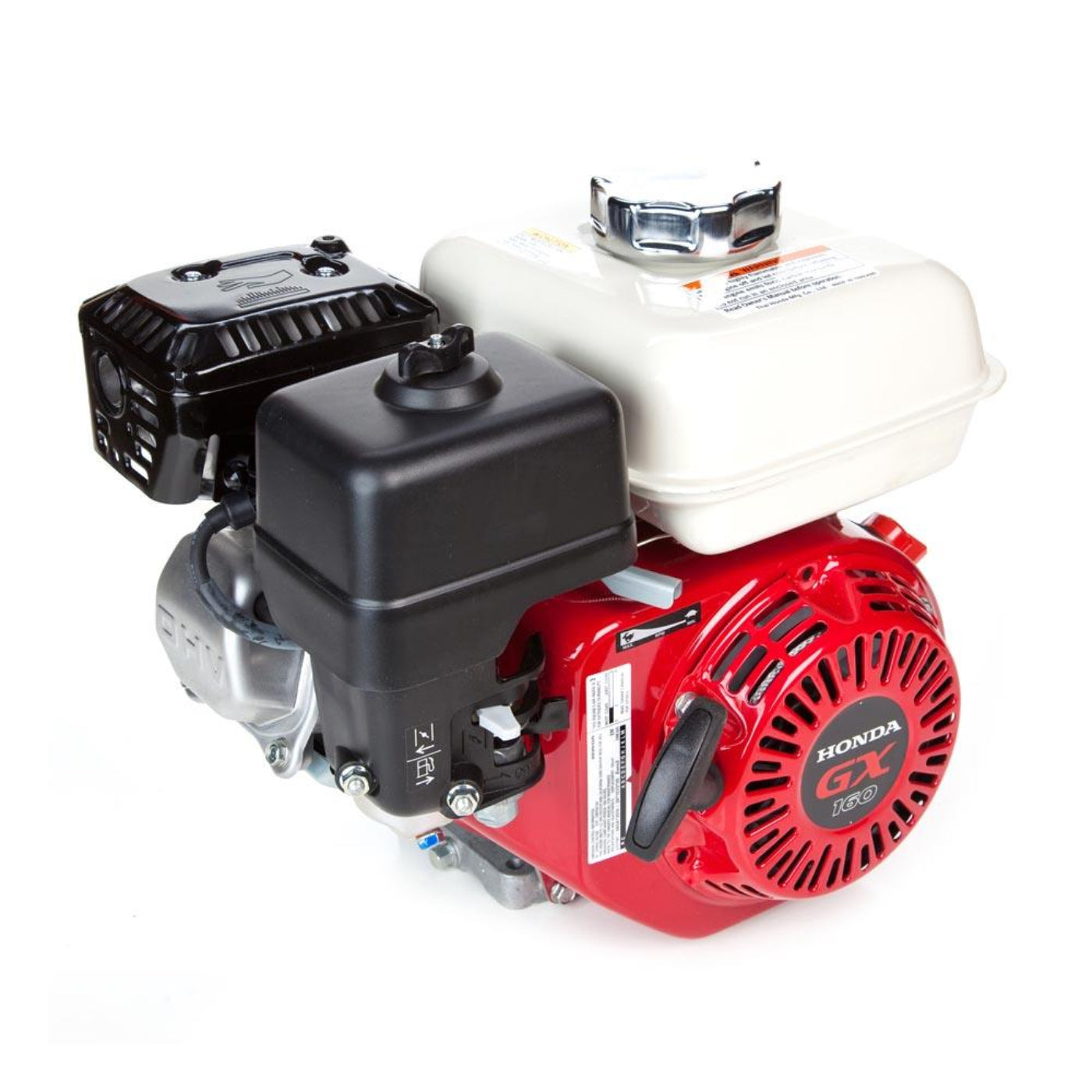

Honda Horizontal Engine - HDA,GX160-TX2
Honda GX160 TX2 Horizontal OHV Engine, 163cc, 4.8 Net HP, 5/8" x 2-7/16" Threaded Crankshaft, Fuel Tank, Oil Alert System, Model GX160UT2TX2
Specifications
| Brand |
Honda |
| Model Number |
GX160UT2TX2 |
| Internal ID |
HDA-GX160-TX2 |
| Replaces Models |
GX160T1TX2, GX160-TX2, GX160UT2TX2, GX160UT1TX2, GX160-UT2TX2, GX160UT2-TX2, GX160-UT2-TX2, GX160TX2, GX160K1TX2, GX160UT2TX2 |
| Warranty |
3 Year Residential |
| Available to California |
Not Available to Ship to California |
| Weight |
41.0 lb |
| PTO Height |
4-11/64" |
| Power Output |
4.8 HP @ 3600 RPM |
| Torque |
7.6 lb-ft (10.3 Nm) @ 2500 rpm |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Threaded |
| Crankshaft Diameter |
5/8" |
| Crankshaft Length |
2-7/16" |
| Crankshaft Dimensions |
5/8" x 2-7/16" |
| Crankshaft Rotation Direction |
Counter-Clockwise |
| Starter Type |
Recoil |
| Ignition System |
Transistorized Magneto |
| Carburetor |
Butterfly |
| Number of Cylinders |
One |
| Cylinder Bore |
Cast Iron Sleeve |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.61 qt |
| Low Oil Alert |
Yes |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
3.3 qt |
| Fuel Pump |
N/A |
| Governor System |
Centrifugal Mechanical |
| Lubrication System |
Splash |
| Controls |
Manual Choke, Manual Throttle |
| Bore x Stroke |
68mm x 45mm |
| Compression Ratio |
9.0 : 1 |
| Charging System |
N/A |
| Muffler |
Standard, Spark Arrestor Optional |
What Our Experts Think
-
Reliable Power: The Honda GX160-TX2 Horizontal Engine delivers consistent, dependable performance, making it perfect for light to medium-duty equipment.
-
Durable Construction: Built with high-quality materials, this engine is designed to withstand tough conditions, ensuring long-lasting reliability.
-
Fuel Efficiency: Designed for optimal fuel consumption, it provides longer operational time, reducing the need for frequent refueling and lowering fuel costs.
-
Smooth Operation: The GX160-TX2 is engineered for smooth operation, minimizing vibration and offering a more comfortable user experience.
-
Low Maintenance: This engine requires minimal maintenance, with easily accessible components that simplify upkeep and reduce downtime.
-
Versatile Applications: Ideal for various machines such as small pumps, pressure washers, and generators, providing consistent and efficient power for a wide range of tasks.
Q&A
Q: What is the Honda Horizontal Engine - HDA, GX160-TX2?
A: The Honda Horizontal Engine - HDA, GX160-TX2 is a versatile and durable engine designed for a wide range of medium-duty outdoor equipment. It provides reliable power for applications such as pressure washers, water pumps, and small generators.
Q: What are the key features of the GX160-TX2 engine?
A: The GX160-TX2 features Honda’s advanced OHV (Overhead Valve) design for better fuel efficiency, lower emissions, and smooth operation. It also includes easy starting, high torque, and a long-lasting build for continuous performance.
Q: What are the benefits of using the GX160-TX2 engine?
A: The GX160-TX2 engine offers excellent fuel economy, minimal maintenance, and dependable power. Its compact size and robust construction make it ideal for medium-duty applications that require consistent and reliable performance.
Q: Is the GX160-TX2 engine easy to maintain?
A: Yes, the GX160-TX2 is designed for easy maintenance, with accessible components that simplify routine tasks like oil changes, air filter replacements, and general upkeep, ensuring minimal downtime.
Q: Can the GX160-TX2 engine be used for different outdoor equipment?
A: Absolutely! The GX160-TX2 engine is perfect for a variety of outdoor equipment such as pressure washers, water pumps, generators, and lawnmowers that require reliable, medium-duty power.
Maintenance Tips
-
Oil Change: Change the engine oil every 50 hours of use or annually, whichever comes first.
-
Air Filter: Clean or replace the air filter regularly to maintain proper airflow and engine performance.
-
Spark Plug: Inspect and replace the spark plug annually or when performance issues occur.
-
Fuel System: Use fresh, clean fuel and drain the fuel tank if the engine is not used for an extended period.
-
Coolant: Ensure proper coolant levels to prevent overheating.
-
General Inspection: Clean the engine regularly, check for leaks, and remove any debris around the engine.
