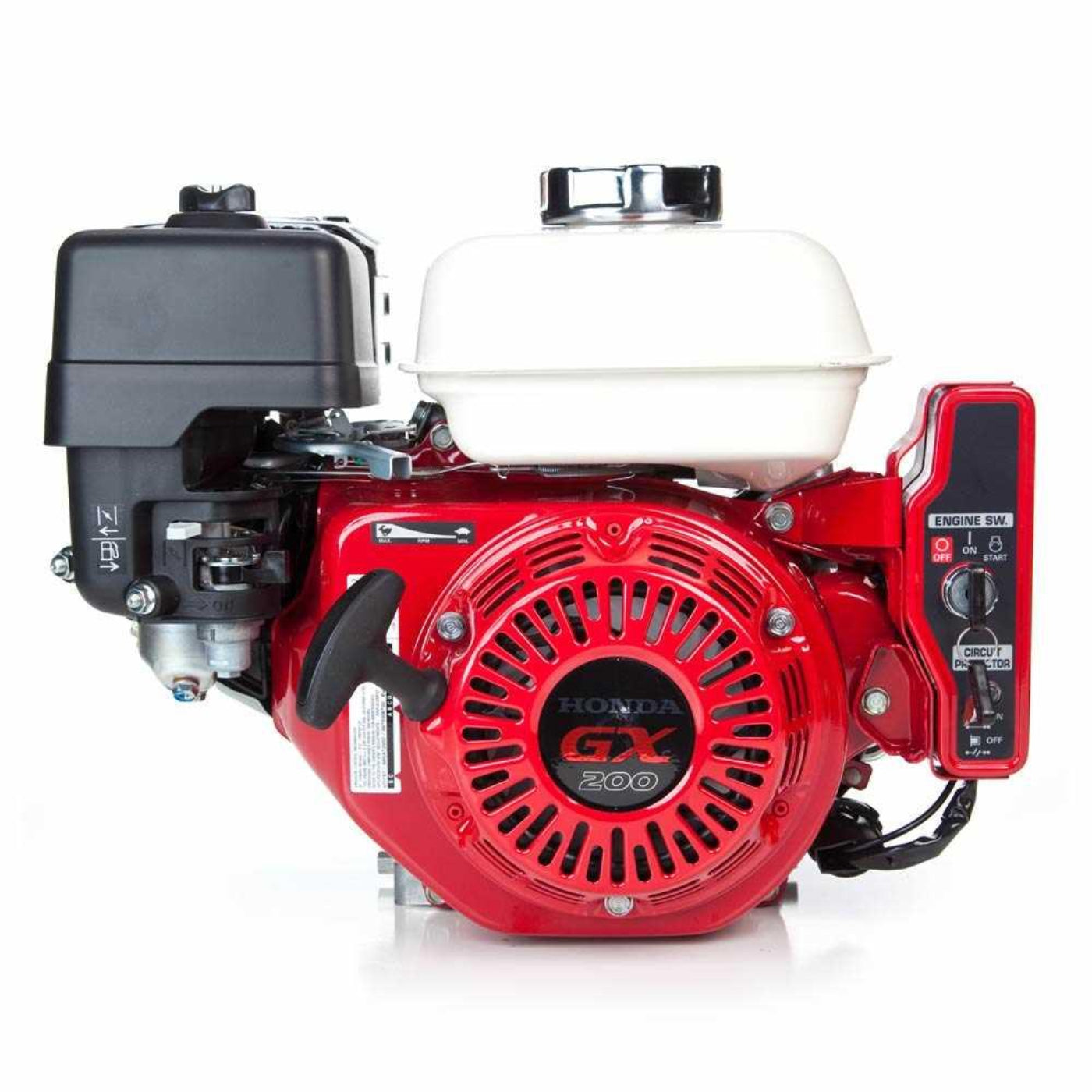

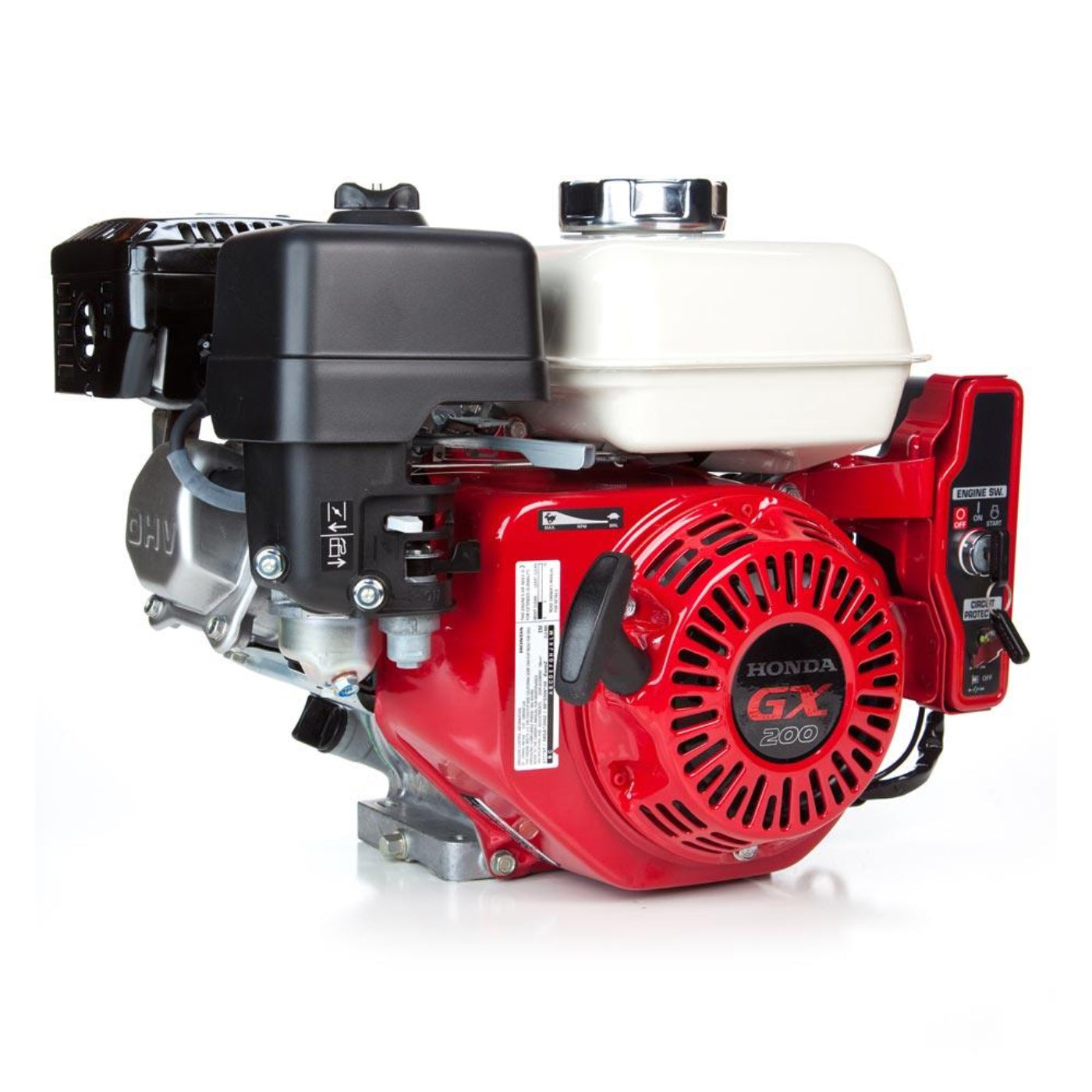

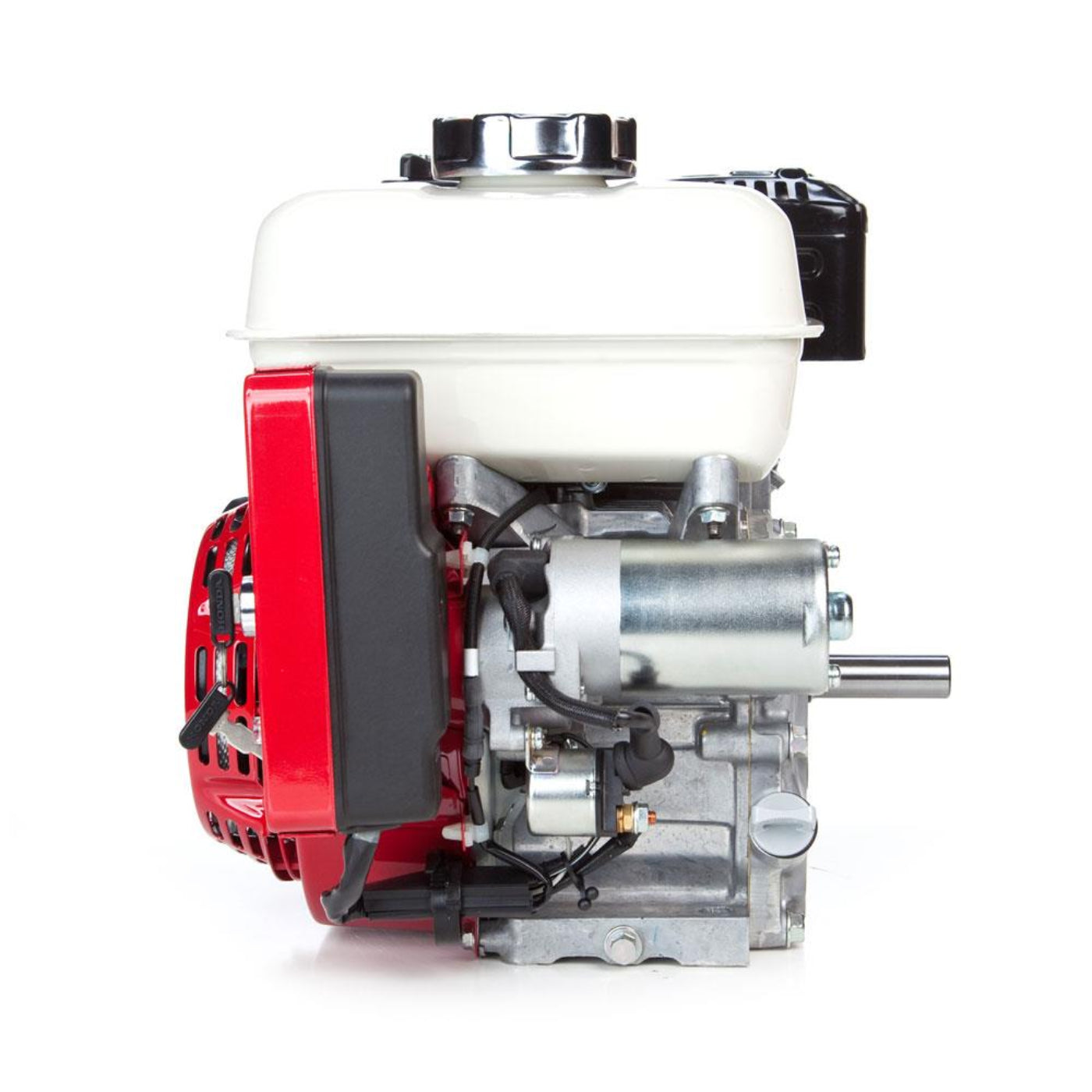

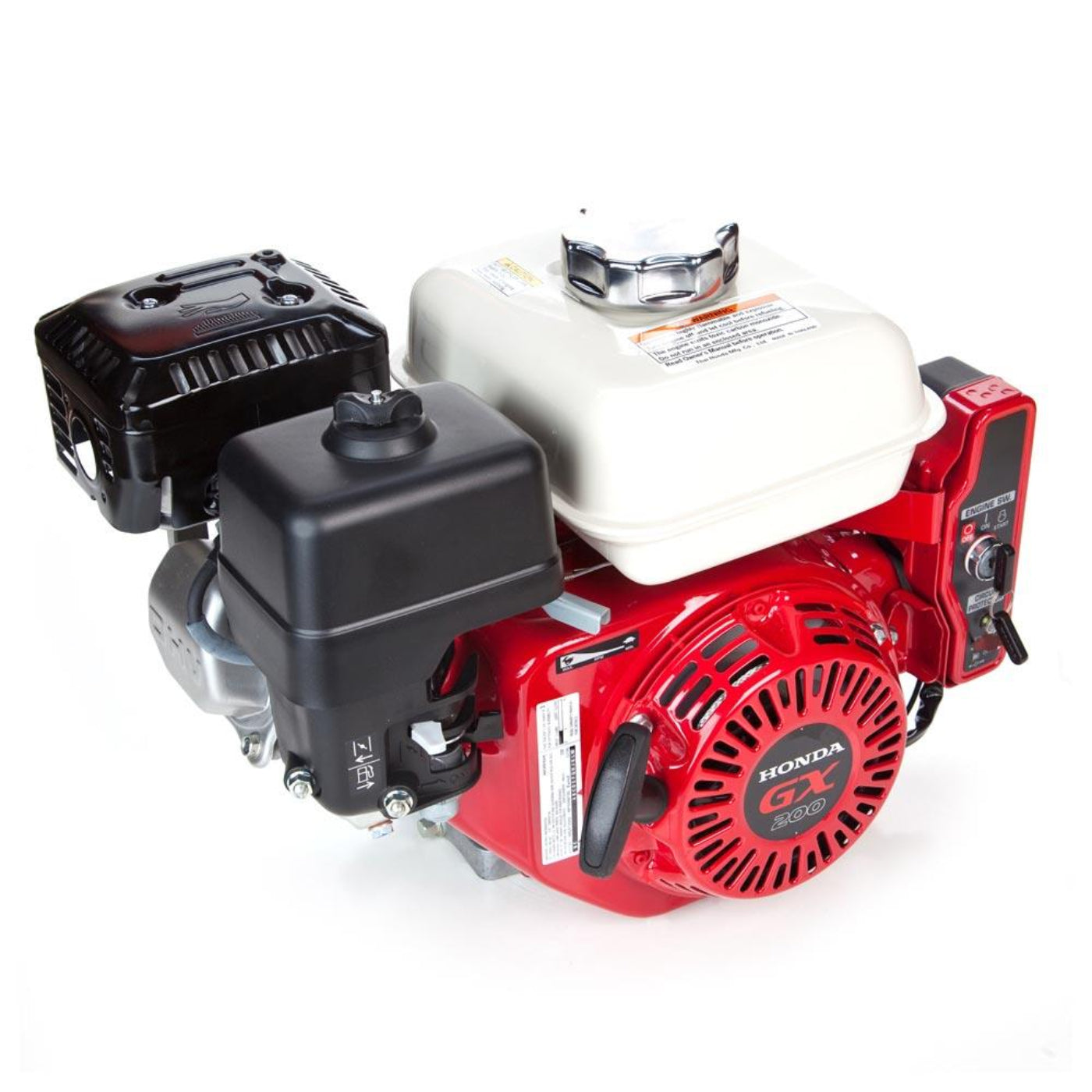

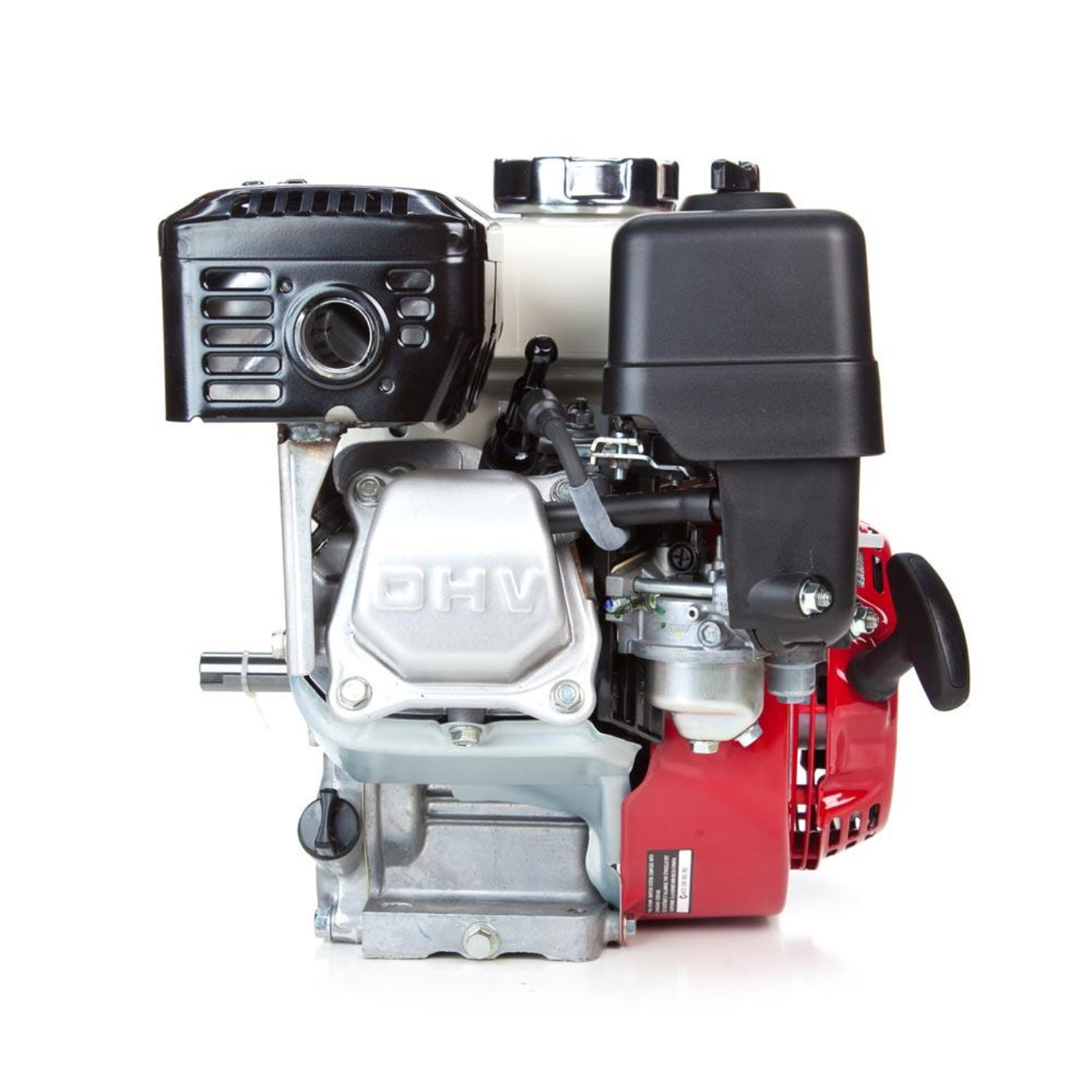

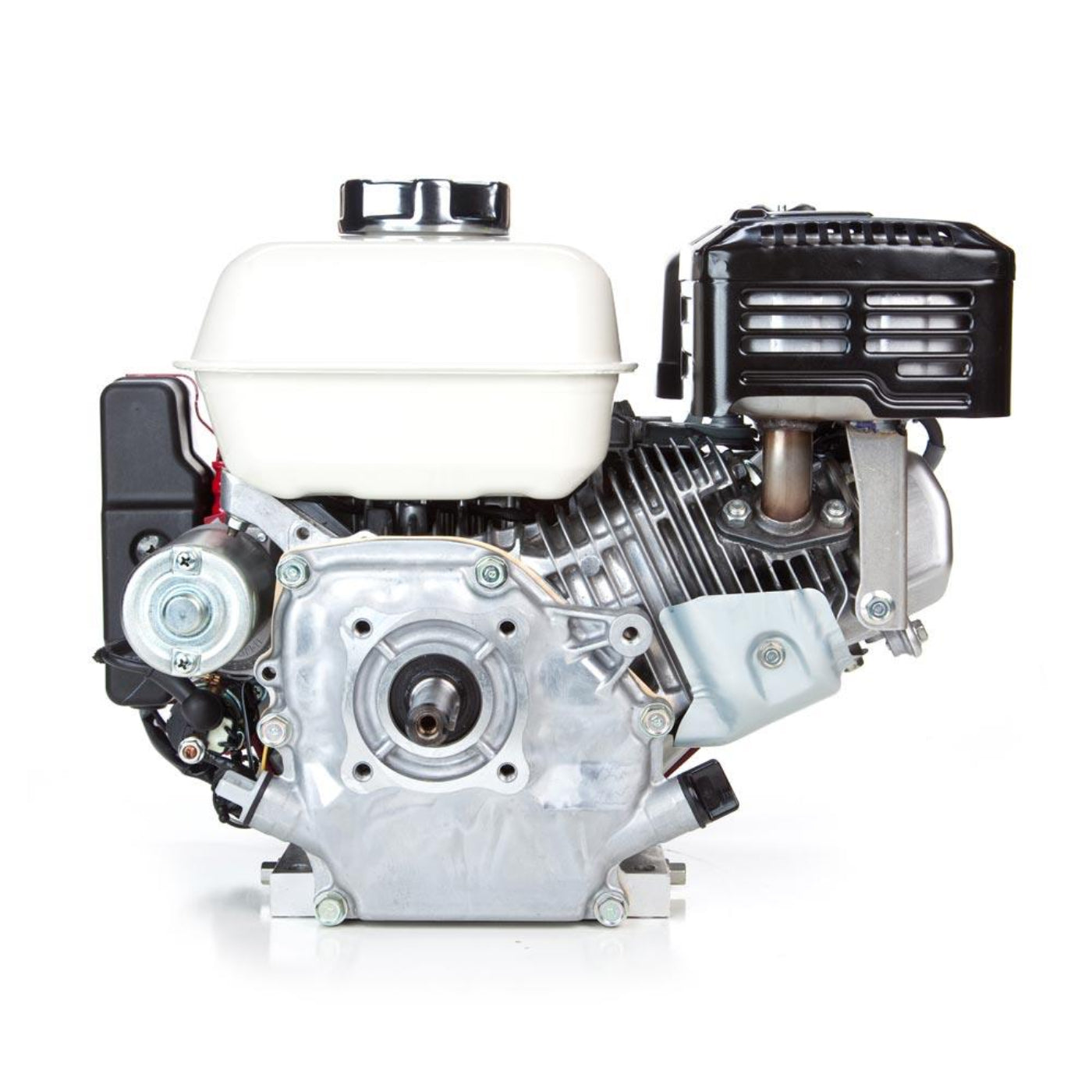

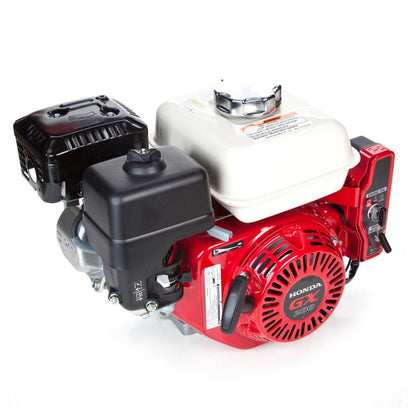

Honda Horizontal Engine with Electric Start - HDA,GX200-QXE2
Honda GX200 QXE2 Horizontal OHV Engine with 12V Electric Start and 1-Amp Charging System, 196cc, 5.8 Net HP, 3/4" x 2-7/16" Crankshaft, Model GX200UT2QXE2
| Brand |
Honda |
| Model Number |
GX200UT2QXE2 |
| Internal ID |
HDA-GX200-QXE2 |
| Warranty |
3 Year Residential |
| Available to California |
Not Available to Ship to California |
| Weight |
47.0 lb |
| PTO Height |
4-11/64" |
| Power Output |
5.8 HP @ 3600 RPM |
| Torque |
9.1 lb-ft (12.4 Nm) @ 2500 RPM |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Straight |
| Crankshaft Diameter |
3/4" |
| Crankshaft Length |
2-7/16" |
| Crankshaft Dimensions |
3/4" x 2-7/16" |
| Crankshaft End Tapped Size |
5/16"-24 |
| Keyway |
3/16" |
| Crankshaft Rotation Direction |
Counter-Clockwise |
| Starter Type |
Electric & Recoil |
| Ignition System |
Transistorized Magneto |
| Carburetor |
Butterfly |
| Number of Cylinders |
One |
| Cylinder Bore |
Cast Iron Sleeve |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.63 qt |
| Low Oil Alert |
Yes |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
3.3 qt |
| Fuel Pump |
N/A |
| Governor System |
Mechanical |
| Lubrication System |
Splash |
| Controls |
Manual Choke, Manual/Remote (Rod) Throttle |
| Bore x Stroke |
68mm x 54mm |
| Compression Ratio |
8.5 : 1 |
| Charging System |
1 Amp |
| Muffler |
Standard |
Specifications
| Brand |
Honda |
| Model Number |
GX200UT2QXE2 |
| Internal ID |
HDA-GX200-QXE2 |
| Warranty |
3 Year Residential |
| Available to California |
Not Available to Ship to California |
| Weight |
47.0 lb |
| PTO Height |
4-11/64" |
| Power Output |
5.8 HP @ 3600 RPM |
| Torque |
9.1 lb-ft (12.4 Nm) @ 2500 RPM |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Straight |
| Crankshaft Diameter |
3/4" |
| Crankshaft Length |
2-7/16" |
| Crankshaft Dimensions |
3/4" x 2-7/16" |
| Crankshaft End Tapped Size |
5/16"-24 |
| Keyway |
3/16" |
| Crankshaft Rotation Direction |
Counter-Clockwise |
| Starter Type |
Electric & Recoil |
| Ignition System |
Transistorized Magneto |
| Carburetor |
Butterfly |
| Number of Cylinders |
One |
| Cylinder Bore |
Cast Iron Sleeve |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.63 qt |
| Low Oil Alert |
Yes |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
3.3 qt |
| Fuel Pump |
N/A |
| Governor System |
Mechanical |
| Lubrication System |
Splash |
| Controls |
Manual Choke, Manual/Remote (Rod) Throttle |
| Bore x Stroke |
68mm x 54mm |
| Compression Ratio |
8.5 : 1 |
| Charging System |
1 Amp |
| Muffler |
Standard |
What Our Experts Think
-
Dependable Power: The Honda GX200-QXE2 Horizontal Engine offers reliable and efficient performance, making it an excellent choice for medium-duty applications.
-
Electric Start Convenience: Featuring an electric start, this engine simplifies operation by eliminating the need for manual pulling, ensuring quick and hassle-free startups.
-
Fuel Efficient: Designed for optimal fuel consumption, the GX200-QXE2 delivers extended runtimes with fewer refuels, helping to reduce overall operational costs.
-
Smooth & Quiet Operation: With a focus on minimizing vibration and noise, this engine provides smooth, quiet operation for a more comfortable user experience.
-
Durable & Long-Lasting: Built with durable components, the GX200-QXE2 is engineered to withstand tough conditions, ensuring reliable performance over time.
-
Versatile Applications: Ideal for a range of machinery, from generators and pumps to pressure washers and industrial equipment, providing consistent power for various tasks.
Q&A
Q: What is the Honda Horizontal Engine with Electric Start - HDA, GX200-QXE2?
A: The Honda Horizontal Engine - HDA, GX200-QXE2 is a versatile and reliable engine designed for a variety of outdoor equipment. It features an electric start system for easy operation, making it ideal for light to medium-duty machinery like pressure washers, small pumps, and generators.
Q: What are the key features of the GX200-QXE2 engine?
A: The GX200-QXE2 engine features Honda's advanced OHV (Overhead Valve) technology, ensuring efficient fuel consumption, low emissions, and smooth operation. It also comes with an electric start system for convenient and easy ignition, along with a durable build for reliable performance in a variety of applications.
Q: What are the benefits of using the GX200-QXE2 engine?
A: The GX200-QXE2 engine offers reliable power, excellent fuel efficiency, and ease of use thanks to its electric start. Its compact design and robust performance make it perfect for light to medium-duty outdoor equipment, offering long-lasting reliability and reduced maintenance.
Q: Is the GX200-QXE2 engine easy to maintain?
A: Yes, the GX200-QXE2 is designed for low-maintenance operation. With easy access to key components like the oil filter and air filter, routine maintenance tasks like oil changes are simple, helping to minimize downtime and keep the engine performing optimally.
Q: Can the GX200-QXE2 engine be used for different outdoor equipment?
A: Absolutely! The GX200-QXE2 engine is versatile and perfect for a wide range of applications, including pressure washers, small generators, lawn equipment, and other light to medium-duty machinery, providing efficient and dependable power across multiple uses.
Maintenance Tips
-
Oil Change: Change the engine oil every 50 hours of use or annually, whichever comes first.
-
Air Filter: Clean or replace the air filter regularly to ensure proper airflow and engine efficiency.
-
Spark Plug: Inspect and replace the spark plug annually or if performance issues arise.
-
Fuel System: Use fresh, clean fuel and drain the fuel tank if the engine is not in use for extended periods.
-
Battery Maintenance: Keep the battery clean, charged, and check for corrosion to ensure reliable electric start functionality.
-
General Inspection: Regularly inspect for leaks, clean around the engine, and ensure all components are securely fastened.
