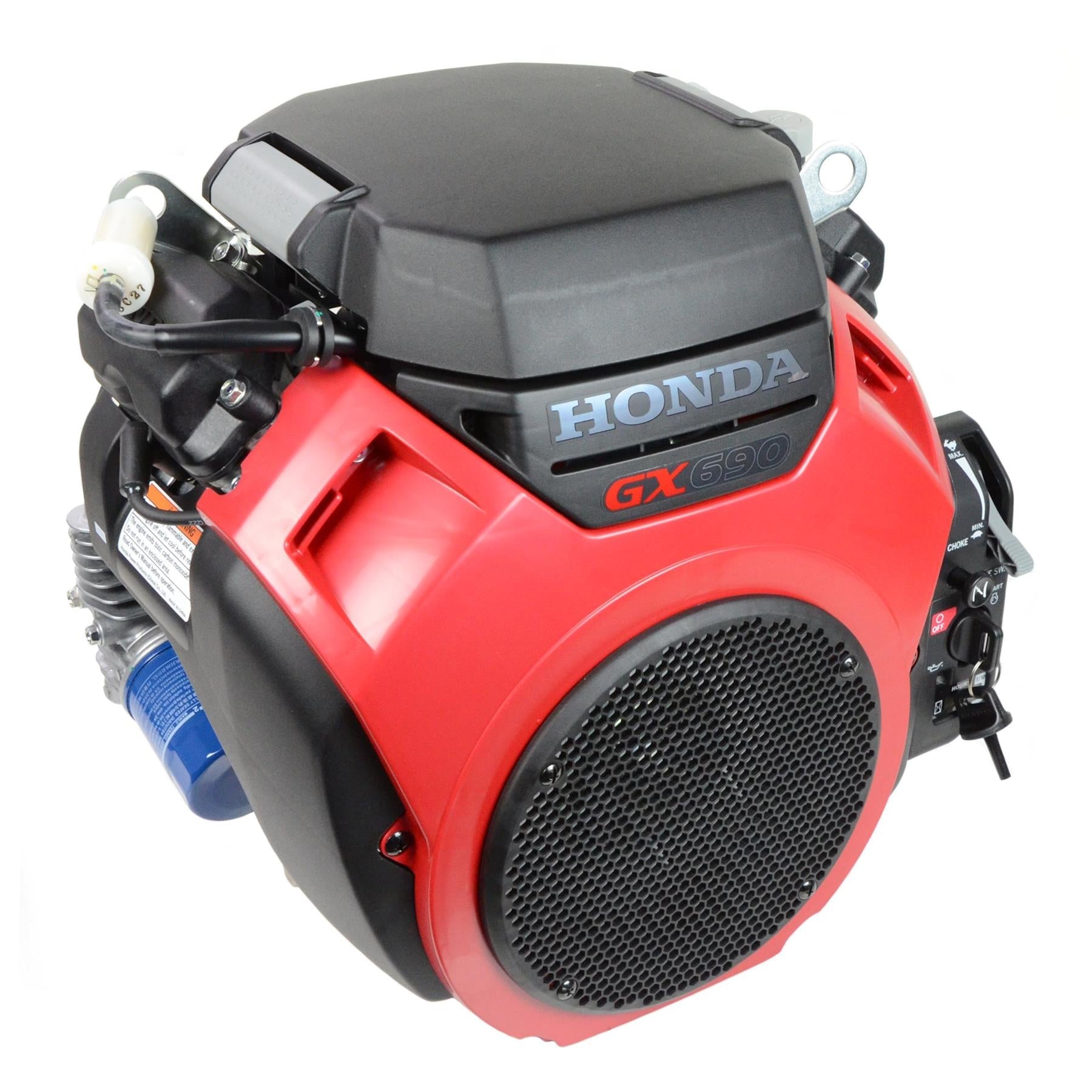

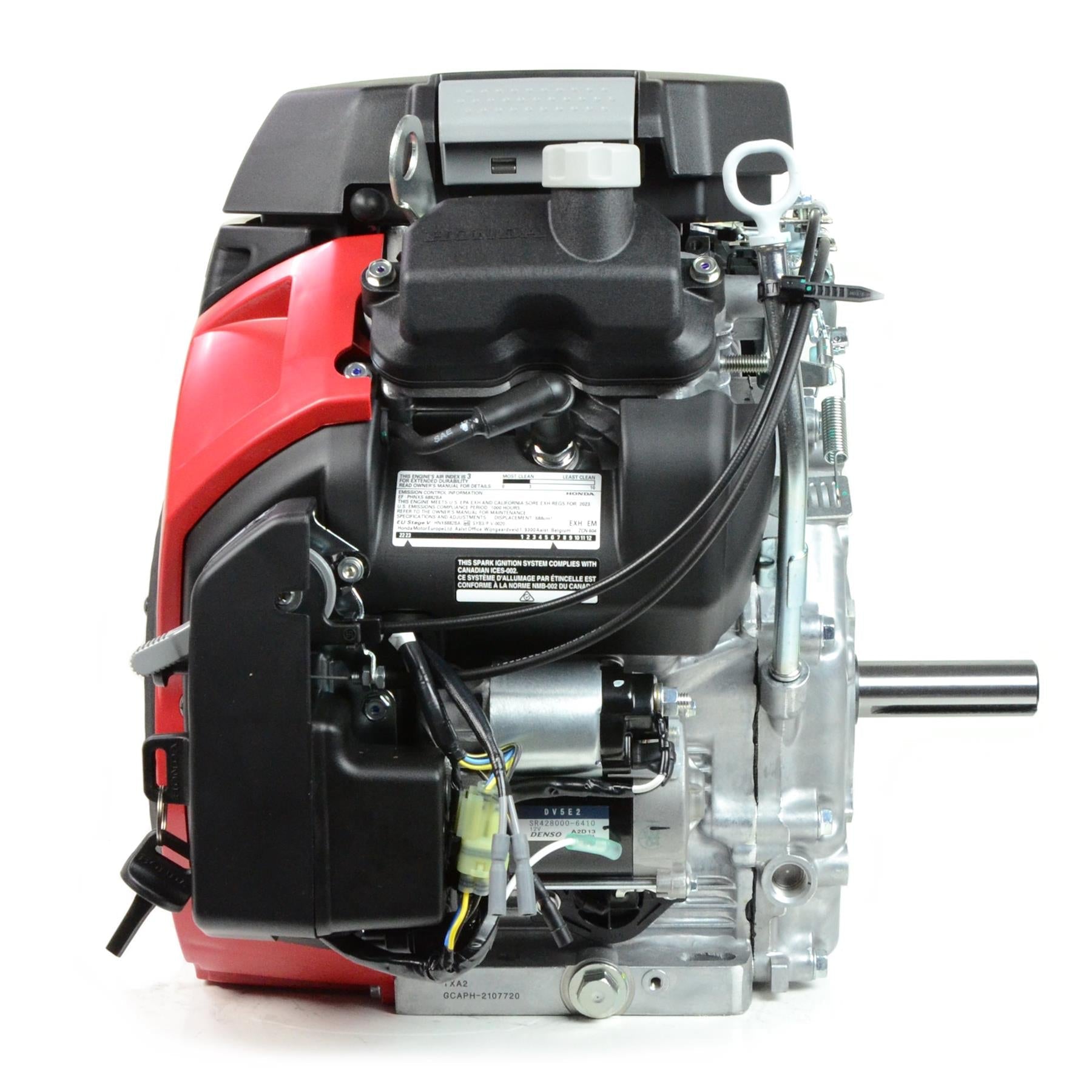

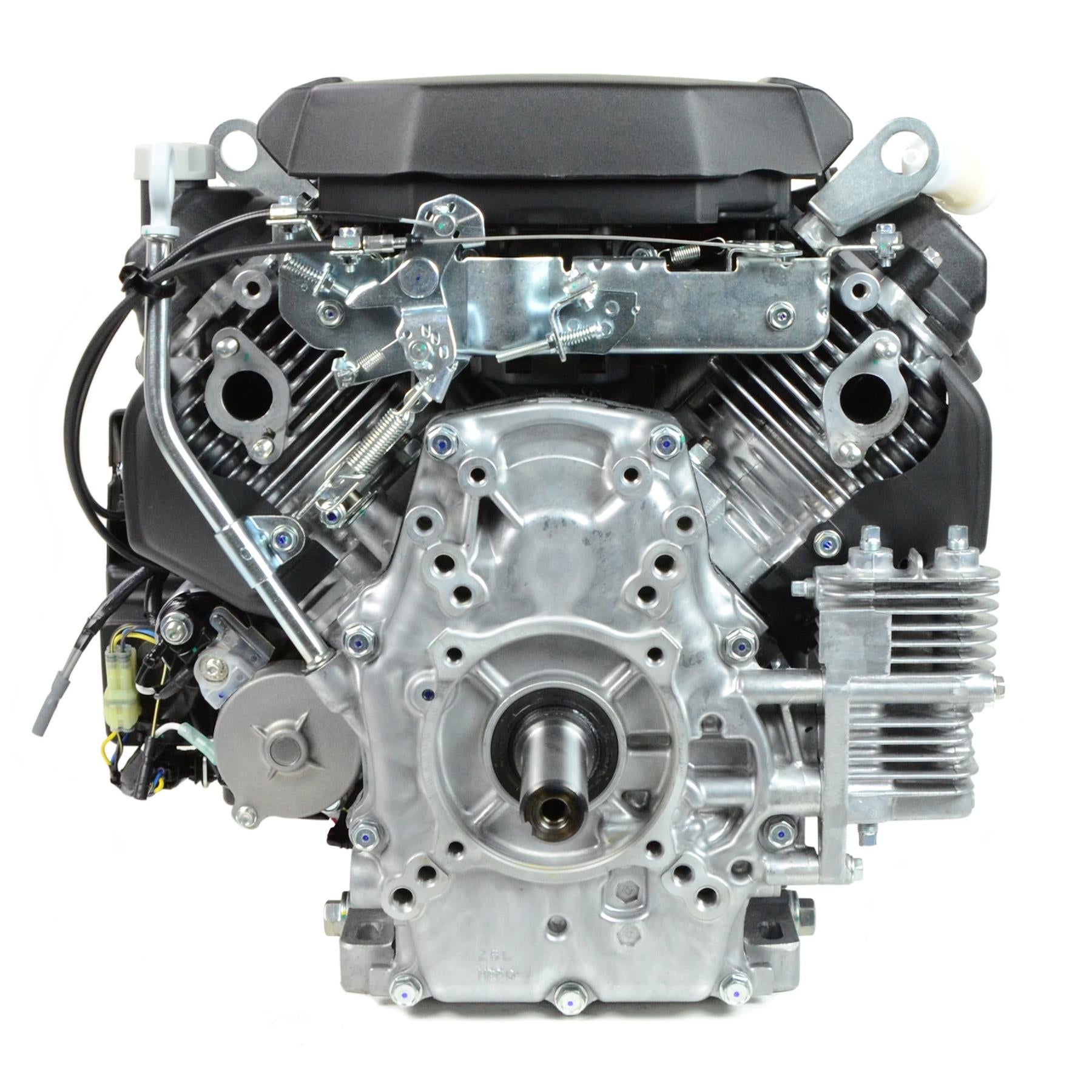

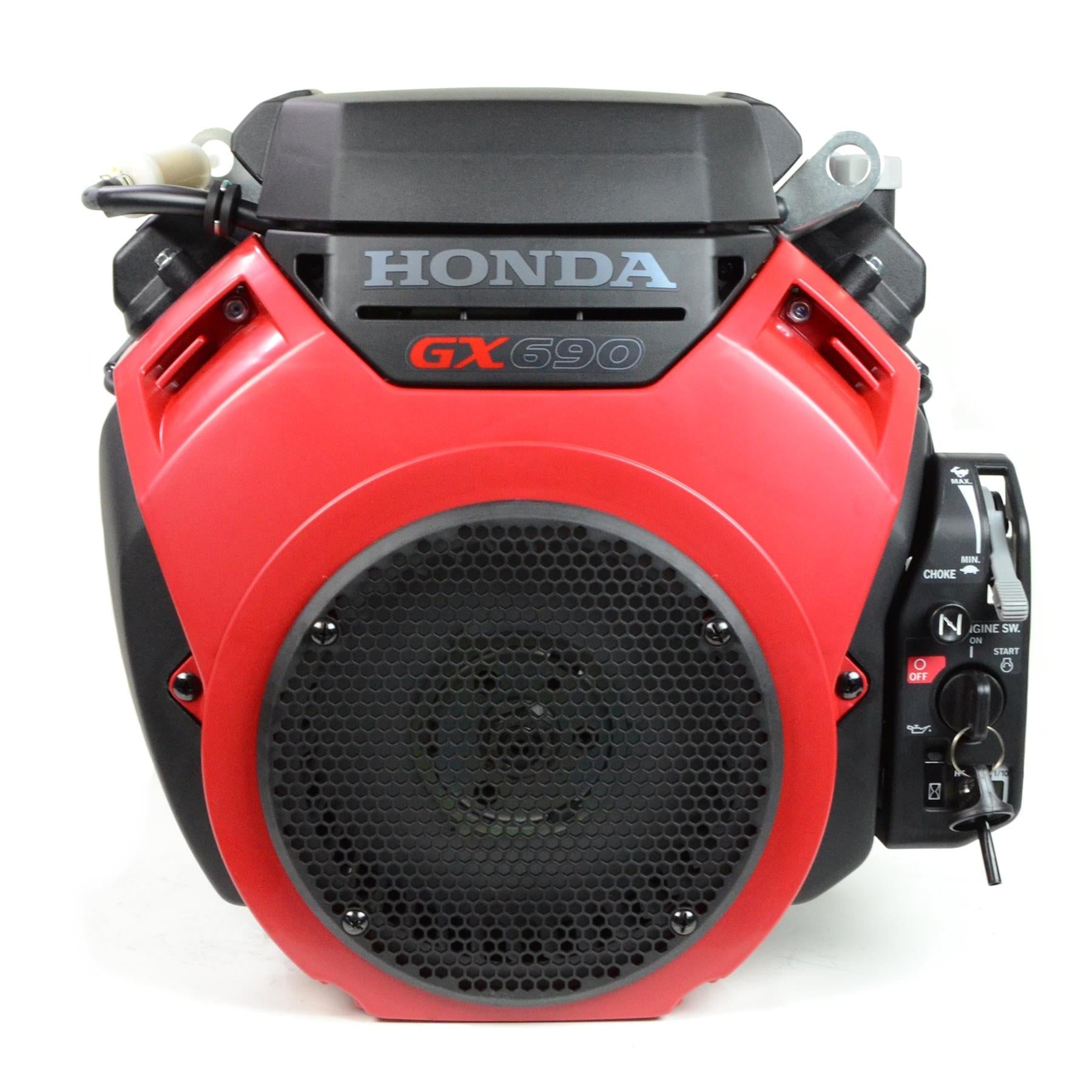

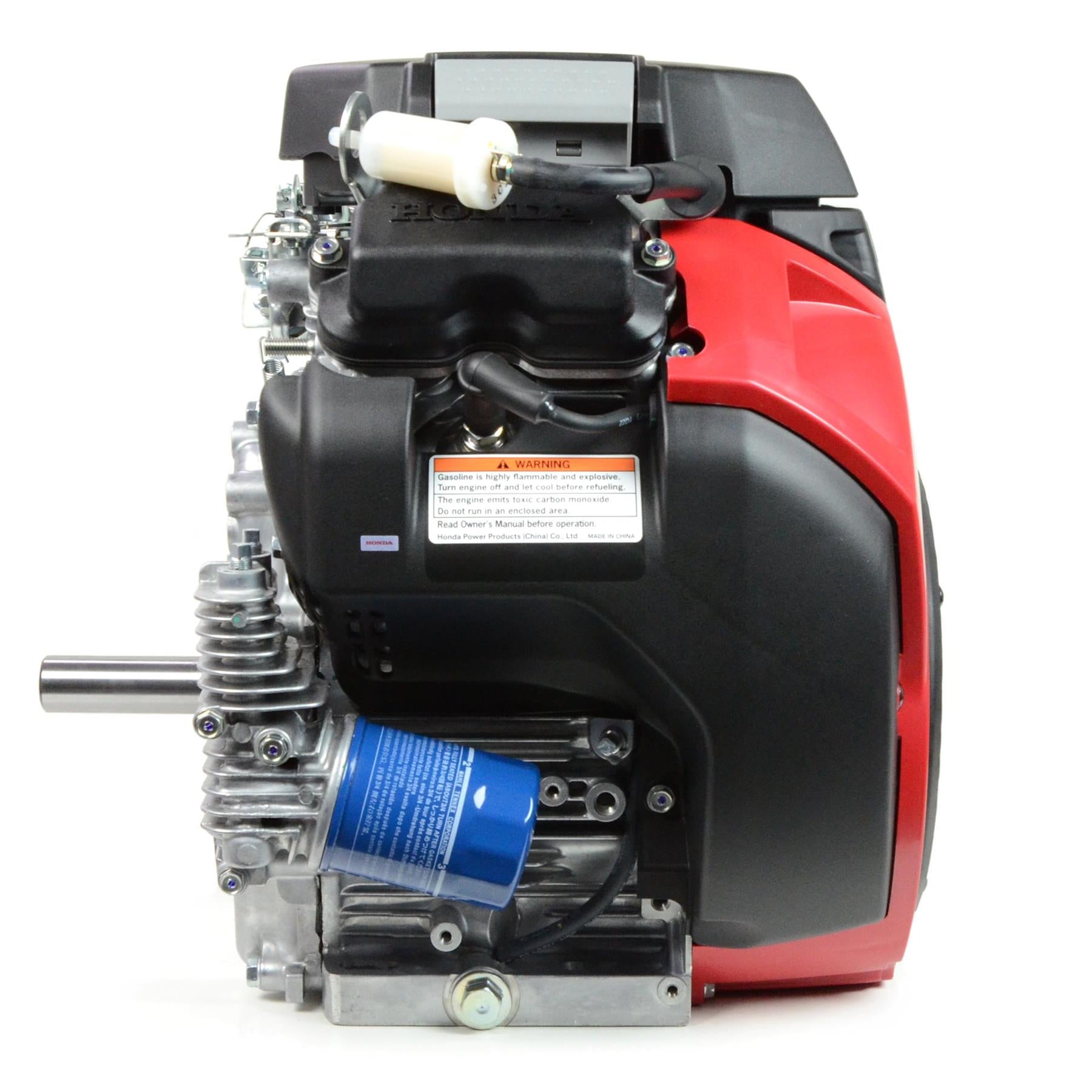

Honda Horizontal V-Twin Engine - HDA,GX690-TXA2
Honda GX690 TXA2 Horizontal V-Twin OHV Engine with Electric Start and 17-Amp Charging System, 688cc, 22.1 Net HP, 1-1/8" x 3.78" Crankshaft, Tapped 7/16-20, Key Switch, Manual Choke and Throttle Controls, Oil Level Indicator, No Fuel Tank, No Muffler, Model GX690RHTXA2
Specifications
| Brand |
Honda |
| Model Number |
GX690RHTAF |
| Internal ID |
HDA-GX690-TAF |
| Warranty |
3 Year Residential / 3 Year Commercial |
| What's in the Box |

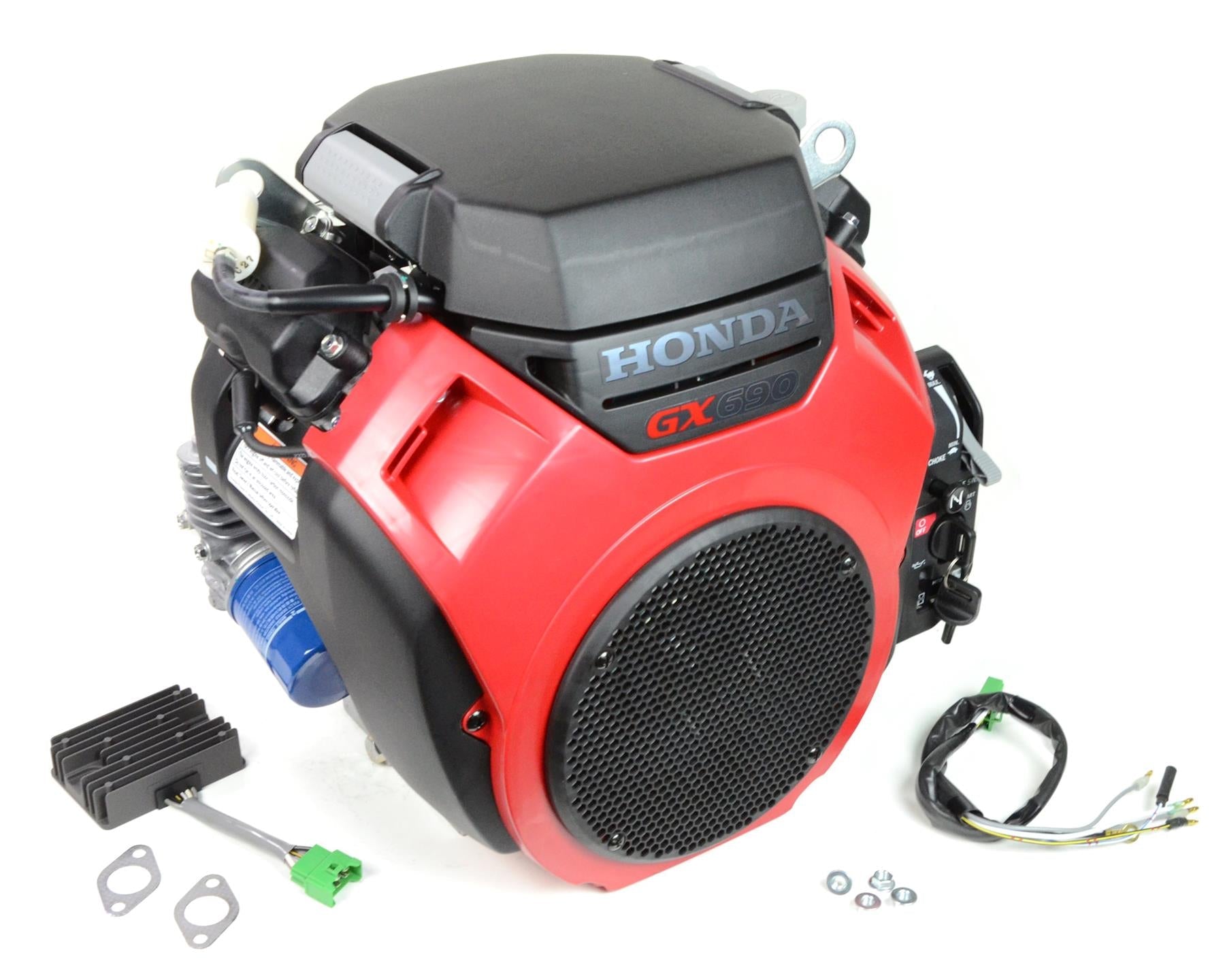

Engine, Owner's Manual, Exhaust Gaskets |
| Weight |
110.0 lb |
| Power Output |
22.1 HP @ 3600 RPM |
| Torque |
35.6 lb-ft (48.3 Nm) @ 2500 RPM |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Straight |
| Crankshaft Diameter |
1-1/8" |
| Crankshaft Length |
3.78" |
| End Tapped Size |
7/16"-20 |
| Keyway |
1/4" |
| Rotation Direction |
Counter-Clockwise |
| Starter Type |
Electric |
| Ignition System |
Digital CDI with Variable Ignition Timing |
| Carburetor |
Horizontal Two-Barrel Butterfly Valve with Internal Vent |
| Number of Cylinders |
Two |
| Air Cleaner |
Dual Element |
| Oil Capacity |
2.1 qt |
| Low Oil Alert |
Yes |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
N/A |
| Fuel Pump |
Diaphragm |
| Governor System |
Mechanical |
| Lubrication System |
Forced |
| Controls |
Manual Choke & Throttle |
| Bore x Stroke |
78mm x 72mm |
| Compression Ratio |
9.3 : 1 |
| Charging System |
17 Amp |
What Our Experts Think
-
High-Power V-Twin Performance: The Honda GX690-BAF Horizontal V-Twin Engine provides powerful and reliable performance, making it perfect for demanding applications such as industrial, agricultural, and commercial-grade equipment.
-
Built for Durability: Designed to withstand long hours of heavy-duty use, the GX690-BAF is constructed for durability and longevity, ensuring it can handle tough environments without performance degradation.
-
Smooth & Quiet Operation: With its V-Twin configuration, the GX690-BAF delivers reduced vibrations and quieter operation, offering a more comfortable and less disruptive experience compared to single-cylinder engines.
-
Fuel-Efficient & Low Emissions: Honda’s 4-stroke engine technology ensures excellent fuel efficiency and lower emissions, making it an eco-friendly choice without sacrificing power or output.
-
Versatile & Rugged: Ideal for a wide range of applications, from commercial vehicles to industrial machinery, the GX690-BAF is engineered to handle demanding tasks with ease, providing both versatility and rugged strength.
-
User-Friendly Maintenance: The GX690-BAF is designed with easy maintenance in mind, allowing for quick servicing with minimal effort, ensuring long-lasting reliability and efficiency for the operator.
Q&A
Q: What is the Honda Horizontal V-Twin Engine - HDA, GX690-BAF?
A: The Honda Horizontal V-Twin Engine - HDA, GX690-BAF is a robust and high-performance engine designed for demanding commercial and industrial applications. It features a V-Twin configuration, offering superior power, smoothness, and efficiency. This engine is suitable for heavy-duty equipment such as large generators, commercial mowers, and agricultural machines.
Q: What are the benefits of the Honda Horizontal V-Twin Engine - HDA, GX690-BAF?
A: The GX690-BAF engine provides exceptional power and smooth operation, thanks to its V-Twin design. It reduces vibration for a quieter, more comfortable performance. With high fuel efficiency and low emissions, it is environmentally friendly. The engine is built for durability, ensuring reliability even in the toughest working conditions.
Q: Is the Honda Horizontal V-Twin Engine - HDA, GX690-BAF easy to maintain?
A: Yes, the GX690-BAF is designed for straightforward maintenance. The engine’s horizontal layout allows for easy access to components, and it is built to last with minimal maintenance needs. Regular oil changes and proper upkeep will keep it performing reliably over time.
Q: What applications is the Honda Horizontal V-Twin Engine - HDA, GX690-BAF suitable for?
A: The GX690-BAF is ideal for heavy-duty applications such as large-scale generators, commercial lawn equipment, agricultural machines, and industrial pumps. Its high power output and smooth, efficient operation make it a perfect choice for demanding tasks.
Q: Does the Honda Horizontal V-Twin Engine - HDA, GX690-BAF come with a warranty?
A: Yes, the Honda GX690-BAF engine is backed by Honda's warranty, offering dependable coverage. Be sure to check the warranty details for your region to understand the specific terms and conditions.
Maintenance Tips
-
Oil Changes: Regularly change the oil and replace the filter to ensure smooth engine operation and minimize wear.
-
Air Filter Care: Clean or replace the air filter frequently to prevent debris from entering the engine and affecting performance.
-
Fuel System Maintenance: Use fresh, high-quality fuel and add a fuel stabilizer for storage to avoid clogging and fuel degradation.
-
Coolant Check: Periodically check coolant levels and inspect hoses to prevent overheating and ensure proper cooling.
-
Spark Plug Inspection: Inspect, clean, or replace spark plugs to ensure efficient ignition and optimal engine performance.
