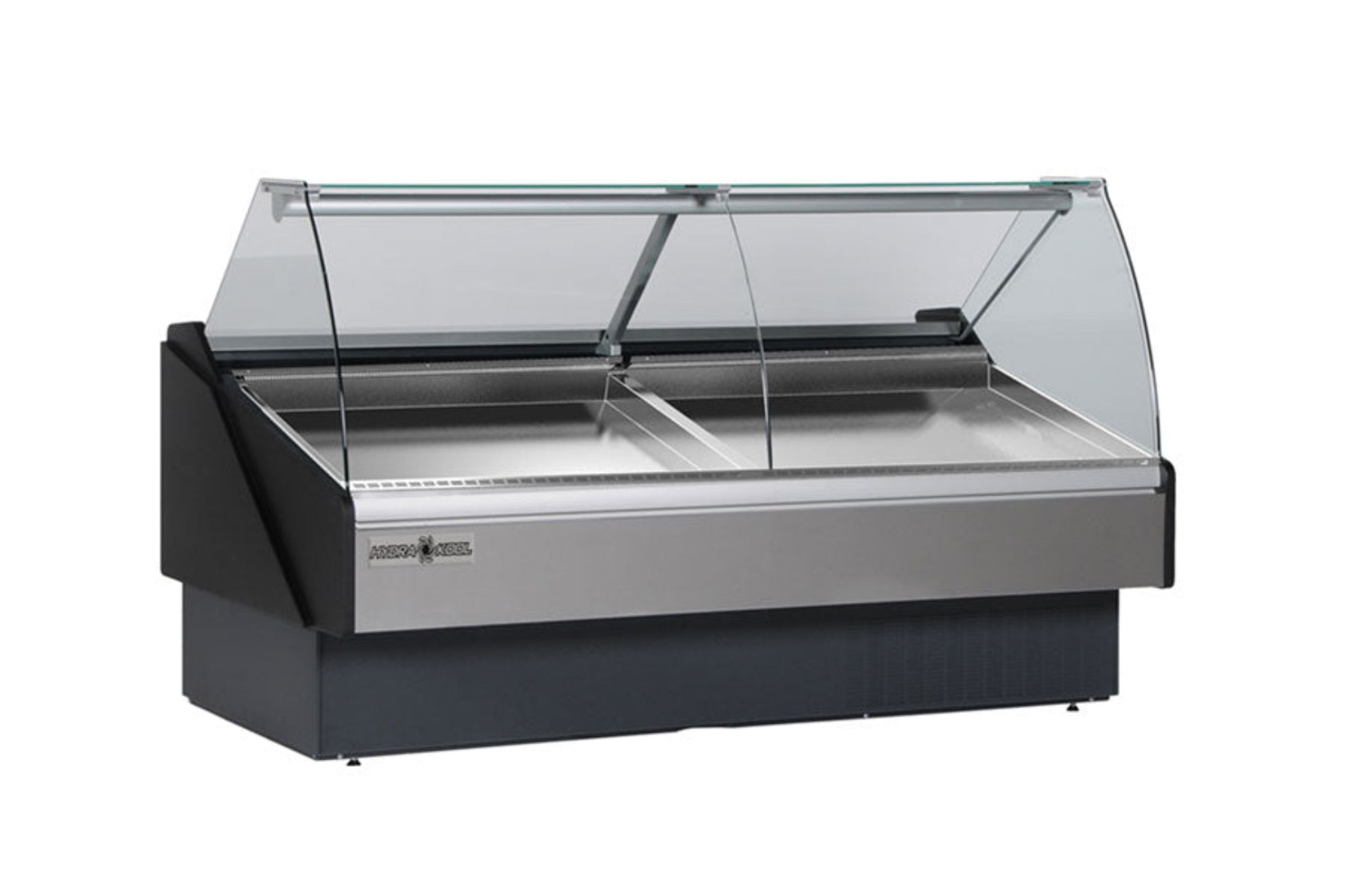

Hydra-Kool - Commercial - 77" Deli Display Case Fresh Seafood, Self-Contained - KFM-SC-80-S
This KFMSC80S seafood case with ice pans, with self contained refrigeration by Hydra-Kool has a tilt forward curved tempered front glass and rear tempered sliding doors.
Features
Features
- Coated evaporator coil
- Stainless steel frame
- Stainless steel interior
- Stainless steel rear work bench
- Silver colored PVC coated steel front panel
- CFC free injected foam insulation
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered tilt foward front glass
- Removable rear tempered glass sliding door
- LED lighting in canopy
- Temperature and defrost regulated by a digital controller
- Slide out condensing unit on self-contained units
- Anti condensing system for front glass
- Digital thermometer
- Levelling feet
- Ice/fish pan kit. See table above
- Stainless steel exterior
- Other colors available
- Joining Kit
- Partition
- Scale stand with receptable
- Cutting Board
- Knife Support
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| Model / Product Number |
KFM-SC-80-S |
| SKU |
KFMSC80S |
| UPC |
6997390003619 |
| Stock ID |
735370 |
| Condition |
Brand New |
| Type |
Deli Case |
| Color |
Black |
| Door Style |
Sliding |
| Glass Style |
Curved |
| Compressor Location |
Bottom |
| Installation Type |
Freestanding |
| Capacity |
24.7 cu. ft. |
| Temperature Range |
33°F to 40°F |
| Horsepower |
5/8 HP |
| Amperage |
15 Amps |
| Voltage |
115 Volts |
| Hertz |
60 Hz |
| Phase |
1 |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| Pass-Through |
No |
| Heavy Duty |
No |
| CFC Free |
Yes |
| Exterior Width |
80" |
| ETL Certified |
Yes |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE Certified |
No |
| UL Listed |
No |
| Energy Star Rated |
No |
| ADA Compliant |
No |
| Weight |
794 lb |
Dimensions & Weight
Dimensions & Weight
-
Width: 77.5"
-
Depth: 43.3125"
-
Height: 49.609375"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Premium Seafood Presentation – Wide 77" display highlights fresh seafood for maximum appeal.
-
Precise Temperature Control – Self-contained cooling keeps seafood at ideal freshness.
-
Spacious & Versatile – Ample room for trays and ice beds to showcase multiple items.
-
Commercial-Grade Durability – Built to withstand high-traffic retail environments.
-
Easy Cleaning & Maintenance – Removable trays and accessible components simplify upkeep.
-
Energy-Efficient Operation – Advanced cooling technology reduces power usage without compromising quality.
Q&A
Q: What is the Hydra-Kool KFM-SC-80-S?
A: A 77" commercial deli display case for fresh seafood, self-contained, designed for retail and foodservice use.
Q: What are its main features?
A: Self-contained refrigeration, energy-efficient LED lighting, adjustable shelving, and durable stainless-steel construction.
Q: What type of business is it ideal for?
A: Seafood markets, delis, grocery stores, and restaurants displaying fresh seafood.
Q: How does it benefit businesses?
A: Maintains optimal seafood freshness, enhances product visibility, and encourages customer purchases.
Q: What makes it commercial-grade?
A: Heavy-duty design, consistent cooling, and ample display capacity for high-demand environments
Maintenance Tips
-
Clean the curved front glass, stainless steel interior and rear work shelf daily with a mild, food‑safe detergent; rinse and wipe dry.
-
Sanitize ice/fish pans and rear sliding glass doors regularly; clear drains to prevent odor and standing water.
-
Remove dust and debris from condenser coils, vents and condensing unit at least monthly to maintain cooling efficiency.
-
Inspect gaskets, sliding door seals and night‑panel tracks for wear or misalignment; replace or realign as needed to avoid warm air ingress.
-
Check temperature controller is operating and maintaining the display case at the correct seafood range (33‑40 °F) and ensure automatic defrost is functioning.
-
Ensure the unit is level using its adjustable feet; uneven placement can affect drainage and door operation.
-
Avoid over‑loading product display area; maintain proper spacing so airflow isn’t blocked and the case chills evenly.
-
On a monthly (or quarterly) basis, turn off power, remove display trays and rear panels, deep clean inside surfaces, check electrical connections and evaporator fan motors for proper operation.
