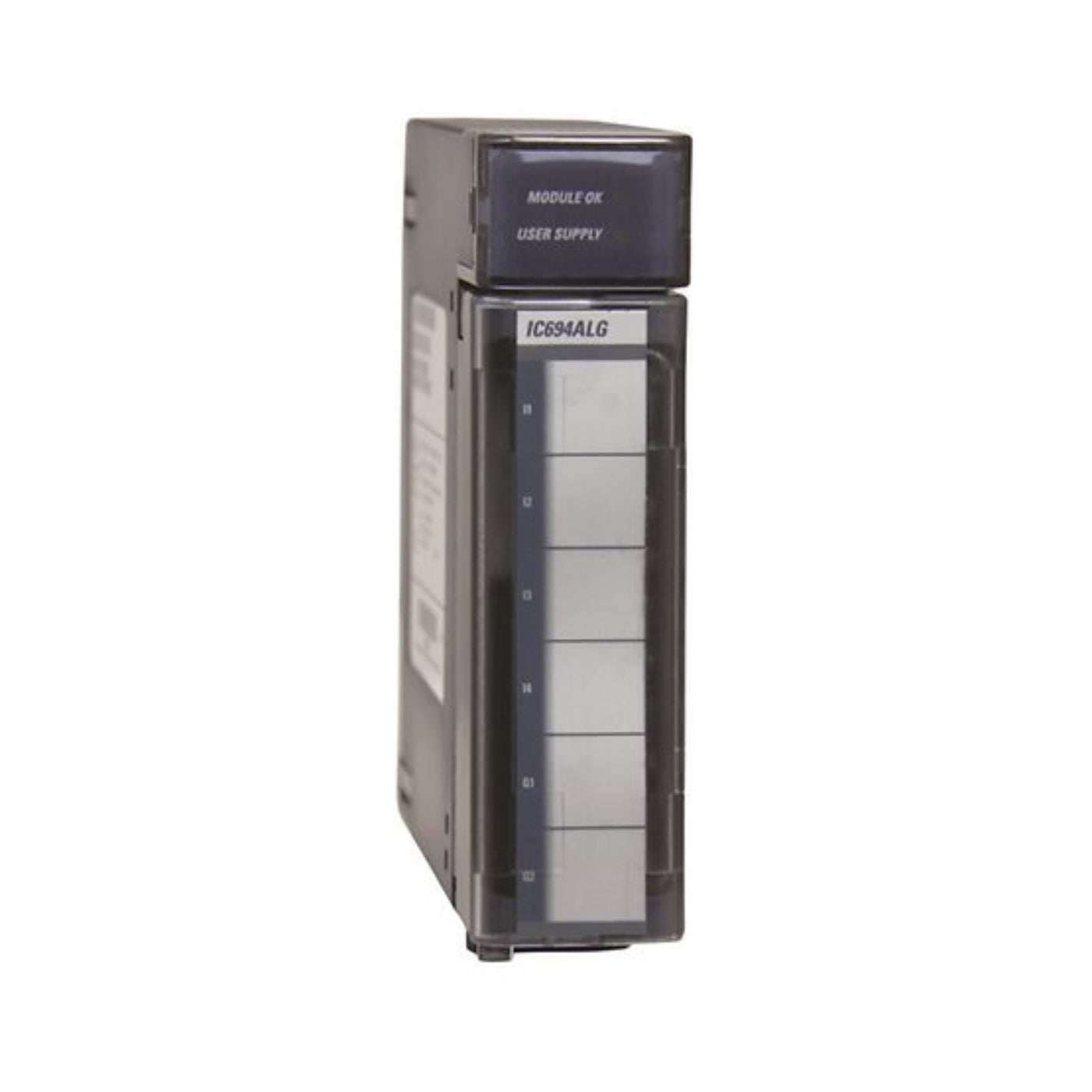

Fanuc Corporation | GE Fanuc Analog Combination Module - IC694ALG542
The GE Fanuc Analog Combination Module (IC694ALG542) integrates multiple analog input and output channels into one robust unit, delivering precise signal processing and reliable performance for industrial automation applications.
The GE Fanuc Analog Combination Module (IC694ALG542) is engineered to streamline industrial automation by integrating analog input and output channels into a single, compact unit. It delivers precise signal processing and reliable performance, making it an essential component for accurate process control in demanding industrial environments.
Overall, the GE Fanuc Analog Combination Module (IC694ALG542) provides a reliable, efficient solution for managing analog signals, enhancing the accuracy and effectiveness of industrial control systems.
Features
- Model: IC694ALG542
- Type: Analog Combination Module
- Integrated Channels: Combines multiple analog input and output channels for streamlined signal management
- Precision Processing: Ensures accurate measurement and control of process variables
- Robust Design: Built to withstand harsh industrial conditions for long-term reliability
- System Compatibility: Seamlessly integrates with GE Fanuc control systems
- Enhanced Accuracy: Delivers precise analog signal handling for optimal process control
- Space Efficiency: Combines multiple functions in one module, reducing system complexity
- Reliability: Designed for consistent performance in challenging industrial environments
- Simplified Integration: Facilitates easy installation and configuration within existing control architectures
- Industrial Automation: Ideal for monitoring and controlling critical process variables
- Process Control Systems: Supports applications in manufacturing, chemical processing, and energy management
- Instrumentation: Suitable for tasks requiring precise analog measurement and output control
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc |
| Category |
PLCs and Accessories |
| Part Number |
IC694ALG542 |
| Subcategory |
PLC Expansion Modules |
| Weight |
0.45 kgs |
| External Supply Voltage Range |
20 to 30V DC (24V DC typical) |
Voltage Ripple |
10% |
Update Rate |
2 ms |
Analog Outputs |
Two, Single Ended |
Output Current Ranges |
0 to 20 mA, 4 to 20 mA |
Output Ranges |
-10 to +10V (bipolar), 0 to +10V (unipolar) |
Output Loading |
5 mA (2 K Ohms minimum resistance) |
Resolution |
16 bit |
What Our Experts Think
-
Integrated Analog I/O: This module combines 4 differential analog inputs and 2 single-ended analog outputs, simplifying system design and reducing the need for additional modules.
-
Versatile Signal Ranges: It supports multiple input and output ranges, including 0–10V (unipolar), ±10V (bipolar), 0–20mA, and 4–20mA, making it adaptable to a wide range of industrial applications.
-
High-Resolution Processing: With 16-bit resolution for both inputs and outputs, it ensures precise signal conversion and accurate data representation for critical control systems.
-
Fast Update Rate: The module features a 2 ms update rate, which allows for quick responses to changes in process conditions, enhancing overall system performance.
-
Compact and Efficient Design: Designed for easy integration into the RX3i PACSystems backplane, it operates on a 24V DC supply and has low power consumption, making it efficient for industrial use.
-
Robust Build Quality: Built to endure harsh industrial environments, the IC694ALG542 ensures reliable and long-lasting performance in demanding conditions.
-
Advanced Features: It includes features like signal scaling, open-wire detection, and user-configurable alarms, which enhance diagnostics and control capabilities.
Q&A
Q: What is the GE Fanuc IC694ALG542 Analog Combination Module?
A: The IC694ALG542 is a dual-channel analog output module designed for use with the RX3i PACSystems. It offers flexible output ranges for both voltage and current, supporting applications in process control and industrial automation.
Q: What applications is the IC694ALG542 suitable for?
The IC694ALG542 is ideal for applications requiring precise analog output control, such as industrial automation, process control systems, and instrumentation.
Q: Is the IC694ALG542 compatible with other GE Fanuc modules?
Yes, it integrates seamlessly with other modules in the RX3i PACSystems, ensuring smooth operation within automation systems.
Q: Where can I purchase the IC694ALG542 Analog Combination Module?
The IC694ALG542 is available through authorized industrial automation distributors.
Maintenance Tips
-
Routine Calibration: Periodically verify analog input/output accuracy.
-
Inspect Wiring: Check for secure, corrosion-free connections and proper grounding.
-
Clean Safely: Use anti-static brushes or compressed air to remove dust.
-
Noise Prevention: Use shielded, twisted-pair cables to reduce interference.
-
Monitor Environment: Keep module in a stable, clean, and dry enclosure.
-
Firmware Consistency: Ensure compatibility with updated control systems using GE tools.
