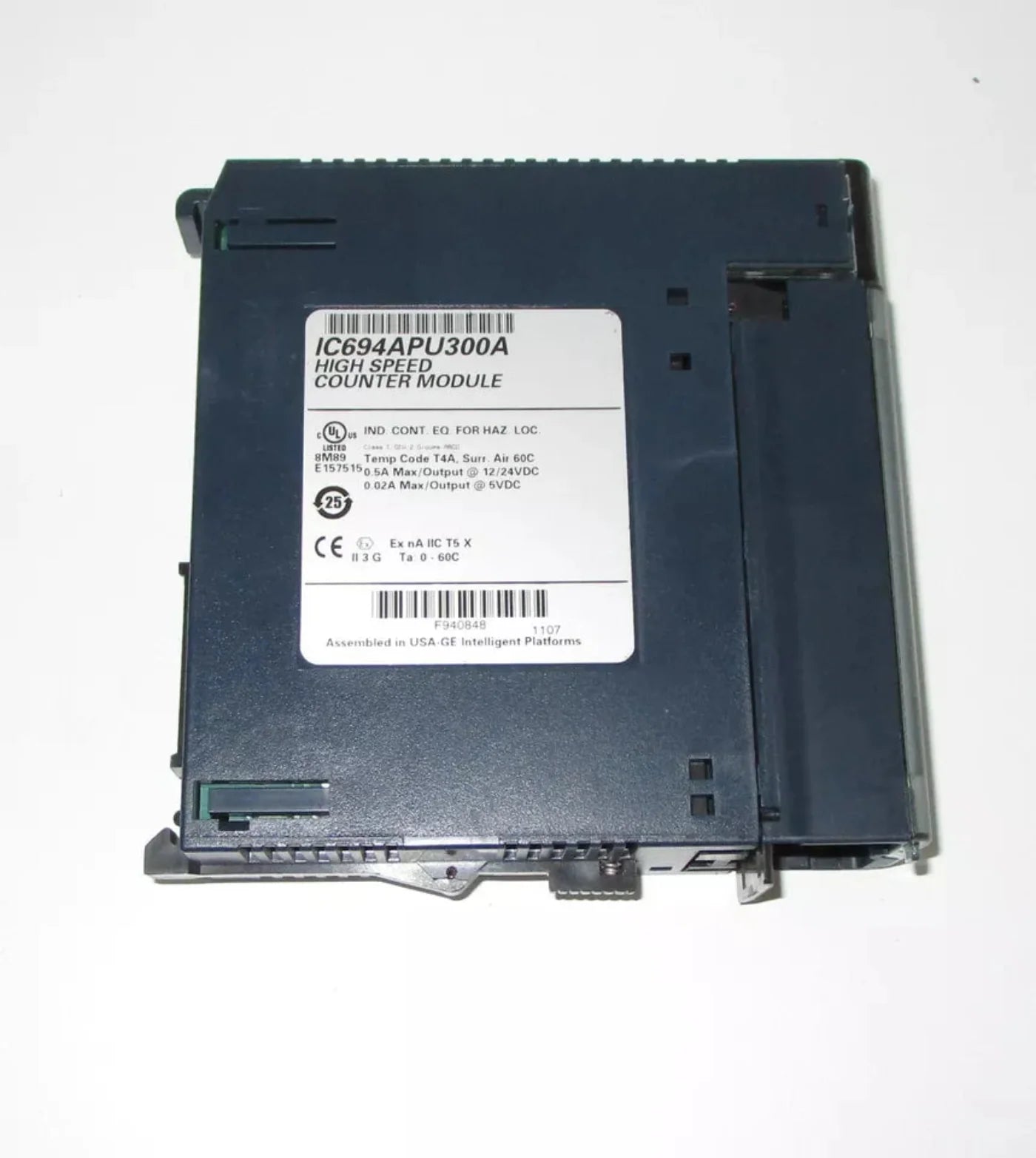

The GE Fanuc IC694APU300A High-Speed Counter Module is designed for precise counting and pulse processing in industrial automation systems. It operates at a base speed of 200 kHz, with an enhanced mode of up to 1 MHz and a 2 MHz internal oscillator for high-speed applications.

The IC694APU300A High-Speed Counter Module is an advanced motion control solution for GE Fanuc RX3i PLC systems. It features a processing speed of 80 kHz and is capable of handling high-frequency pulse inputs for precise position and speed measurement. The module supports both 5V DC and 10-30V DC input voltage ranges, providing flexibility in industrial environments. Its positive logic I/O configuration ensures reliable signal processing, while the 500mA output at 10-30VDC or 20mA at 4.75-6VDC ensures compatibility with different loads. With a power consumption of 250mA from the 5V bus, it efficiently integrates into control systems without excessive power demands.

With its high-speed operation, multiple input configurations, and flexible voltage support, the GE Fanuc IC694APU300A is ideal for industrial automation applications requiring precise counting, motion control, and pulse processing.

Features

• High-speed processing: 200 kHz standard, 1 MHz enhanced mode, 2 MHz internal oscillator for rapid counting.
• Multiple input types: Supports A, B, and C-type inputs for versatile operation.
• Processing speed: 80 kHz for efficient counting and pulse processing.
• Flexible input voltage range: 5V DC or 10-30V DC (TSEL open).
• Versatile output voltage: 10-30VDC 500mA or 4.75-6VDC 20mA.
• Positive logic I/O: Ensures reliable and precise signal control.
• Efficient power consumption: 250mA from the 5V bus, reducing system load.

Specifications

What Our Experts Think

• High-Speed Precision: Supports up to 1MHz input frequency, ideal for applications requiring fast, accurate counting (e.g., packaging, material handling).

• Real-Time Processing: Handles encoder and pulse signals independently of the PLC scan time, improving system responsiveness.

• Flexible Operation Modes: Offers multiple counting modes (quadrature, up/down, etc.) for diverse automation needs.

• Easy Configuration: User-friendly setup via GE’s Proficy Machine Edition software.

• Seamless Integration: Designed for the GE RX3i Series, ensuring tight synchronization with other modules.

Q&A

Q: What is the IC694APU300A High Speed Counter Module?
A: It’s a GE Fanuc high-speed counter module for RX3i PACSystems, enabling rapid pulse counting and motion control.

Q: What is it used for?
A: Ideal for applications requiring fast, precise counting—such as packaging, robotics, and positioning systems.

Q: How many channels does it support?
A: It features 2 independent counter channels with up to 1 MHz input rates.

Q: Is it compatible with GE RX3i systems?
A: Yes, it's fully compatible with RX3i controllers and I/O systems.

Q: Why choose the IC694APU300A?
A: It delivers high-speed, accurate counting with minimal CPU load, perfect for real-time automation tasks.

Maintenance Tips

• Verify Signal Integrity: Regularly check input pulse signals for consistency.

• Inspect Connections: Ensure all wiring is secure, clean, and properly shielded.

• Dust Prevention: Clean with anti-static tools to avoid buildup on terminals.

• Monitor Module Temperature: Keep within specified operating range to prevent malfunction.

• Test Performance: Periodically validate counting accuracy and response time.

• Firmware & Config Check: Keep settings and firmware current using GE-approved software.
