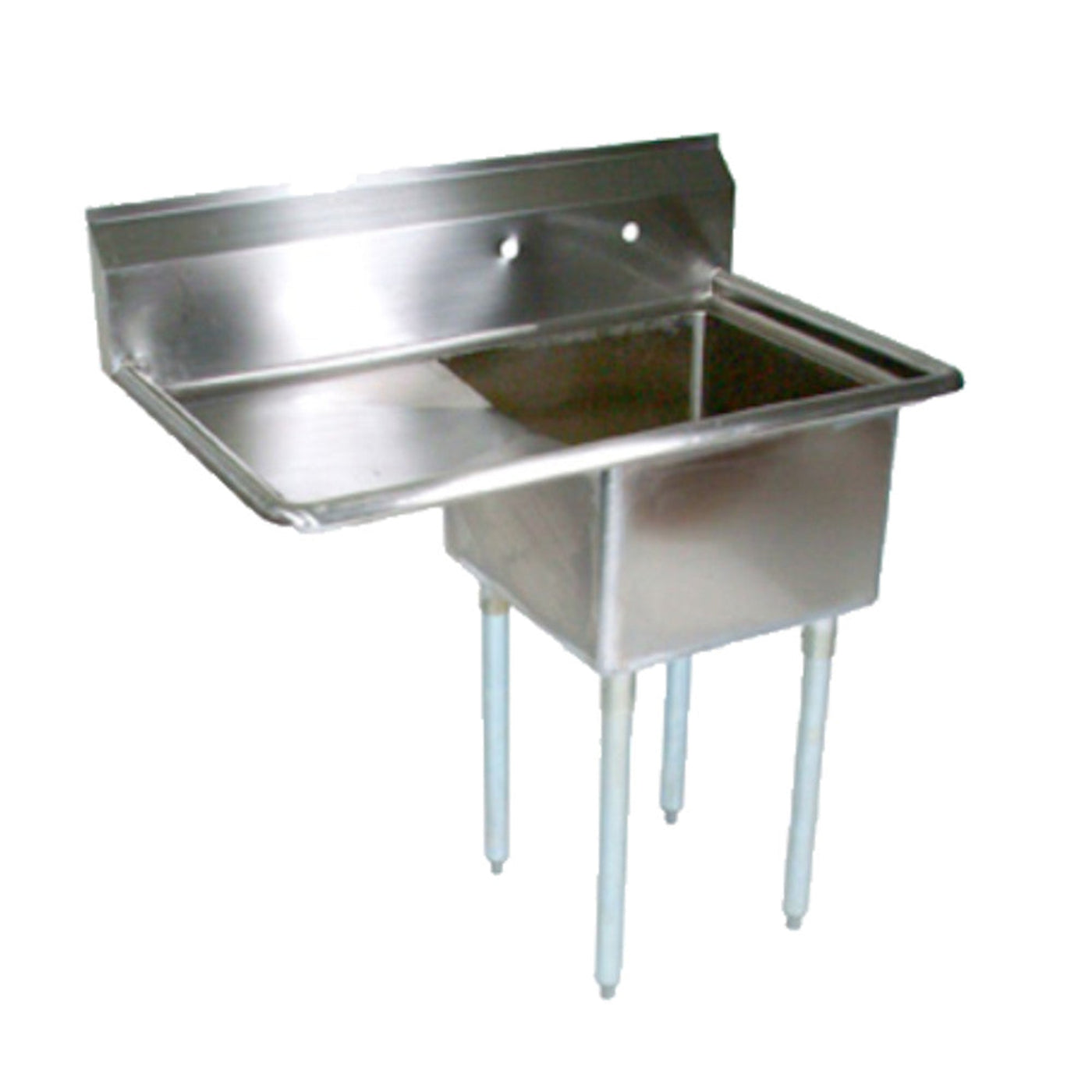

John Boos E1S8-24-14L24 One-Compartment E-Series Sink with 24" Left Drainboard - JBE1S82414L24
This John Boos E1S8-24-14L24 E-Series Sink is durable, easy to use, and designed for commercial or industrial applications. It has a stainless and galvanized steel construction with an 18 gauge type 300 stainless steel bowl and top. Both the bowl and top have been polished with a #4 satin finish. The legs, base, and gussets are galvanized steel. The adjustable bullet feet are made of plastic. This E1S8-24-14L24 E-Series Sink has a full length 10" high boxed backsplash. It has 1" faucet holes in the backsplash, but the faucet is not included. It does include a 24" left drainboard.
Features
- (1) sink compartment
- (1) 24" left drainboard
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degrees
- 1" tile edge
- 1" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard galvanized legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized steel base
- Material
- 18 gauge type 300 stainless steel top and bowls with #4 polish, satin finish
- 1-5/8" Round O.D. galvanized steel legs
- Galvanized steel gussets
- 1" plastic bullet feet
Specifications
| Model |
E1S8-24-14L24 |
| Compartment Dimensions |
24" W × 24" front-to-back × 14" deep |
| Overall Dimensions |
43.75" H × 50.5" W × 29.5" D |
| Approximate Weight |
64 lbs. |
What our Experts Think
-
Commercial‑Grade Durability: Heavy‑duty stainless steel construction resists rust, dents, and daily wear in busy environments.
-
Spacious Single Basin: One deep compartment provides generous wash capacity for large pots, pans, and prep items.
-
Integrated 24" Left Drainboard: Ample drainboard space enhances workflow by offering dedicated drying and staging area.
-
Hygiene‑Focused Design: Smooth welded seams and coved corners help contain splashes and make cleaning easier.
-
Stable & Adjustable: Strong support with adjustable feet ensures a level, secure setup on uneven floors.
Q&A
Q: What is this product?
A: A commercial one‑compartment sink with a 24" left drainboard, ideal for foodservice prep and washing.
Q: What are the dimensions?
A: Overall approx. 50.5" W x 29.5" D x 43.75" H; sink bowl 24" W x 24" D x 14" deep.
Q: What materials and finish are used?
A: 18‑gauge Type 300 stainless steel top and bowl with a satin finish; legs and gussets are galvanized steel for strength and corrosion resistance.
Q: What features improve hygiene and usability?
A: Coved corners ease cleaning, boxed backsplash contains splashes, and adjustable bullet feet allow leveling on uneven floors.
Q: Does it include a faucet or fittings?
A: Faucet not included; pre‑drilled splash‑mount holes are provided for easy installation.
Q: Where is this sink best used?
A: Ideal for restaurants, commercial kitchens, dishwashing stations, and prep areas needing a durable, easy‑to‑clean sink with drain space.
Q: Why choose this model?
A: Offers commercial-grade stainless construction, integrated drainboard, ergonomic design, and reliable daily performance.
Maintenance Tips
-
Clean & dry daily: Wash sink and drainboard with mild detergent and warm water; always dry completely to prevent water spots and buildup.
-
Sanitize regularly: Use a food‑safe sanitizer after heavy use to maintain hygiene.
-
Wipe with the grain: Clean stainless steel following the grain with a soft cloth to preserve finish and reduce streaks.
-
Avoid abrasives: Do not use steel wool, wire brushes, or harsh chemicals that can scratch or damage stainless.
-
Keep drains clear: Empty strainers and flush drains with hot water to prevent clogs and odors.
-
Inspect fittings: Check faucets, seals, and connections; tighten or replace worn parts to prevent leaks.
-
Quick spill care: Wipe standing water and spills immediately, particularly on the drainboard, to reduce corrosion risk.
