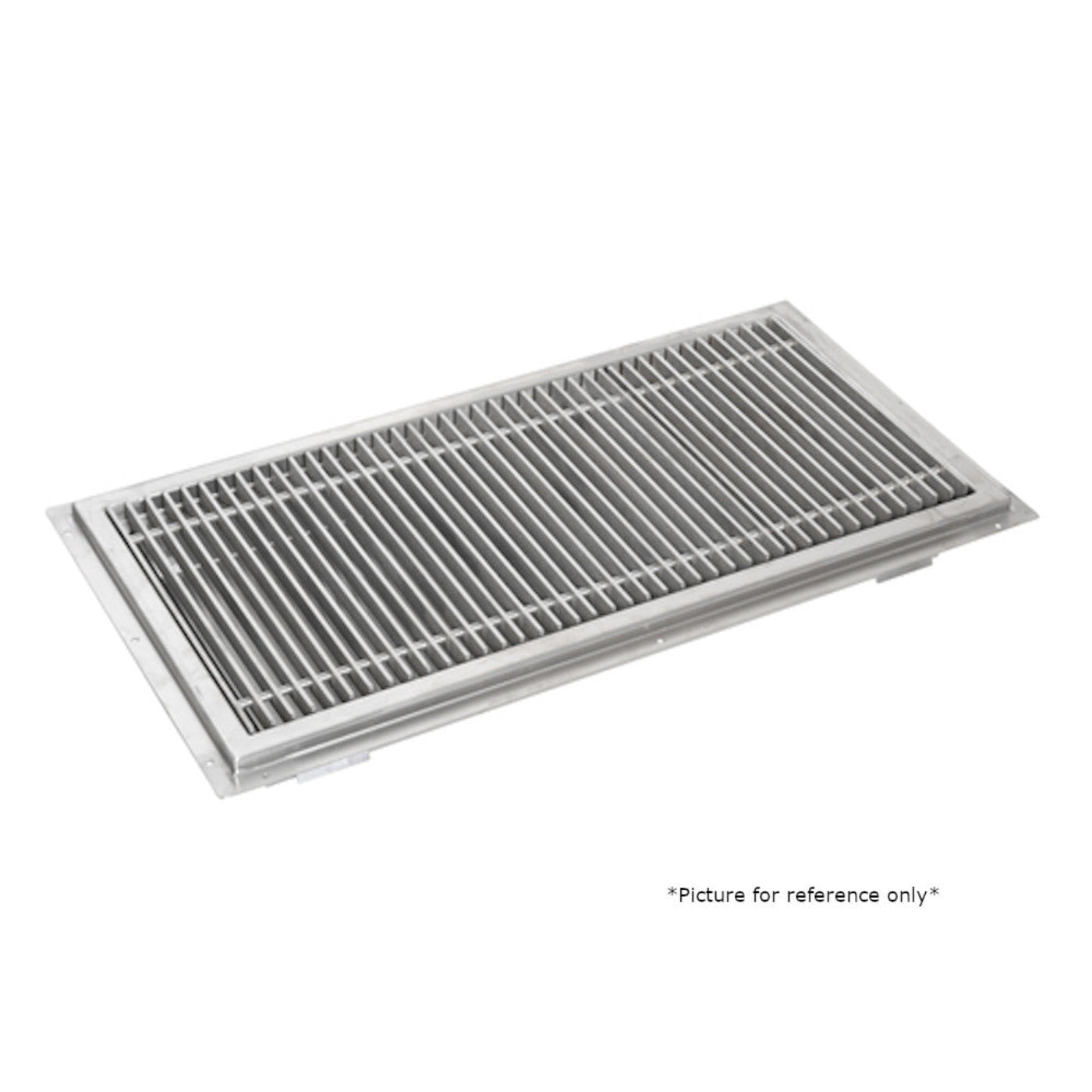

John Boos FTSG-1824 24" W x 18" D Floor Trough
This John Boos FTSG-1824 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable grate with 1/8" stainless steel bards on 3/4" centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. It has a drainage grate with 1/4" holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1824 is TIG welded with its exposed welds being polished to match the adjacent surfaces.
Features
- Accomodates a 4" O.D. diameter drain pipe 3.25" long
- Removable grate with 1/8" stainless steel bars on 3/4" centers
- 5-degree breaks in bottom for positive drainage towards drain
- Includes drainage grate with 1/4" holes
- All TIG welded
- Exposed welds are polished to match adjacent surface
- 14 gauge, type 300 stainless steel construction
Specifications
| Model |
FTSG-1824 |
| Dimensions |
4" H x 24" W x 18" D |
| Approximate Weight |
37 lbs. |
What our Experts Think
-
Efficient Water Control: Channels excess water away to maintain cleaner, safer kitchen floors.
-
Durable Stainless Steel: Built for heavy-duty use in demanding commercial environments.
-
Optimal Coverage: 24" x 18" size is ideal for targeted drainage in high-use areas.
-
Safety Enhancement: Reduces standing water to help prevent slips and accidents.
-
Low-Maintenance Design: Corrosion-resistant stainless steel cleans quickly and easily.
-
Professional Standard: Part of John Boos’ trusted line of commercial-grade floor trough systems.
Q&A
Q: What is the John Boos FTSG-1824 Floor Trough?
A: A commercial stainless steel floor trough designed to manage liquid drainage in high-volume foodservice and industrial spaces.
Q: What are the dimensions?
A: Measures 24" wide x 18" deep, compact yet efficient for busy kitchen drainage needs.
Q: What material is it made from?
A: Heavy-duty stainless steel for durability, corrosion resistance, and sanitation.
Q: Does it include a grate?
A: Yes, it comes with a removable stainless steel grate for easy cleaning and maintenance.
Q: Where is it best used?
A: Ideal for restaurants, bars, cafeterias, and food production facilities.
Maintenance Tips
-
Clean trough daily with warm, soapy water; rinse and dry completely.
-
Avoid abrasive pads or harsh chemicals to protect stainless steel.
-
Remove and clean grating regularly to prevent debris buildup.
-
Keep drain area clear for smooth water flow.
-
Inspect seams, welds, and hardware periodically for durability.
-
Dry after cleaning to reduce water spots and corrosion.
