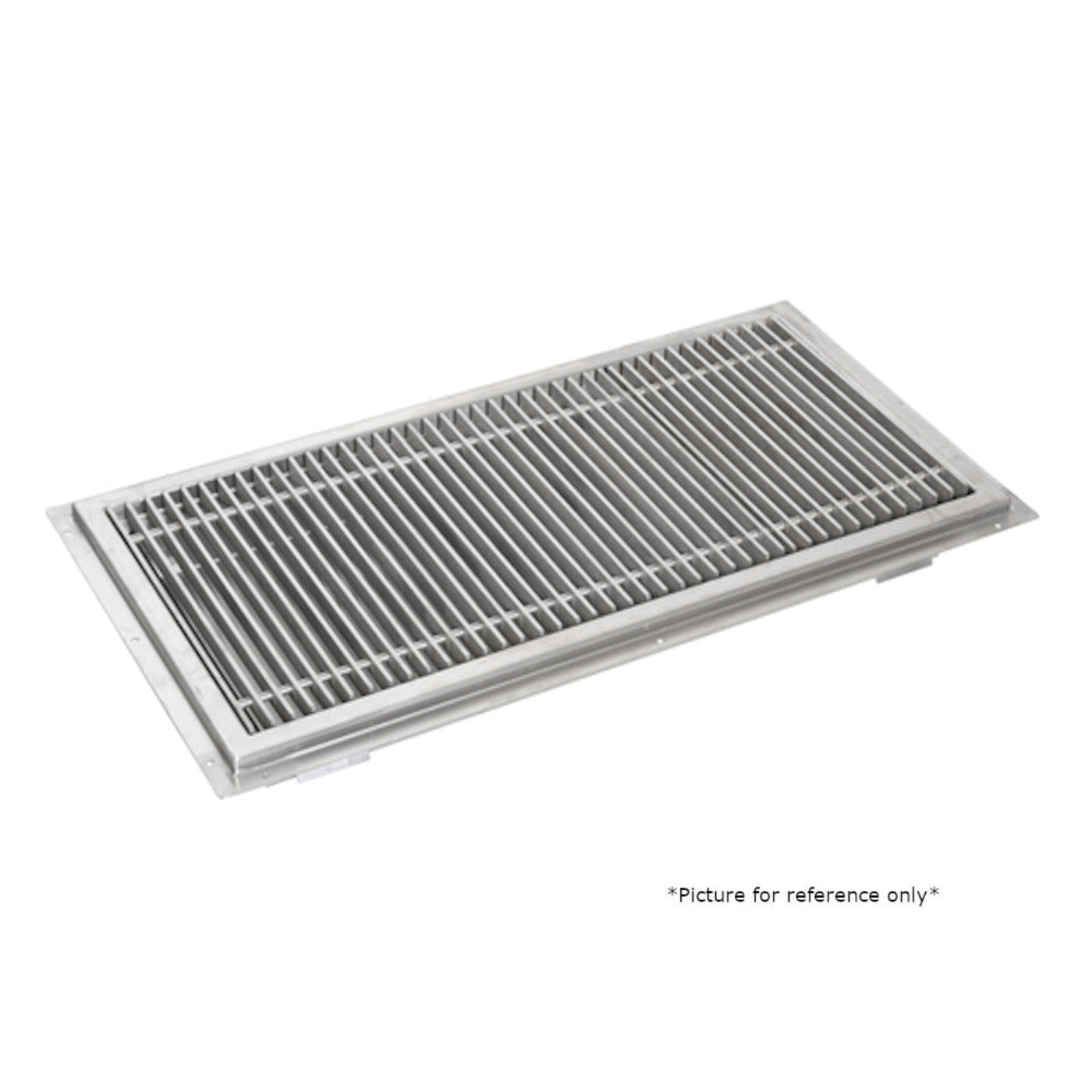

John Boos FTSG-1860 60" W x 18" Floor Trough
This John Boos FTSG-1860 Floor Trough Drain is designed to accommodate a 4" O.D. diameter drain pipe 3.25" long. It has a removable grate with 1/8" stainless steel bards on 3/4" centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. It has a drainage grate with 1/4" holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1860 is TIG welded with its exposed welds being polished to match the adjacent surfaces.
Features
- Accomodates a 4" O.D. diameter drain pipe 3.25" long
- Removable grate with 1/8" stainless steel bars on 3/4" centers
- 5-degree breaks in bottom for positive drainage towards drain
- Includes drainage grate with 1/4" holes
- All TIG welded
- Exposed welds are polished to match adjacent surface
- 14 gauge, type 300 stainless steel construction
Specifications
| Model |
FTSG-1860 |
| Dimensions |
4" H x 60" W x 18" D |
| Approximate Weight |
85 lbs |
What our Experts Think
-
Heavy-Duty Construction: Stainless steel trough built for durability in high-traffic commercial areas.
-
High-Capacity Drainage: 60" width and 18" depth handle significant water flow efficiently.
-
Slip-Resistant Grating: Provides safe footing in wet kitchen or bar environments.
-
Easy Maintenance: Removable grating allows quick cleaning and sanitation.
-
Professional Reliability: John Boos engineering ensures long-lasting performance in foodservice operations.
Q&A
Q: What is the John Boos FTSG-1860 Floor Trough?
A: A commercial-grade stainless steel floor drain trough designed for efficient water management in high-use kitchens and industrial spaces.
Q: What size is the trough?
A: Measures 60" wide x 18" deep, providing extended drainage capacity for larger areas.
Q: What materials is it made from?
A: Constructed from 16-gauge Type 300 stainless steel for durability and corrosion resistance.
Q: Does it include a grate?
A: Yes, it comes with a removable stainless steel grate for easy cleaning and maintenance.
Q: Where can this trough be used?
A: Ideal for commercial kitchens, breweries, food processing plants, and other high-moisture facilities.
Q: How is it installed?
A: Floor-mounted design connects easily to standard drainage systems.
Maintenance Tips
-
Rinse thoroughly after use to prevent buildup and odors.
-
Clean stainless steel surfaces with mild soap and water; dry to avoid spotting.
-
Avoid harsh chemicals or abrasive pads to protect the finish.
-
Inspect grates and drains regularly for proper water flow.
-
Check welds and joints periodically to ensure durability and stability.
