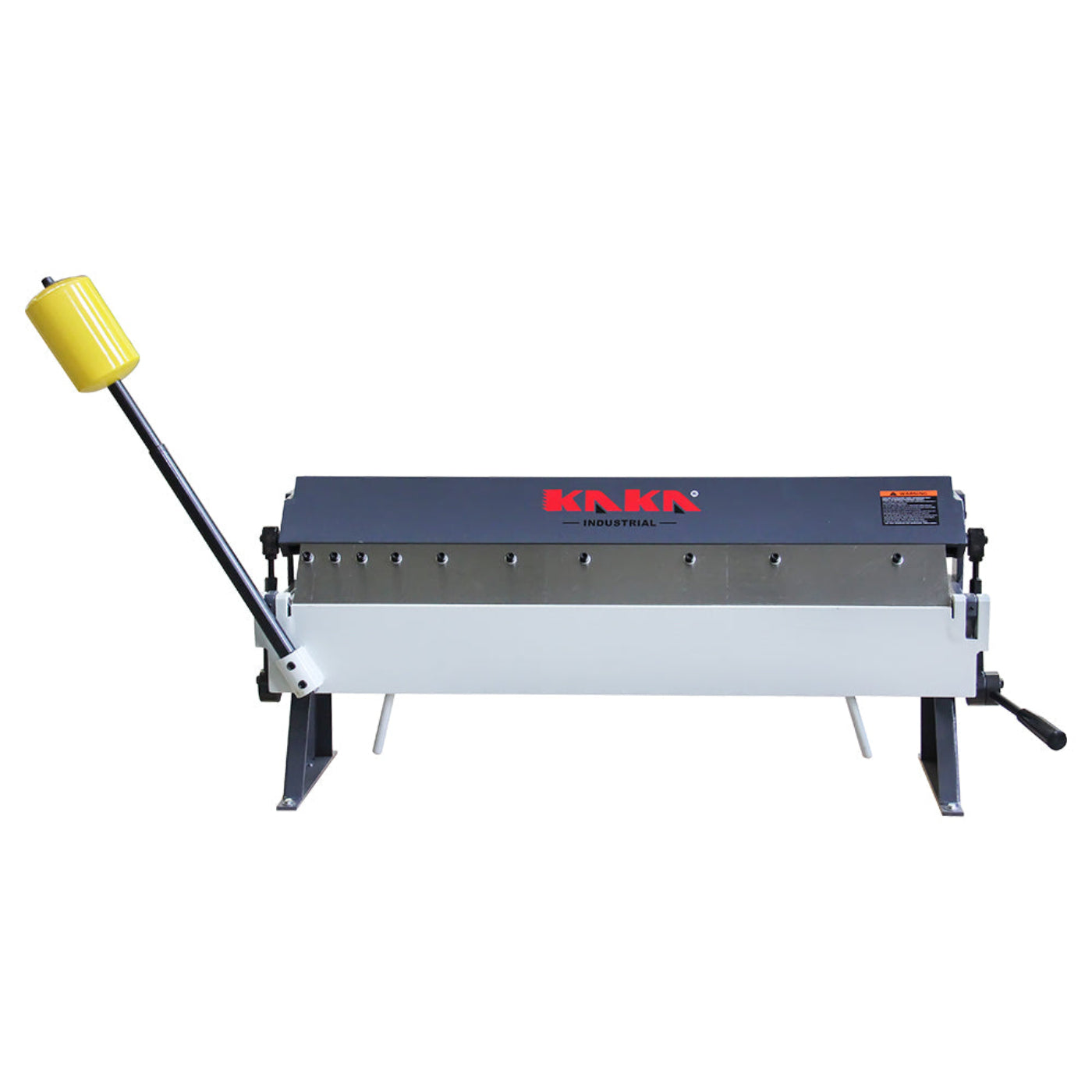

KAKA INDUSTRIAL Box and Pan Brake, 36-Inch Sheet Metal Brake, 16-Gauge Mild Steel Capacity Pan and Box Brake, 1–135 Degree Adjustable, Metal Break with 6 Fingers W-3616Z - 173122
This KAKA Industrial Heavy Duty bench top pan and box brake is an ideal tool if you need to increase the strength of sheet metal plates with bends, or you intend on fabricating more complicated brackets, gussets, boxes, or fixtures. It can bends mild steels up to 16 gauge thick, 36-inches wide with angle 0-135 degrees.
Adjustable Fingers
With removable and adjustable fingers, the KAKA hand brake can be installed in a variety of positions to accommodate varying widths of metal. Quick indexing of one or many fingers makes this the perfect machine for multiple applications. Achieve extremely sharp bends and easily adjust the fingers closer or farther from the point of bend.
Heavy Duty Hold Down Clamp Lever
Bending sheet metal become a easy job with KAKA pan and box brake. The heavy duty hold down clamp lever allows for clamping and unclamping the sheet metal through the cam mechanism. This machine can do any professional bending work.
- Item No.:173122
- Model:W-3616Z
- Capacity(in) Width:36"
- Thickness:16gauge
- Angle:0-135°
- Packing size(in): 46-1/2x15-3/4x22
-
N.W./G.W.（lbs）:232/271
Standard Accessories
Balance weight hammer
Stand
What Our Experts Think
-
The KAKA Industrial W-3616Z Box and Pan Brake (173122) is a 36-inch sheet metal bending machine designed for precision forming of 16-gauge mild steel.
-
Features 1–135° adjustable bending angles and 6 removable fingers for versatile pan and box configurations.
-
Built with robust construction, ensuring accuracy, stability, and long-term reliability in workshop environments.
-
Ideal for metal fabrication, HVAC, and small to medium industrial projects.
Q&A
Q: What is the maximum sheet metal capacity?
A: Supports up to 16-gauge mild steel.
Q: What is the working width?
A: 36 inches.
Q: What bending angles are supported?
A: Adjustable from 1° to 135°.
Q: How many fingers does it have?
A: Comes with 6 removable fingers for flexible bending configurations.
Maintenance Tips
-
Clean bending surfaces and fingers after each use to remove metal debris.
-
Lubricate pivot points and moving parts for smooth operation.
-
Check alignment and fasteners periodically to maintain bending accuracy.
-
Store in a dry environment to prevent rust and prolong machine life.
