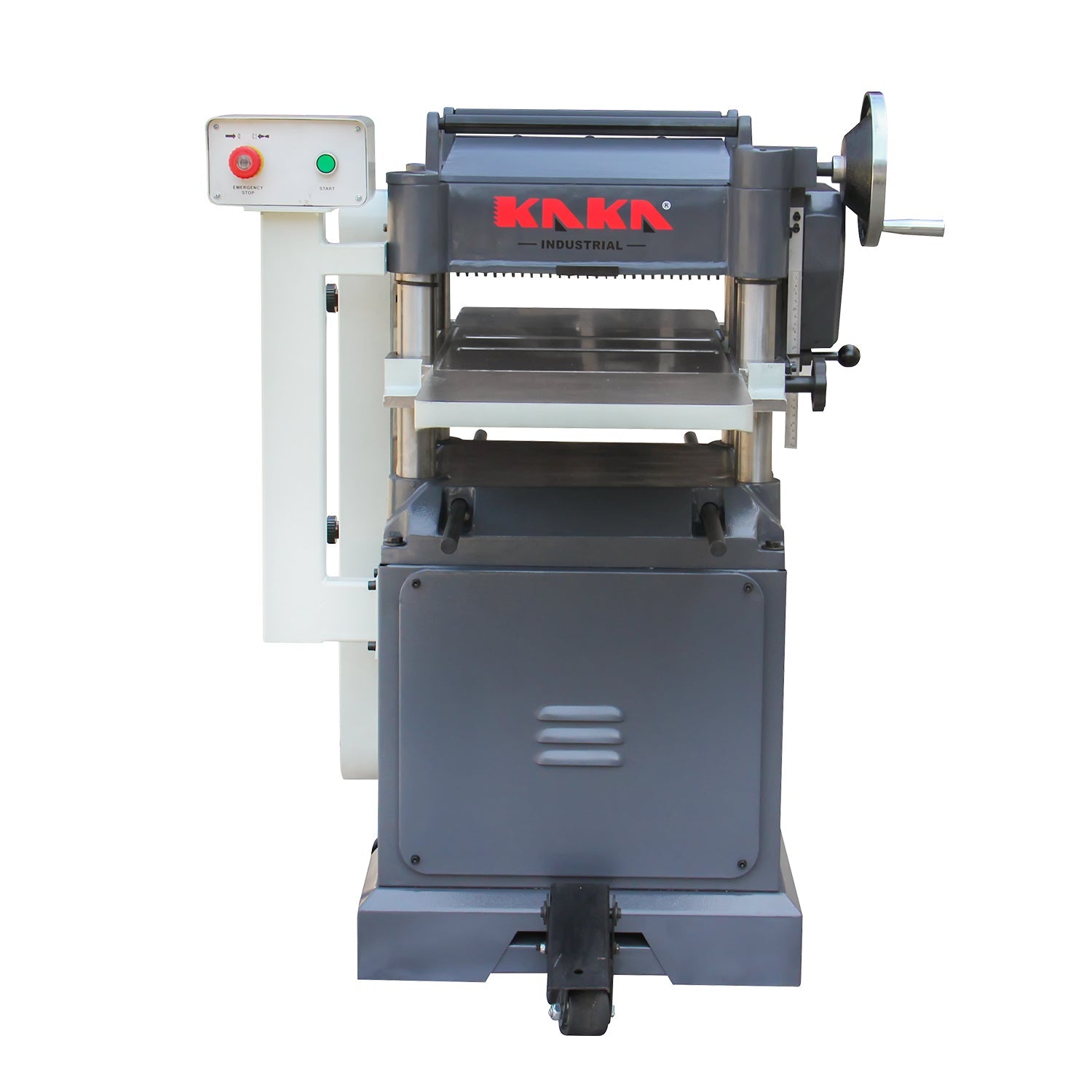

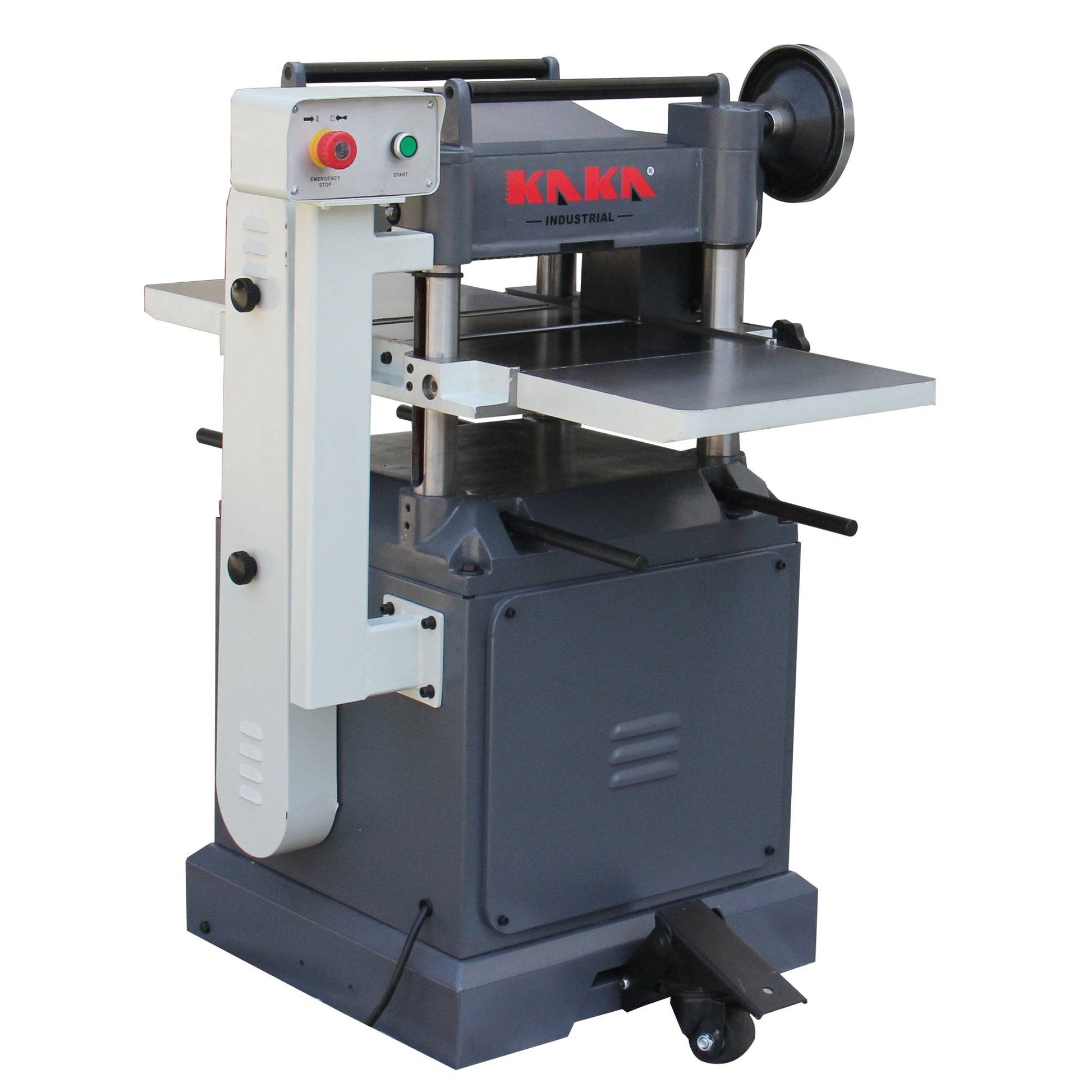

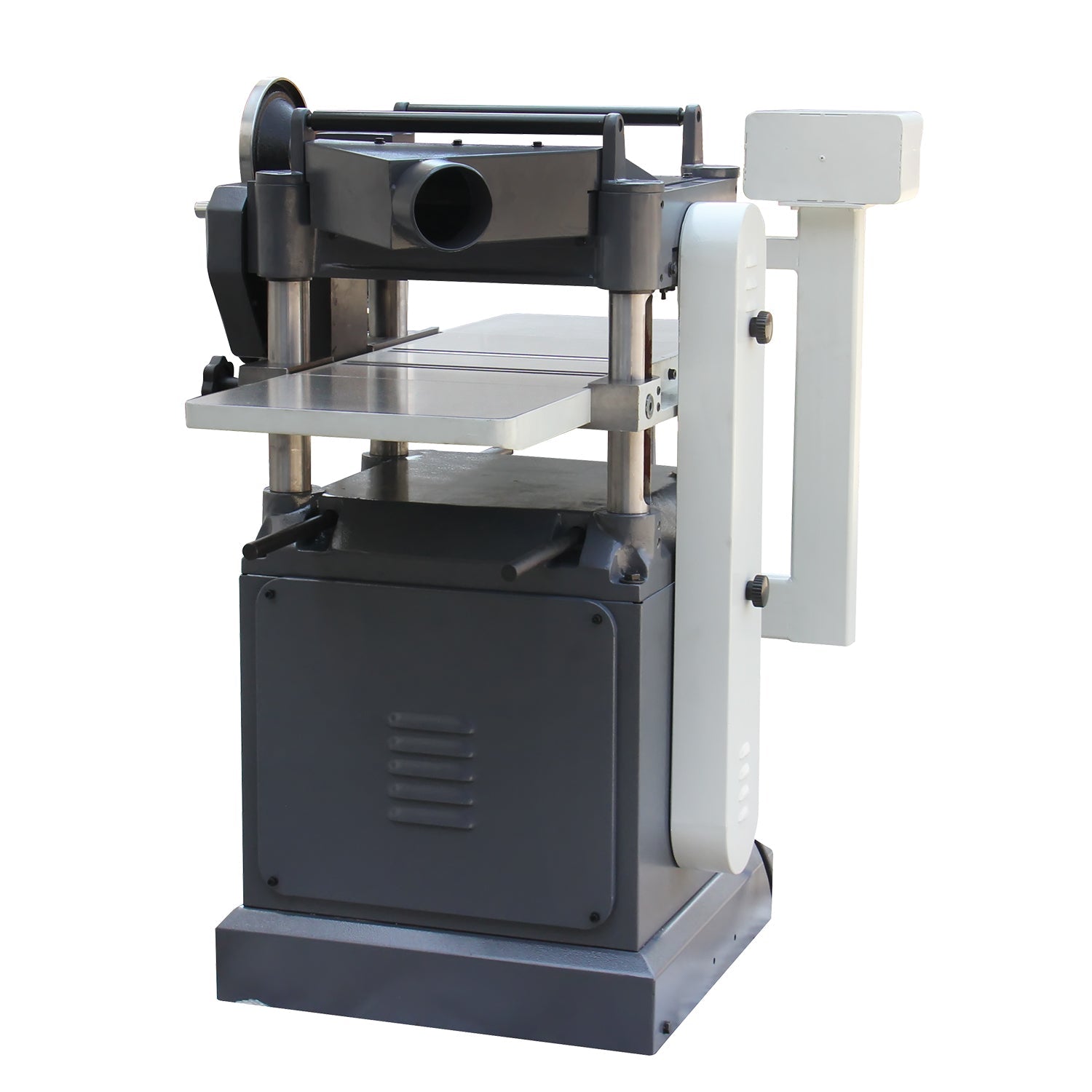

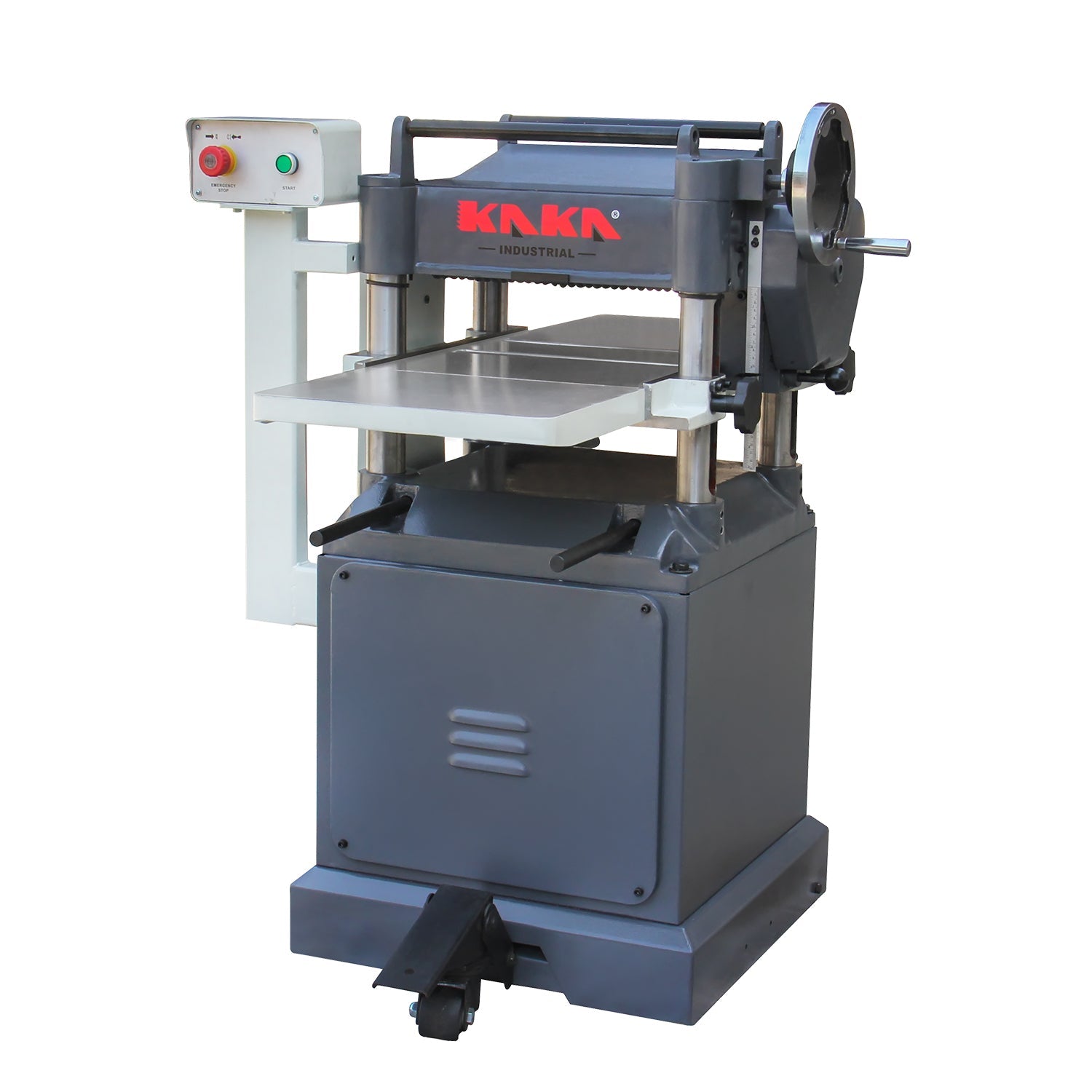

Kaka industrial WDP-4215 ,15 inch Width 8" Max Height,Woodworking Planer with Built in Mobile Base and Helical Cutterhead 220V-60HZ-1PH - 473050V220

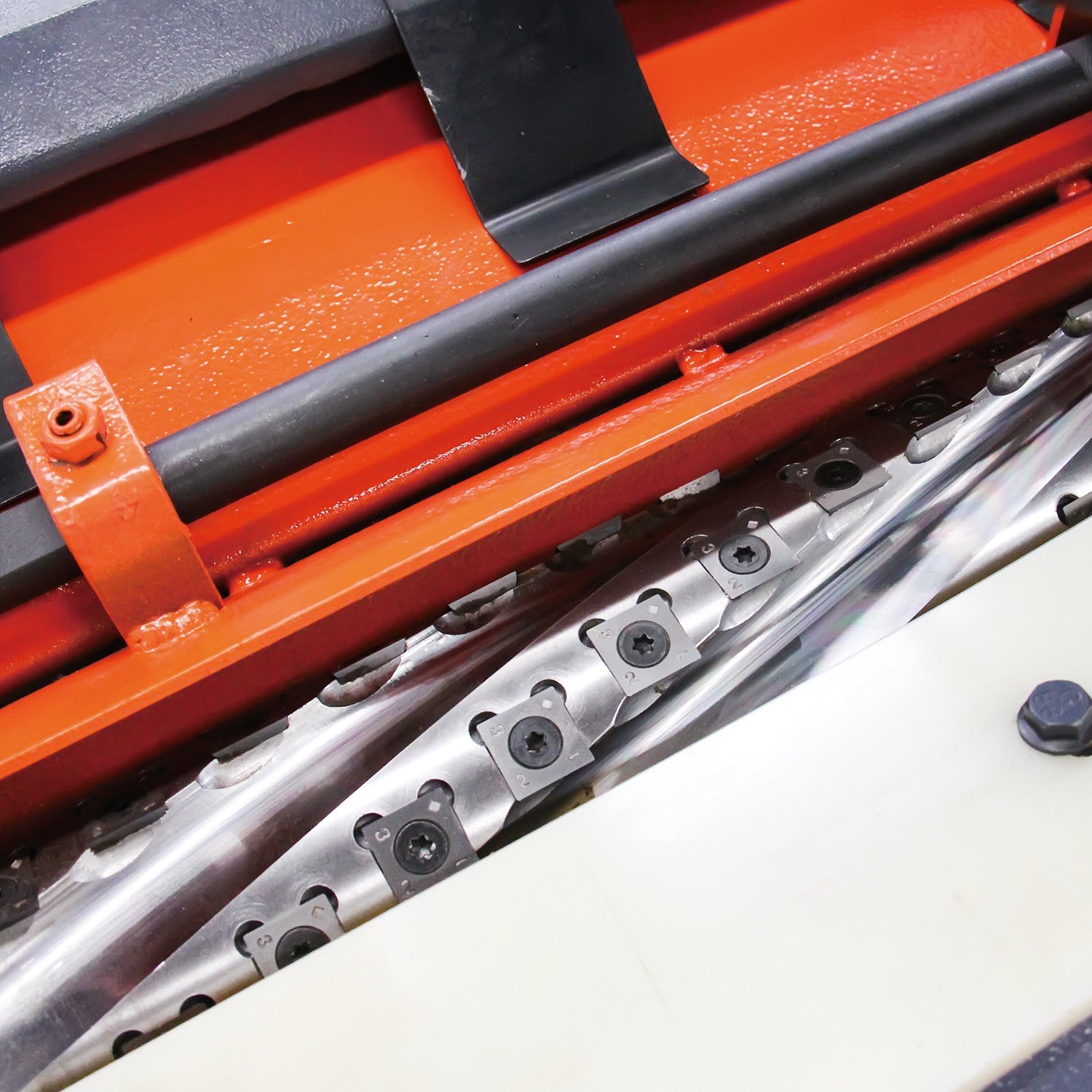

- The 4-row spiral cutterhead with 74 carbide inserts cut some of the finest surface finishes money can buy.
- Each insert can be rotated up to three times to expose a new sharp edge for superior finish.
- Reducing the cut to the size of a single insert makes for a cleaner cut and reduces noise compared to the traditional straight knife cut.
- The 1 HP motor spins the cutterhead at 4800 RPM to plane your stock up to 15" wide by 8" thick, cutting as deep as 1/8" per pass.
- Additionally, features a built-in mobile base, adjustable bed rollers, two-speed automatic board feed, and solid cast-iron extension wings.
SPECIFICATIONS:
MODEL:WDP-4215
Maximum stock width: 15"
Motor: 1 HP, 220V, single-phase, 15A
Minimum stock thickness: 3/16"
Maximum stock thickness: 8"
Minimum stock length: 8"
Maximum cutting depth: 1/8"
Cutterhead diameter: 3"
Cutterhead type: 4-row spiral, 74 inserts
Cutterhead speed: 4750 RPM
Feed rate: 31 & 54 FPM
Table size with extensions: 42"X15"

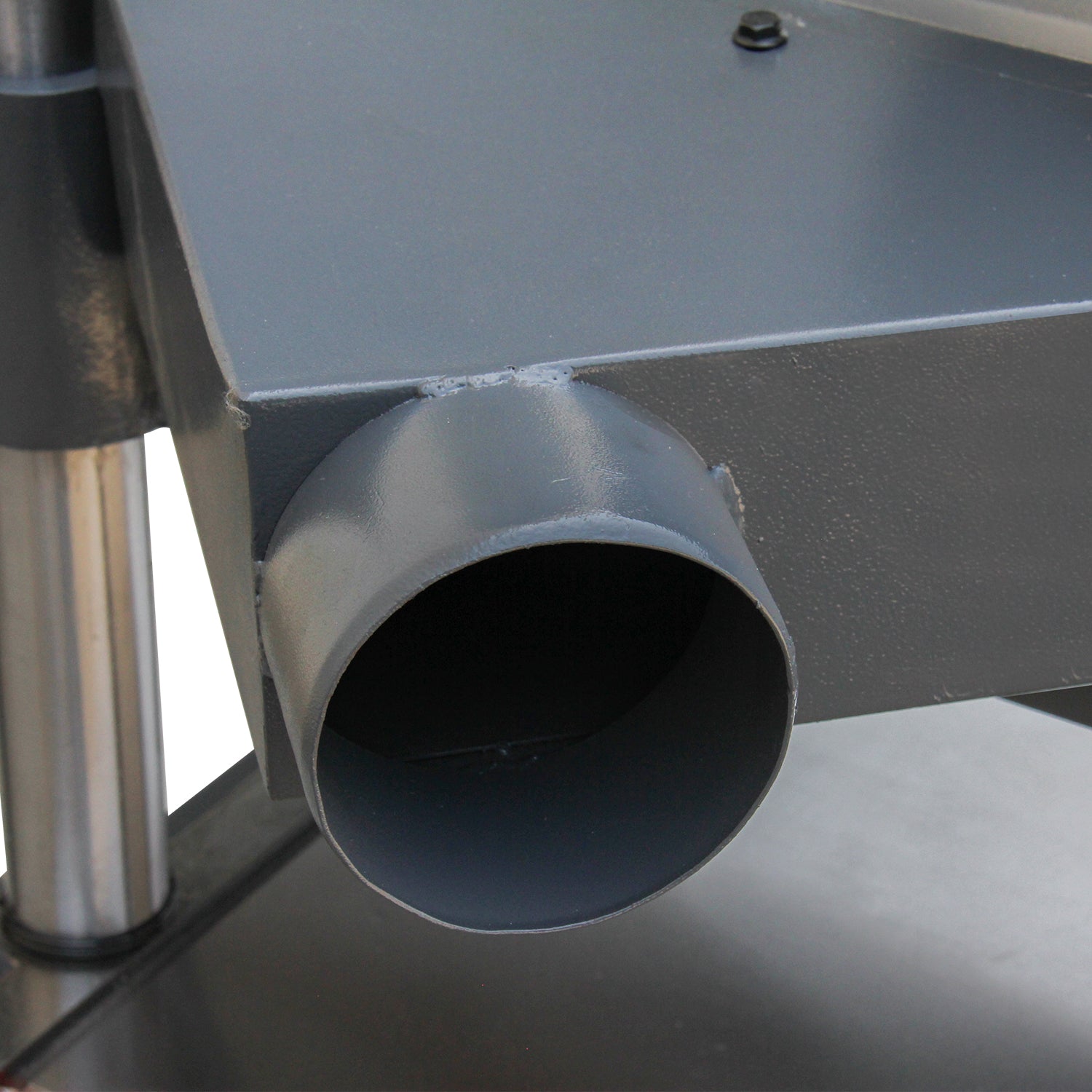

Dust port size: 4"
Footprint: 22" x 22-1/2"
Overall dimensions: 37" W x 29" D x 41" H
Approx. shipping weight: 685 lbs.
What Our Experts Think
-
The KAKA Industrial WDP-4215 Woodworking Planer (473050V220) is a 15-inch width planer designed for precise wood thicknessing up to 8-inch height.
-
Features a helical cutterhead for smooth, clean cuts and reduced tear-out on hardwoods and softwoods.
-
Comes with a built-in mobile base, enabling easy relocation in workshops.
-
Powered by 220V-60Hz single-phase electricity, providing consistent and reliable performance for professional woodworking projects.
Q&A
Q: What is the maximum cutting width?
A: Supports 15-inch width planing.
Q: What is the maximum material thickness?
A: Can handle up to 8 inches in height.
Q: What type of cutterhead does it have?
A: Features a helical cutterhead for smooth, precise cutting.
Q: Does it have a mobile base?
A: Yes, the built-in mobile base allows easy movement within the workshop.
Maintenance Tips
-
Clean cutterhead, feed rollers, and table surfaces after each use to remove wood shavings.
-
Check cutterhead blades and sharpness regularly for consistent cutting quality.
-
Lubricate moving parts and adjustment mechanisms to ensure smooth operation.
-
Store in a dry area to prevent rust and maintain long-term performance.
