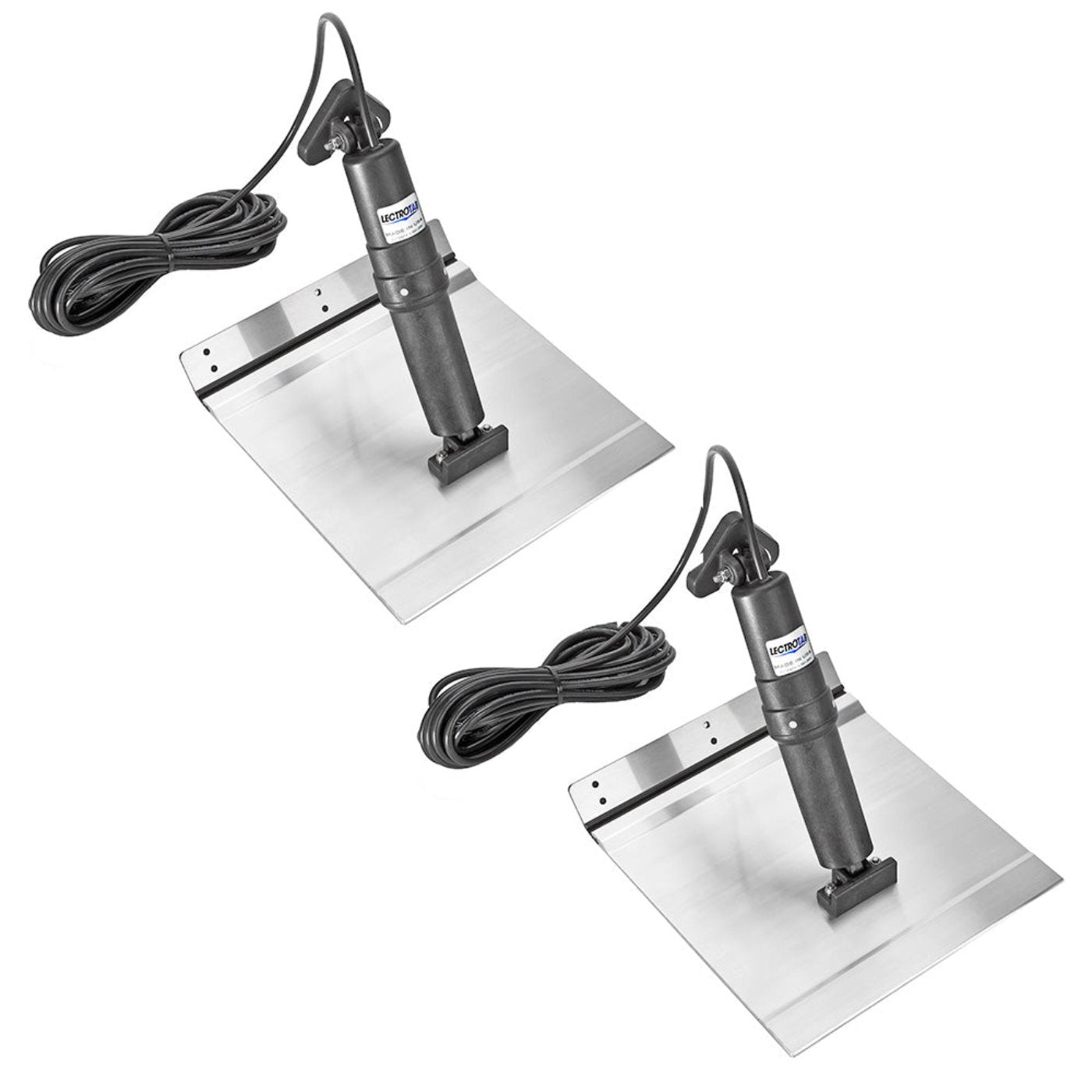

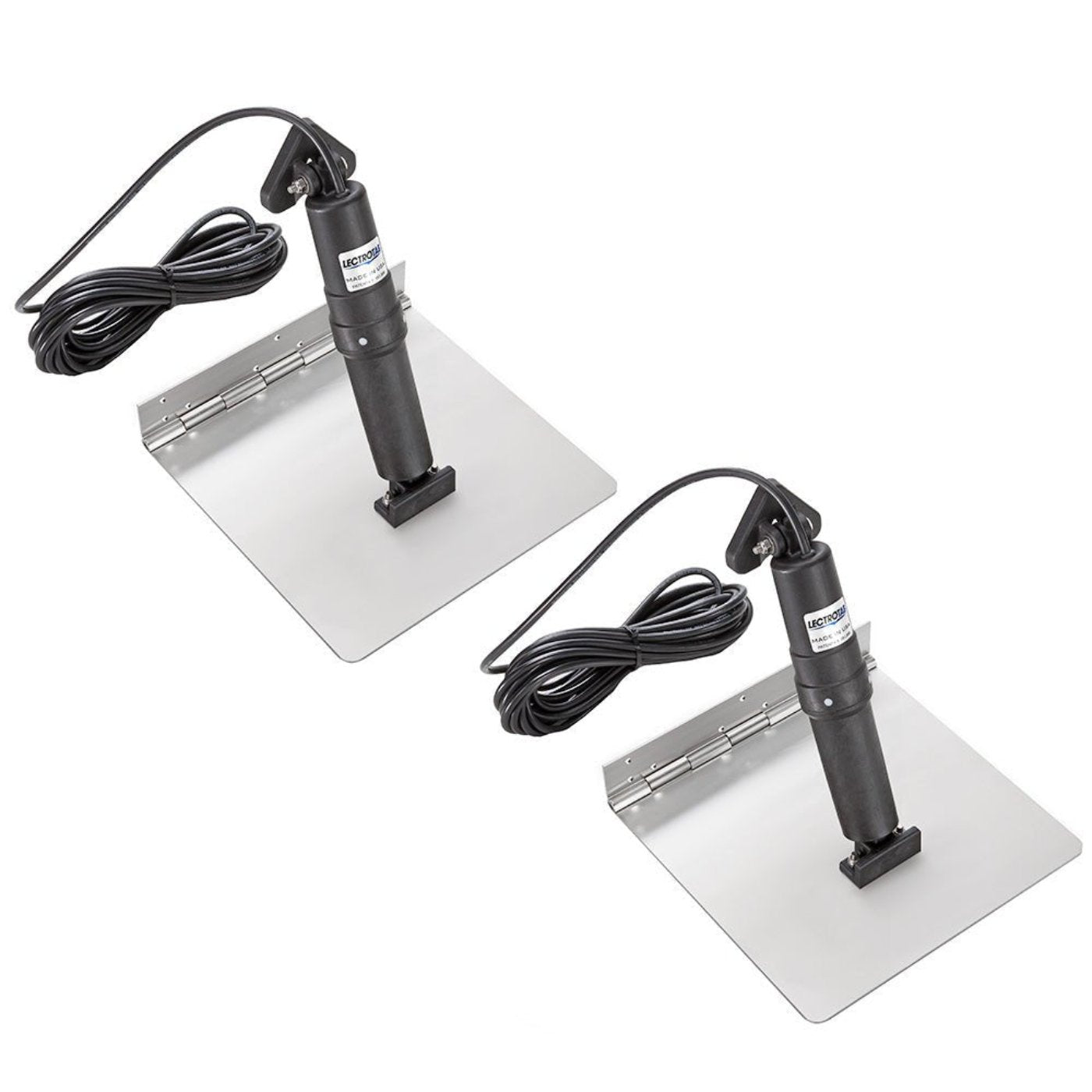

Lectrotab XKA Stainless Steel Trim Tab - 12 x 24 - XKA12X24 - CW96040
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Features
-
Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
-
Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
-
Utilizes internal pressure equalization system
-
Internal brake system prevents unwanted tab movement when under way or backing down
-
Quiet operation
-
Actuators are fully load tested to push 1000 lbs of force
-
Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Specification
| Trim Tab Size (L x W) |
12" x 24" (30 x 61 cm) |
| Boat Length |
28' to 48' (8.5 to 14.5 M) |
| Trim Tab Material |
12 gauge, 304 Stainless Steel |
| Actuator DC Voltage |
12 V |
| Actuator Stroke Length |
2.25" (57 mm) |
| Actuator Cable Length |
23' (7 M) |
| Actuator Vertical Height |
11.875" (302 mm) |
| Rocker Switch Dimensions (W x H) |
3.125" x 3.25" (79.4 x 82.5 mm) |
| Rocker Switch Mounting Hole Cutout (H x W) |
2.25" x 2" (57.5 x 50 mm) |
| Rocker Switch Operating Voltage |
12 or 24 V |
In the Box
-
One (1) Flat Rocker Switch
-
Two (2) Stainless Steel tabs
-
Two (2) actuators w/23' (7 M) cables
-
Instruction Manual
Product Manual
What Our Experts Think
The Lectrotab XKA Stainless Steel Trim Tab (12" x 24") - XKA12X24 is engineered to deliver top-tier performance and reliability for larger boats. Here's why it's a standout choice:
-
Heavy-Duty Build: Made from marine-grade stainless steel for maximum strength and corrosion resistance in harsh saltwater conditions.
-
Superior Performance: Improves stability, reduces bow rise, and enhances fuel efficiency, ensuring a smoother and more efficient ride.
-
Generous Size: The 12" x 24" dimensions provide significant lift, ideal for larger boats requiring more robust trim control.
-
Quiet & Precise Operation: Perfectly integrates with Lectrotab actuators for responsive, smooth, and quiet trimming adjustments.
-
Effortless Installation: Designed with pre-drilled mounting holes for straightforward setup, whether for DIYers or professionals.
-
Proven Reliability: Backed by Lectrotab's longstanding reputation for quality and performance in marine applications.
Q&A
Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab (XKA12X24)?
A: The Lectrotab XKA 12" x 24" trim tab is made of robust 12-gauge stainless steel, offering superior durability, corrosion resistance, and optimized boat performance.
Q: What is the primary purpose of this trim tab?
A: It enhances boat stability, reduces bow rise, improves handling, and increases fuel efficiency for a more comfortable and efficient ride.
Q: Is it suitable for use in saltwater?
A: Yes, its corrosion-resistant stainless steel construction makes it ideal for both saltwater and freshwater applications.
Q: How easy is it to install?
A: The trim tab includes pre-drilled mounting holes, simplifying the installation process and ensuring a secure fit.
Q: What boats are best suited for this trim tab?
A: It is perfect for larger recreational and commercial boats needing precise and reliable trim control.
Maintenance Tips
-
Rinse After Use: Flush with fresh water after each use, especially in saltwater, to prevent corrosion.
-
Inspect Components: Check hinges, screws, and brackets for tightness and damage regularly.
-
Lubricate Moving Parts: Use a marine-grade lubricant to keep hinges and actuators operating smoothly.
-
Hydraulic System Check: Inspect hydraulic lines and ensure fluid levels are adequate and free of leaks.
-
Clean Stainless Steel: Apply a stainless steel cleaner to maintain shine and protect against rust.
-
Periodic Testing: Activate trim tabs regularly to confirm proper operation and alignment.
