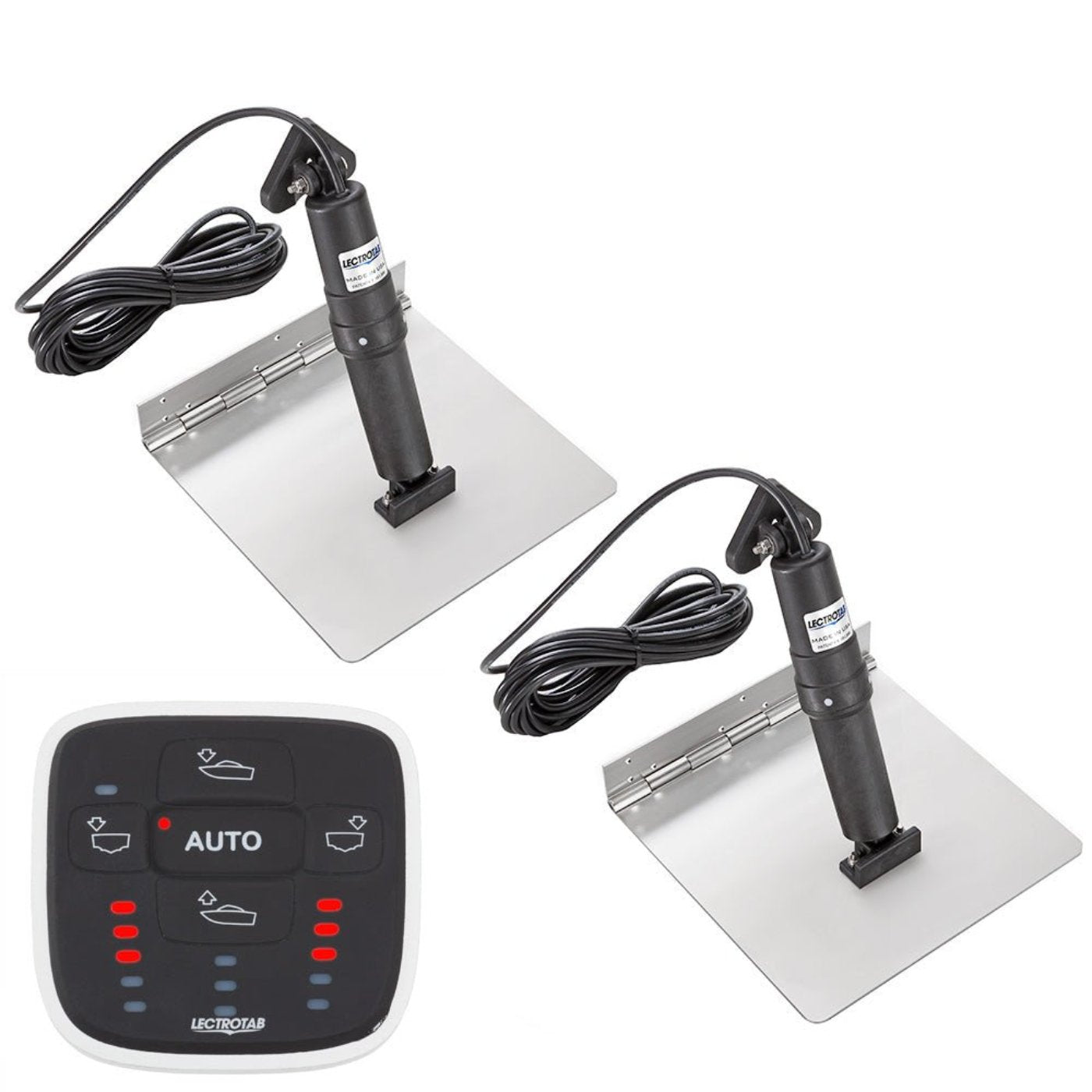

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 12 x 12 - XKASAL12X12 - CW96291
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.
Features
-
Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
-
Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
-
Utilizes internal pressure equalization system
-
Internal brake system prevents unwanted tab movement when under way or backing down
-
Quiet operation
-
Actuators are fully load tested to push 1000 lbs of force
-
Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Specification
| Trim Tab Size (L x W) |
12" x 12" (30 x 30 cm) |
| Boat Length |
 18' to 32' (5.5 to 9.5 M) |
| Trim Tab Material |
12 gauge, 304 Stainless Steel |
| Actuator DC Voltage |
12 V |
| Actuator Stroke Length |
2.25" (57 mm) |
| Actuator Cable Length |
23' (7 M) |
| Actuator Vertical Height |
11.875" (302 mm) |
| Rocker Switch Dimensions (W x H) |
3.125" x 3.25" (79.4 x 82.5 mm) |
| Rocker Switch Mounting Hole Cutout (H x W) |
2.25" x 2" (57.5 x 50 mm) |
| Rocker Switch Operating Voltage |
12 or 24 V |
In the Box
- One (1) Manual Leveling Control
Product Manual
What Our Experts Think
The Lectrotab XKA Stainless Steel Trim Tab Kit (12" x 12") with ALC-1 Control is built for durability and performance. Here's why it’s a standout choice:
-
Premium Stainless Steel: 12-gauge stainless steel construction offers exceptional strength and corrosion resistance for long-lasting use in marine environments.
-
Optimal Size: 12" x 12" dimensions deliver balanced lift and control, ideal for medium-sized boats.
-
ALC-1 Control System: Features automatic leveling for effortless adjustments and enhanced stability.
-
Performance Boost: Reduces drag, improves fuel efficiency, and ensures smoother rides even in choppy waters.
-
Straightforward Installation: Pre-drilled tabs simplify the setup process for quick integration.
-
Dependable Design: Built to withstand the toughest marine conditions while providing consistent, reliable performance.
Q&A
Q: What are the features of the Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control (12 x 12)?
A: The Lectrotab XKASAL12X12 trim tab kit features 12″ x 12″ stainless steel trim tabs for exceptional durability and corrosion resistance. It includes the ALC-1 Automatic Leveling Control system for easy, hands-free operation, ensuring optimal boat stability and performance.
Q: What is included in the kit?
A: The kit includes two 12″ x 12″ stainless steel trim tabs, the ALC-1 automatic leveling control unit, and all necessary mounting hardware for installation.
Q: What material are the trim tabs made of?
A: The trim tabs are made from high-quality stainless steel, ensuring superior durability and resistance to marine corrosion.
Q: What is the purpose of this trim tab kit?
A: It improves boat stability, reduces bow rise, enhances fuel efficiency, and ensures smoother rides in varying water conditions.
Q: What is the function of the ALC-1 control system?
A: The ALC-1 Automatic Leveling Control system adjusts the trim tabs automatically, providing hands-free operation to maintain optimal boat balance and performance.
Q: Is installation simple?
A: Yes, the kit is designed for straightforward installation and includes all necessary hardware.
Q: What are the dimensions of the trim tabs?
A: Each trim tab measures 12″ x 12″, making them ideal for medium-sized boats.
Maintenance Tips
-
Freshwater Rinse: Rinse trim tabs with fresh water after each use, especially in saltwater, to prevent corrosion and salt buildup.
-
Regular Inspection: Check the stainless steel tabs, brackets, and fasteners for signs of bending, damage, or rust. Tighten loose fittings.
-
Anti-Fouling Coating: Apply marine-grade anti-fouling paint to the trim tab surfaces to prevent barnacle and algae growth.
-
Test ALC-1 Control: Regularly test the ALC-1 control for accurate responsiveness and inspect electrical connections for corrosion or wear.
-
Lubricate Actuators: Apply marine-grade lubricant to actuator components periodically to ensure smooth and reliable operation.
-
Alignment Verification: Verify tabs are aligned properly and retract fully when not in use to minimize drag and prevent damage.
