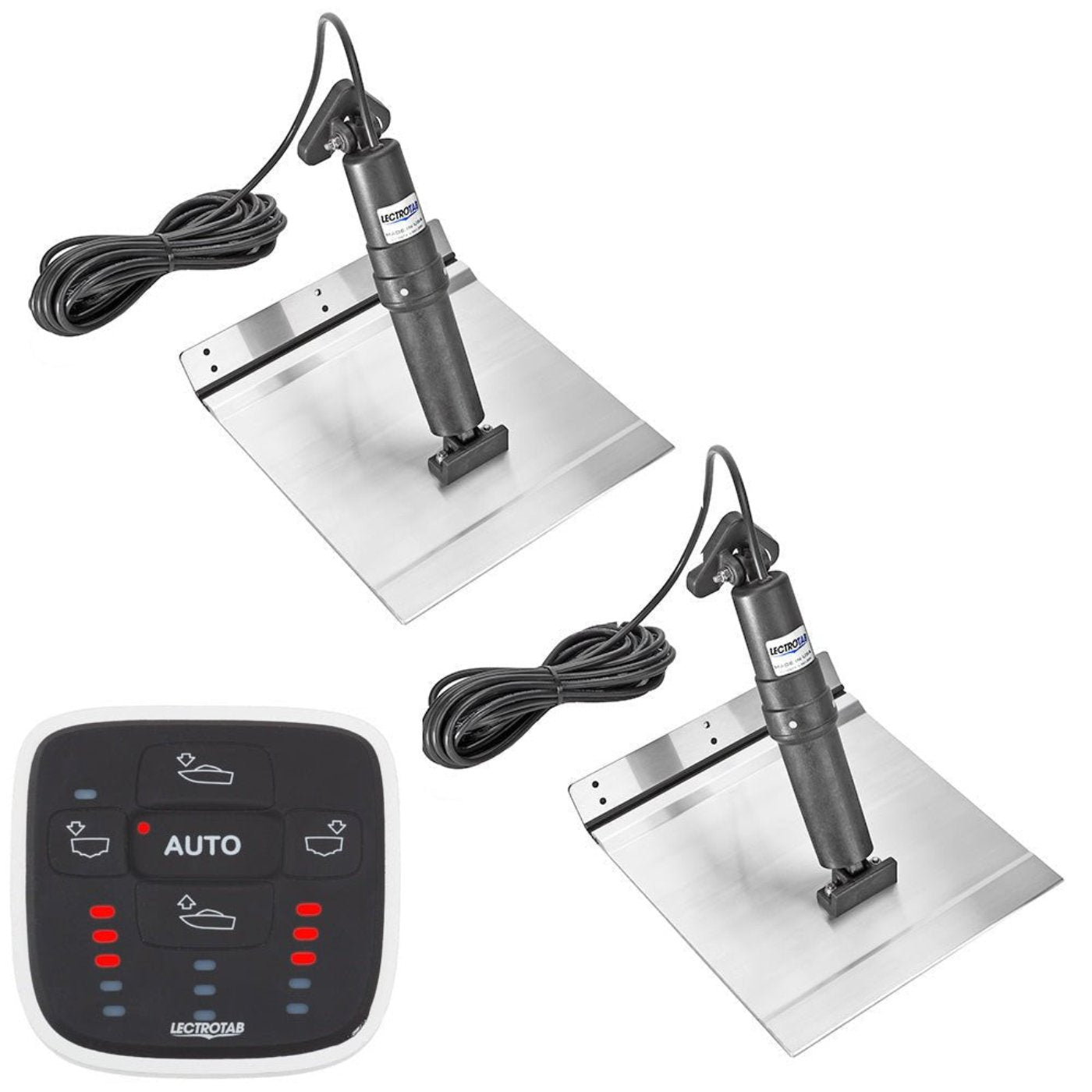

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 9 x 9 - XKASAL9X9A - CW96339
The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.
Features
-
All Tabs sealed with a corrosive resistant epoxy coating
-
Equivalent strength to 10 gauge stainless steel
-
"No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
-
Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
-
Utilizes internal pressure equalization system
-
Internal brake system prevents unwanted tab movement when under way or backing down
-
Quiet operation
-
Actuators are fully load tested to push 1000 lbs of force
-
Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Specification
| Trim Tab Size (L x W) |
 9" x 9" (23 x 23 cm) |
| Boat Length |
 14' to 19' (4 to 6 M) |
| Trim Tab Material |
12 gauge, 304 Stainless Steel |
| Actuator DC Voltage |
12 V |
| Actuator Stroke Length |
2.25" (57 mm) |
| Actuator Cable Length |
23' (7 M) |
| Actuator Vertical Height |
11.875" (302 mm) |
| Rocker Switch Dimensions (W x H) |
3.125" x 3.25" (79.4 x 82.5 mm) |
| Rocker Switch Mounting Hole Cutout (H x W) |
2.25" x 2" (57.5 x 50 mm) |
| Rocker Switch Operating Voltage |
12 or 24 V |
In the Box
-
One (1) Flat Rocker Switch
-
Two (2) Stainless Steel tabs
-
Two (2) actuators w/23' (7 M) cables
-
Instruction Manual
Product Manual
What Our Experts Think
The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control (9 x 9, XKASAL9X9A) is a compact and effective solution for enhancing boat performance. Here’s why it’s a top choice:
-
Durable Aluminum Alloy: Lightweight, yet tough enough to withstand corrosion in marine environments, ensuring long-lasting reliability.
-
ALC-1 Control: Provides easy and precise control for optimizing boat handling and stability, enhancing your overall boating experience.
-
Perfect for Smaller Vessels: The 9 x 9-inch tabs are ideal for smaller boats, offering optimal lift and performance without adding unnecessary weight.
-
Improved Efficiency: Reduces drag and enhances fuel economy, making your boat more efficient on the water.
-
High-Quality Actuators: Features reliable actuators for smooth and consistent performance, even in rough conditions.
-
Simple Installation: Pre-assembled kit for quick and straightforward installation.
Q&A
Q: What is the Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control (XKASAL9X9A)?
A: A 9 x 9-inch trim tab kit designed for boats, featuring durable aluminum alloy tabs and the ALC-1 control system for easy adjustment and improved boat performance.
Q: What are the key features?
A: Lightweight aluminum alloy tabs for corrosion resistance, reliable stainless steel actuators, and the ALC-1 control system for smooth and precise trim tab adjustments.
Q: Who is it ideal for?
A: Ideal for boat owners looking to optimize their vessel's performance, fuel efficiency, and stability on the water.
Q: What makes it stand out?
A: The compact 9 x 9 design is perfect for smaller boats or vessels with limited space, while the ALC-1 control provides simple and precise tab operation.
Q: Is installation easy?
A: Yes, the kit is designed for straightforward installation with all necessary components included; professional installation is recommended for the best performance.
