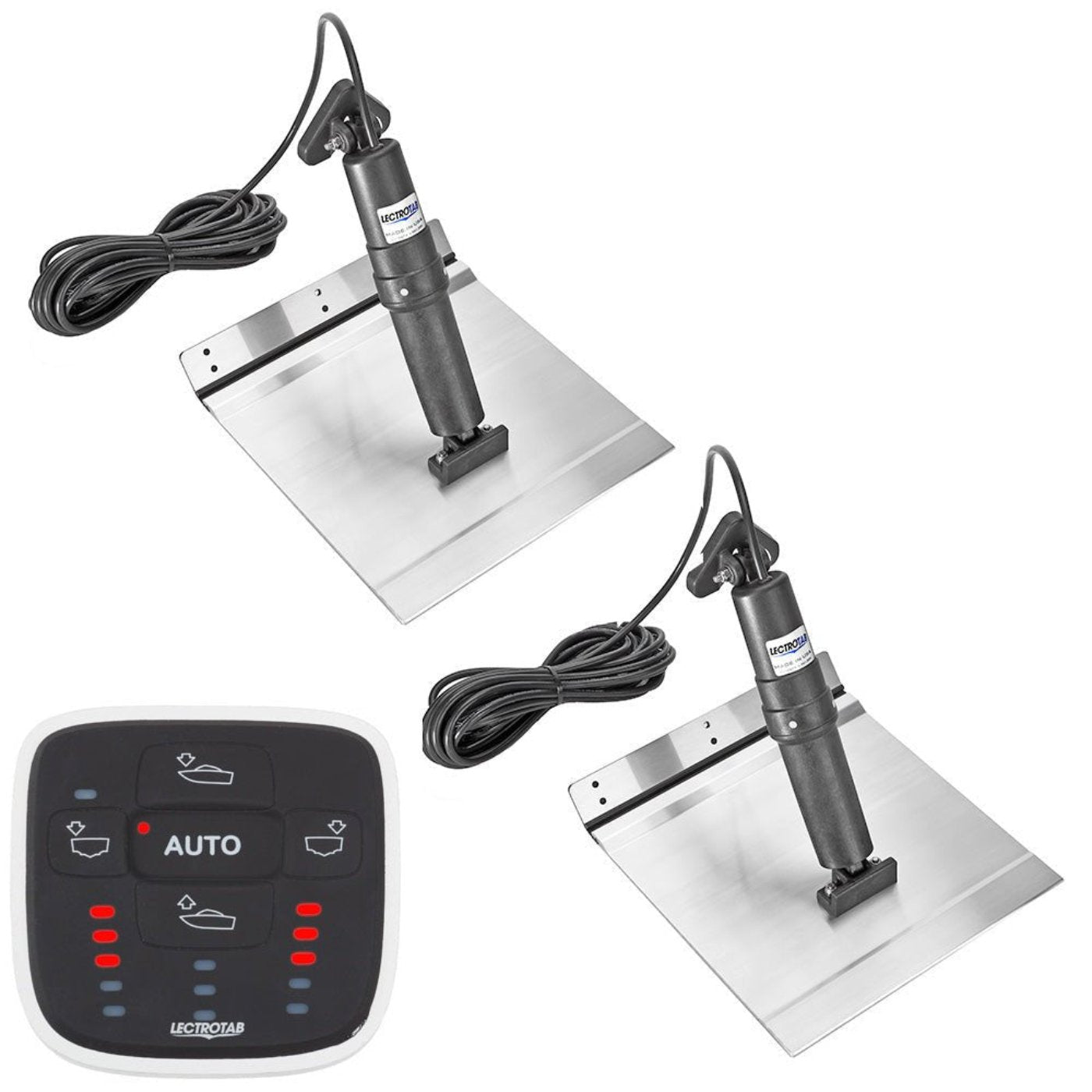

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 9 x 24 - XKASAL9X24A - CW96342

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 9 x 24 - XKASAL9X24A - CW96342

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control (9 x 24, XKASAL9X24A) is a high-performance solution for boats that require enhanced handling and stability. Here’s why it’s highly recommended:

• Robust Aluminum Alloy Construction: Lightweight yet durable, designed to resist corrosion in marine environments and provide long-lasting performance.
• ALC-1 Control: Offers easy and precise trim adjustments, optimizing boat handling and ride quality for a smoother experience on the water.
• Extended 9 x 24 Size: The larger size is ideal for larger boats or those needing additional lift for better performance in rough conditions.
• Improved Efficiency: Helps reduce drag, improve lift, and enhance fuel economy, making your boat more efficient in varying conditions.
• Powerful Actuators: High-torque actuators provide consistent, reliable performance, ensuring smooth operation even in challenging conditions.
• Simple Installation: Pre-assembled kit simplifies setup, saving you time during installation.

Q&A

Q: What is the Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control (XKASAL9X24A)?
A: A 9 x 24-inch trim tab kit designed for boats, featuring corrosion-resistant aluminum alloy tabs and the ALC-1 control system for enhanced performance and ease of use.

Q: What are the key features?
A: Includes durable aluminum alloy trim tabs, stainless steel actuators, and the ALC-1 control system for smooth and accurate trim tab adjustments.

Q: Who is it ideal for?
A: Ideal for boat owners looking to improve fuel efficiency, handling, and stability, particularly in larger vessels or boats that require extended trim tabs.

Q: What makes it unique?
A: The extended 9 x 24 size offers superior performance and stability in a variety of water conditions, while the ALC-1 control system ensures easy operation.

Q: Is installation easy?
A: Yes, the kit is designed for straightforward installation with all necessary components included; professional installation is recommended for optimal performance.

Maintenance Tips

• Rinse After Use:

  • Always rinse the trim tabs with fresh water after each use, especially in saltwater, to remove any salt, dirt, and debris that could cause corrosion or wear.

• Inspect for Damage:

  • Regularly inspect the trim tabs, actuators, mounting hardware, and hinges for any signs of damage, corrosion, or wear. Replace any parts that are damaged or showing signs of wear.

• Lubricate Moving Parts:

  • Apply a marine-grade lubricant to all moving parts, such as hinges and actuators, to ensure smooth operation and to prevent rust and corrosion.

• Check Electrical Connections:

  • Examine the ALC-1 control wiring and connections for any loose connections, corrosion, or damage. Ensure that all connections are secure, waterproof, and well-protected.

• Test the Trim Tabs:

  • Before each use, test the trim tabs to make sure they respond properly to the ALC-1 control and adjust smoothly without resistance.

• Prevent Electrolysis:

  • Install and maintain a sacrificial anode to prevent electrolysis damage to the aluminum trim tabs. Replace the anode when it becomes worn down or corroded.

• Annual Inspection:

  • Perform a thorough inspection of the system once a year, including actuators, wiring, seals, and mounting points. Address any wear or damage promptly and replace components as necessary.
