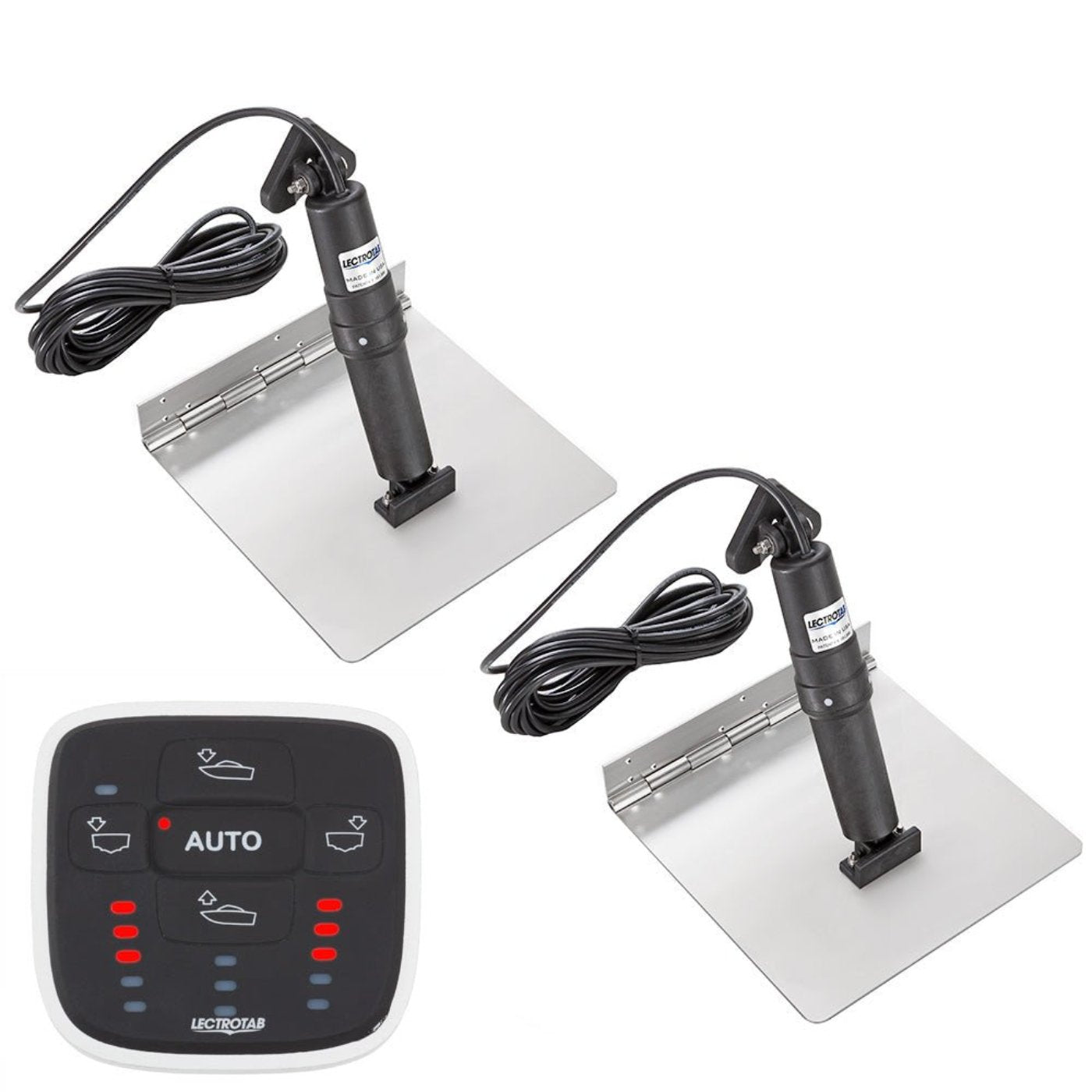

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 9 - XKASAL9X9 - CW96286

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 9 - XKASAL9X9 - CW96286

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control (9" x 9") - XKASAL9X9 is a compact, durable solution for improving small boat performance. Here’s why it’s a great choice:

• Complete System: Includes stainless steel trim tabs, actuators, and the ALC-1 control for smooth and precise operation.
• Marine-Grade Durability: Built with high-quality stainless steel to resist corrosion and ensure long-lasting performance in saltwater environments.
• Improved Handling: Enhances stability, reduces bow rise, and boosts fuel efficiency for a more enjoyable ride.
• Compact Dimensions: The 9" x 9" size is ideal for smaller boats or precise trim adjustments on medium vessels.
• ALC-1 Control: Offers advanced, user-friendly operation with precise trimming to suit changing conditions.
• Straightforward Installation: Pre-drilled tabs and pre-configured components simplify installation for both DIYers and professionals.
• Proven Quality: Backed by Lectrotab’s reputation for reliable, high-performance marine products.

Q&A

Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab Kit (XKASAL9X9)?
A: The XKASAL9X9 kit includes 9" x 9" stainless steel trim tabs, a corrosion-resistant design, and an ALC-1 automatic leveling control system for enhanced trim adjustments.

Q: What does the ALC-1 control system provide?
A: The ALC-1 offers automatic leveling control, ensuring optimal boat stability by adjusting the trim tabs automatically based on water conditions and boat speed.

Q: Is this kit suitable for saltwater environments?
A: Yes, the stainless steel construction ensures excellent corrosion resistance, making it perfect for use in both saltwater and freshwater conditions.

Q: How easy is the installation process?
A: The kit includes pre-drilled trim tabs and all necessary components, simplifying and securing the installation process.

Q: What types of boats is this kit designed for?
A: This kit is ideal for small recreational and commercial boats requiring durable and precise trim control with automatic leveling functionality.

Maintenance Tips

• Rinse After Use: Thoroughly rinse with fresh water after use, especially in saltwater, to prevent corrosion.
• Inspect Hardware: Regularly check hinges, screws, and brackets for tightness and signs of wear or damage.
• Lubricate Moving Parts: Use a marine-grade lubricant on hinges and actuators for smooth, reliable operation.
• Monitor Hydraulic & Electrical Systems: Ensure hydraulic fluid levels are adequate, inspect for leaks, and check electrical connections for security and dryness.
• Clean Stainless Steel: Apply a stainless steel cleaner to maintain shine and prevent rust or pitting.
• Test ALC-1 Control: Periodically operate the ALC-1 control to verify proper functionality and recalibrate as necessary.
• Protect Wiring: Inspect and secure wiring to shield it from water exposure and potential corrosion.
