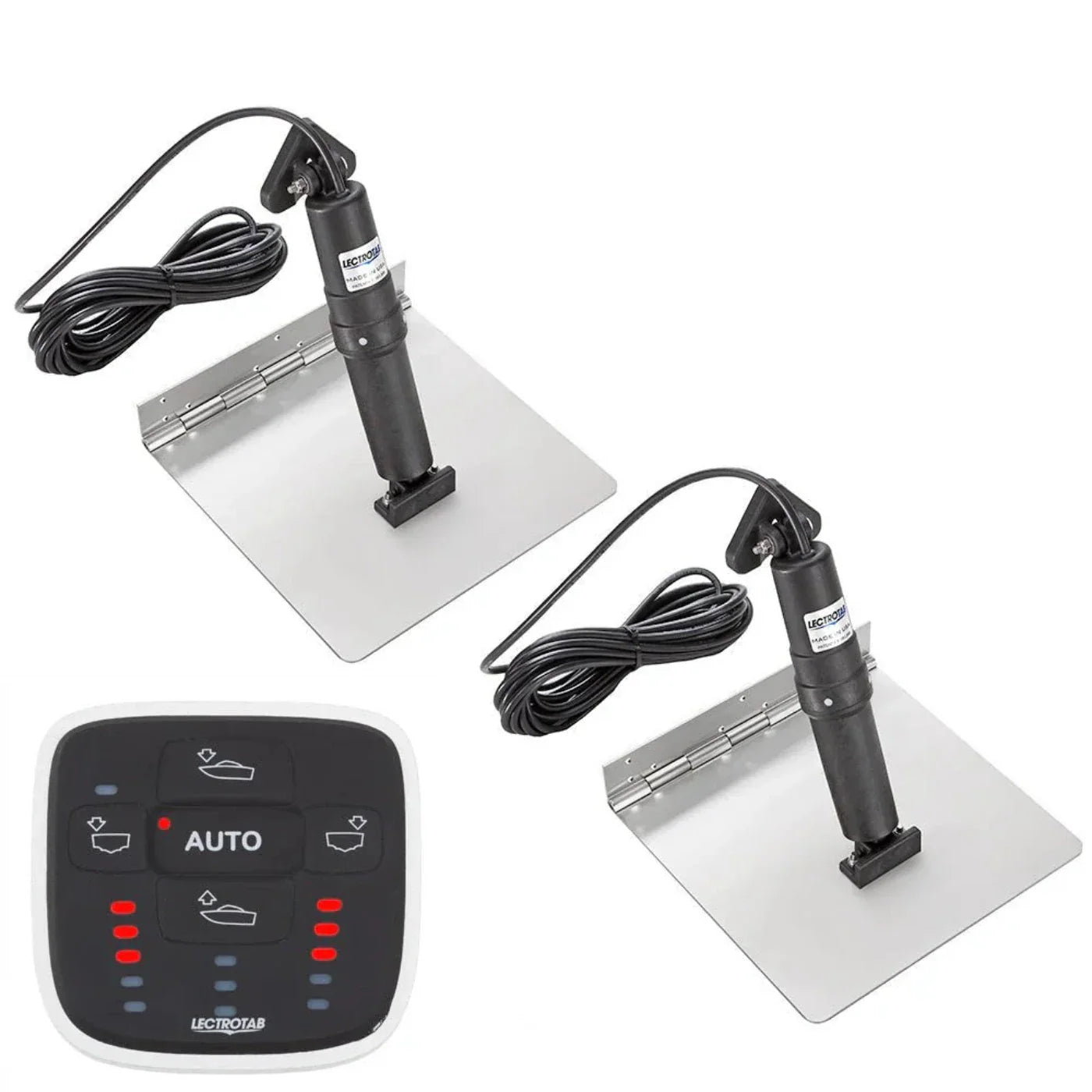

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 18 - XKASAL9X18 - CW96288
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.
Features
-
Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
-
Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
-
Utilizes internal pressure equalization system
-
Internal brake system prevents unwanted tab movement when under way or backing down
-
Quiet operation
-
Actuators are fully load tested to push 1000 lbs of force
-
Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Specification
| Trim Tab Size (L x W) |
9" x 18" (23 x 46 cm) |
| Boat Length |
21' to 30' (6.5 to 9 M) |
| Trim Tab Material |
12 gauge, 304 Stainless Steel |
| Actuator DC Voltage |
12 V |
| Actuator Stroke Length |
2.25" (57 mm) |
| Actuator Cable Length |
23' (7 M) |
| Actuator Vertical Height |
11.875" (302 mm) |
| Rocker Switch Dimensions (W x H) |
3.125" x 3.25" (79.4 x 82.5 mm) |
| Rocker Switch Mounting Hole Cutout (H x W) |
2.25" x 2" (57.5 x 50 mm) |
| Rocker Switch Operating Voltage |
12 or 24 V |
In the Box
-
One (1) Flat Rocker Switch
-
Two (2) Stainless Steel tabs
-
Two (2) actuators w/23' (7 M) cables
-
Instruction Manual
Product Manual
What Our Experts Think
The Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control (9" x 18") - XKASAL9X18 offers reliable performance and precise control for improved boat handling. Here's why it's a smart choice:
-
Complete Package: Includes durable stainless steel trim tabs, actuators, and the advanced ALC-1 control for accurate trimming.
-
Marine-Grade Durability: Built with high-quality stainless steel for excellent resistance to corrosion and harsh marine conditions.
-
Enhanced Stability: Reduces bow rise, improves balance, and boosts fuel efficiency for smoother and more efficient rides.
-
Versatile Size: The 9" x 18" dimensions make it ideal for small to medium boats requiring reliable trim adjustments.
-
User-Friendly ALC-1 Control: Provides advanced functionality with intuitive operation, ensuring seamless adjustments under all conditions.
-
Effortless Installation: Pre-drilled tabs and pre-configured components ensure a straightforward setup for DIYers and professionals alike.
-
Proven Reliability: Backed by Lectrotab’s trusted reputation for delivering high-performance marine solutions.
Q&A
Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab Kit (XKASAL9X18)?
A: The XKASAL9X18 kit includes 9" x 18" stainless steel trim tabs, a corrosion-resistant design, and an ALC-1 automatic leveling control system for precise and effortless trim adjustments.
Q: What does the ALC-1 control system offer?
A: The ALC-1 provides automatic leveling, adjusting the trim tabs based on water conditions and boat speed to optimize stability, handling, and fuel efficiency.
Q: Is this kit suitable for saltwater environments?
A: Yes, the stainless steel construction ensures excellent corrosion resistance, making it perfect for use in both saltwater and freshwater conditions.
Q: How simple is the installation process?
A: The kit comes with pre-drilled trim tabs and all necessary components, making installation straightforward and secure.
Q: What types of boats is this kit designed for?
A: This kit is ideal for recreational and commercial boats requiring reliable and durable trim control with automatic leveling functionality for medium-sized applications.
Maintenance Tips
-
Rinse After Use: Wash with fresh water after use, especially in saltwater, to prevent corrosion.
-
Inspect Components: Regularly check screws, brackets, and hinges for tightness and any signs of wear or damage.
-
Lubricate Moving Parts: Apply marine-grade lubricant to hinges and actuators for smooth and reliable operation.
-
Monitor Hydraulic & Electrical Systems: Check hydraulic fluid levels, inspect for leaks, and ensure electrical connections are secure and dry.
-
Clean Stainless Steel: Use a stainless steel cleaner to maintain a polished look and protect against rust.
-
Test ALC-1 Control: Periodically operate the ALC-1 control system to ensure functionality and recalibrate if necessary.
-
Protect Wiring: Inspect wiring for damage and secure connections to prevent water exposure or corrosion.
