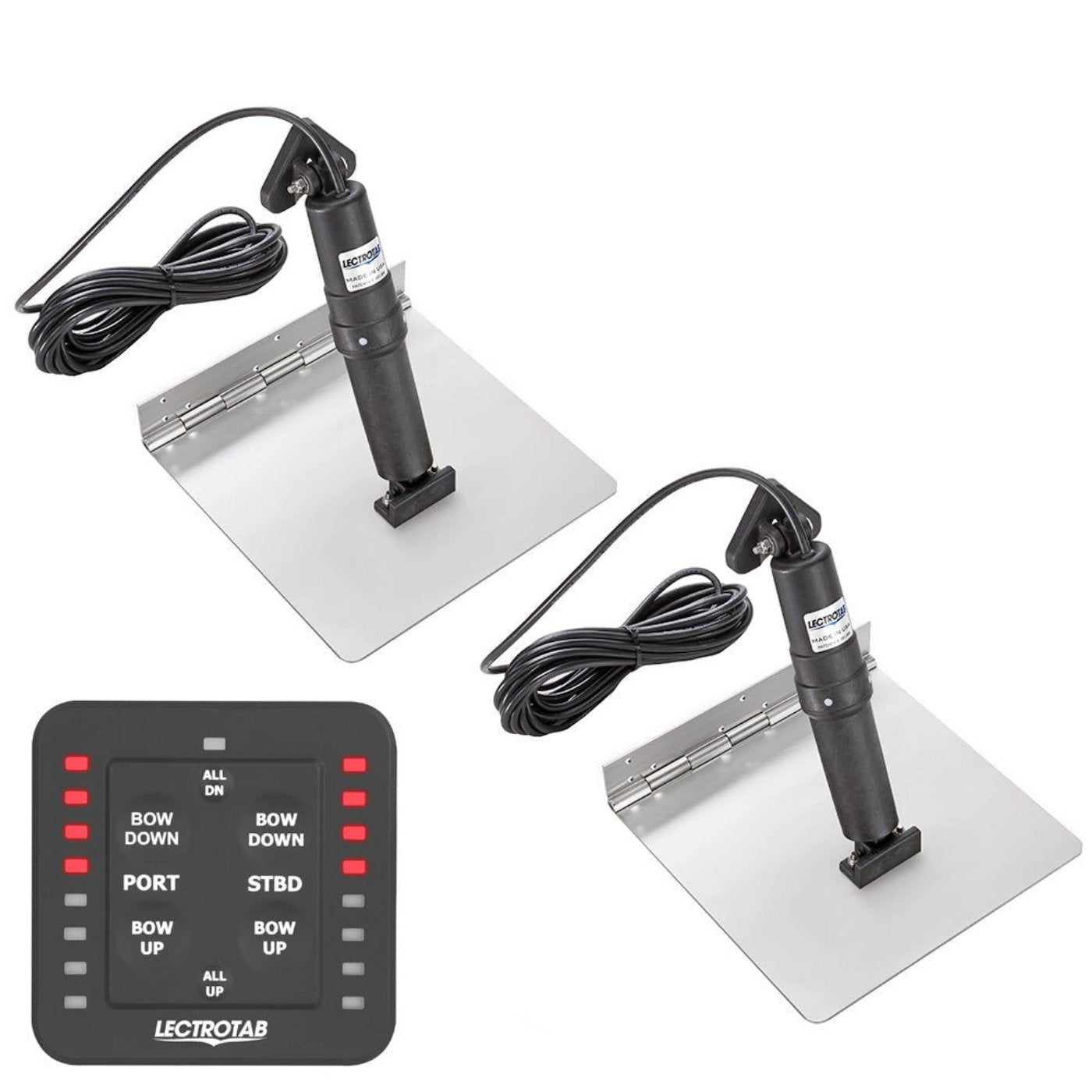

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 24 - XKASL12X24 - CW96277
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Features
-
Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
-
Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
-
Utilizes internal pressure equalization system
-
Internal brake system prevents unwanted tab movement when under way or backing down
-
Quiet operation
-
Actuators are fully load tested to push 1000 lbs of force
-
Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Specification
| Trim Tab Size (L x W) |
 12" x 24" (30 x 61 cm) |
| Boat Length |
28' to 48' (8.5 to 14.5 M) |
| Trim Tab Material |
12 gauge, 304 Stainless Steel |
| Actuator DC Voltage |
12 V |
| Actuator Stroke Length |
2.25" (57 mm) |
| Actuator Cable Length |
23' (7 M) |
| Actuator Vertical Height |
11.875" (302 mm) |
| Rocker Switch Dimensions (W x H) |
3.125" x 3.25" (79.4 x 82.5 mm) |
| Rocker Switch Mounting Hole Cutout (H x W) |
2.25" x 2" (57.5 x 50 mm) |
| Rocker Switch Operating Voltage |
12 or 24 V |
In the Box
- One (1) Manual Leveling Control
Product Manual
What Our Experts Think
The Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control (12" x 24") - XKASL12X24 delivers exceptional performance and convenience for boat owners. Here's why it's a top-tier choice:
-
All-in-One Kit: Includes trim tabs, actuators, and an intuitive one-touch control system for seamless operation.
-
Heavy-Duty Stainless Steel: Marine-grade construction ensures superior durability and corrosion resistance in saltwater environments.
-
Improved Performance: Enhances stability, reduces bow rise, and increases fuel efficiency for a smoother and more efficient ride.
-
One-Touch Control: Simplifies operation with quick and precise adjustments, making trimming effortless even for beginners.
-
Generous Size: The 12" x 24" dimensions provide excellent lift, ideal for larger boats needing robust trim solutions.
-
Easy Installation: Designed for straightforward setup, with all components pre-configured for compatibility.
-
Proven Reliability: Backed by Lectrotab’s industry-leading reputation for innovation and long-lasting performance.
Q&A
Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab Kit (XKASL12X24)?
A: The Lectrotab XKASL12X24 kit includes 12" x 24" stainless steel trim tabs, a corrosion-resistant design, and an advanced One-Touch control system for precise and easy operation.
Q: What is the One-Touch control system?
A: The One-Touch control allows for quick, effortless adjustments to trim tabs, improving boat stability, performance, and handling with minimal effort.
Q: Is this kit suitable for saltwater environments?
A: Yes, the stainless steel trim tabs are highly resistant to corrosion, making them ideal for both freshwater and saltwater use.
Q: Is installation simple?
A: Yes, the kit comes with all necessary components for straightforward installation, including pre-drilled trim tabs and an easy-to-install control system.
Q: What types of boats is this kit designed for?
A: It is ideal for larger recreational and commercial boats requiring advanced trim control and durable performance.
Maintenance Tips
-
Freshwater Rinse: Rinse thoroughly with fresh water after use, especially in saltwater, to prevent corrosion.
-
Inspect Hardware: Regularly check hinges, screws, and brackets for tightness and signs of wear or damage.
-
Lubricate Components: Apply marine-grade lubricant to moving parts, including hinges and actuators, for smooth operation.
-
Monitor Hydraulic and Electrical Systems: Check hydraulic fluid levels, inspect lines for leaks, and ensure electrical connections are secure and moisture-free.
-
Clean Stainless Steel: Use a stainless steel cleaner to maintain a polished appearance and prevent rust.
-
Test One-Touch Control: Operate the one-touch control system periodically to ensure functionality and recalibrate as needed.
-
Protect Wiring: Inspect all electrical wiring for damage and secure connections to avoid exposure to water or corrosion.
