Featuring industry-leading 4K (8 megapixel) resolution recording

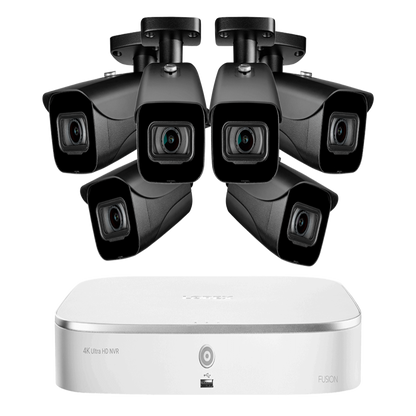

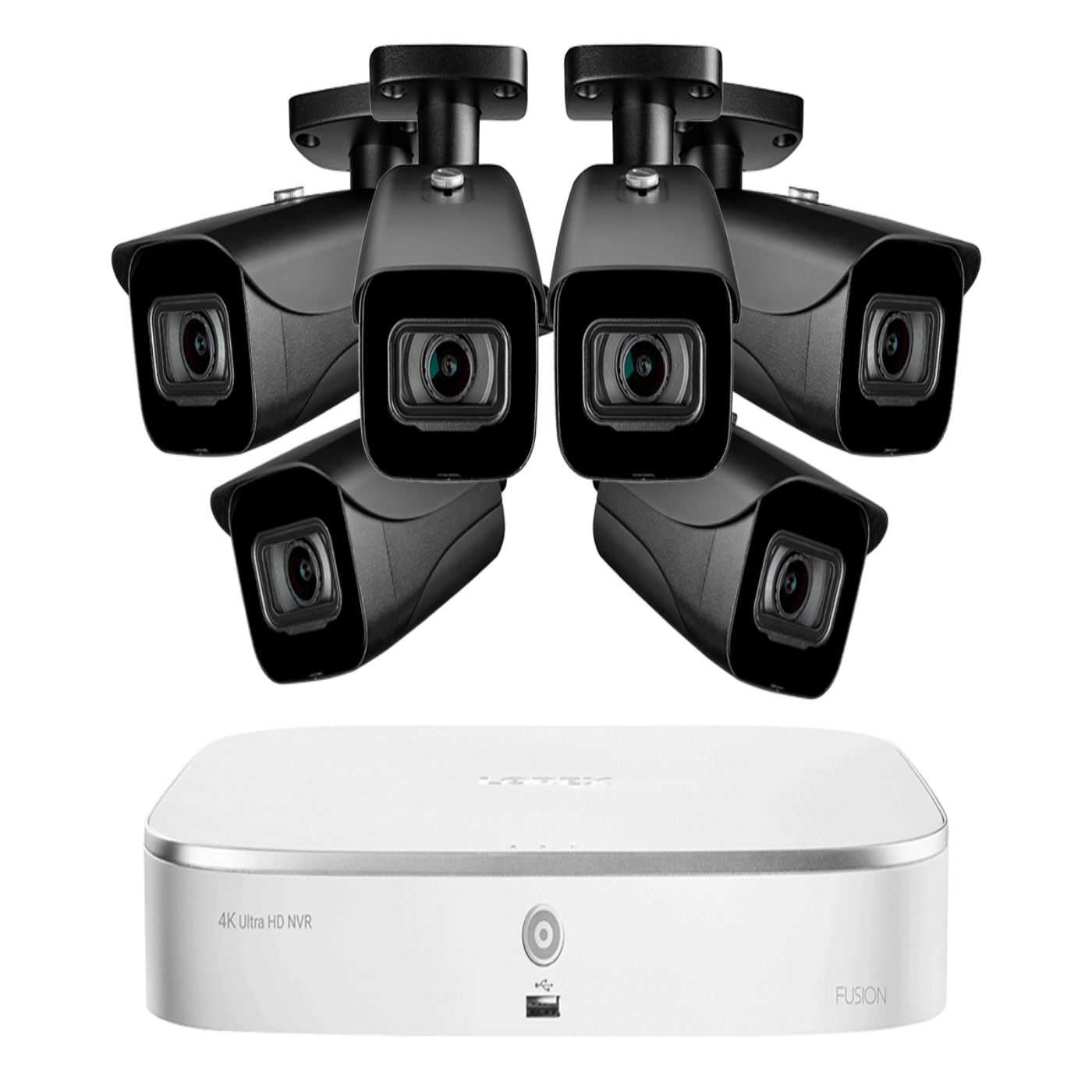

Featuring industry-leading 4K (8 megapixel) resolution recording, this security camera system from Lorex will bring a whole new level of detail to your monitoring. It includes an 8-channel Fusion Series Network Video Recorder (NVR) and six 4K IP bullet security cameras. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.
Features:
- Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation and superior digital zoom capabilities.
- With Lorex's exclusive Color Night Vision™ you'll be able to see full color images in low-light conditions. CNV gives you more detailed video footage and realistic images true to their original form (such as the color of cars or clothes). It also provides increased contrast for easier detection and recognition.
- In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
- Although this camera is suitable for both indoor and outdoor installation, its IP67 weatherproof rating and aluminum casing means it can withstand pretty much anything, such as heavy snowfalls, rain or wind. It has also been tested in temperatures as low as -4°F (-20°C) and as high as 122°F (50°C), ensuring year-round monitoring no matter where you live.
- This system is designed for use with our innovative Lorex Home™ app. Using Lorex Home, you can quickly and easily view your security system remotely from your smartphone or tablet. You can also program the app to send you motion-activated push notifications to keep you connected to your property at all times.
- Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV* to view live video in single or multiple feeds, or playback recorded footage. For more information about current smart home integrations, visit our Smart Home Guide.
- Included in the NVR is a 2TB security-grade hard drive that has been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 6TB, there is more than enough room to safely store all motion events that only you can access.
Specifications:
Voice Control |
Amazon Alexa™, Google Assistant™ Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™ |
Mobile Viewing |
Android, iOS |
Compatible APP |
Lorex Home™ |
PC/Mac Remote Viewing |
Yes/Lorex Cloud™ client |
Email Notification |
Text and Snapshot |
Network Interface |
10/100 Base-TX, RJ45 |
Network Bit Rate |
80Mbps total, 48~8192kbps per camera |
DDNS |
Yes (Optional) |
USB interface |
USB 2.0 × 2 |
FW Upgrade |
USB/Network |
Watchdog Function |
Yes |
Power Consumption |
Approx. 8.3W (HDD excl.) |
Supply Voltage |
100VAC-240VAC, 50/60hz, DC48V/2A |
Total PoE Power Output |
PoE: Max 25.5W for single port, 80W total |
Unit Dimensions (W × D × H) |
12.9 x 9.6 x 2.1” / 328 x 245 x 53 mm |
Unit Weight |
2.75 lbs. / 1.26 kg (excl. HDD) |
Operating Temperature |
14° ~ 131°F / -10° ~ 55°C |
Humidity |
10 ~ 90% RH |
Video Transmission Technology |
IP |
Channels |
8 Channels |
Video Input |
8 x PoE |
Video Outputs |
1 × VGA/1 × HDMI |
Audio Input |
1 x RCA |
Audio Output |
1 x RCA |
Display Output Resolution |
Up to 4K UHD |
Live Display |
1,4,8 |
Live Display Speed (Max) |
240fps NTSC/200fps PAL |
OSD |
On/Off |
System Navigation |
USB Mouse |
Recording Resolution |
4K (8MP)/5MP/4MP/3MP/1080p/720p |
Recording Frame Rate |
4K (8MP)@15fps/5MP@30fps/4 MP@30fps/1080p@30fps/720p@30fps |
Packages Include:
- 4K Ultra HD NVR
- 4K Ultra HD bullet cameras
- 100ft CAT5e Ethernet Cable
- Mounting Template
- Power adapters
- Ethernet cable
- HDMI cable
- USB Mouse
- Security decal
- Quick Start Guides
- Manual
Product Manual:
✓ N4K2-86BB User Manual
✓ N4K2-86BB Data Sheet
✓ N4K2-86BB Camera Quick Start Guide
✓ N4K2-86BB Camera Spec Sheet
