Lorex 16-Channel Fusion NVR System with Sixteen 4K 8MP IP Cameras Security Surveillance System New N4K3-1616WB

Lorex 16-Channel Fusion NVR System with Sixteen 4K (8MP) IP Cameras Security Surveillance System New N4K3-1616WB

by Lorex
SKU N4K3-1616WB
Save 6% Save 6%
$1,689.99
$1,689.99 - $1,689.99
$1,689.99
$1,588.99
$1,588.99 - $1,588.99
$1,588.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Featuring industry-leading 4K (8 megapixel) resolution recording

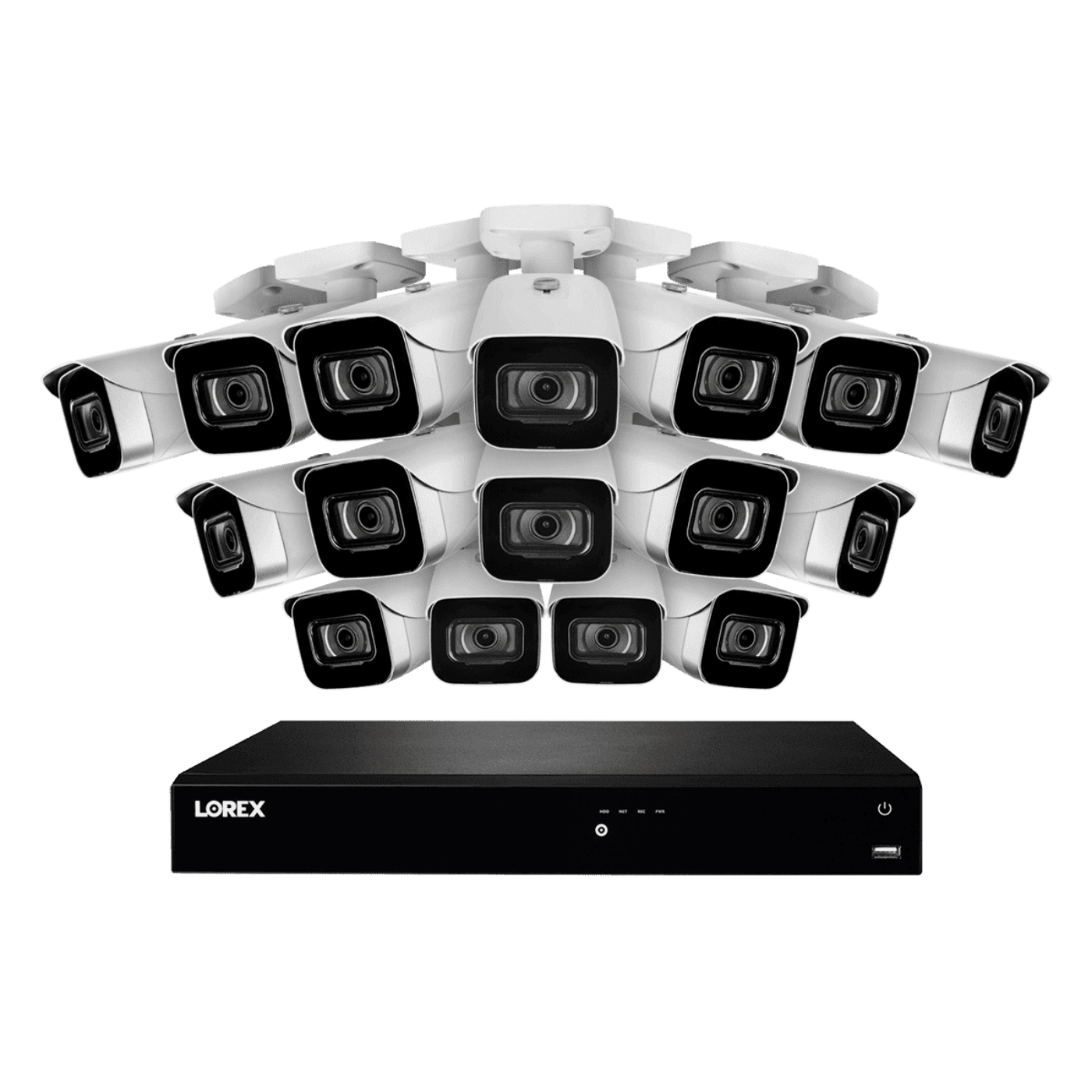

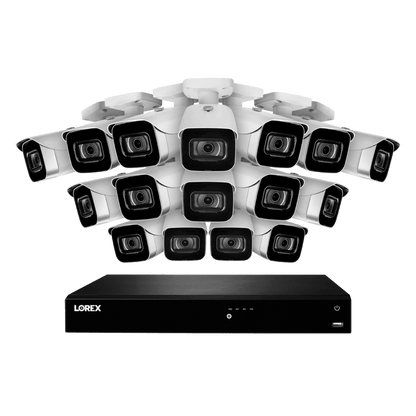

With Industry-leading 4K (8 megapixel) resolution, this security camera system from Lorex will bring a whole new level of detail to your security monitoring. It includes a 32-channel Network Video Recorder (NVR), sixteen 4K (8MP) IP security cameras, and a PoE switch to accomodate the remaining sixteen channels. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.

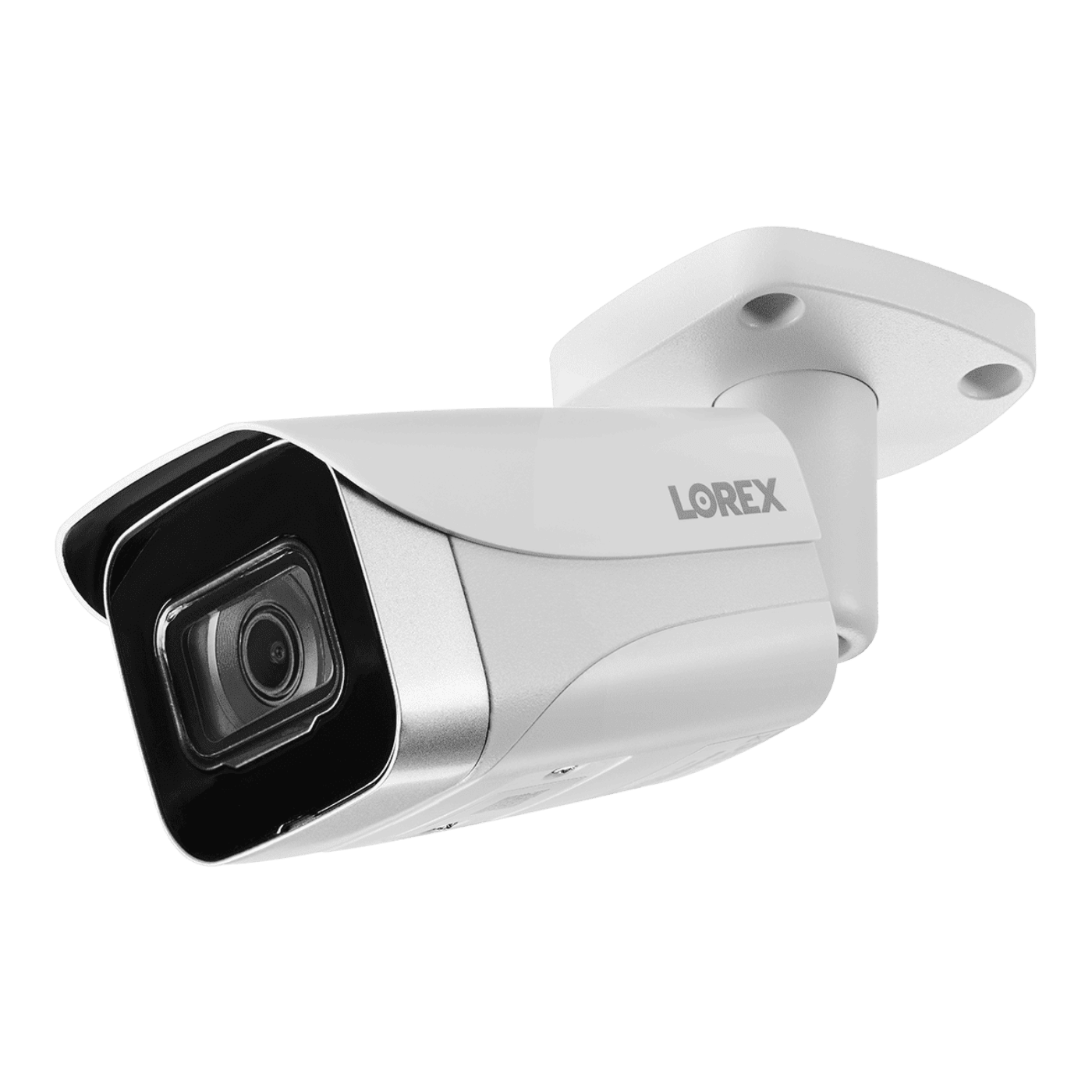

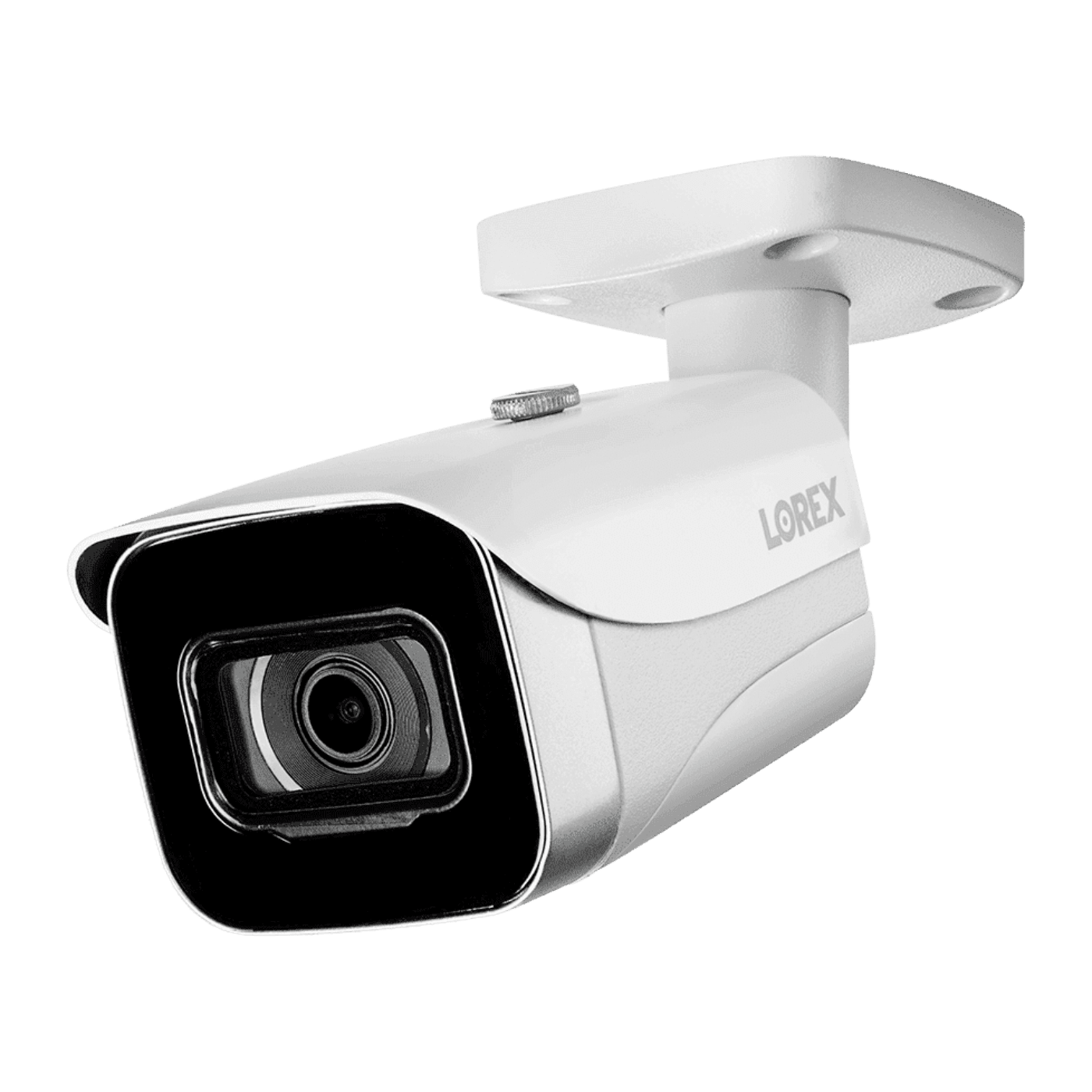

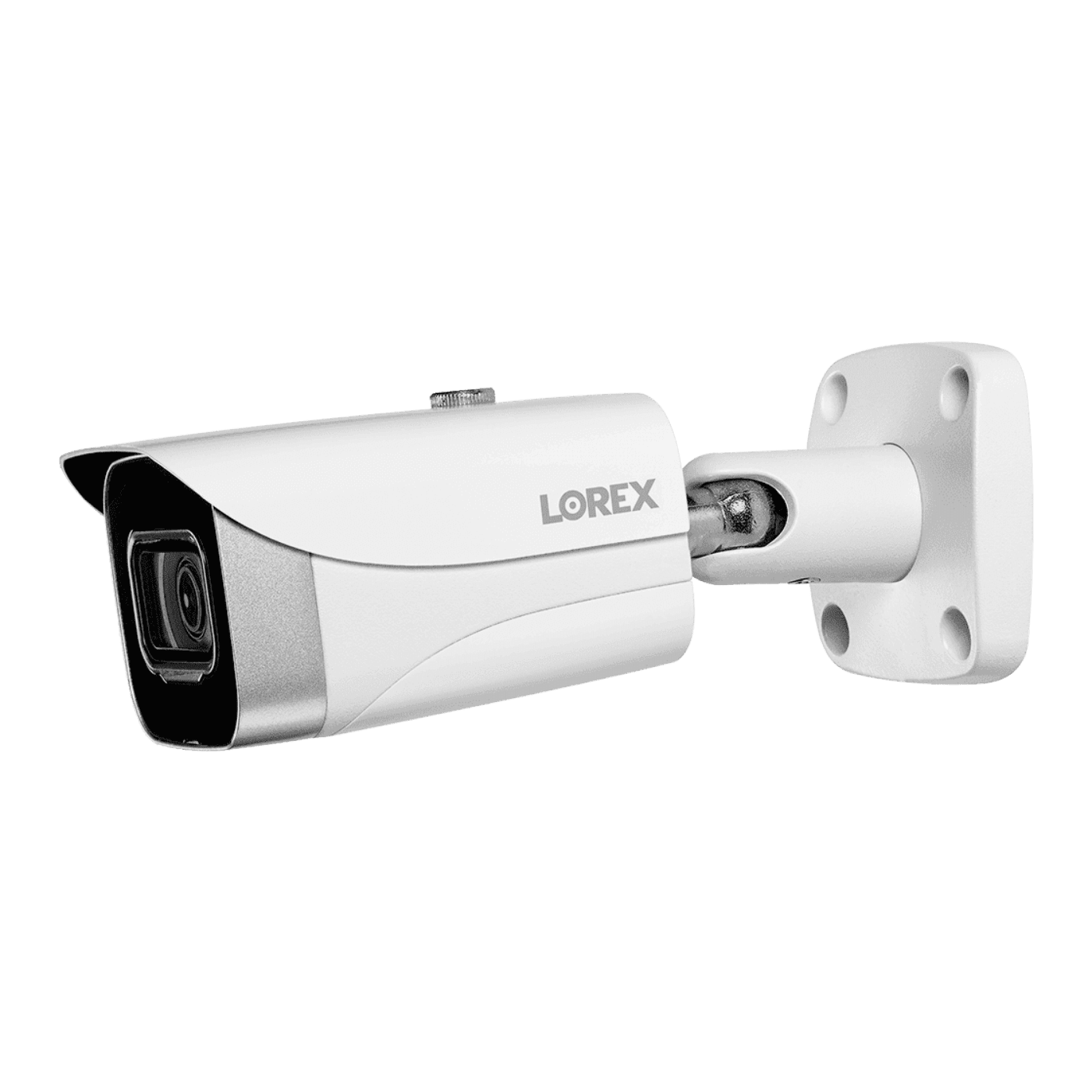

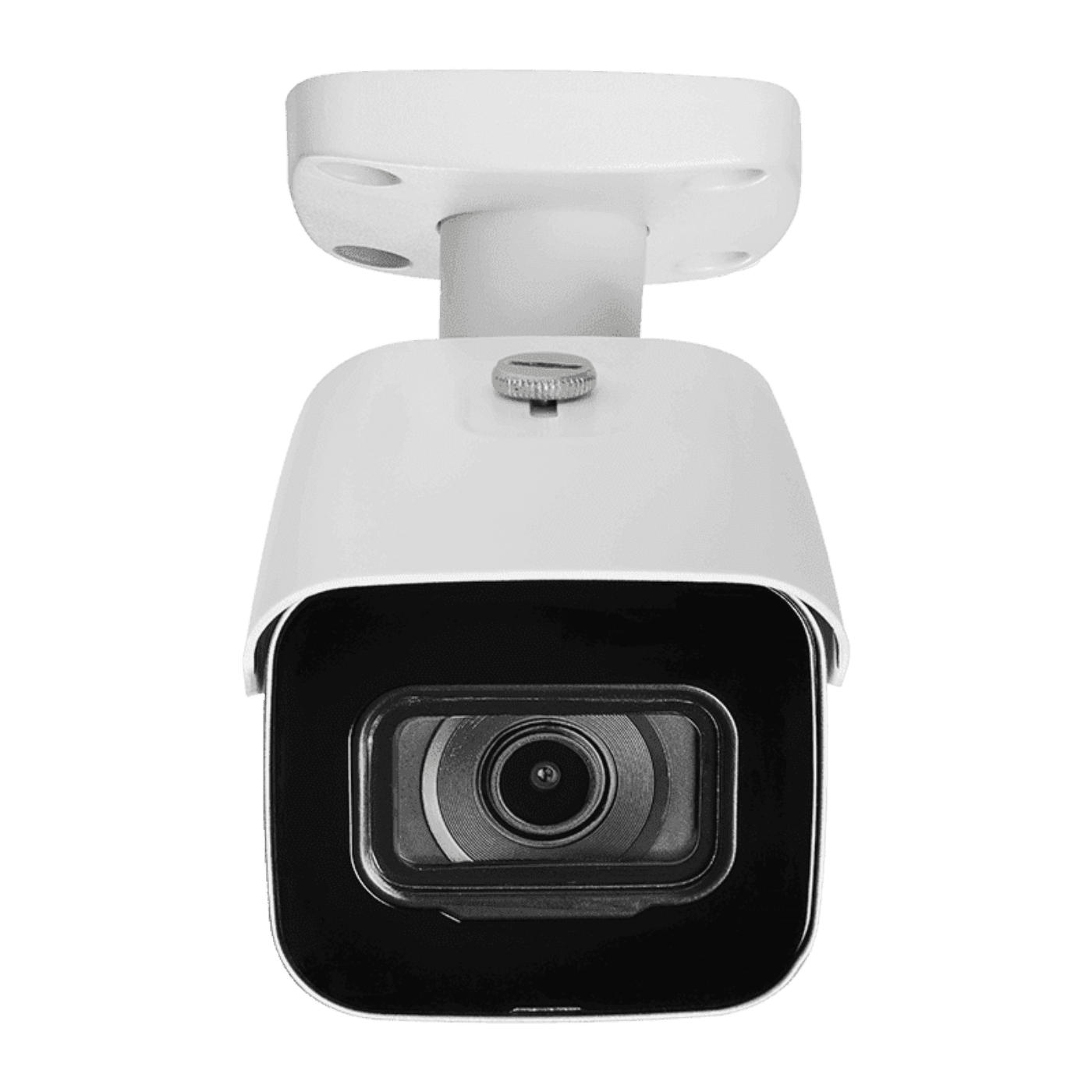

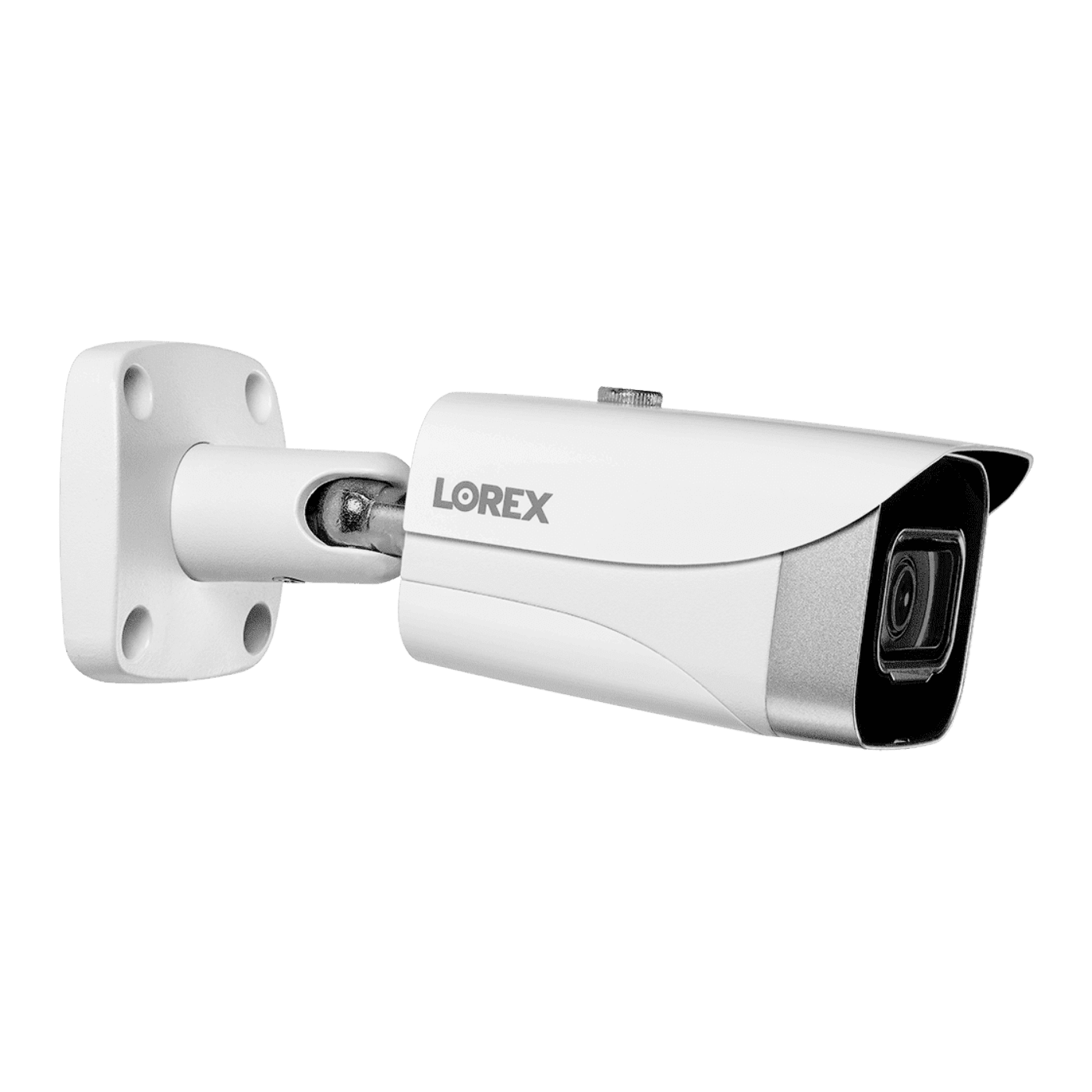

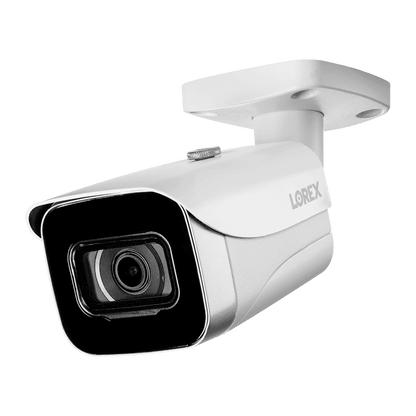

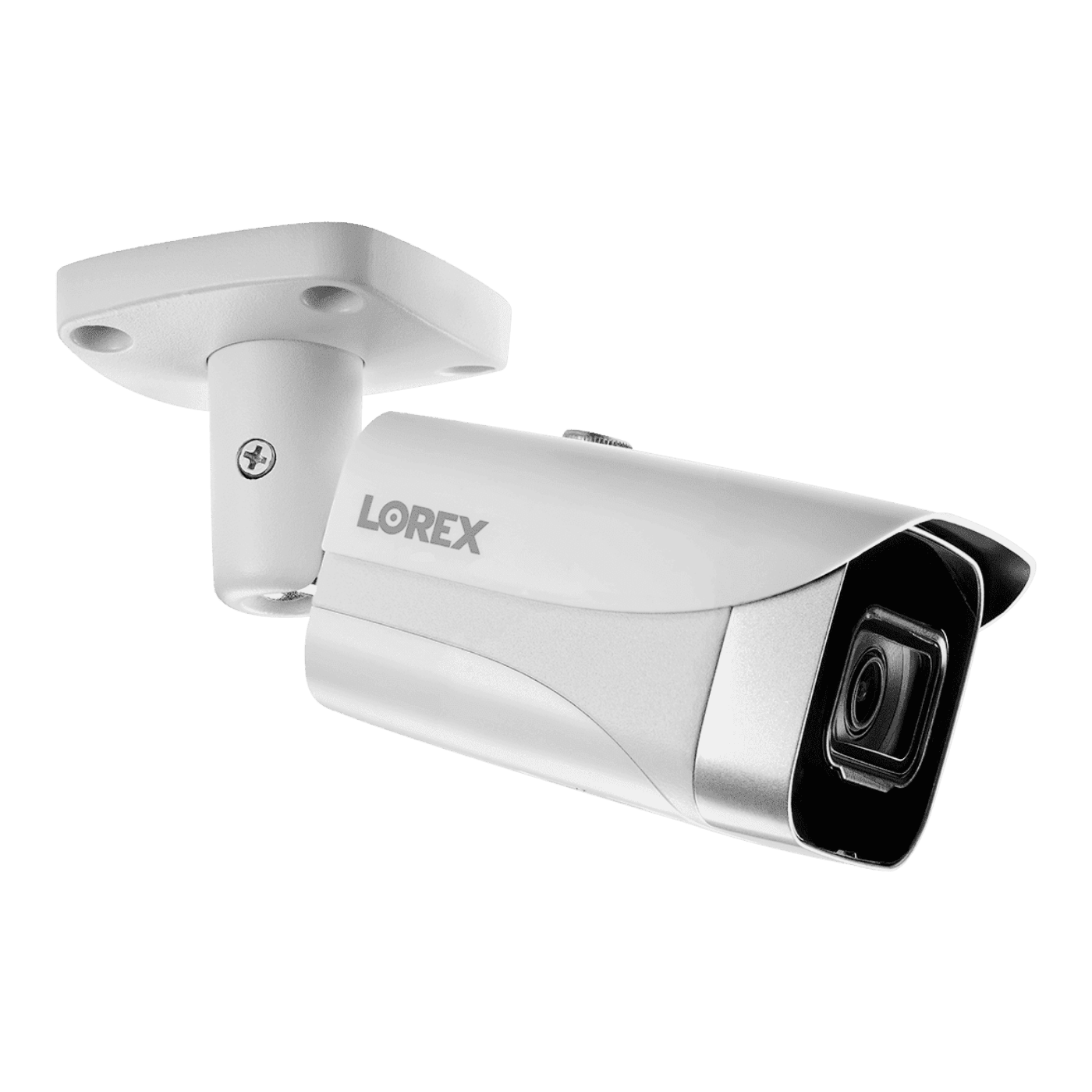

  • Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation
  • This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
  • In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
  • Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
  • Easily access your Nocturnal security camera system through our innovative Lorex Cloud™ app for your mobile devices. With this app, you can securely view your security cameras from virtually anywhere in the world, keep track of all motion activity with easy-to-read timelines, and receive push notifications for motion-triggered events.

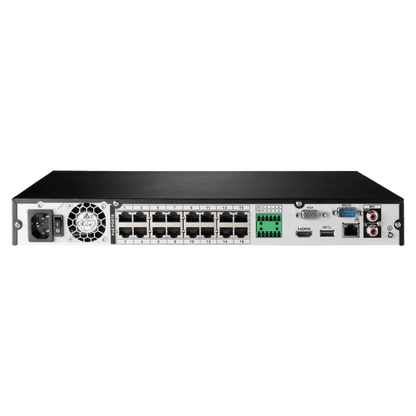

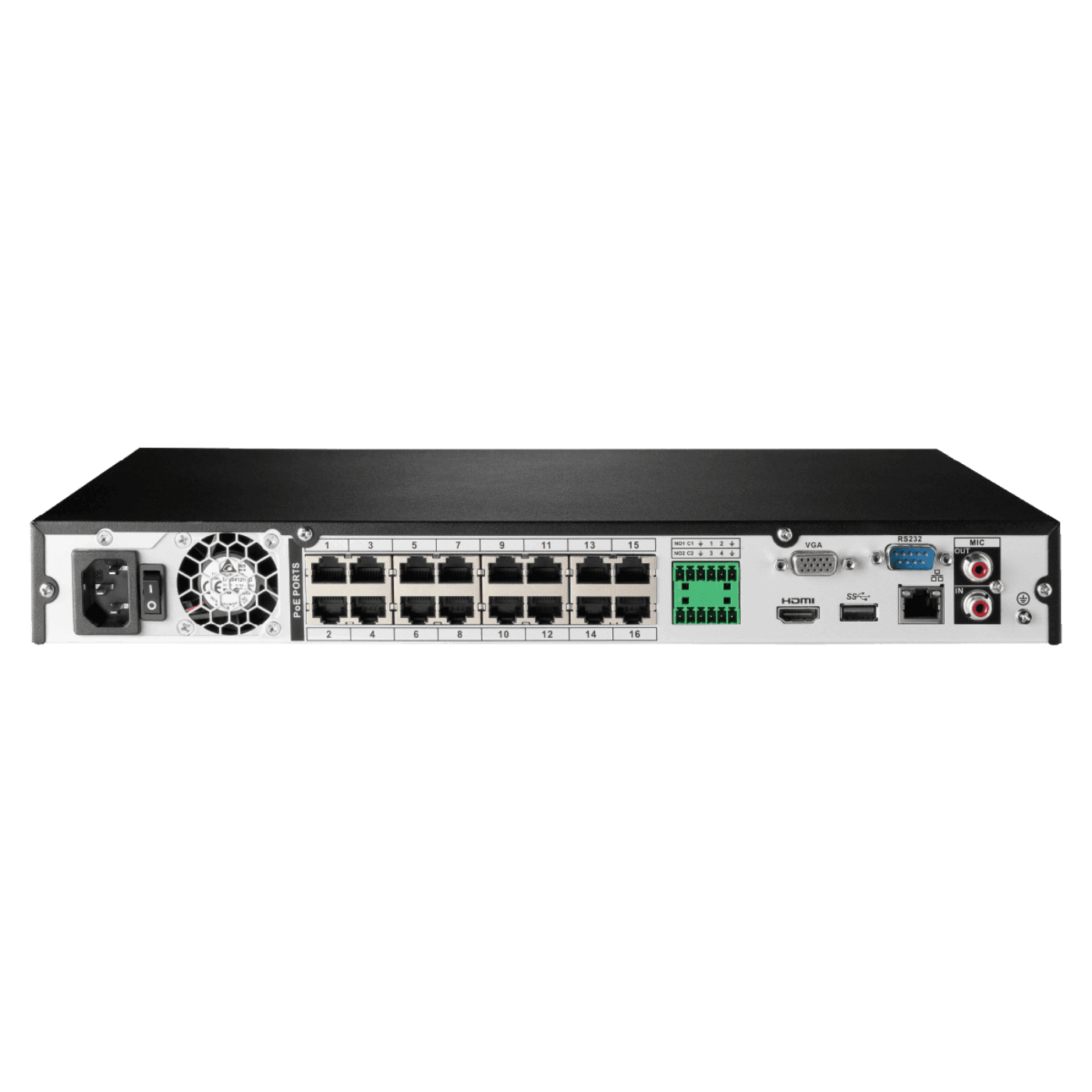

  • The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.
  • Included in the NVR is 8TB security-grade hard drives that have been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 20TB (2 × 10TB), there is more than enough room to safely store all motion events that only you can access.
Compatible APP Lorex Cloud™
Recording Resolution 4K (8MP)/5MP/4MP/3MP/1080p/720p
Recording Frame Rate up to 30fps
Recording scheduling Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Alarm, Day, Hour per channel
Back-up Media USB, USB HDD
Video Compression H.265 / H.264
Simultaneous Playback 4ch@4K 30fps
Playback Speed Variable Max 16×
Search By Time/Date, All Motion Events or Smart Search (Person and Vehicle), Area search
Hard Drive Bays 2 Bay
Hard Drive Capacity Up to 2 × 10TB (SATA)
Backup Media USB Flash Drive, USB HDD
Storage Mirroring Yes
Smart Motion Detection Support for Person and Vehicle Detection
Mobile Viewing Android, iOS
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
Video Transmission Technology IP
Channels 16, 32 channel (32ch. includes 16ch. PoE Switch)
Video Input 16ch: 16 x PoE
Video Outputs 1 × VGA/1 x HDMI
Audio Input 1 × RCA
Audio Output 1 × RCA
Alarm In 4 channels
Alarm out 2 channels
Display Output Resolution up to 4K UHD, Auto Detect
Live Display 16ch: 1/4/8/9/16 32Ch: 1/4/8/9/16/25/32
Live Display Speed (Max) Up to 4ch 4K@30fps
OSD On/Off
System Navigation USB Mouse, Front Panel Buttons



  1. 4K Ultra HD NVR
  2. 4K Ultra HD IP Camera
  3. 100ft CAT5e Ethernet Cable
  4. Mounting Template
  5. Power adapters
  6. Ethernet cable
  7. HDMI cable
  8. USB Mouse
  9. Security Decal
  10. Quick Start Guides
  11. Manual

 ✓ N4K3-1616WB User Manual

✓ N4K3-1616WB Data Sheet

✓ N4K3-1616WB Camera Quick Start Guide

✓ N4K3-1616WB Camera Spec Sheet
