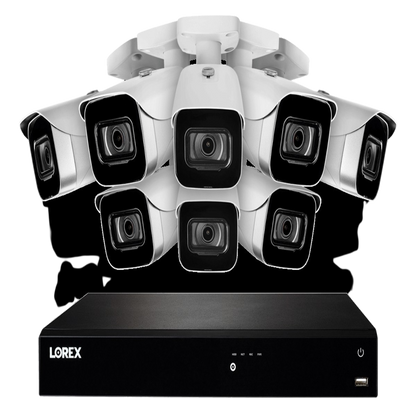

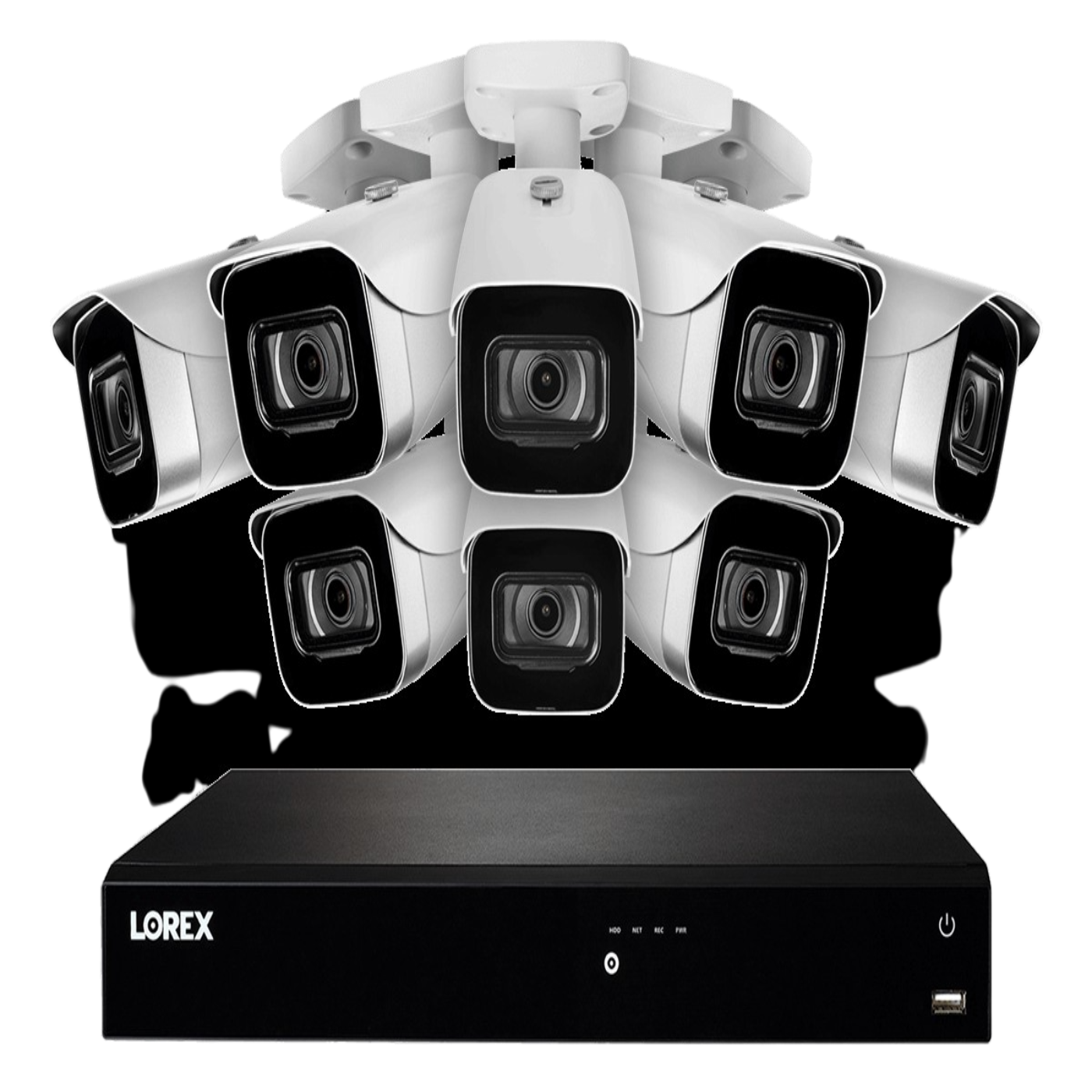

Lorex 16-Channel Fusion NVR System with Eight 4K 8MP IP Cameras Security Surveillance System New N4K3-168WB

Lorex 16-Channel Fusion NVR System with Eight 4K (8MP) IP Cameras Security Surveillance System New N4K3-168WB

by Lorex
SKU N4K3-168WB
Save 6% Save 6%
$989.99
$989.99 - $989.99
$989.99
$930.99
$930.99 - $930.99
$930.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Featuring industry-leading 4K (8 megapixel) resolution recording

With industry-leading 4K (8 megapixel) resolution, this security camera system will bring a whole new level of detail to your security monitoring. It includes a 16-channel Network Video Recorder (NVR) and eight 4K bullet security cameras with Color Night Vision. The NVR is also part of the Lorex Fusion™ collection, which means that you can add up to two Wi-Fi devices to open channels, as well as accessory alarm sensors. So whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.

  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)4
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
Voice Control Amazon Alexa™, Google Assistant™ Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™
Mobile Viewing Android, iOS
Compatible APP Lorex Home™
PC/Mac Remote Viewing Yes/Lorex Cloud™
Email Notification Text and Snapshot
Network Interface 1000 Base-TX, RJ45
Network Bit Rate 200 Mbps total
DDNS Yes (Optional)
USB interface USB 2.0 × 2
FW Upgrade USB/Network
Watchdog Function Yes
Power Consumption Approx. 13.2W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60hz, DC48V/2A
Total PoE Power Output PoE: Max 25.5W for single port, 130W total9
Unit Dimensions (W × D × H) 14.7 x 12.9 x 2.1” / 375 x 327 x 53 mm
Unit Weight 5.8 lbs / 2.6 kg (excl. HDD)
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
Video Transmission Technology IP
Channels 16 Channels
Video Input 16 x PoE
Video Outputs 1 × VGA/1 × HDMI
Audio Input ch: RCA type
Audio Output ch: RCA type
Alarm IN 4 channels
Alarm OUT 2 channels
Display Output Resolution Up to 4K UHD, Auto Detect
Live Display 1,4,8, 9,16
Live Display Speed (Max) up to 4ch 4K@15fps
OSD On/Off
System Navigation USB Mouse
Recording Resolution 4K (8MP)/5MP/3MP/ 1080p/720p



  1. 4K Capable HD NVR
  2. 4K Ultra HD Bullet Cameras
  3. 100ft Cat5e Cable
  4. Mounting template
  5. Power adapter
  6. Ethernet cable
  7. HDMI cable
  8. Mouse
  9. Security decal
  10. Quick Start Guides
  11. Manual

 ✓ N4K3-168WB User Manual

✓ N4K3-168WB Data Sheet

✓ N4K3-168WB Camera Quick Start Guide

✓ N4K3-168WB Camera Spec Sheet








Featuring industry-leading 4K (8 megapixel) resolution recording

With industry-leading 4K (8 megapixel) resolution, this security camera system will bring a whole new level of detail to your security monitoring. It includes a 16-channel Network Video Recorder (NVR) and eight 4K bullet security cameras with Color Night Vision. The NVR is also part of the Lorex Fusion™ collection, which means that you can add up to two Wi-Fi devices to open channels, as well as accessory alarm sensors. So whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.

  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)4
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
Voice Control Amazon Alexa™, Google Assistant™ Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™
Mobile Viewing Android, iOS
Compatible APP Lorex Home™
PC/Mac Remote Viewing Yes/Lorex Cloud™
Email Notification Text and Snapshot
Network Interface 1000 Base-TX, RJ45
Network Bit Rate 200 Mbps total
DDNS Yes (Optional)
USB interface USB 2.0 × 2
FW Upgrade USB/Network
Watchdog Function Yes
Power Consumption Approx. 13.2W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60hz, DC48V/2A
Total PoE Power Output PoE: Max 25.5W for single port, 130W total9
Unit Dimensions (W × D × H) 14.7 x 12.9 x 2.1” / 375 x 327 x 53 mm
Unit Weight 5.8 lbs / 2.6 kg (excl. HDD)
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
Video Transmission Technology IP
Channels 16 Channels
Video Input 16 x PoE
Video Outputs 1 × VGA/1 × HDMI
Audio Input ch: RCA type
Audio Output ch: RCA type
Alarm IN 4 channels
Alarm OUT 2 channels
Display Output Resolution Up to 4K UHD, Auto Detect
Live Display 1,4,8, 9,16
Live Display Speed (Max) up to 4ch 4K@15fps
OSD On/Off
System Navigation USB Mouse
Recording Resolution 4K (8MP)/5MP/3MP/ 1080p/720p



  1. 4K Capable HD NVR
  2. 4K Ultra HD Bullet Cameras
  3. 100ft Cat5e Cable
  4. Mounting template
  5. Power adapter
  6. Ethernet cable
  7. HDMI cable
  8. Mouse
  9. Security decal
  10. Quick Start Guides
  11. Manual

 ✓ N4K3-168WB User Manual

✓ N4K3-168WB Data Sheet

✓ N4K3-168WB Camera Quick Start Guide

✓ N4K3-168WB Camera Spec Sheet
