Featuring industry-leading 4K (8 megapixel) resolution recording

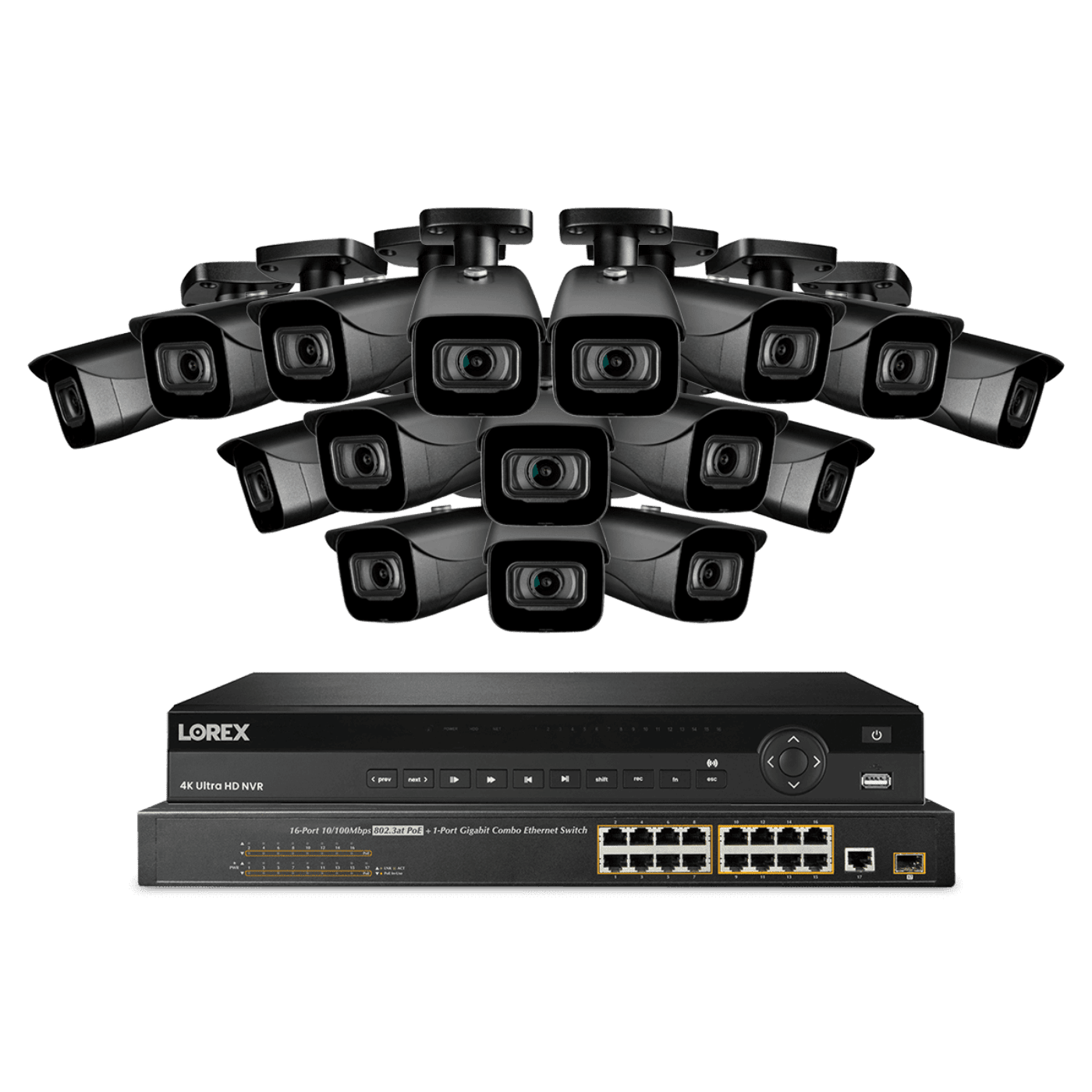

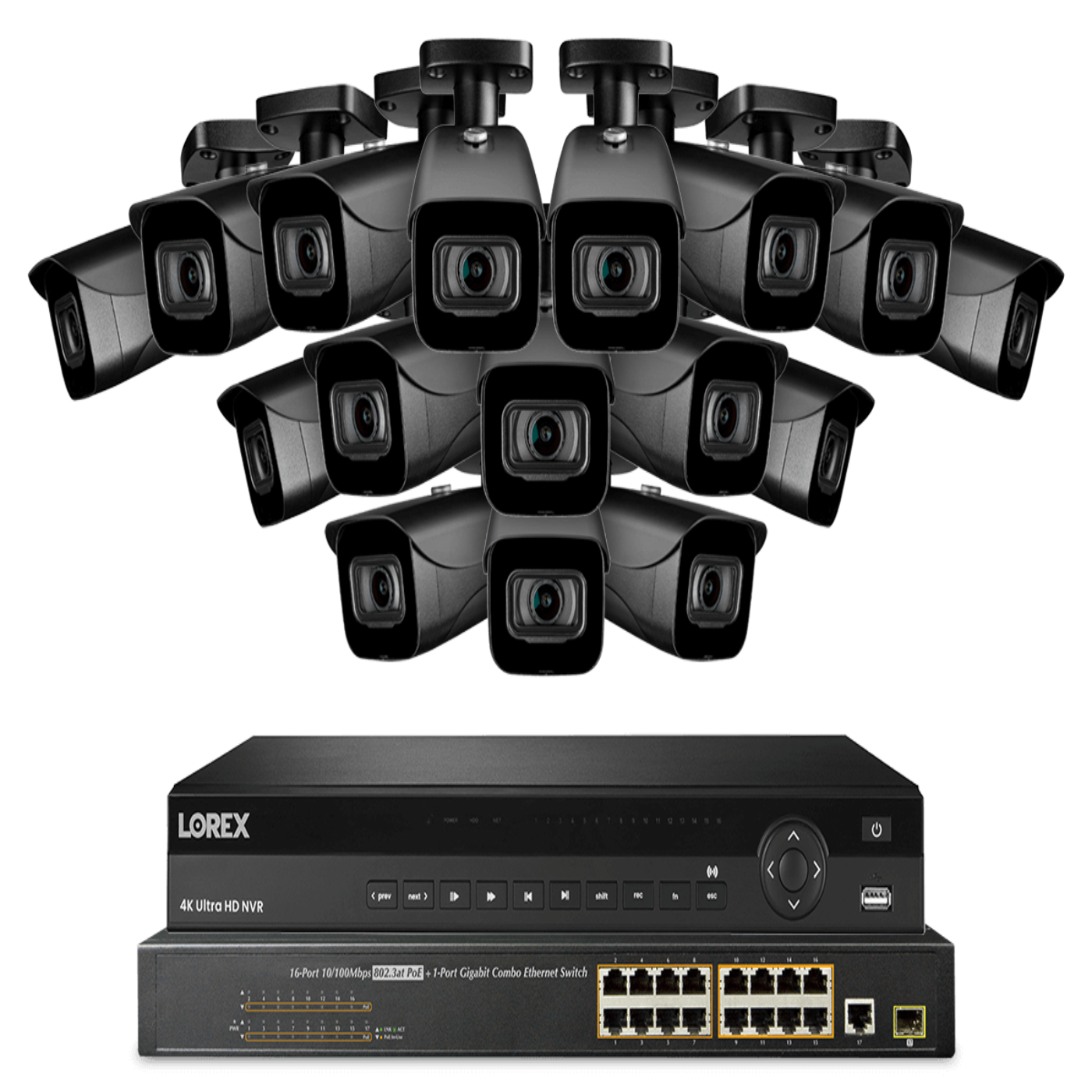

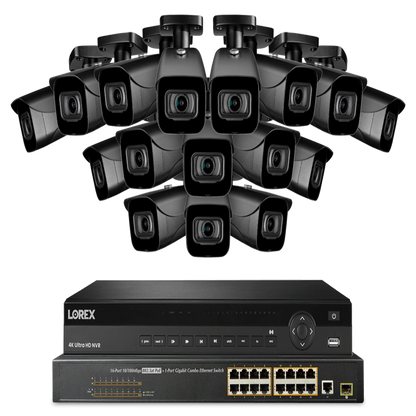

With industry-leading 4K (8 megapixel) resolution, this security camera system from Lorex will bring a whole new level of detail to your security monitoring. It includes a 32-channel Network Video Recorder (NVR), sixteen 4K (8MP) IP security cameras, and a PoE switch to accomodate the remaining sixteen channels. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.
Features

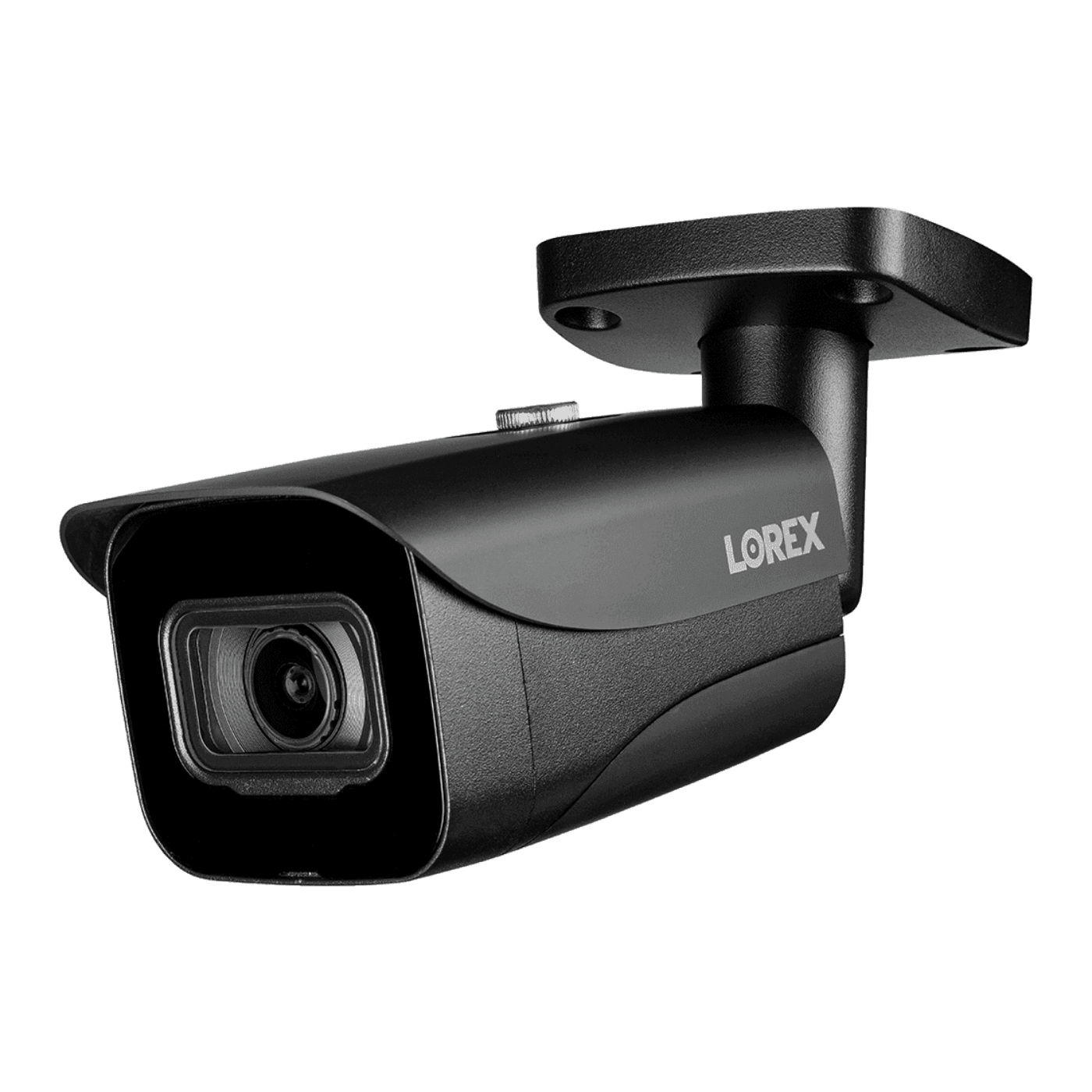

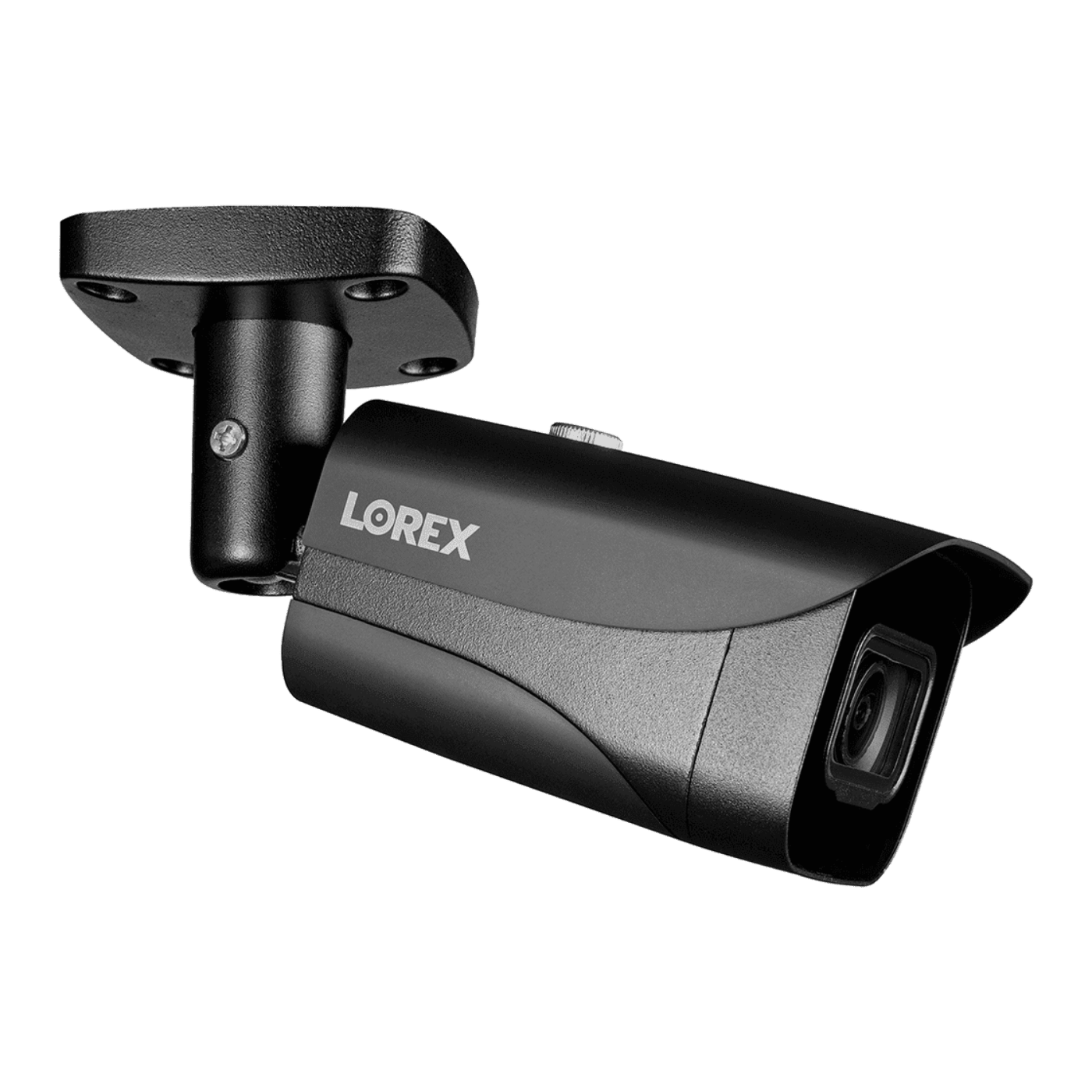

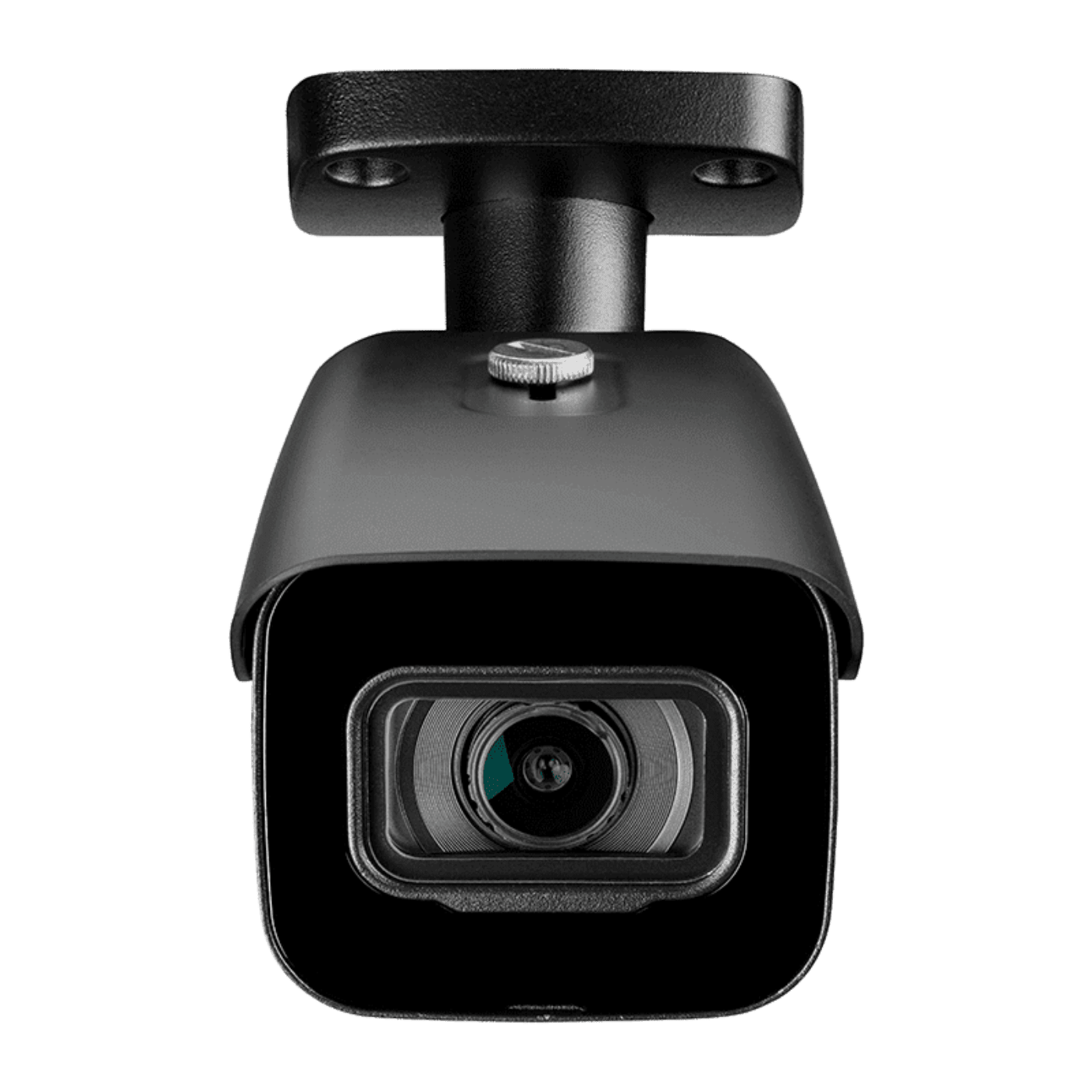

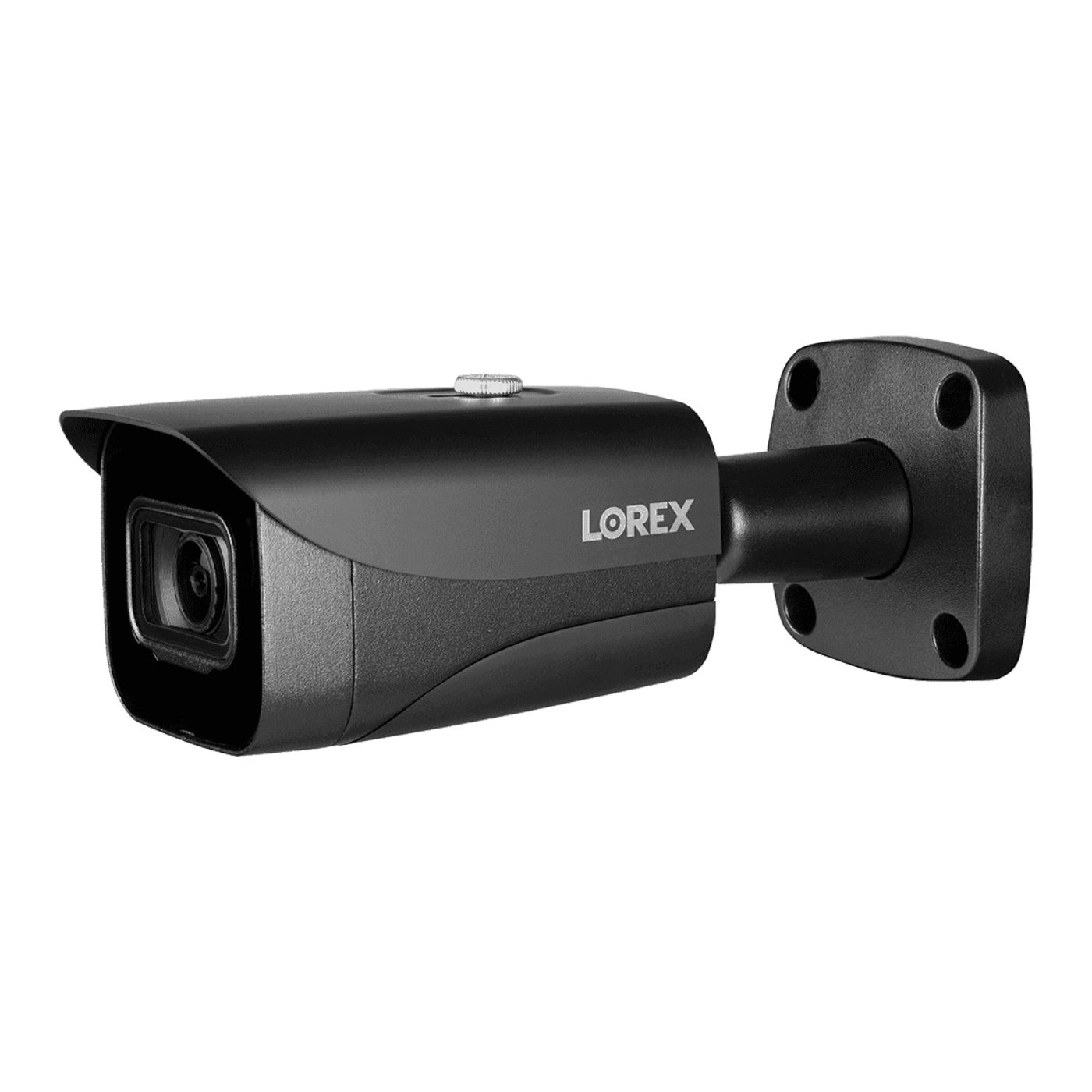

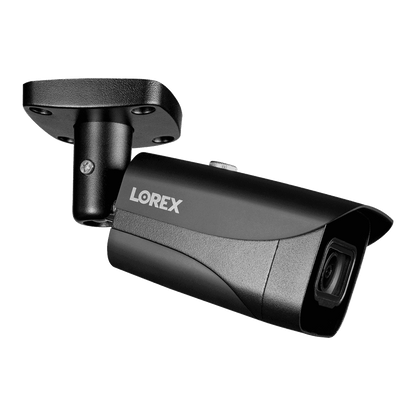

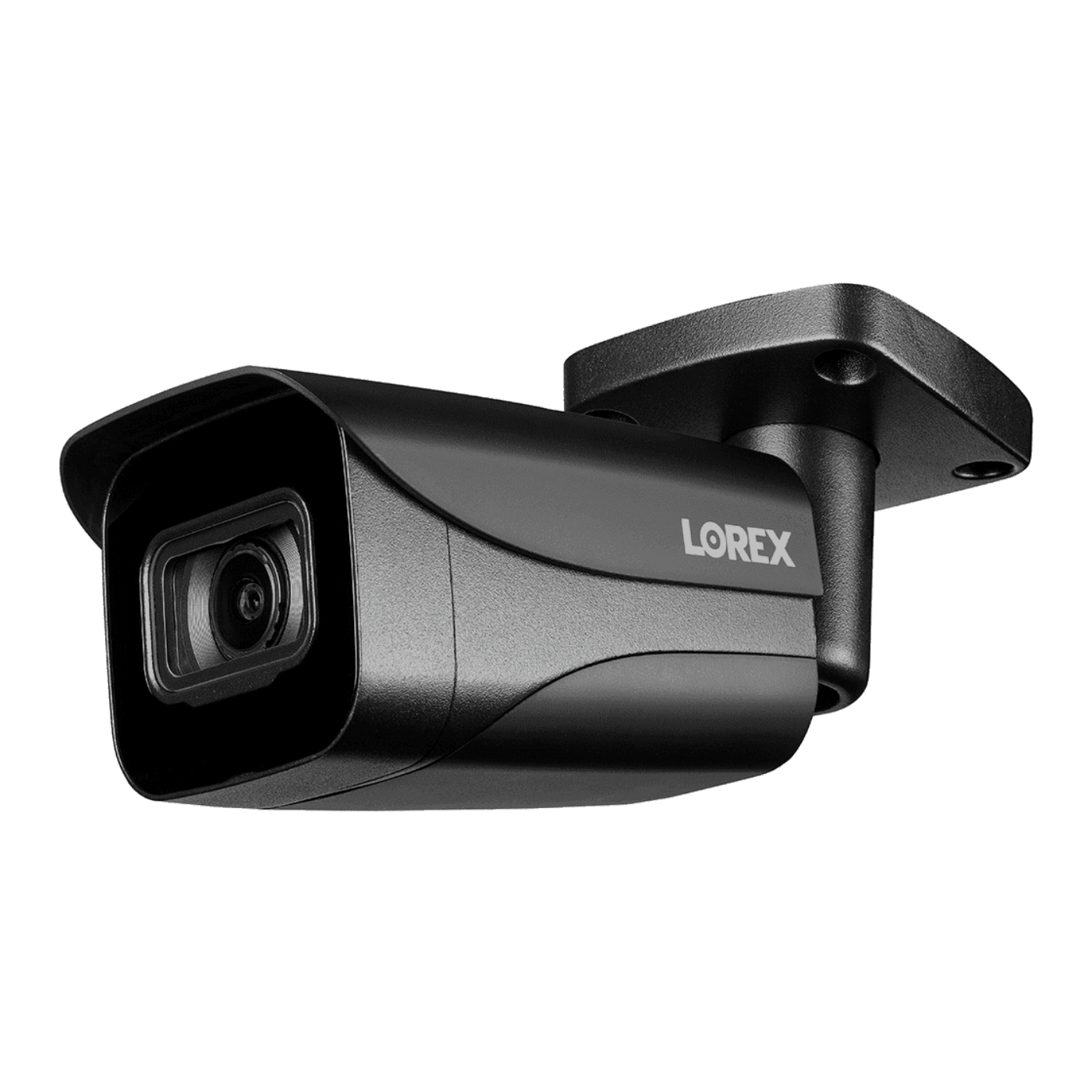

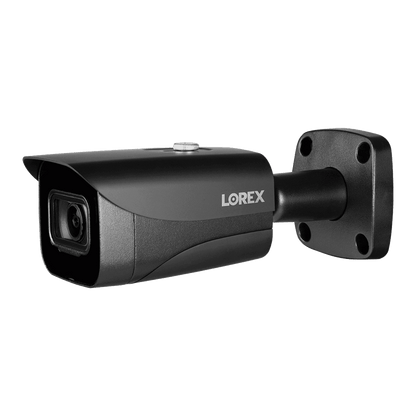

- Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation
- This camera features our revolutionary Color Night Vision⢠(CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
- In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
- Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
- Easily access your Nocturnal security camera system through our innovative Lorex Cloud⢠app for your mobile devices. With this app, you can securely view your security cameras from virtually anywhere in the world, keep track of all motion activity with easy-to-read timelines, and receive push notifications for motion-triggered events.

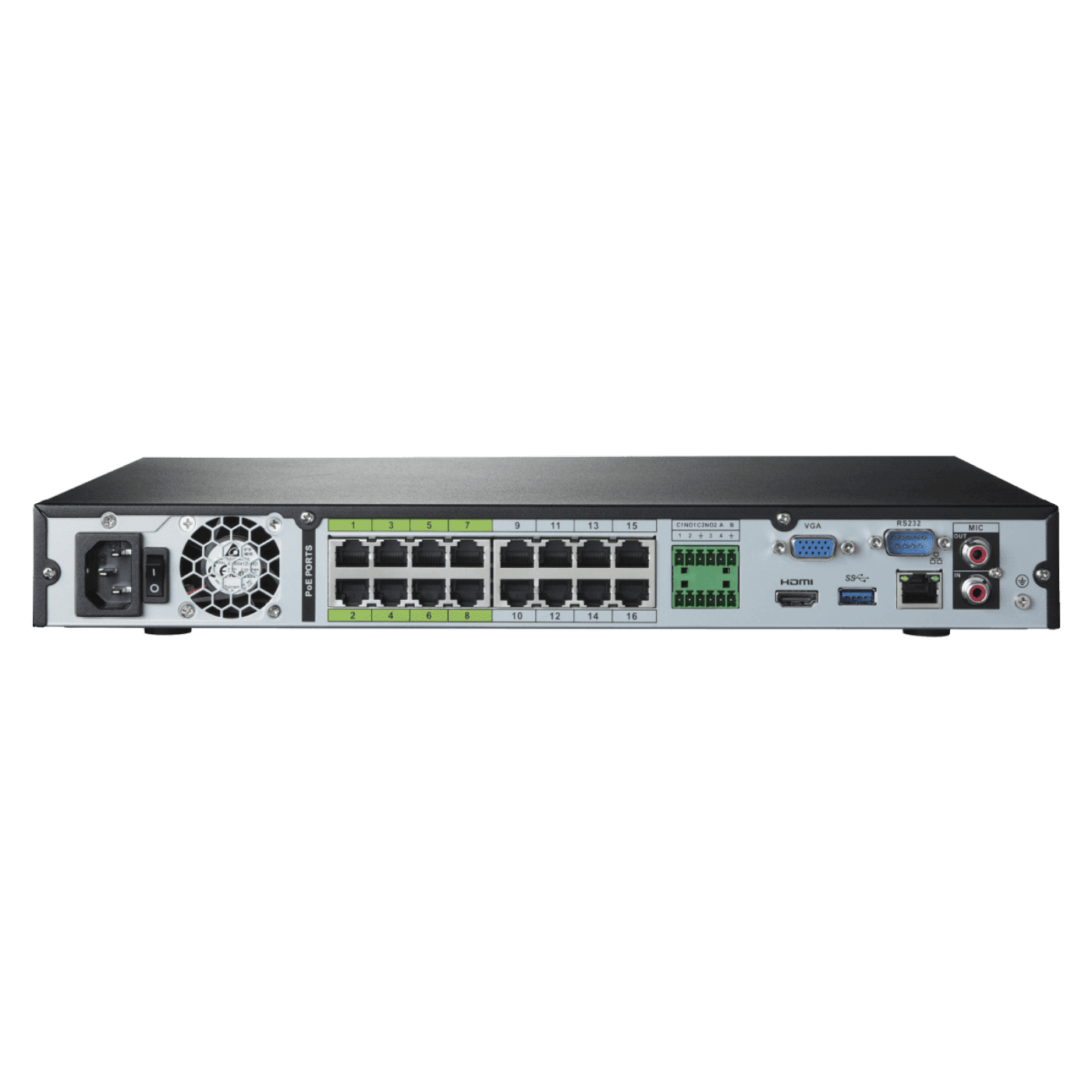

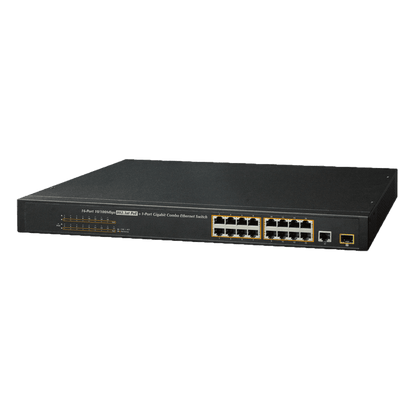

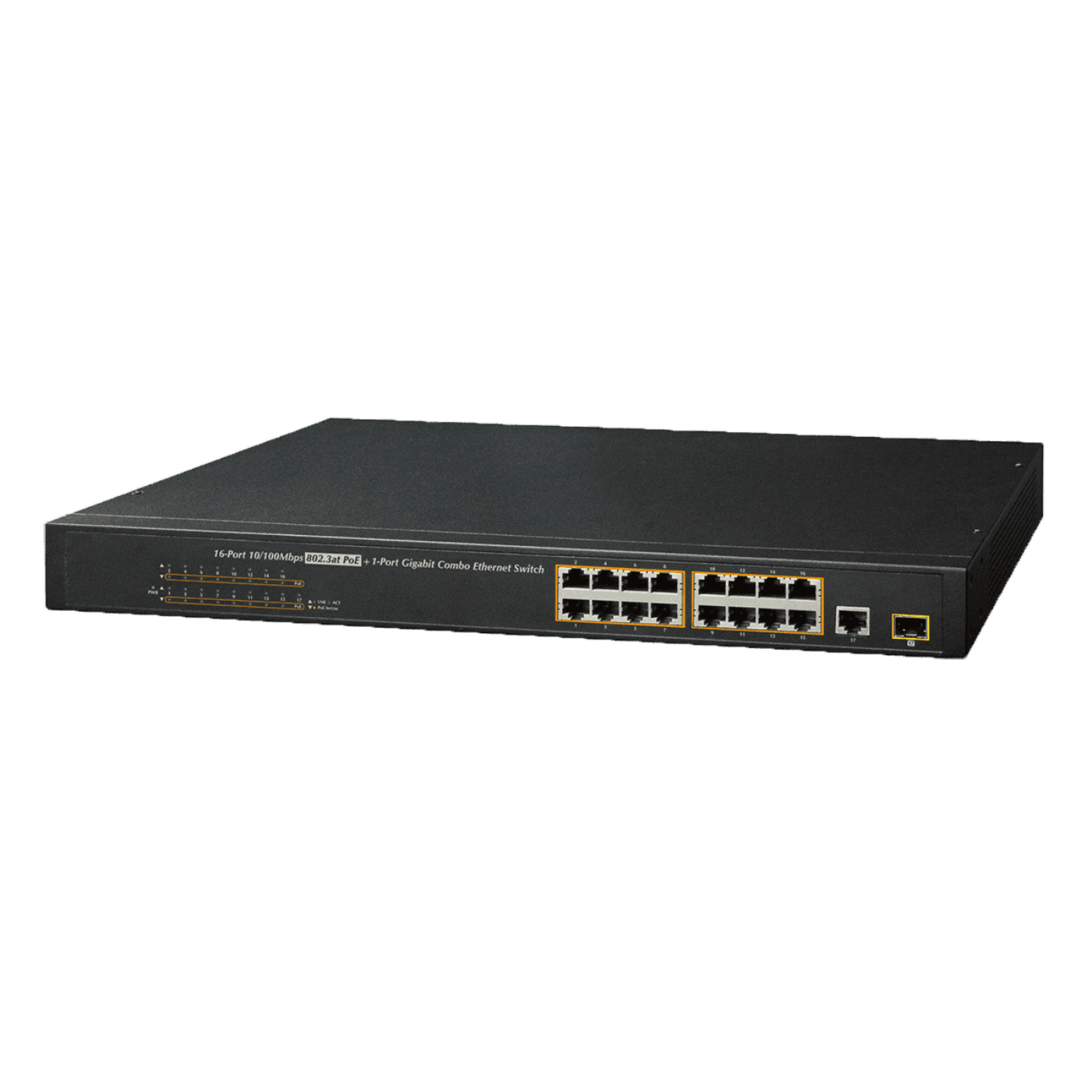

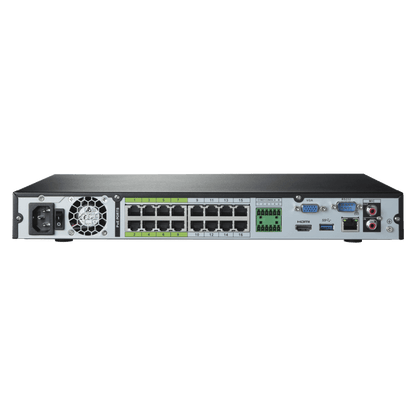

- The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.
- Included in the NVR is 8TB security-grade hard drives that have been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 20TB (2 Ă 10TB), there is more than enough room to safely store all motion events that only you can access.
Specifications
| Compatible APP |
Lorex Cloud⢠|
| Email Notification |
Text and Snapshot |
| PC/Mac Remote Viewing |
Yes /Lorex Cloud |
| Network Interface |
1000 Base-TX (Gigabit), RJ45 |
| Network Bit Rate |
320Mbps total |
| DDNS |
Yes (Optional) |
| USB interface |
USB 2.0 Ă 2 |
| FW Upgrade |
USB/Network |
| Watchdog Function |
Yes |
| Power Consumption |
Approx. 15W (no HDD included) |
| Supply Voltage |
100VAC-240VAC, 50/60hz |
| Total PoE Power Output 16 |
PoE: Max 25.5W for single port, 220W total |
| Unit Dimensions (W Ă D Ă H) |
14.7 Ă 12.9 Ă 2.1â / 375 Ă 327 Ă 53mm |
| Unit Weight |
5.8lb / 2.6kg (without HDD) |
| Operating Temperature |
14° ~ 131°F / -10° ~ 55°C |
| Humidity |
10 ~ 90% RH |
| Video Transmission Technology |
IP |
| Channels |
16, 32 channel (32ch. includes 16ch. PoE Switch) |
| Video Input |
16ch: 16 x PoE |
| Video Outputs |
1 Ă VGA/1 x HDMI |
| Audio Input |
1 Ă RCA |
| Audio Output |
1 Ă RCA |
| Alarm In |
4 channels |
| Alarm out |
2 channels |
| Display Output Resolution |
up to 4K UHD, Auto Detect |
| Live Display |
16ch: 1/4/8/9/16 32Ch: 1/4/8/9/16/25/32 |
| Live Display Speed (Max) |
Up to 4ch 4K@30fps |
| OSD |
On/Off |
| System Navigation |
USB Mouse, Front Panel Buttons |
Â
Packages Include
- K Ultra HD NVR
- 4K Ultra HD IP Camera
- 100ft CAT5e Ethernet Cable
- Mounting Template
- Power adapters
- Ethernet cable
- HDMI cable
- USB Mouse
- Security Decal
- Quick Start Guides
- Manual
Product Manual
 â  NC4K8-3216BB User Manual
â Â NC4K8-3216BBÂ Data Sheet
â Â NC4K8-3216BBÂ Camera Quick Start Guide
â Â NC4K8-3216BBÂ Camera Spec Sheet
What Our Experts Think
-
4K Ultra HD Video: Sixteen 8MP cameras deliver sharp, detailed footage for unparalleled image quality.
-
Expandable Channels: Supports up to 32 channels, allowing you to add more cameras for maximum coverage.
-
Advanced Night Vision: Provides clear video even in complete darkness, ensuring round-the-clock protection.
-
Durable Build: Weatherproof cameras built to withstand outdoor conditions while functioning reliably indoors.
-
Massive Storage: Pre-installed hard drive ensures ample space for continuous and event-triggered recording.
-
Fusion Technology: Integrates both wired and wireless devices seamlessly for flexible setup options.
-
Remote Access: View live footage and manage settings via mobile apps with smart alerts and notifications.
Q&A
Q: What is the Lorex 32-Channel NVR System designed for?
A: Itâs a high-capacity surveillance system ideal for monitoring large-scale properties, featuring 32 channels and 16 ultra-HD 4K (8MP) IP cameras.
Q: What resolution do the cameras provide?
A: The cameras deliver 4K (8MP) resolution for sharp, detailed video, ensuring maximum clarity for critical surveillance.
Q: Can the system be expanded?
A: Yes, the 32-channel NVR allows the addition of up to 16 more cameras, offering scalability to meet future security needs.
Q: Are the cameras suitable for outdoor use?
A: Yes, the cameras are weather-resistant, designed for reliable performance in both indoor and outdoor environments.
Q: Why choose this system?
A: With 16 included cameras, 4K resolution, and expandability up to 32 channels, itâs perfect for comprehensive security of large residential, business, or commercial properties.
Let me know if you'd like further refinements!
Maintenance Tips
-
Firmware Updates: Regularly update the NVR and cameras for security and improved functionality.
-
Lens Cleaning: Clean camera lenses with a microfiber cloth to maintain sharp 4K video.
-
Inspect Connections: Check cables and ports for damage, wear, or loose connections.
-
Monitor Hard Drives: Ensure adequate storage capacity and replace drives when necessary.
-
Backup Footage: Schedule regular backups of critical recordings to external storage or the cloud.
-
Test Components: Periodically test all cameras, motion detection, and system notifications.
-
Adjust Placement: Optimize camera angles for maximum coverage and minimal blind spots.
-
Weatherproof Cameras: Confirm outdoor cameras and connections are properly sealed against the elements.
-
Enhance Security: Use strong, unique passwords and enable encryption for remote access.
-
Utilize Spare Channels: Expand coverage by adding cameras to unused channels as needed
