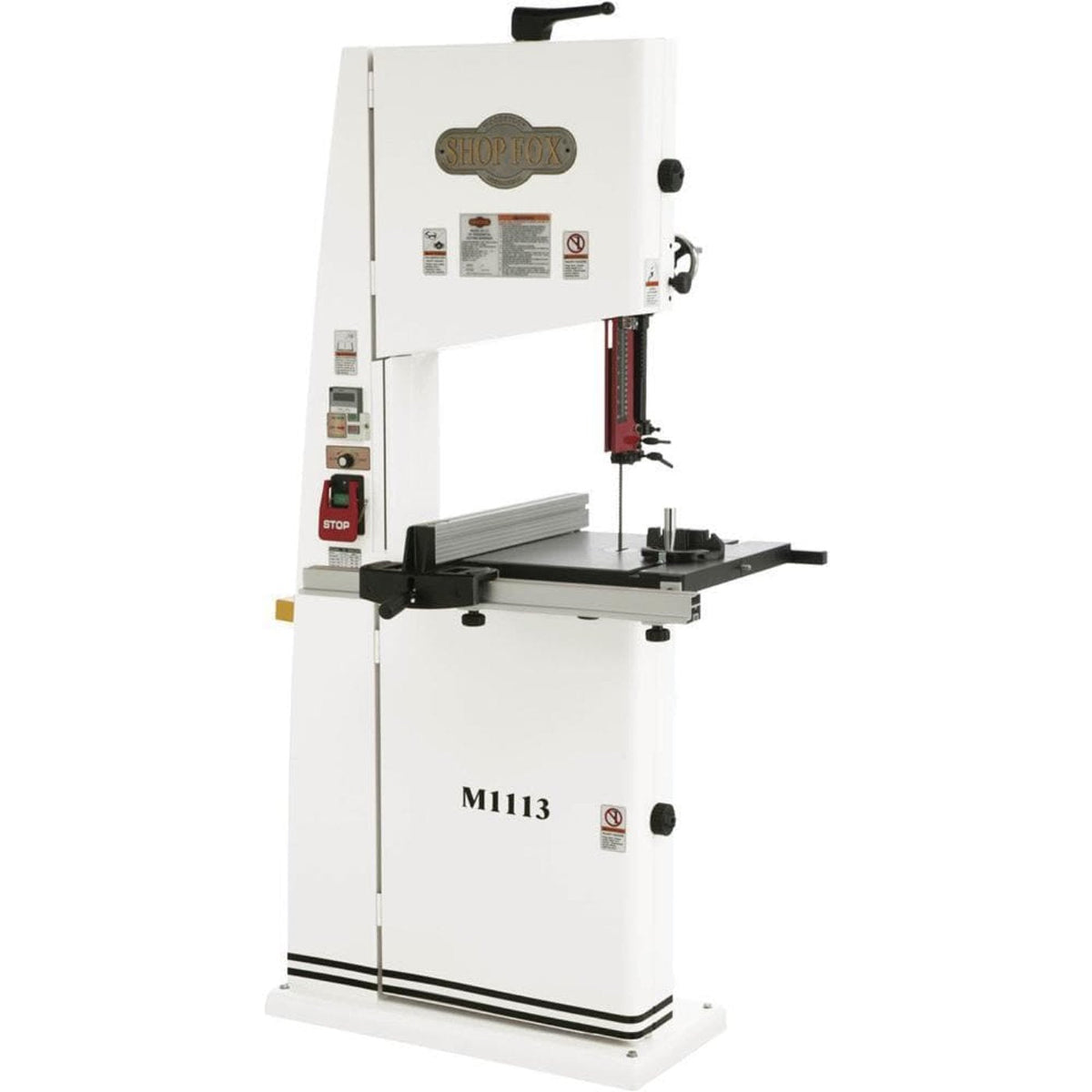

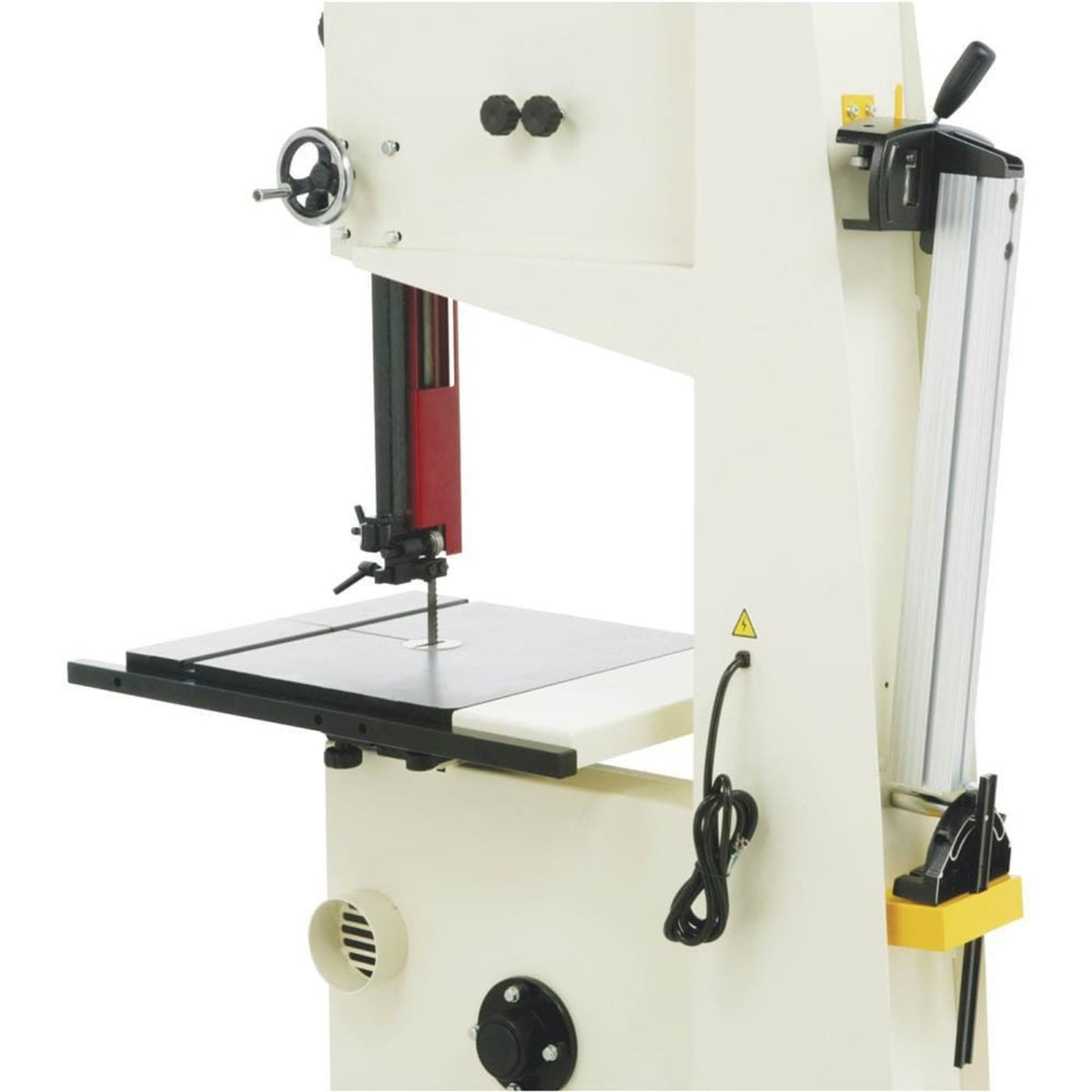

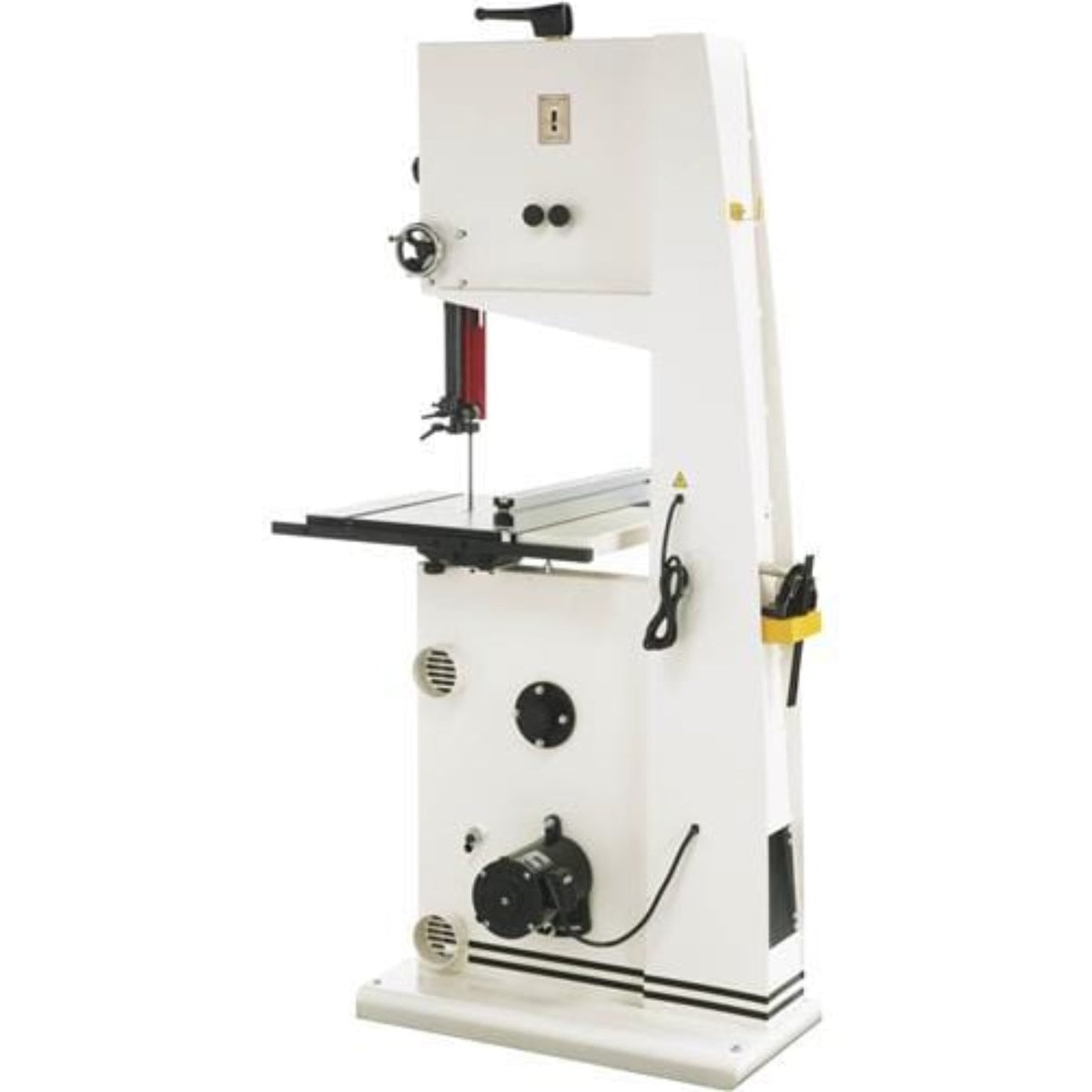

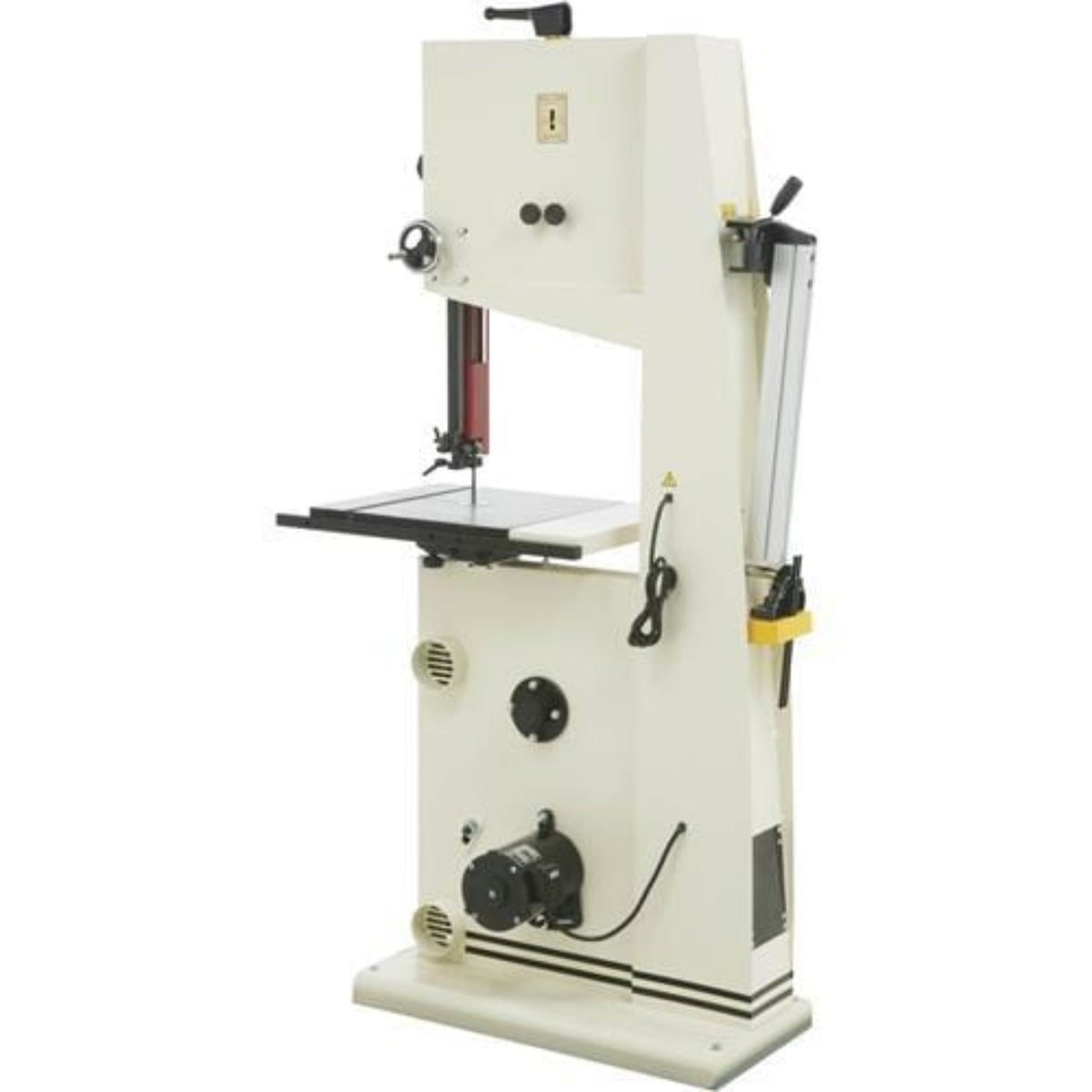

M1113 Wood / Metal Bandsaw
A VFD (Variable Frequency Drive) with digital readout provides infinitely variable blade speeds between 150 and 3000 FPM, making this saw great for cutting wood and metal alike! Just turn the speed control dial to set the perfect cutting speed for each type of material you're cutting. Besides providing the variable-speed control, the VFD also allows this machine to take full advantage of the high-torque/low-speed characteristics of a 3-phase motor—while only requiring a single-phase power supply. The vertical cutting configuration and massive cast-iron table also makes it easy to feed intricate, curved cuts. All in all, the strong versatility of this 18' Vertical Wood/Metal Bandsaw makes it an ideal choice when shop space is limited and the range of profect types is diverse!
Specifications
- Motor: 1-1/2 HP, 220V, 3-phase
- Power supply requirement: 220V, single-phase, 15A
- Max. cutting height: 12'
- Throat capacity: 17-1/2'
- Blade length: 133'
- Blade size range: 1/8'—1-1/4'
- Blade speed: variable, 150-3000 FPM
- Table tilt: 45° right, 5° left
- Floor to table height: 37-1/4'
- Table size: 18' x 24'
- Left and right table tilting control
- Upper and lower blade guides
- Precision-ground cast-iron table
- Quick-release blade tension
- Steel guide blocks
- Two dust ports
- Wheel brush on lower wheel
- Frequency drive provides variable speed control
- Fully balanced cast-iron wheels with rubber tires
- Rack-and-pinion adjustment on upper blade guide support
- Blade tension scale with magnified cursor
- Twin drive belts
- Includes rip fence and miter gauge
- Rip fence comes with right and left reading indicators, T-slots for quick change attachments, dead lift quick release, ball bearing slide, solid lever lock
- Overall size: 40'W x 76'H x 31'D
- Approximate shipping weight: 327 lbs.
What Our Experts Think
The M1113 Wood/Metal Bandsaw is a versatile machine designed for both wood and metal cutting. Here's why it stands out:
-
Dual Material Capability: Ideal for cutting both wood and metal, making it perfect for mixed-material workshops.
-
Powerful Motor: 1 HP motor provides smooth, consistent power for a range of materials.
-
Large Cutting Capacity: Cuts up to 13" wide and 6" thick, accommodating larger projects.
-
Adjustable Speed: Features variable speeds for optimal cutting performance on different materials.
-
Heavy-Duty Build: Sturdy construction ensures long-term reliability and durability.
-
Precision Cutting: Equipped with a precision guide system for straight and accurate cuts.
Q&A
Q: What is the M1113 Bandsaw used for?
A: The M1113 is a versatile bandsaw designed for both wood and metal cutting, making it perfect for a wide range of woodworking and metalworking projects.
Q: What is the cutting capacity?
A: It offers a 13" cutting width and 6" cutting height, suitable for cutting larger pieces of wood and metal materials.
Q: Can it cut both wood and metal?
A: Yes, the M1113 features adjustable settings that allow it to cut through wood, metal, and other materials with ease.
Q: What is the motor capacity?
A: The bandsaw is powered by a 1 HP motor, providing the necessary power for efficient cutting through various materials.
Q: Does it include variable speed settings?
A: Yes, it offers variable speed control, allowing you to adjust the speed for different materials, ensuring smooth and precise cuts.
Q: Is the M1113 easy to use for beginners?
A: Yes, the bandsaw is designed with ease of use in mind, featuring simple controls, an adjustable fence, and a user-friendly design.
Q: How durable is it?
A: The M1113 is built with a heavy-duty steel frame, ensuring long-lasting performance and durability in both wood and metal cutting applications.
Q: Is it suitable for large projects?
A: Yes, its wide cutting capacity and robust design make it ideal for larger woodworking and metalworking projects.
Q: Does it come with any safety features?
A: Yes, the M1113 includes a blade guard, safety switch, and other features to ensure safe operation during use.
Q: What is the weight of the bandsaw?
A: The M1113 weighs around 160 lbs, offering a stable, solid base for secure cutting while remaining portable within the workshop.
Q: Does it come with a warranty?
A: Yes, it comes with a 1-year warranty for added peace of mind.
Maintenance Tips
-
Blade Inspection: Regularly check for wear or damage; replace blades when necessary for smooth cuts.
-
Blade Tension: Maintain proper blade tension to ensure consistent cutting performance and prevent breakage.
-
Blade Guides: Adjust and clean the blade guides frequently to keep them aligned and prevent excessive wear.
-
Lubrication: Lubricate moving parts such as bearings and the drive system to reduce friction and prolong life.
-
Dust and Debris Removal: Clean the work area and the machine after each use to prevent debris buildup and ensure smooth operation.
-
Motor and Belt Check: Regularly inspect the motor and belts for any signs of wear or damage, and replace if necessary.
