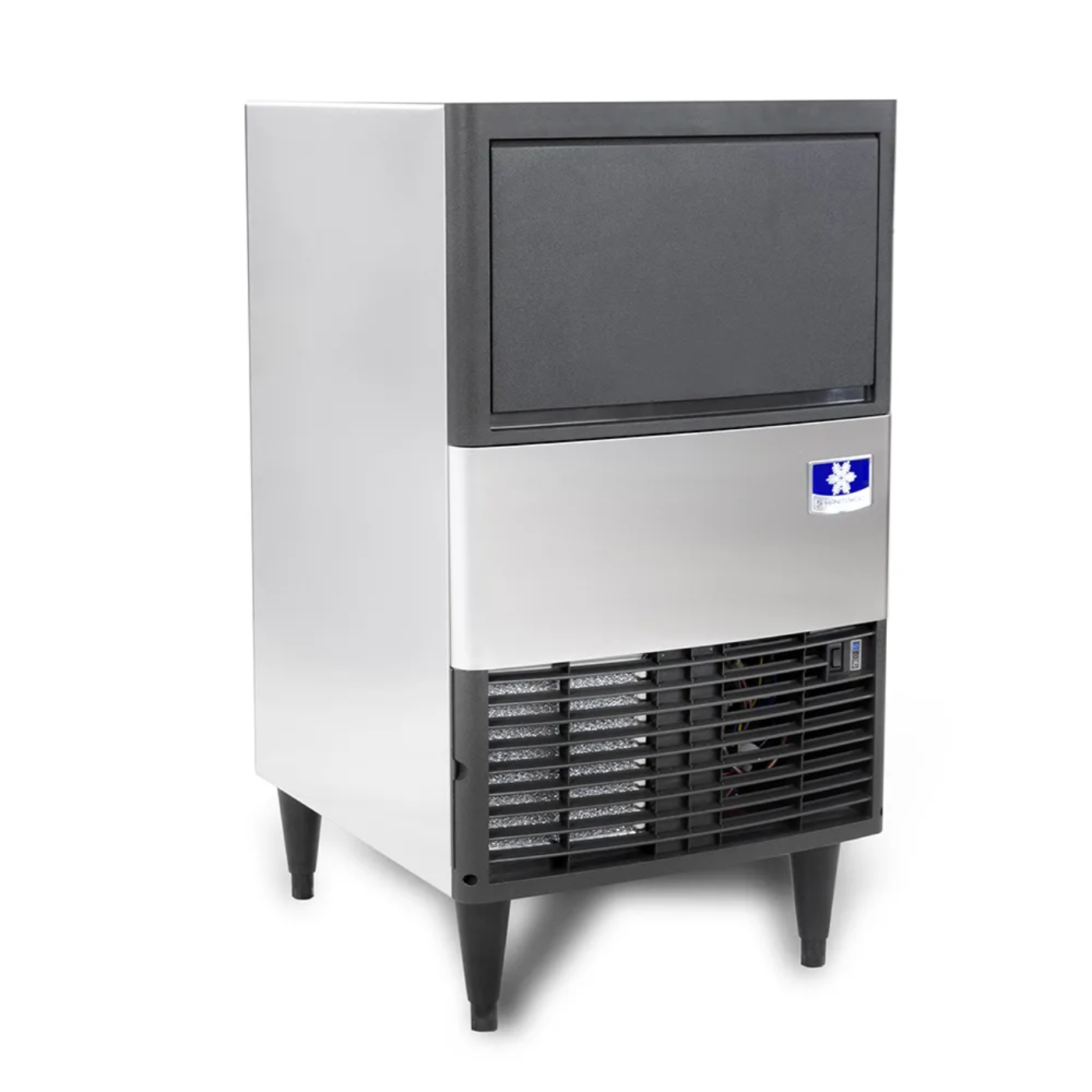

Manitowoc UDE0065A NEO Undercounter Air Cooled Cube Style Ice Maker Up to 57 lb/per day Production - MWUDE0065A
This Manitowoc UDE0065A is compact in size for easy placement under counters or as a stand alone unit. This undercounter ice machine is ideal for any small-volume ice need with an ice maker and bin in one. It features an attractive, durable stainless steel cabinet and an easy access door that slides up and out of the way. Manitowoc's proven vertical evaporator uses proprietary technology that is made in Manitowoc, WI.
Features
- Compact size for easy placement under counters or as a stand alone.
- Ideal for any small-volume ice need with ice maker and bin in one.
- Clean, crisp, coordinated interior.
- AlphaSan® in key internal components to extend time between cleanings.
- Flat, right-angle plug for easier installation in tight spaces.
- Attractive, durable stainless steel cabinet.
- Easy access door, slides up & out of the way.
- Patented cleaning and sanitizing technology.
- Manitowoc’s proven vertical evaporator using proprietary technology is made in Manitowoc, WI.
- Easy access air filter designed for longer operation in greasy and dusty environments.
- Front air intake and exhaust.
- CFC-FREE R-134A refrigerant
Specifications
| Model |
UDE0065A |
| BTU Per Hour |
1,600 (average), 2,350 (peak) |
| Compressor |
1/4 HP |
| Legs |
Adjustable from 6" - 7.25" |
| Bin |
One-piece bin liner (seamless) rotocast polyethylene |
| Insulation |
Foamed-in-place with CFC-FREE foam |
| Refrigerant |
R-134A |
| Operating Limits |
Ambient Temperature Range: 50Ëš to 110ËšF |
| Water Temperature Range: 50Ëš to 86ËšF |
|
| Water Pressure Ice Maker - Water In: Min 34 psi / Max 90 psi |
|
| Dimensions |
19.69" W x 22.34" D x 36" H |
| Ice Production (24 Hours) |
57 lbs |
| Storage Bin Capacity |
31 lbs |
| Power kWh/100 lbs @ 90°/70°F |
19.1 kWh |
| Potable Water Usage @ 90°/70°F per 100 lbs of Ice |
39.2 gal |
What our Experts Think
-
Ice Production Capacity: Produces up to 57 pounds of full-dice ice daily under optimal conditions (70°F air and 50°F water). At higher ambient temperatures (90°F air and 70°F water), production is approximately 46 pounds per day.
-
Ice Storage Capacity: Equipped with a storage bin holding up to 31 pounds of ice, ensuring a sufficient supply during peak hours.
-
Ice Characteristics: Produces full-dice cubes measuring 7/8" x 7/8" x 7/8", ideal for various beverage applications.
-
User-Friendly Operation: Features a simple on/off/clean switch and clear indicators for a full bin and service needs, facilitating ease of use and maintenance.
-
Sanitation and Maintenance: Incorporates AlphaSan® antimicrobial protection in key components to inhibit bacterial growth. The sealed food zone with removable parts simplifies cleaning processes.
-
Compact Design: Measuring 19 11/16" (W) x 22 11/32" (D) x 36" (H), this undercounter unit fits seamlessly into limited spaces, such as small kitchens, offices, or residential settings.
-
Energy Efficiency: Utilizes R-134A refrigerant, contributing to environmental sustainability
-
Installation Flexibility: Designed with 6" adjustable legs, allowing for versatile installation options and easy access for maintenance
Q&A
Q: What is the daily ice production capacity of the Manitowoc UDE0065A NEO Undercounter Ice Maker?
A: The Manitowoc UDE0065A produces up to 57 lbs of full-dice ice per day under standard conditions (70°F air and 50°F water).
Q: What are the dimensions of the Manitowoc UDE0065A ice maker?
A: This model measures 19.69" in width, 22.34" in depth, and 36" in height, making it suitable for undercounter installation.Â
Q: How much ice can the Manitowoc UDE0065A storage bin hold?
A: The integrated storage bin has a capacity of 31 lbs, ensuring a sufficient ice supply during peak times.Â
Q: What type of ice does the Manitowoc UDE0065A produce?
A: It produces full-dice cubes measuring 7/8" x 7/8" x 7/8", ideal for various beverages.
Q: Is the Manitowoc UDE0065A energy-efficient?
A: Yes, it utilizes R-134A refrigerant and features front air intake and exhaust for efficient operation
Q: How does the Manitowoc UDE0065A facilitate maintenance?
A: It features a removable, forward-sliding storage bin and an easy-access air filter to simplify cleaning and maintenance tasks.
Maintenance Tips
-
Ice Production: Produces up to 57 lbs of full-dice ice per day under standard conditions (70°F air / 50°F water), with a storage capacity of 31 lbs.Â
-
Compact Design: Measuring 19 11/16" in width, 22 11/32" in depth, and 36" in height, it fits seamlessly under counters, making it ideal for establishments with limited space.
-
User-Friendly Operation: Features a simple on/off/clean switch for easy operation, and indicators for a full bin and service needs.
-
Sanitation: Incorporates AlphaSan® antimicrobial protection in key components to inhibit bacterial growth, ensuring clean ice production.Â
-
Flexible Production Delay: Offers programmable production delays of 4, 12, or 24 hours to align ice production with demand, enhancing efficiency.
