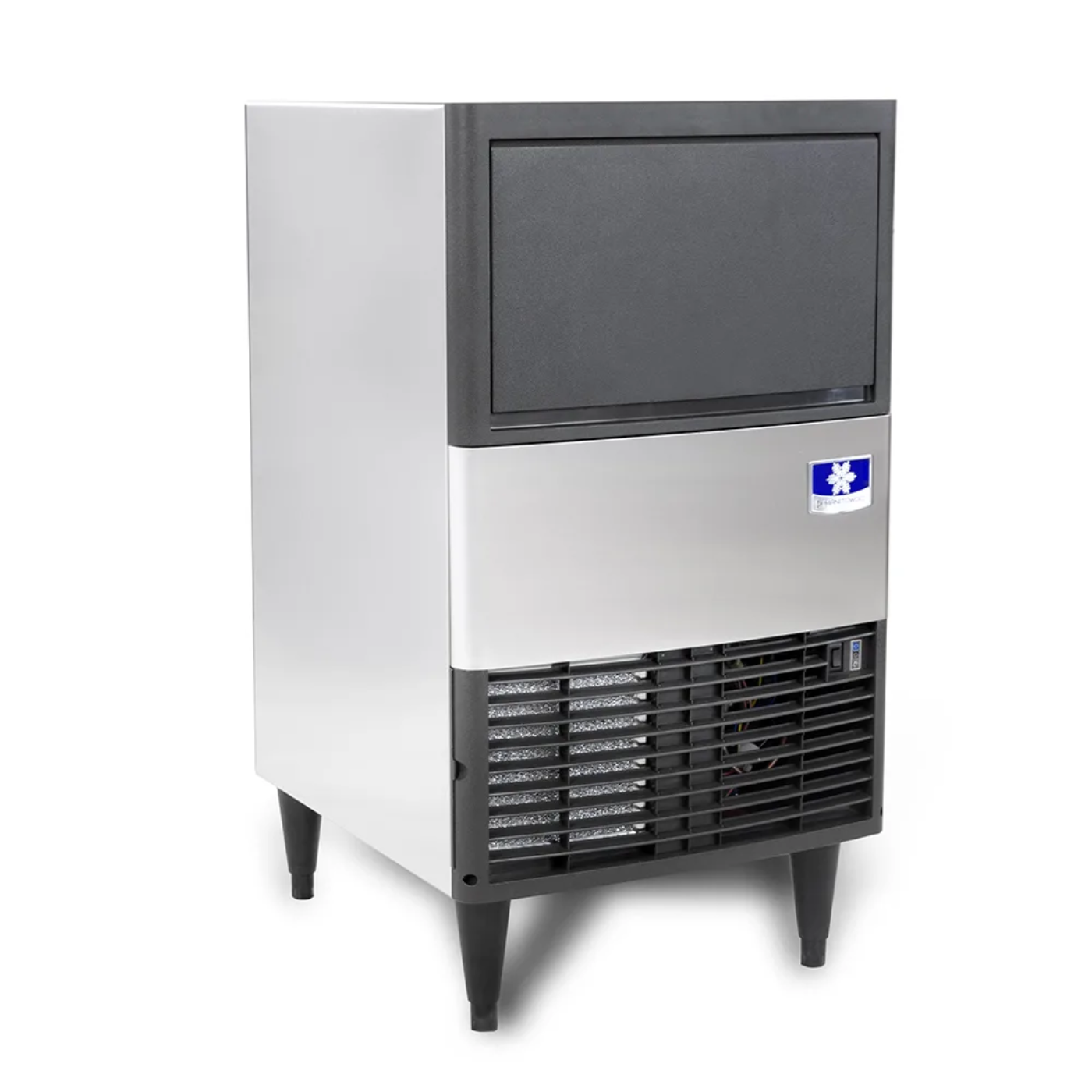

Manitowoc UDE0080A NEO Undercounter Air Cooled Cube Style Ice Maker Up to 102 lb/per day Production - MWUDE0080A
This Manitowoc UDE0080A is compact in size for easy placement under counters or as a stand alone unit. This undercounter ice machine is ideal for any small-volume ice need with an ice maker and bin in one. It features an attractive, durable stainless steel cabinet and an easy access door that slides up and out of the way. Manitowoc's proven vertical evaporator uses proprietary technology that is made in Manitowoc, WI.
Features
- Compact size for easy placement under counters or as a stand alone.
- Ideal for any small-volume ice need with ice maker and bin in one.
- Clean, crisp, coordinated interior.
- AlphaSan® in key internal components to extend time between cleanings.
- Flat, right-angle plug for easier installation in tight spaces.
- Attractive, durable stainless steel cabinet.
- Easy access door, slides up & out of the way.
- Patented cleaning and sanitizing technology.
- Manitowoc’s proven vertical evaporator using proprietary technology is made in Manitowoc, WI.
- Easy access air filter designed for longer operation in greasy and dusty environments.
- Front air intake and exhaust.
- CFC-FREE R-134A refrigerant
Specifications
| Model |
UDE0080A |
| BTU Per Hour |
2,050 (average), 2,500 (peak) |
| Compressor |
1/4 HP |
| Legs |
Adjustable from 6" - 7.25" |
| Bin |
One-piece bin liner (seamless) rotocast polyethylene |
| Insulation |
Foamed-in-place with CFC-FREE foam |
| Refrigerant |
R-134A |
| Operating Limits |
Ambient Temperature Range: 40Ëš to 110ËšF |
| Water Temperature Range: 33Ëš to 90ËšF |
|
| Water Pressure Ice Maker (Water In): Min 20 psi / Max 80 psi |
|
| Dimensions |
19.69"W x 22.34"D x 36"H |
| Ice Production (24 Hours) |
110 lbs |
| Storage Bin Capacity |
31 lbs |
| Power kWh/100 lbs |
11.13 kWh @ 90°/70°F |
| Potable Water Usage |
44.37 gallons per 100 lbs of ice @ 90°/70°F |
What our Experts Think
-
Ice Production Capacity: Produces up to 102 lbs (46.3 kg) of full-cube ice per 24 hours under standard conditions (70°F air temperature/50°F water temperature), ensuring a consistent ice supply for moderate demand.
-
Ice Storage Capacity: Equipped with an integrated bin that holds up to 31 lbs (14 kg) of ice, providing convenient access during peak times.
-
Ice Type: Produces full-cube ice cubes measuring 7/8" x 7/8" x 7/8", ideal for cooling beverages efficiently.
-
Compact Design: Measuring 19.69" (50.04 cm) in width, 22.34" (56.69 cm) in depth, and 36" (91.44 cm) in height, this undercounter unit fits seamlessly into limited spaces
-
Energy Efficiency: Operates with a 1/4 HP compressor using R-134A refrigerant, consuming approximately 10.7 kWh per 100 lbs of ice produced, promoting energy savings and cost-effectiveness
-
User-Friendly Features: Equipped with an on/off/clean switch and full bin and service indicators for intuitive operation
-
Advanced Cleaning and Maintenance: Features a forward-sliding storage bin for easy access to refrigeration components without moving the unit. The FoodZone includes removable components and antimicrobial protection to facilitate quick and thorough cleaning.
-
Durable Construction: Constructed with a stainless steel exterior, ensuring longevity and ease of cleaning in demanding commercial environments.
-
Certifications: Certified by NSF, cULus, and CE, meeting rigorous safety and sanitation standards for commercial equipment.
Q&A
Q: What is the ice production capacity of the Manitowoc UDE0080A?
A: The Manitowoc UDE0080A produces up to 102 lbs of full-dice ice per day under optimal conditions (70°F air/50°F water).
Q: What are the dimensions of the Manitowoc UDE0080A?
A: This ice maker measures 19.69" in width, 22.34" in depth, and 36" in height, making it suitable for undercounter installation.
Q: What is the storage capacity of the Manitowoc UDE0080A?
A: It features a 31 lb ice storage bin, providing ample capacity for daily needs.
Q: Is the Manitowoc UDE0080A energy efficient?
A: Yes, it utilizes R-134A refrigerant and is designed for energy efficiency, helping to reduce operational costs.Â
Q: What maintenance features does the Manitowoc UDE0080A offer?
A: It includes a removable, forward-sliding storage bin for easy access to refrigeration components, a pop-out air filter to prevent lint and dust buildup, and AlphaSan® antimicrobial protection to inhibit microbial growth
Q: Who is the Manitowoc UDE0080A best suited for?
A: Ideal for establishments like small restaurants, bars, offices, and cafes that require a compact, reliable source of full-dice ice
Maintenance Tips
-
Ice Production Capacity: Produces up to 102 pounds of full-dice ice per day under standard conditions (70°F air and 50°F water).Â
-
Ice Storage Capacity: Equipped with a 31-pound storage bin, ensuring a consistent ice supply during peak hours.Â
-
Ice Dimensions: Produces full-dice ice cubes measuring 7/8" x 7/8" x 7/8", suitable for various beverage applications.
-
Compact Design: Measuring 19 11/16" in width, 22 11/32" in depth, and 36" in height, the UDE0080A is designed for undercounter installation, fitting seamlessly into spaces with limited room.
-
Energy Efficiency: Operates on 115V electrical power with a 5.2 amp draw, making it an energy-efficient choice for establishments aiming to reduce operational costs.
