Marhsall CV620-NDI Full-HD PTZ Camera (Black) -CV620NDI

Marhsall CV620-NDI Full-HD PTZ Camera (Black) -CV620NDI

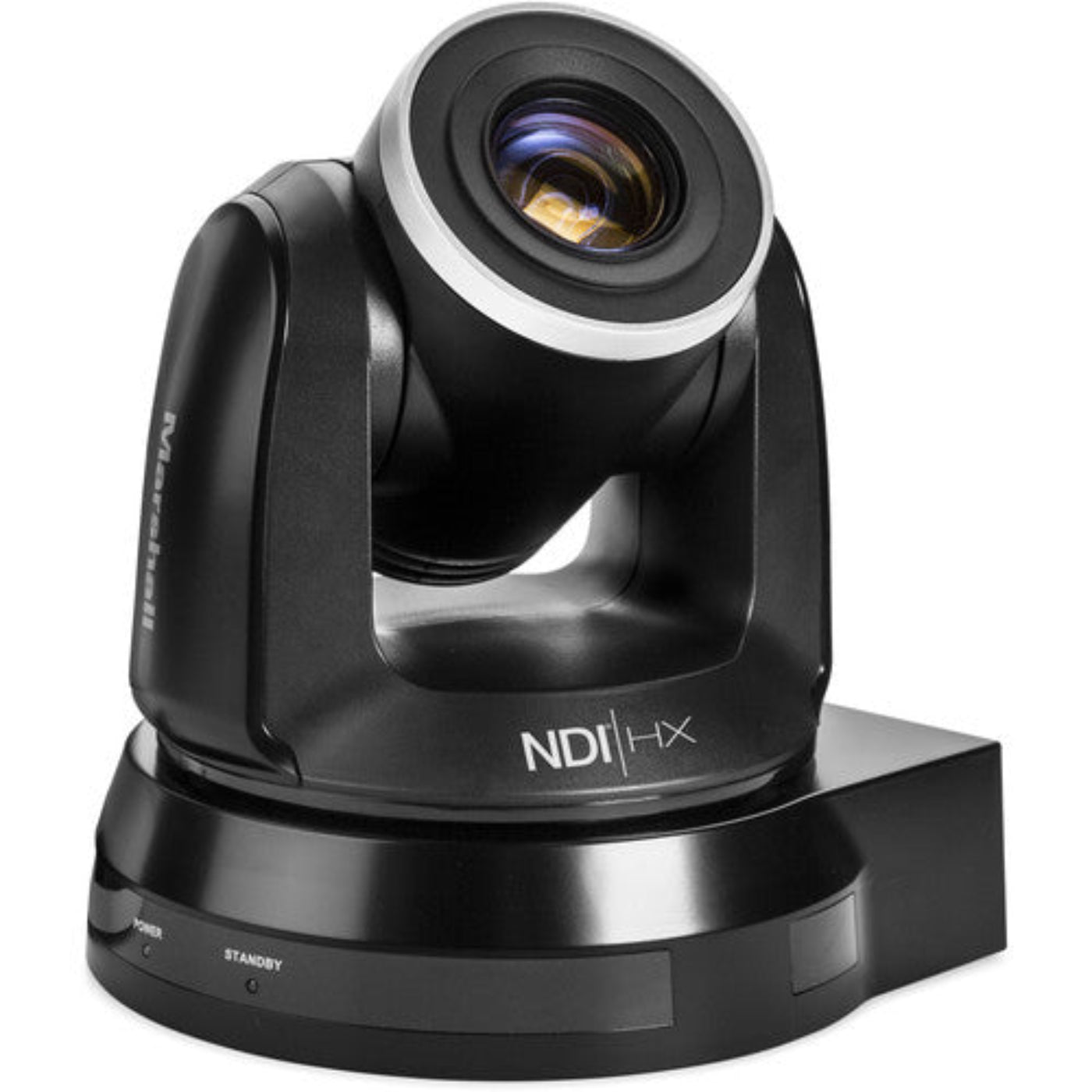

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.

In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.

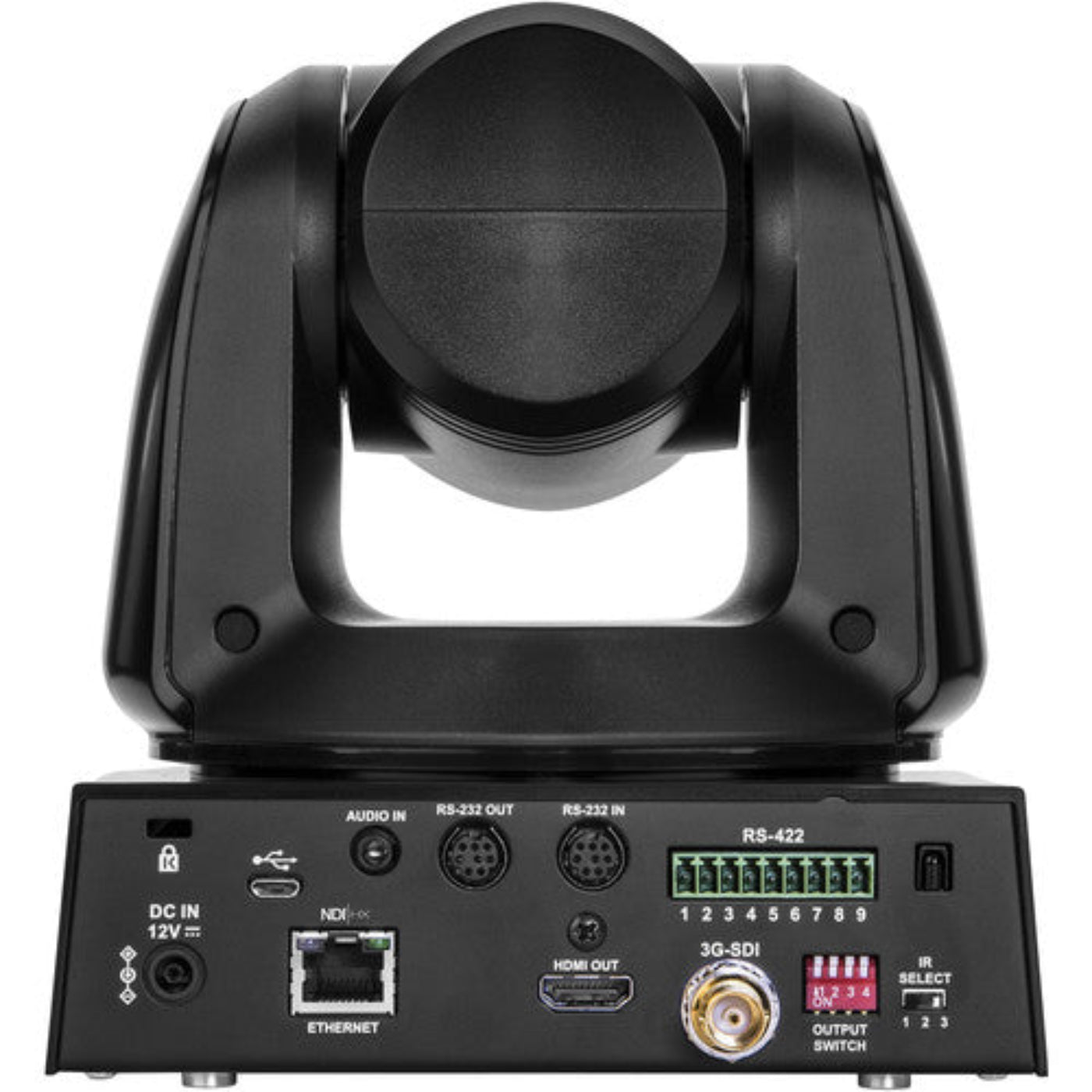

1. USB port for FW updates

2. 12V Power input

3. NDI NETWORK Ethernet (PoE/H.264/Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

Features

• 1080p/i & 720p Resolution up to 60 fps

• 4.7-94mm Lens, 20x Optical Zoom

• 2MP 1/2.8" Sensor

• 3G/HD-SDI, HDMI, and NDI Outputs

• 2-Megapixel 1/2.8-inch Sensor

• Full-HD: 1920x1080i, 1920x1080p, 1280x720p

• High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

• 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

• Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt

• TRS Audio Line/Mic level select (2.5V to mic)

• Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor

• Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

• 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for

• PoE+ (802.3af) Power over Ethernet

• RS422/RS232 Remote Control Interface at High Comm Speeds

• Mountable via table, wall, ceiling mounts included for use with built-in image flip setting

• Compatible with integrated video conferencing systems and NDI-enabled networks

What Our Experts Think

• Full HD 1080p Resolution – Captures crisp 1920x1080 video at 60fps, ideal for professional use.
• NDI|HX Support – Enables low-latency, high-quality video streaming over IP networks.
• 20x Optical Zoom – Delivers sharp close-ups with smooth zoom functionality.
• Versatile Connectivity – Equipped with NDI|HX, 3G-SDI, HDMI, and IP streaming for seamless integration.
• Smooth PTZ Control – Offers precise pan, tilt, and zoom functions for remote operation.
• Excellent Low-Light Performance – Features advanced noise reduction and HDR for superior image quality.
• Ideal for Professional Applications – Perfect for broadcast, live streaming, corporate events, education, and houses of worship.

Q&A

Q: What is the Marshall CV620-NDI Full-HD PTZ Camera?
A: The Marshall CV620-NDI is a professional Full-HD PTZ camera with NDI|HX, 3G-SDI, and HDMI outputs, designed for broadcast, live streaming, conferencing, and video production.

Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, corporate meetings, houses of worship, and remote learning, offering smooth pan, tilt, and zoom functionality for high-quality video capture.

Q: What resolution does this camera support?
A: The CV620-NDI captures Full HD 1080p video at up to 60fps, delivering crisp and detailed imagery.

Q: What are the connectivity options?
A: This camera features NDI|HX for low-latency IP streaming, along with 3G-SDI and HDMI outputs, providing versatile integration into professional workflows.

Q: Can this camera be controlled remotely?
A: Yes, it supports remote control via IP, NDI, RS-232, and RS-422, making it easy to integrate into various production setups.

Maintenance Tips

• Clean the Lens Regularly – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges for optimal image clarity.
• Ensure Proper Ventilation – Keep air vents clear to prevent overheating and maintain peak performance.
• Check Cable Connections – Inspect power, Ethernet (NDI|HX), HDMI, and other cables for secure connections and signal stability.
• Update Firmware – Install the latest firmware updates to enhance functionality, security, and compatibility.
• Protect Against Power Surges – Use a surge protector or an uninterruptible power supply (UPS) to prevent electrical damage.
• Avoid Extreme Conditions – Keep the camera away from excessive heat, humidity, and direct sunlight to ensure longevity.
• Test PTZ Functions – Periodically check pan, tilt, and zoom operations to ensure smooth and responsive movement.
• Secure Mounting – Ensure the camera is firmly mounted to prevent vibrations or misalignment during operation.
