Marhsall CV620-NDIW Full-HD PTZ Camera (White) - CV620NDIW

Marhsall CV620-NDIW Full-HD PTZ Camera (White) - CV620NDIW

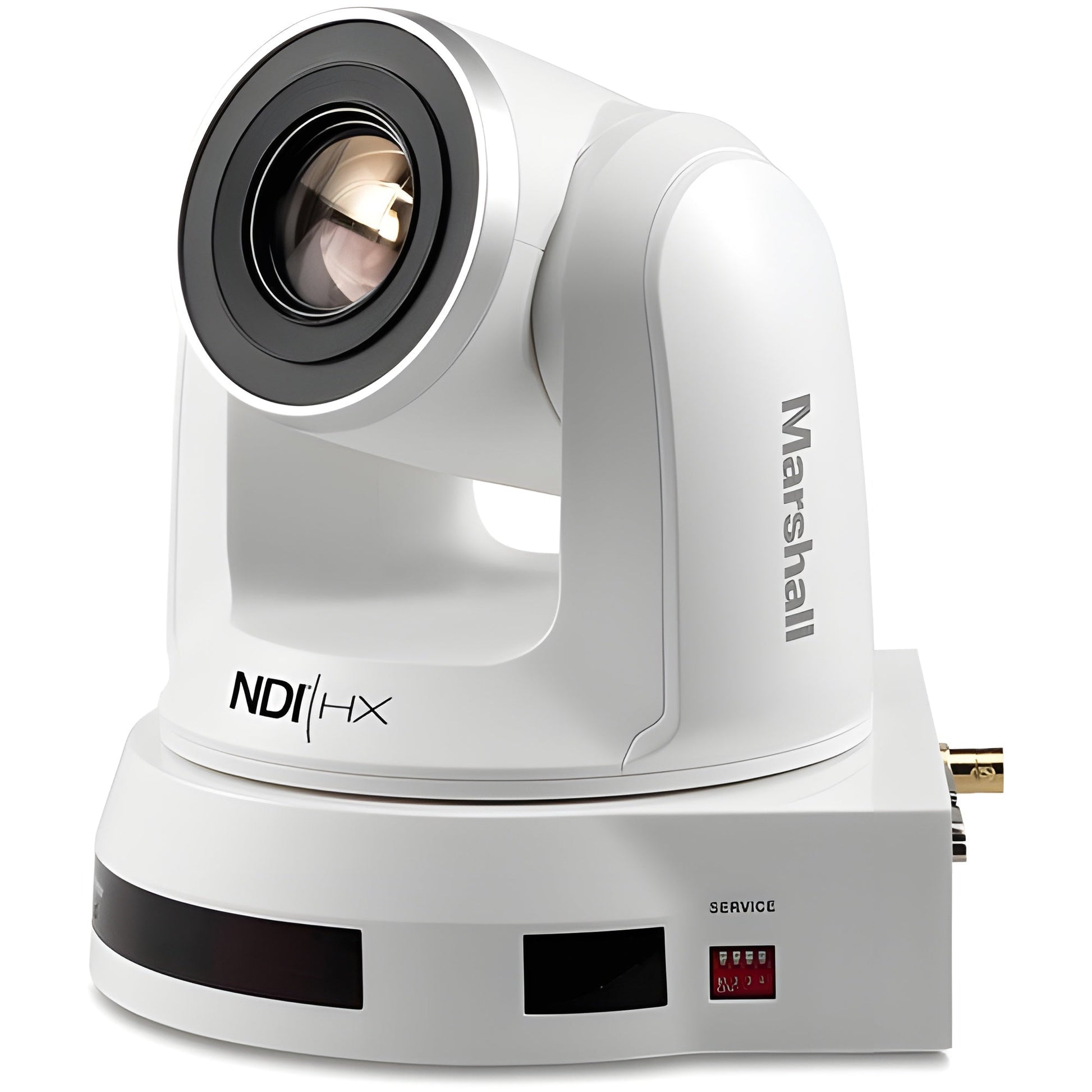

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.

In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.

Features

• RS422/RS232 Remote Control Interface at High Comm Speeds

• Mountable via table, wall, ceiling mounts included for use with built-in image flip setting
• 3G/HD-SDI, HDMI, and NDI Outputs
• 2MP 1/2.8" Sensor

• 4.7-94mm Lens, 20x Optical Zoom

• 1080p/i & 720p Resolution up to 60 fps

• 2-Megapixel 1/2.8-inch Sensor

• Full-HD: 1920x1080i, 1920x1080p, 1280x720p

• High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

• 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

• Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt

• TRS Audio Line/Mic level select (2.5V to mic)

• Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor

• Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

• 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for

• PoE+ (802.3af) Power over Ethernet

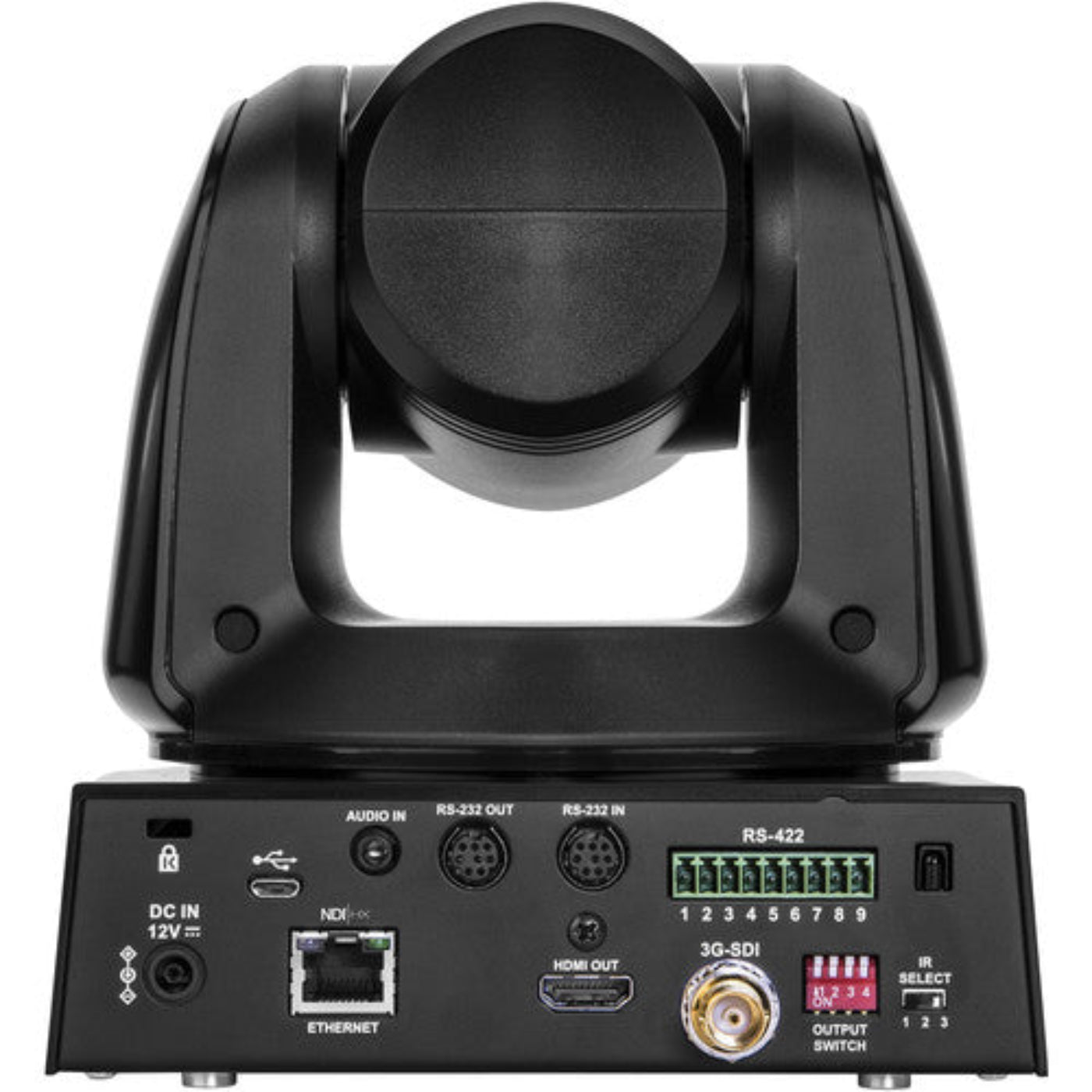

REAR OUTPUTS

1. USB port for FW updates

2. 12V Power input

3. NDI NETWORK Ethernet (PoE/H.264/Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

What Our Experts Think

• Full-HD 1080p Resolution: Captures high-quality video at 1080p for clear, sharp images in professional settings.
• NDI|HX Connectivity: Simplifies IP-based workflows, allowing for easy integration into NDI-compatible systems.
• 20x Optical Zoom: Offers detailed close-up shots without losing image quality, perfect for dynamic video production.
• Smooth PTZ Control: Fast and precise pan, tilt, and zoom for versatile camera positioning during live events and broadcasts.
• Multiple Outputs: Supports NDI|HX, 3G-SDI, and HDMI for flexible connectivity with broadcast equipment.
• Sleek White Design: Professional, clean design that blends seamlessly into studio and event environments.

Q&A

Q: What is the Marshall CV620-NDIW?
A: A Full-HD PTZ camera with NDI|HX support, designed for professional broadcast and live streaming applications in a sleek white housing.

Q: Who is this camera for?
A: Ideal for broadcasters, event producers, live streamers, houses of worship, and corporate environments.

Q: What video outputs does it support?
A: It supports NDI|HX, HDMI, and IP streaming for flexible video capture and distribution.

Q: What resolution does it offer?
A: Provides high-quality 1080p Full-HD video for clear, detailed footage.

Q: Can it be controlled remotely?
A: Yes, it supports remote control via IP, NDI, RS-232, and RS-422.

Q: What makes it stand out?
A: Advanced NDI|HX support, smooth pan/tilt/zoom functionality, and compact design in white for professional production environments.

Maintenance Tips

• Lens Cleaning – Use a microfiber cloth and lens-safe cleaner to maintain clear, high-quality imaging.
• Firmware Updates – Regularly update the firmware to ensure the latest features and security improvements.
• Check Connections – Secure NDI|HX, SDI, HDMI, and power cables to prevent signal loss or interruptions.
• Proper Ventilation – Ensure the camera is placed in a well-ventilated area to prevent overheating.
• Handle with Care – Mount the camera securely and avoid sudden impacts that could damage internal components.
• Power Surge Protection – Use a surge protector to safeguard against electrical fluctuations and spikes.
• Test PTZ Functions – Periodically check the pan, tilt, and zoom to ensure smooth and accurate operation.
