Marshall CV226 All-Weather HD Lipstick Camera - CV226

Marshall CV226 All-Weather HD Lipstick Camera - CV226

The Marshall Electronices CV226 All-Weather HD Lipstick Camera is small in size and can be mounted virtually anywhere. It features an IP67 rating for dust and water intrusion so you can use it in dirty and wet environments. The camera can capture at 1080p, 1080i, and 720p, outputting through a full-size BNC output. An interchangeable M12 3.6mm lens is included and provides a 72° horizontal angle of view; the lens is covered by a cap that enables the camera to maintain its IP67 rating.

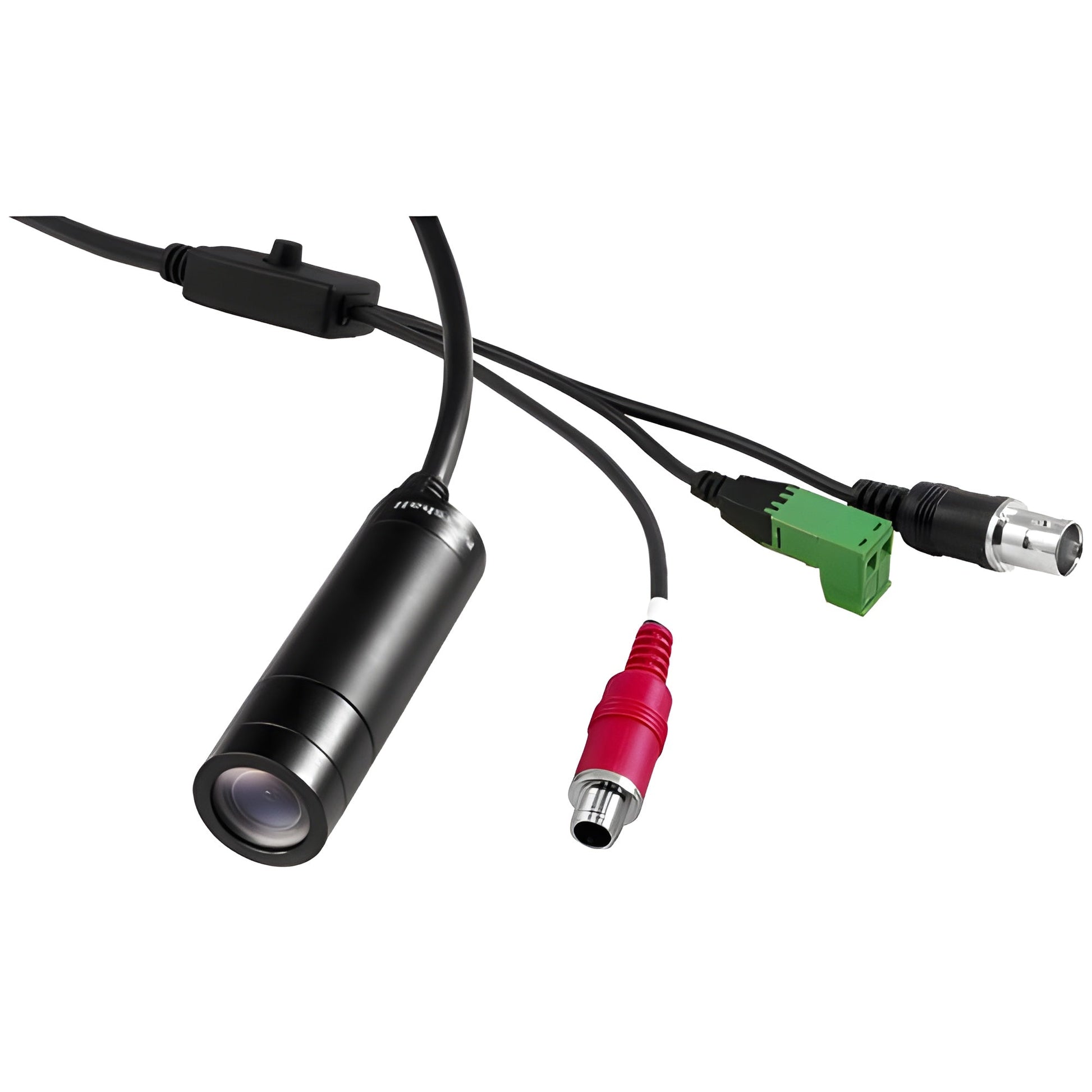

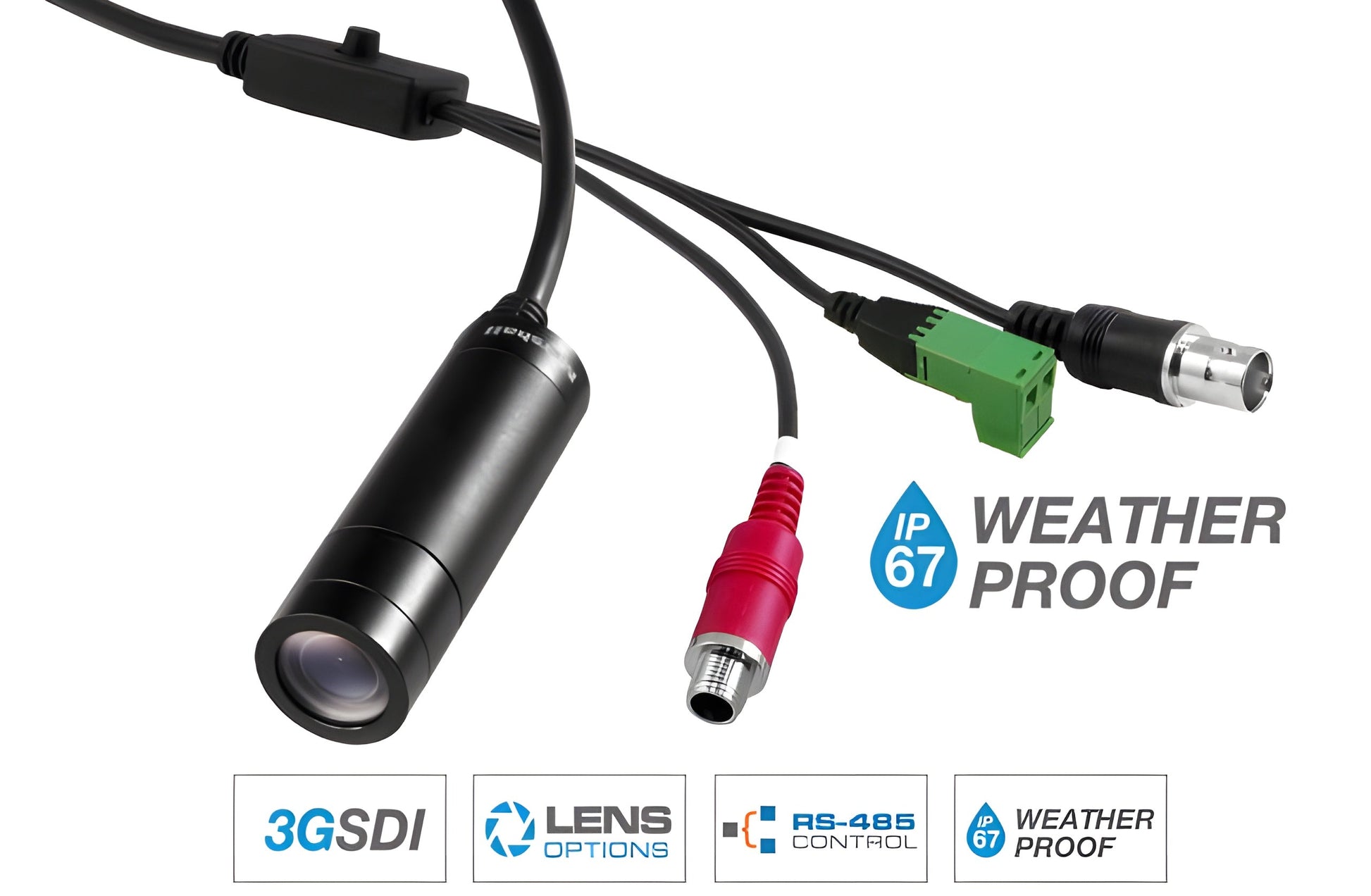

The integrated 10' long breakout cable features a locking power cable connector, a full-size BNC cable, a Phoenix connector for RS-485 Visca control, and a built-in jostick that enables navigating the OSD menu system. The body of the camera incorporates a 1/4"-20 threaded mounting hole, allowing you to mount the camera to a variety of mounting systems.

• Full-sized 3G/HD-SDI (BNC) output

• 2.5 Megapixel (1/2.86") sensor (4:2:2 color)

• IP67-rated weatherproof housing

• Full-HD resolutions: 1920 x 1080p

• RS-485 (Visca) or OSD menu joystick Control

Features

• Full-sized 3G/HD-SDI (BNC) output

• 2.5 Megapixel (1/2.86") sensor (4:2:2 color)

• 10' long breakout cable with BNC (3G-SDI), RS-485 remote adjust, and locking 12V power connector

• Interchangeable M12 3.6mm lens with IP67 cap included

• IP67-rated weatherproof housing allows you to submerge the camera in water up to 10-feet for several hours

• Full-HD resolutions: 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98, 1920 x 1080i 60/59.94/50, and 1280 x 720p 60/59.94/50/30/29.97/25/24/23.98 fps

• Remote adjustable through RS-485 (Visca) or OSD menu joystick

• CV-RCP-V2 touchscreen RCP compatible and free Camera Control Software option

• Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more

What Our Experts Think

• Rugged & Weatherproof – The Marshall CV226 is built for extreme conditions with an IP67-rated, all-weather design, perfect for outdoor and high-impact environments.
• Full HD Performance – Captures crisp 1080p video with a high-quality 2.5MP sensor, delivering sharp, detailed footage in any setting.
• Ultra-Compact & Versatile – Small lipstick-style form factor allows discreet placement, ideal for POV shots, live events, sports, and broadcasting.
• Low-Light Excellence – Advanced sensor technology ensures superior performance in dim lighting, enhancing visibility without extra lighting equipment.
• Flexible Connectivity – Features HD-SDI output for seamless integration with professional video workflows, making it a reliable choice for production teams.
• Easy Mounting & Setup – Compact design and flexible mounting options make installation hassle-free, whether for permanent setups or mobile use.

Q&A

Q: What is the Marshall CV226 All-Weather HD Lipstick Camera?
A: The Marshall CV226 is a compact, rugged, and weatherproof HD lipstick camera designed for professional video applications. It delivers high-quality 1080p HD video in extreme conditions.

Q: What are the key features of the Marshall CV226?
A: The CV226 features a 2.5 Megapixel sensor, full HD resolution (up to 1080p60), and a wide dynamic range for clear imaging in various lighting conditions. Its durable IP67-rated housing protects against water, dust, and debris.

Q: Is the Marshall CV226 suitable for outdoor use?
A: Yes, the CV226 is built for all-weather performance with an IP67-rated waterproof housing, making it ideal for outdoor sports, live broadcasts, and industrial applications.

Q: What makes the Marshall CV226 stand out?
A: Its ultra-compact lipstick design, high-quality HD imaging, and weatherproof durability make it a top choice for professional production environments, including sports, reality TV, and live events.

Q: How is the Marshall CV226 powered and connected?
A: The camera supports flexible power options (12V or via coaxial cable) and outputs video through an HD-SDI connection for seamless integration with professional workflows.

Q: Why choose the Marshall CV226?
A: If you need a durable, compact, and high-performance HD camera for demanding environments, the CV226 offers exceptional image quality and reliability in a rugged, all-weather design.

Maintenance Tips

• Keep It Clean – Wipe the lens and body with a microfiber cloth; avoid abrasive cleaners.
• Check Seals – Ensure all-weather seals are intact to maintain water resistance.
• Protect Cables – Use proper strain relief and avoid excessive bending or pulling.
• Avoid Extreme Conditions – While weatherproof, prolonged exposure to harsh elements can reduce lifespan.
• Secure Mounting – Regularly inspect and tighten mounting hardware for stability.
• Firmware Updates – Keep software up to date for optimal performance.
