Marshall Electronics next generation Miniature CV505 and Compact CV345 HD Pro-Series Cameras add the convenience of a HDSDI/3GSDI (BNC) and HDMI (v.1.3) simultaneous outputs and optional audio Mic or Line-Level (CV345) selectable input. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.

New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. CV505-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.

• 1/3" CMOS Sensor

• 1920 x 1080 Resolution

• 3G-SDI,HD-SDI,HDMI

Features

Models

• CV345-CSB: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps

• CV345-CS: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps

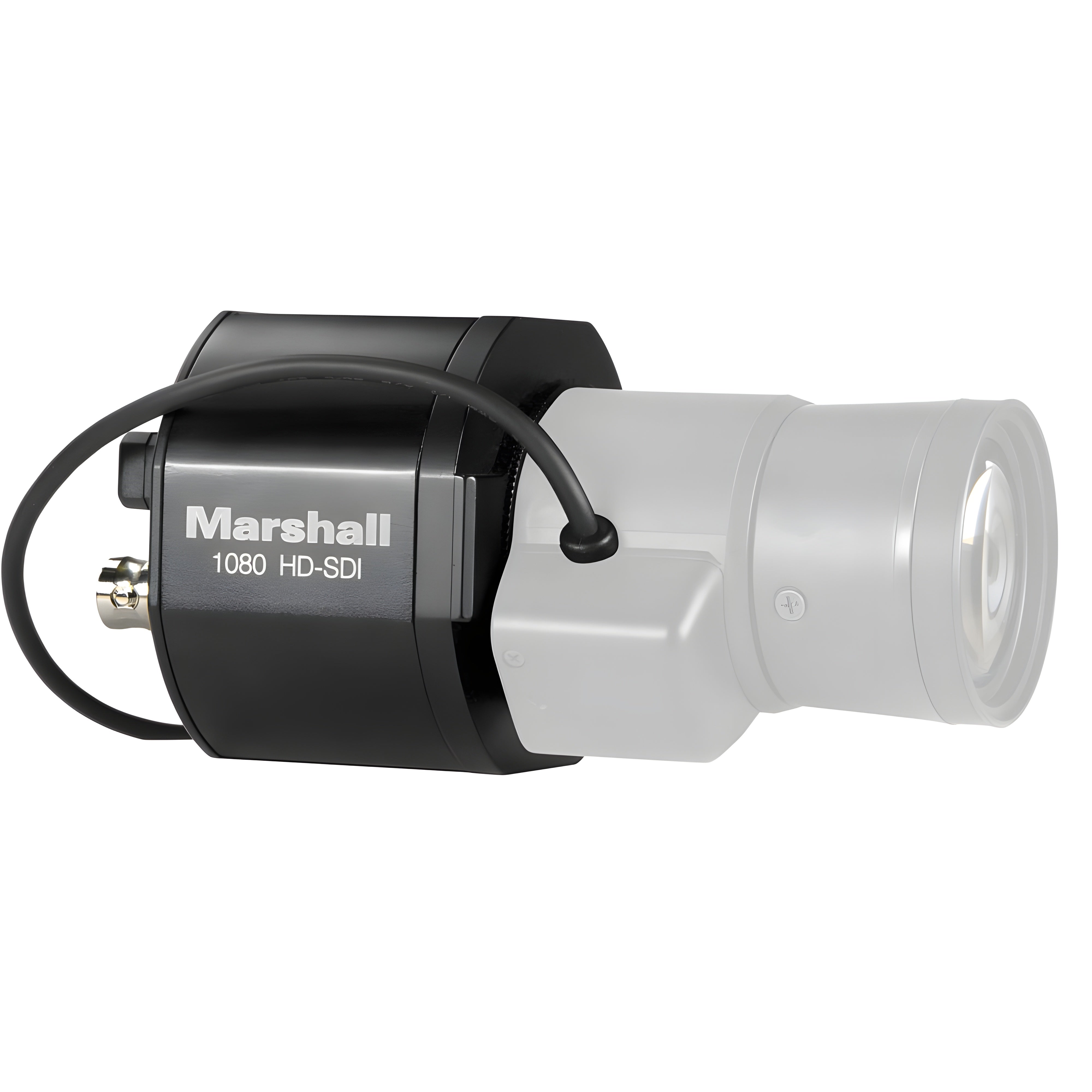

• 2.5 Megapixel 1/3-inch CMOS sensorCS/C Mount with DC-Auto Iris (lens sold separately)

• Hirose-style (I/O) connector contains: RS-485 connectors, 12V power connector & audio TRS Mic/Line level input

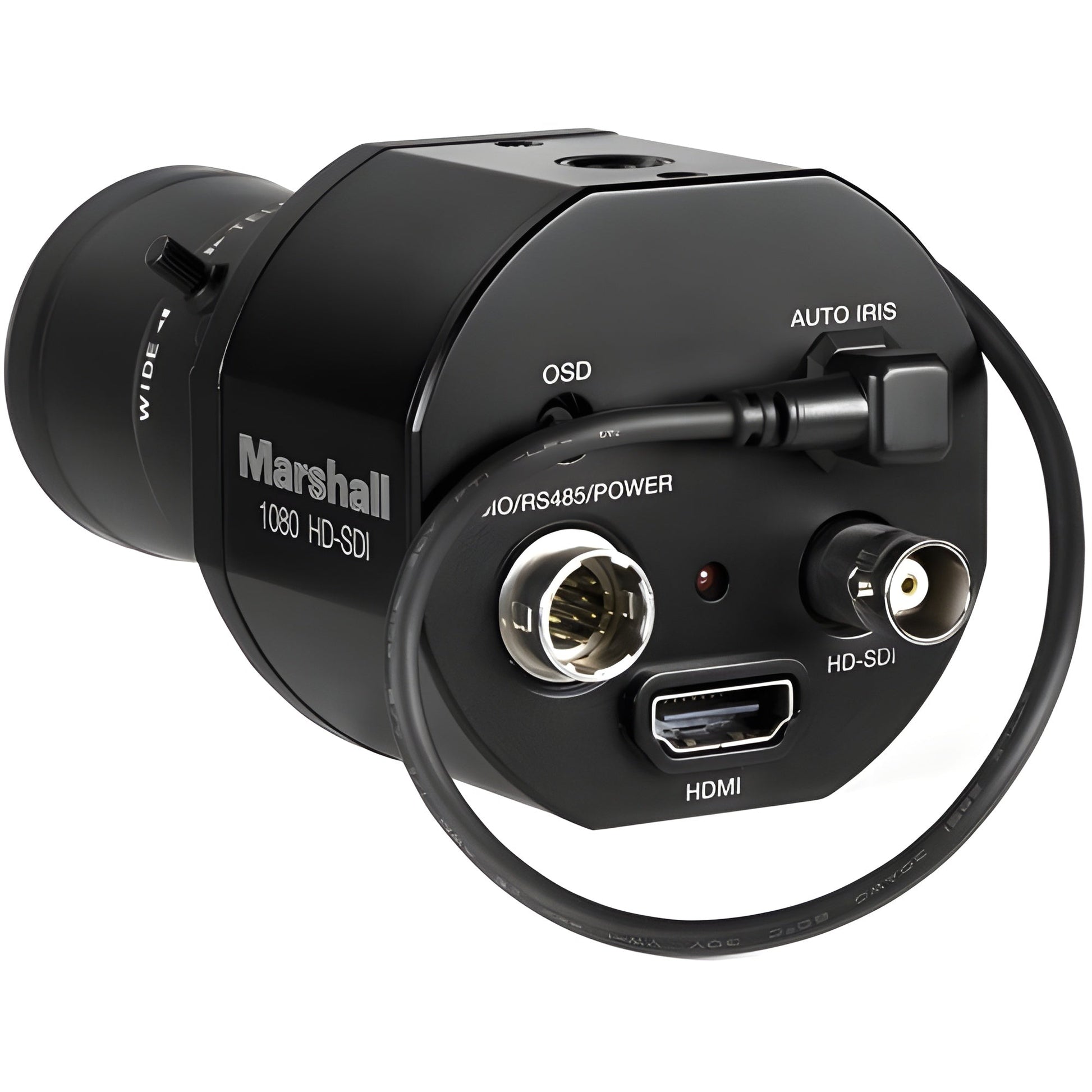

• 3G/HDSDI (BNC) & HDMI (full size-v1.3) built into rear panel

• Captures sharp & vivid color images at 0.2 lux (low light sensitive)

• New WDR function supports high speed & high sensitivity to various light sources

• TRS audio input with Line/Mic level selectable depending on input device, unbalanced Mono (L/R mixed), phantom 2.5V power

• OSD Menu Joystick, RS-485 (Pelco/Visca)

• Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust

• Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2

• Includes 12V power supply in box

What Our Experts Think

• High-Resolution Imaging: Features a 2.5MP sensor for Full-HD (1080p) video quality, delivering sharp, clear footage for professional broadcasting and production.
• Flexible Video Output: Equipped with 3G/HD-SDI and HDMI outputs, providing versatile connectivity options for different broadcast and production environments.
• Built-in Audio: Includes integrated audio support, making it a comprehensive solution for capturing both video and sound in one compact unit.
• Compact and Lightweight: Small form factor ensures easy installation in tight spaces or as part of a mobile production setup, without compromising on performance.
• Durable and Reliable: Designed for long-lasting use in demanding professional environments, whether in studios or on-location shoots.
• Wide Compatibility: Works seamlessly with a variety of video systems, offering easy integration into your existing broadcasting and video production workflows.
• Low-Light Performance: Excellent performance in low-light conditions, providing reliable results even in challenging lighting environments.

Q&A

Q: What is the Marshall CV345-CSB camera?
A: The Marshall CV345-CSB is a compact broadcast camera designed to deliver full HD resolution (2.5MP) with 3G/HD-SDI and HDMI outputs. It’s built for high-quality video capture in professional environments, offering excellent performance and flexibility.

Q: What video outputs does the Marshall CV345-CSB support?
A: The CV345-CSB supports both 3G/HD-SDI and HDMI outputs, making it highly versatile for a range of broadcast applications, whether for live production, studio recording, or event coverage.

Q: Does the CV345-CSB have audio capabilities?
A: Yes, the CV345-CSB comes equipped with built-in audio capabilities, allowing for seamless integration into your video production workflow, ensuring both high-quality video and synchronized audio.

Q: How does the compact size of the CV345-CSB benefit users?
A: The small form factor of the CV345-CSB makes it ideal for space-constrained environments, such as tight camera positions, mobile broadcasting setups, or discreet camera placements in events or live productions.

Q: What are the key features of the CV345-CSB camera?
A: Key features include full HD 2.5MP resolution, 3G/HD-SDI and HDMI video outputs, built-in audio support, and a compact design for easy integration into broadcast setups. It’s perfect for professionals who need high performance without taking up much space.

Q: What applications is the CV345-CSB suitable for?
A: This camera is suitable for a wide range of applications, including live broadcast production, sports coverage, event streaming, and studio setups. Its flexibility and high-quality video make it ideal for various production needs.

Maintenance Tips

• Regular Lens Cleaning – Keep the camera lens clean to avoid blurry footage. Use a microfiber cloth and lens cleaning solution to gently clean the lens. Avoid using abrasive materials that could scratch the lens.
• Inspect Cable Connections – Ensure all cables, including 3G/HD-SDI and HDMI, are securely connected. Loose connections can lead to signal loss or poor-quality video.
• Monitor for Overheating – Ensure proper ventilation to avoid overheating. Avoid placing the camera in areas with excessive heat or humidity.
• Check Audio Input/Output – Regularly check the audio input and output to ensure clear, distortion-free sound. Inspect cables for any signs of wear.
• Update Firmware – Periodically check for firmware updates to keep your camera operating efficiently and ensure compatibility with new equipment or systems.
• Clean Air Vents – If your camera has air vents, make sure they are free of dust or obstructions to maintain optimal airflow.
• Test the SDI/HDMI Outputs – Test the camera's SDI and HDMI outputs to ensure proper signal transmission. Any issues should be addressed by checking the cables or camera settings.
• Routine Visual Inspection – Regularly inspect the camera body for any signs of wear, such as cracks or dents, and repair or replace parts as needed.
