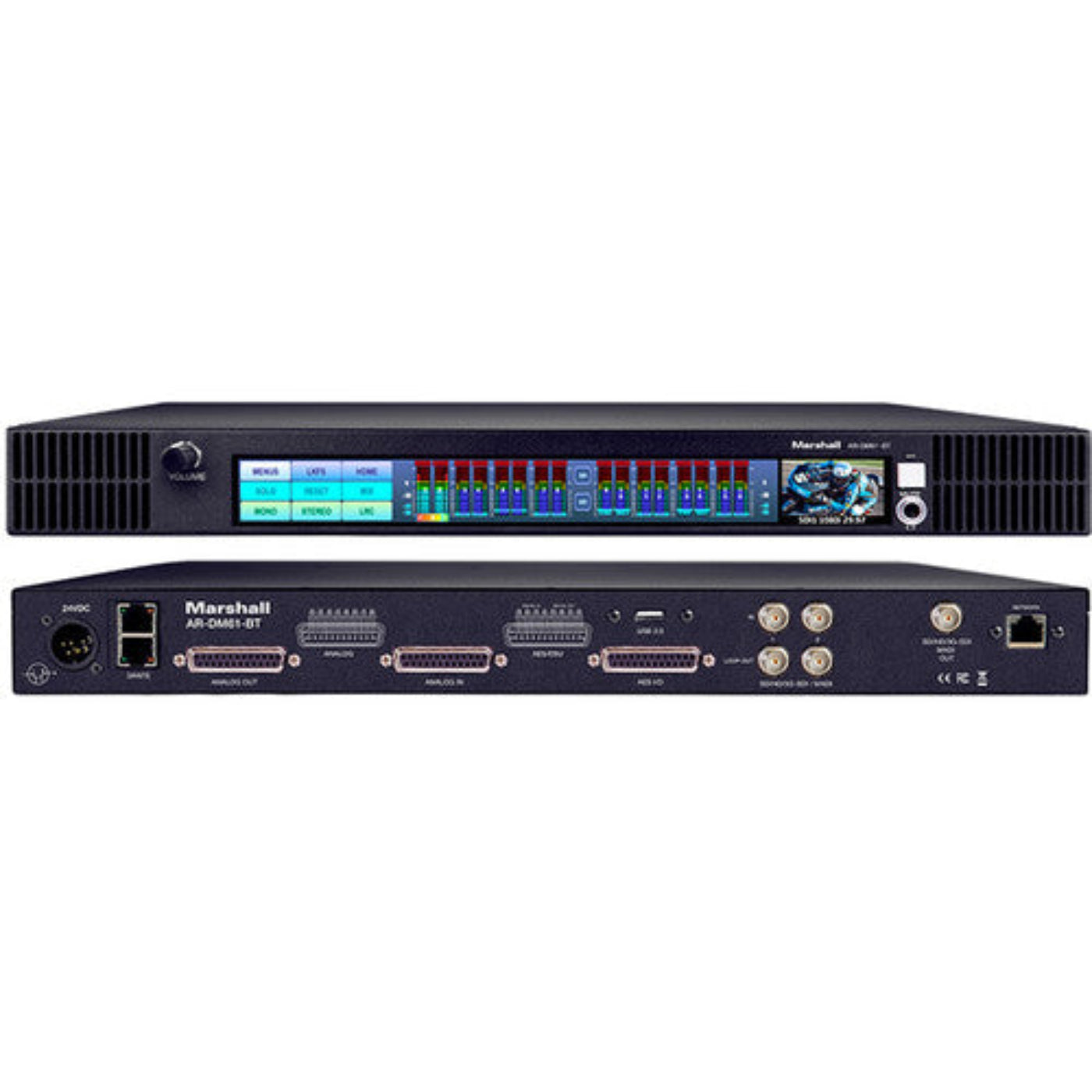

Marshall Electronics Rackmount Multichannel Digital Audio Monitor with 64-Channel Dante Module - AR-DM61-BT-64DT

Marshall Electronics  Rackmount Multichannel Digital Audio Monitor with 64-Channel Dante Module - AR-DM61-BT-64DT

•  Multichannel Digital Audio Monitor in 1 RU

• Compact, 1-RU rackmount system with 10" LCD touchscreen

• Ideal for TV stations, broadcast trucks, transfer stations & houses of worship

• Built for tight spaces where robust monitoring is essential

•  Dante-Enabled Monitoring

• Comes pre-installed with a 64-channel Dante module

• Enables seamless integration into digital audio networks

• Includes 2 additional RJ45 ports for Dante A & B networking

•  Front Panel Features

• High-powered stereo speakers deliver up to 100 dB output

• Full-color 10" touchscreen for intuitive control

• View up to 64 channels vertically or in 96-step horizontal bars

• Live video preview included

• Includes 1/4" headphone jack and volume control knob

•  Rear Panel Connectivity

• 2x MADI-compatible 3G-SDI inputs with loop-through

• 4x AES stereo inputs & outputs via D-sub connectors

• 8x analog inputs & outputs via D-sub connectors

• 2x RJ45 ports for Ethernet networking

•  Power Supply

• Includes 24 VDC universal power supply for versatile installations

What our Experts Think

• High‑density Dante network monitoring
  Built‑in 64‑channel Dante module lets you monitor and route large multichannel audio streams over IP — ideal for complex AV and broadcast installations.

• True multichannel confidence monitoring
  Supports up to 7.1 discrete channel monitoring with clear visual meters and level displays for critical mix verification.

• Flexible I/O for modern workflows
  Combines Dante, AES/EBU, S/PDIF, and analog inputs — experts note it fits seamlessly into hybrid digital/analog environments.

• Robust rackmount build for pro installs
  1U rack design and industrial‑grade components are built for reliability in studios, OB vans, and live production hubs.

• Comprehensive visual feedback
  Large, intuitive meters and channel indicators help engineers quickly assess audio levels and balance across all channels.

• Dante integration simplifies audio infrastructure
  Removes the need for separate converters or bridges when working with Dante‑based audio networks.

• Flexible monitoring outputs
  Includes headphone, line, and speaker outputs so you can audition mixes through preferred monitoring paths without extra gear.

• Great for broadcast, houses of worship & corporate AV
  Experts recommend this for environments requiring large channel count monitoring and IP‑audio scalability.

Q&A

Q1: What is the AR‑DM61‑BT‑64DT designed for?
A: A professional 1‑RU rackmount multichannel digital audio monitor with built‑in Dante networking for broadcast, live production, control rooms, master control, and AV facilities.

Q2: What makes the 64‑Channel Dante Module important?
A: It provides 64‑channel Dante digital audio networking, enabling seamless integration with networked audio infrastructures and dual Dante A/B connectivity.

Q3: How many channels can it display and monitor?
A: The touchscreen can display up to 64 channels vertically or switch to 96‑step high‑precision horizontal metering for detailed analysis.

Q4: What inputs and formats are supported?
A: It supports SDI/MADI, AES/EBU, analog, and Dante network audio, plus two MADI‑compatible 3G‑SDI inputs with loop‑through.

Q5: Does it include a video preview?
A: Yes, it has a built‑in live video preview monitor alongside audio metering.

Q6: Can it output audio directly?
A: Yes — high‑powered stereo speakers (up to 100 dB) and a ¼″ headphone jack provide direct monitoring.

Q7: Is remote control or configuration supported?
A: Yes — it includes Ethernet networking and a built‑in web server for setup, presets, and remote control.

Maintenance Tips

• Clean Touchscreen & Front Panel: Use a microfiber cloth to maintain the 10" LCD display and accurate channel metering.

• Maintain Proper Ventilation: Ensure airflow in the 1RU rack to prevent overheating during extended operation.

• Stable Power Supply: Use the recommended 24V DC input to protect internal electronics and Dante module stability.

• Firmware Updates: Keep software updated via the web interface for optimal Dante network performance and multichannel monitoring.

• Inspect Audio Connections: Regularly check SDI, HDMI, analog, and Dante connections for clean signal flow and reliable routing.

• Speaker Usage: Avoid constant maximum volume to extend internal speaker lifespan.

• Protect from Dust & Humidity: Operate in a controlled studio environment to preserve internal circuitry and reliability.

• Backup Presets & Settings: Save configurations to prevent loss during resets, updates, or power interruptions.

• Network Monitoring: Ensure stable Ethernet setup for 64-channel Dante workflows and remote control reliability.

• Calibrate Periodically: Verify channel assignments, levels, and routing to maintain precise multichannel monitoring.
