Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller - CVRCPV2

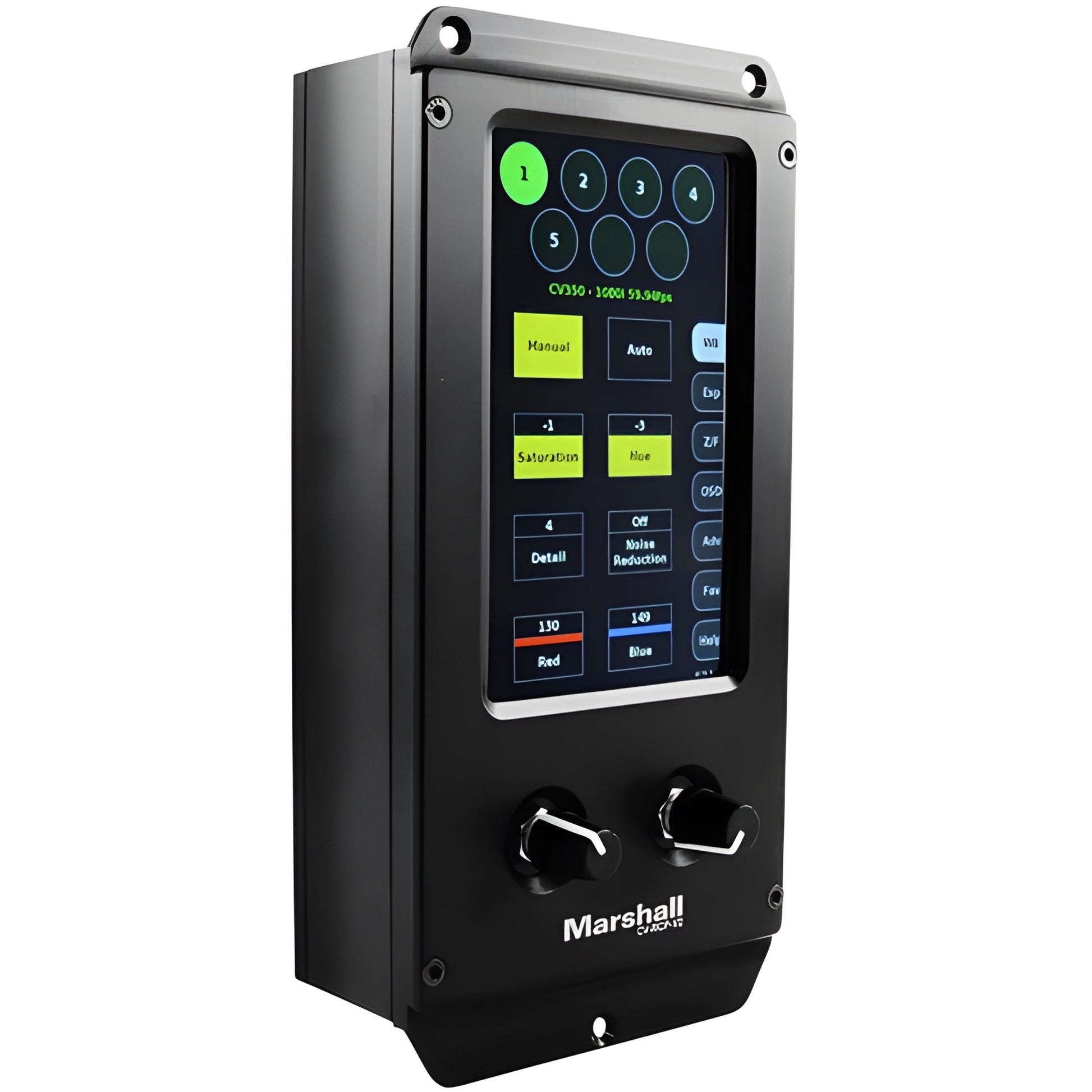

The Marshall CV-RCP-V2 Touchscreen Multi-Camera Controller provides control of up to seven cameras via a 5" touchscreen panel and two fine-tune control dials. The CV-RCP-V2 is pre-programmed with control protocols for all Marshall broadcast cameras plus select popular cameras from other brands.
Use this compact unit to conveniently adjust, paint, and match your cameras from a control room or broadcast truck. The CV-RCP-V2 employs readily available 3-pin XLR cables for distances up to 1000' and can be converted to fiber for extended distances. Cables are not included with the controller and must be sourced separately.
Your camera settings can be adjusted individually or applied globally without the OSD menu appearing in your video feed. Choose your settings via the touchscreen panel, then use the two dials for on-the-fly fine-tuning. Controllable parameters include exposure, white balance, gamma, black levels, and more. To speed up your workflow, the CV-RCP-V2's interface offers favorites settings, save features, self-help dialogs, and smart menus/sub-menus.

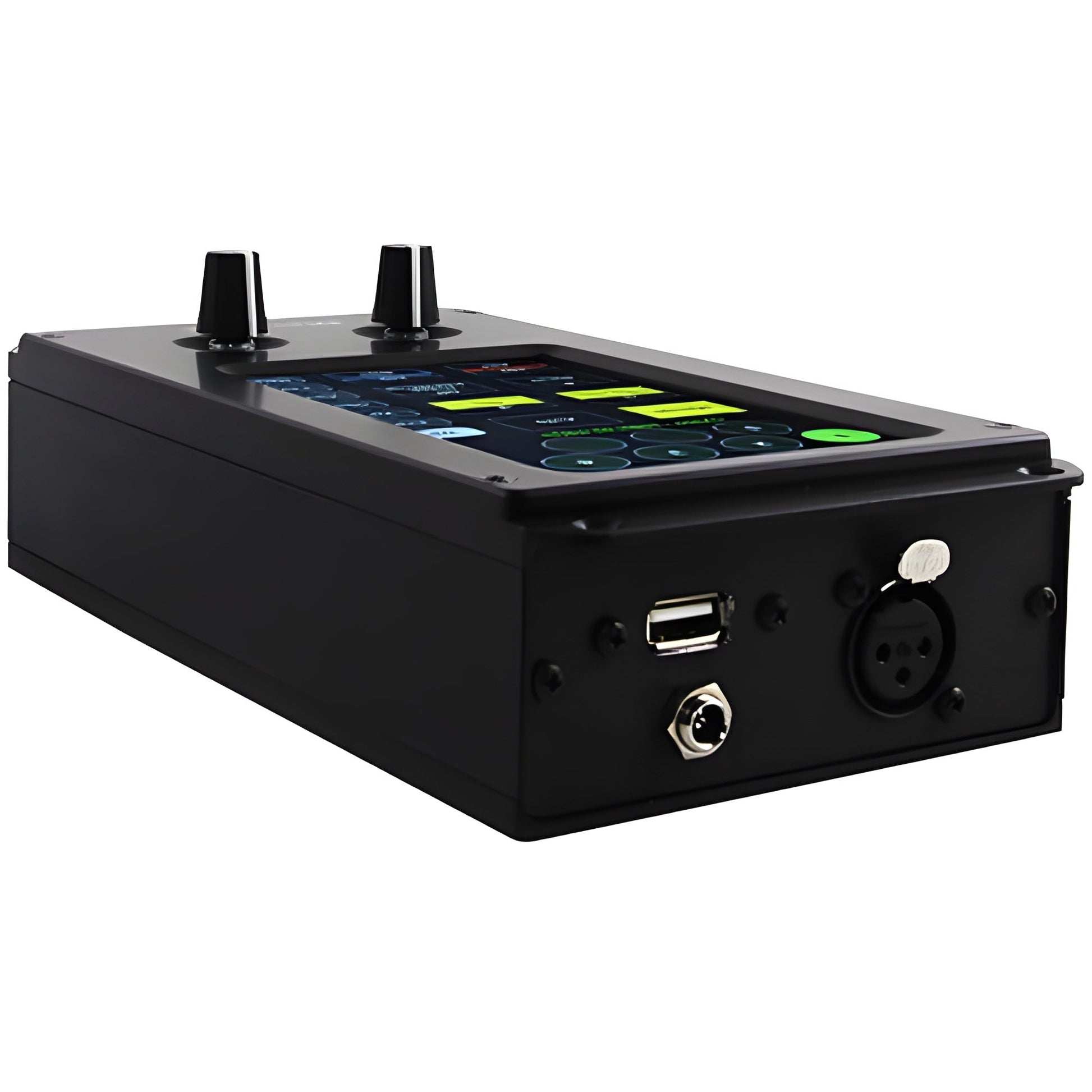

Housed in a sturdy aluminum case, the Marshall CV-RCP-V2 controller runs on either the included AC adapter or on 12 VDC power. Its USB port can be used for saving presets to a memory stick or for firmware updates.
Features
- 5" Touchscreen Camera Controller
- For Marshall Broadcast & Other Cameras
- Adjust, Paint & Match Cameras Remotely
What Our Experts Think
-
Touchscreen Interface – Provides intuitive, user-friendly control for multiple cameras.
-
Multi-Camera Support – Manages up to 7 cameras simultaneously for seamless operation.
-
Precise Camera Adjustments – Fine-tune exposure, white balance, focus, zoom, and more.
-
IP & Serial Connectivity – Compatible with VISCA over IP, RS232, and RS422 protocols.
-
Custom Presets & Scene Recall – Save and recall camera settings for quick adjustments.
-
Compact & Rugged Design – Built for broadcast, live production, and professional AV environments.
-
Perfect for Remote Productions – Ideal for studios, houses of worship, esports, and live events.
Q&A
Q: What is the Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller?
A: The Marshall CV-RCP-V2 is a touchscreen multi-camera controller designed for precise remote control of Marshall PTZ, zoom, and block cameras over RS-232, RS-422, or IP.
Q: What is this controller used for?
A: It is ideal for broadcast, live production, houses of worship, and professional AV setups, enabling real-time camera adjustments with an intuitive touchscreen interface.
Q: How many cameras can it control?
A: The CV-RCP-V2 can control multiple cameras simultaneously, making it perfect for multi-camera productions and complex video setups.
Q: What control options does it offer?
A: It features pan, tilt, zoom, focus, iris, white balance, and exposure adjustments, providing comprehensive control over camera functions.
Q: Does it support IP control?
A: Yes, it supports both serial (RS-232/RS-422) and IP control, ensuring flexibility in different production environments.
Q: What are the key benefits of this controller?
A: It offers intuitive touchscreen operation, precise camera adjustments, multi-camera control, and flexible connectivity, making it a powerful tool for professional video production.
Maintenance Tips
-
Keep the Touchscreen Clean – Use a microfiber cloth to remove fingerprints and dust. Avoid harsh chemicals.
-
Check Cable Connections – Ensure all camera, power, and network cables are securely connected.
-
Update Firmware – Regularly check for and install firmware updates for improved functionality.
-
Avoid Overheating – Keep the controller in a well-ventilated area and away from direct heat sources.
-
Use a Surge Protector – Protect the device from power surges with a reliable surge protector.
-
Store in a Safe Environment – Keep it free from dust, moisture, and extreme temperatures when not in use.
-
Test Controls Periodically – Check joystick, buttons, and touchscreen for smooth operation.
-
Secure Network Connections – Ensure stable network access for seamless multi-camera control.
