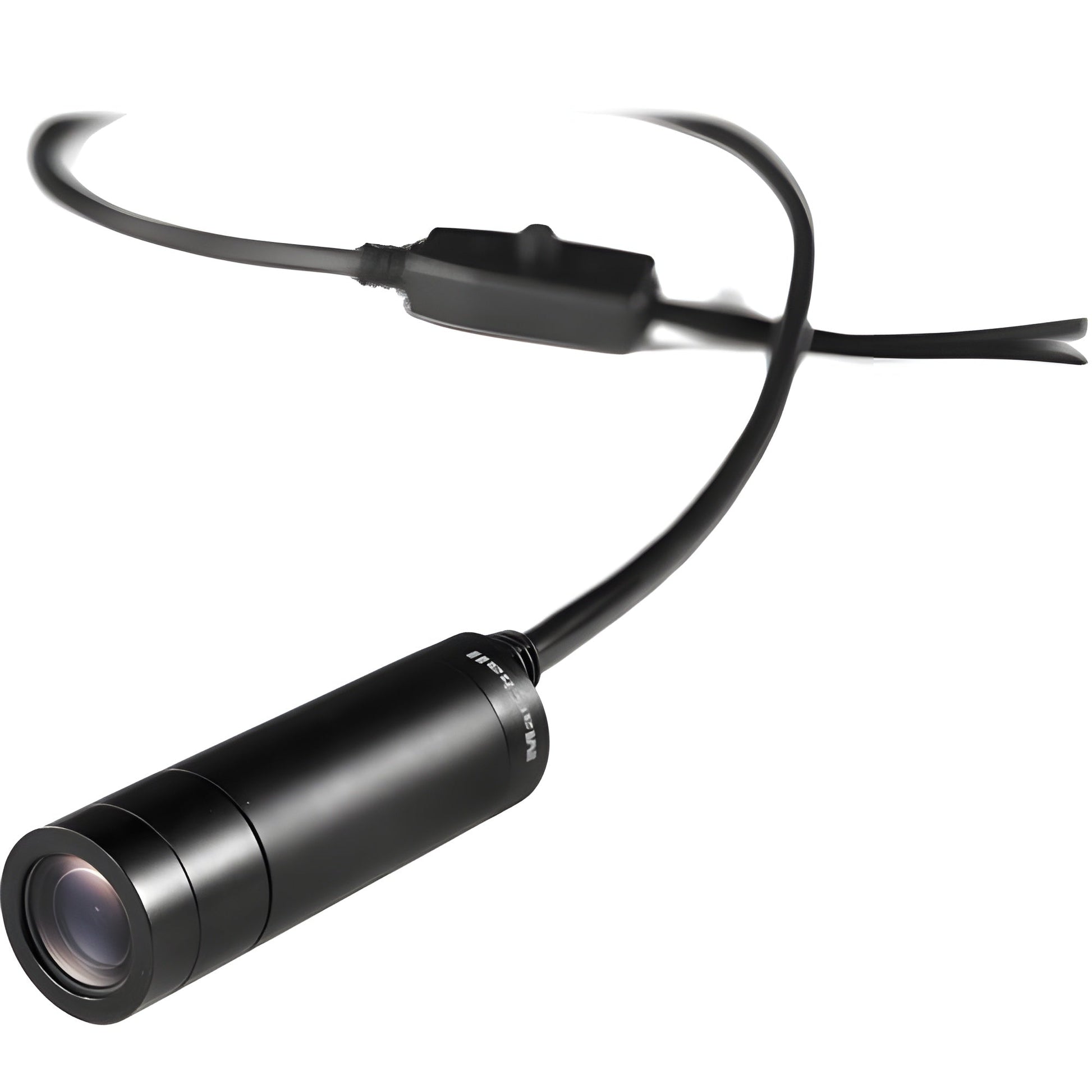

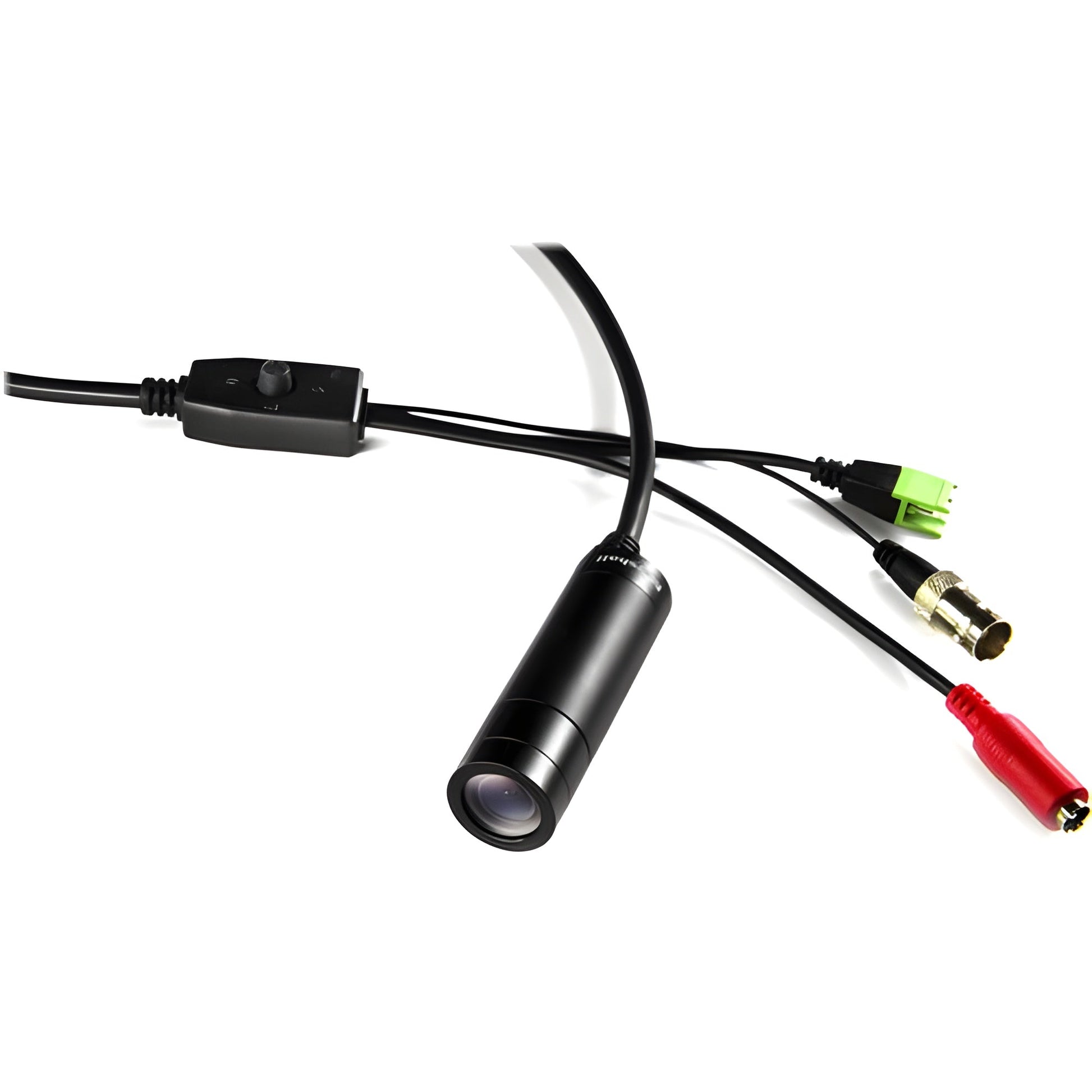

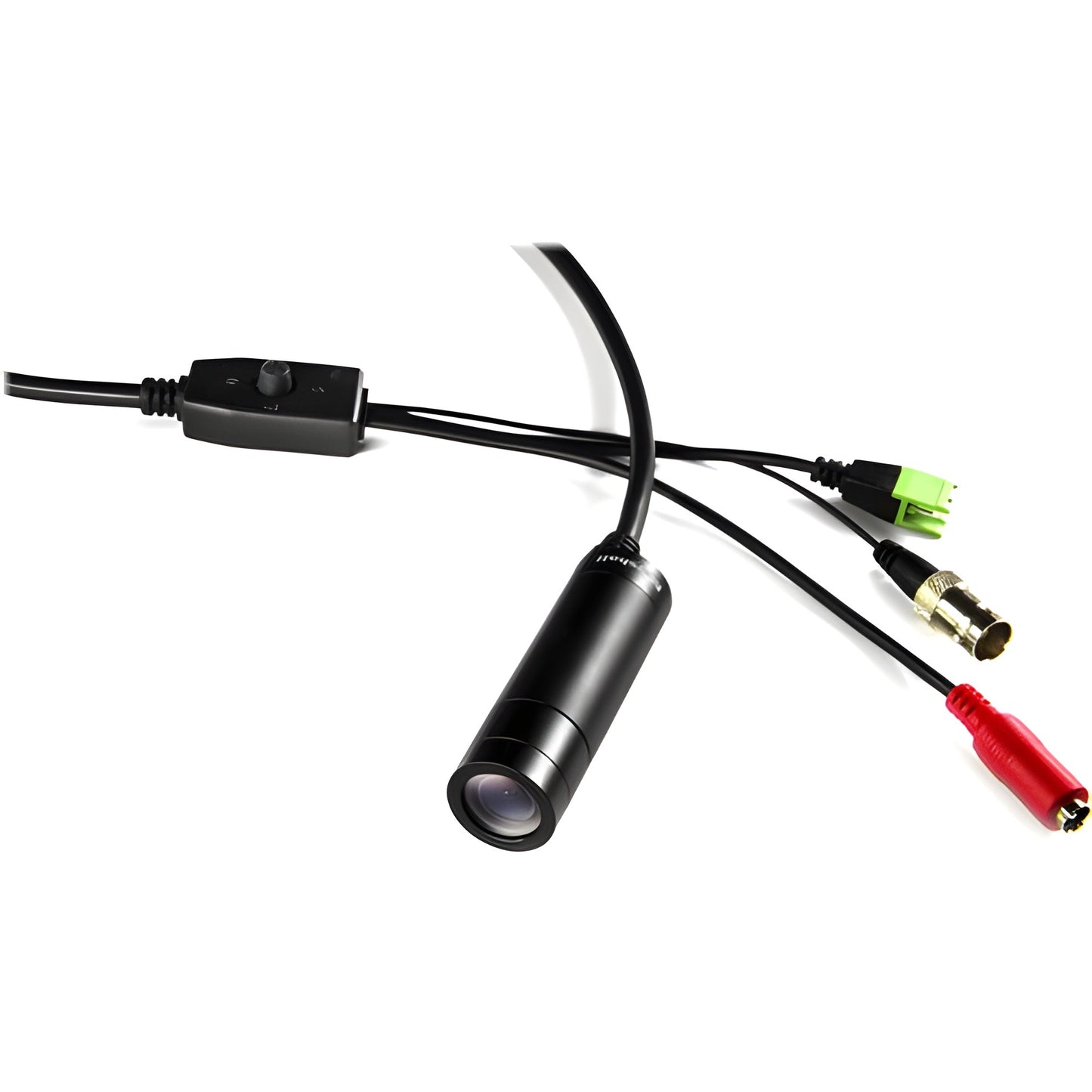

Marshall Electronics MB Lipstick IP67 Weather-Proof HD Camera (3G/HD-SDI) + Remote Adjust - CV225MB

Marshall Electronics MB Lipstick IP67 Weather-Proof HD Camera (3G/HD-SDI) + Remote Adjust - CV225MB

Features

• 1/3" 2.5MP CMOS sensor
• 16:9 native aspect ratio
• 3.7mm MP M12 mount lens (interchangeable)
• IP67 weatherproof camera enclosure with 1/4"-20 mounting options on rear panel
• 0.76" cylinder
• 3G/HD-SDI connections via BNC
• Modes: Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain, Black Levels (Pedestal)
• Supports Wide Dynamic Range (ACCE), Digital Noise Reduction (DNR), DigitalDefog, and HLC
• OSD joystick on cable assembly

What our Experts Think

• High‑Definition 3G/HD‑SDI Video – Produces crisp, clear HD imagery with professional‑grade signal quality over SDI, ideal for surveillance and broadcast applications.

• IP67 Weatherproof Durability – Built to withstand dust, rain, and tough outdoor conditions with a rugged, sealed housing for long‑term reliability.

• Compact “Lipstick” Design – Small form factor makes installation easy in tight spaces without sacrificing performance.

• Remote Lens Adjustment – On‑the‑fly focus and zoom control simplifies setup and fine‑tuning without physical access to the camera.

• Broad System Compatibility – Works seamlessly with SDI‑based recorders, monitors, and switchers in professional video workflows.

Q&A

Q: What image quality does this camera deliver?
A: Full HD video with a 3G/HD‑SDI output and a 2.5 MP sensor for clear 1080p capture.

Q: Is this camera weatherproof?
A: Yes — it has an IP67‑rated housing that protects against dust and water for rugged outdoor use.

Q: Does it support remote control?
A: Yes — remote adjustments via RS‑485 (VISCA/Pelco) let you tweak image settings without accessing the camera directly.

Q: What outputs are available?
A: Professional 3G/HD‑SDI BNC output for seamless integration with broadcast gear.

Q: Can I change lens options?
A: Yes — features a standard M12 lens mount for easy lens swaps.

Q: What power does it use?
A: Powered with 12 VDC, suitable for field and fixed installs.

Q: Who benefits most from this camera?
A: Ideal for broadcasters, live event capture, sports POV rigs, and outdoor installations needing tough weatherproof performance.

Q: Key advantage?
A: Combines rugged IP67 durability, professional SDI output, and remote image control in a compact lipstick form factor.

Maintenance Tips

• Clean Lens Carefully – Use a soft, lint-free cloth to avoid scratches and maintain image clarity.

• Check Weatherproof Seals – Ensure IP67 seals are intact to prevent water or dust ingress.

• Avoid Prolonged Sun Exposure – Protect the sensor from direct sunlight to prevent overheating.

• Secure Mounting – Tighten brackets and screws to maintain camera alignment.

• Use Stable Power Supply – Prevent voltage spikes to protect internal electronics.

• Cable Management – Avoid sharp bends or tension on SDI and power cables.

• Remote Adjustment Check – Test remote focus/zoom periodically to ensure smooth operation.

• Inspect for Damage – Regularly check housing, lens, and connectors for cracks or wear.
