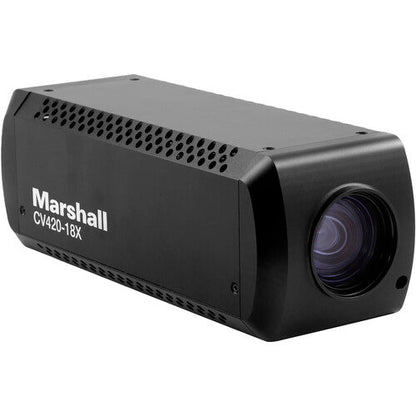

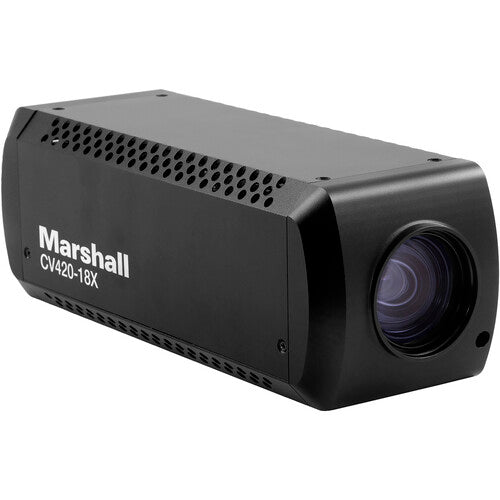

Marshall Electronics CV420-18X Compact 4K60 SDI/HDMI Camera with 18x Optical Zoom - CV42018X

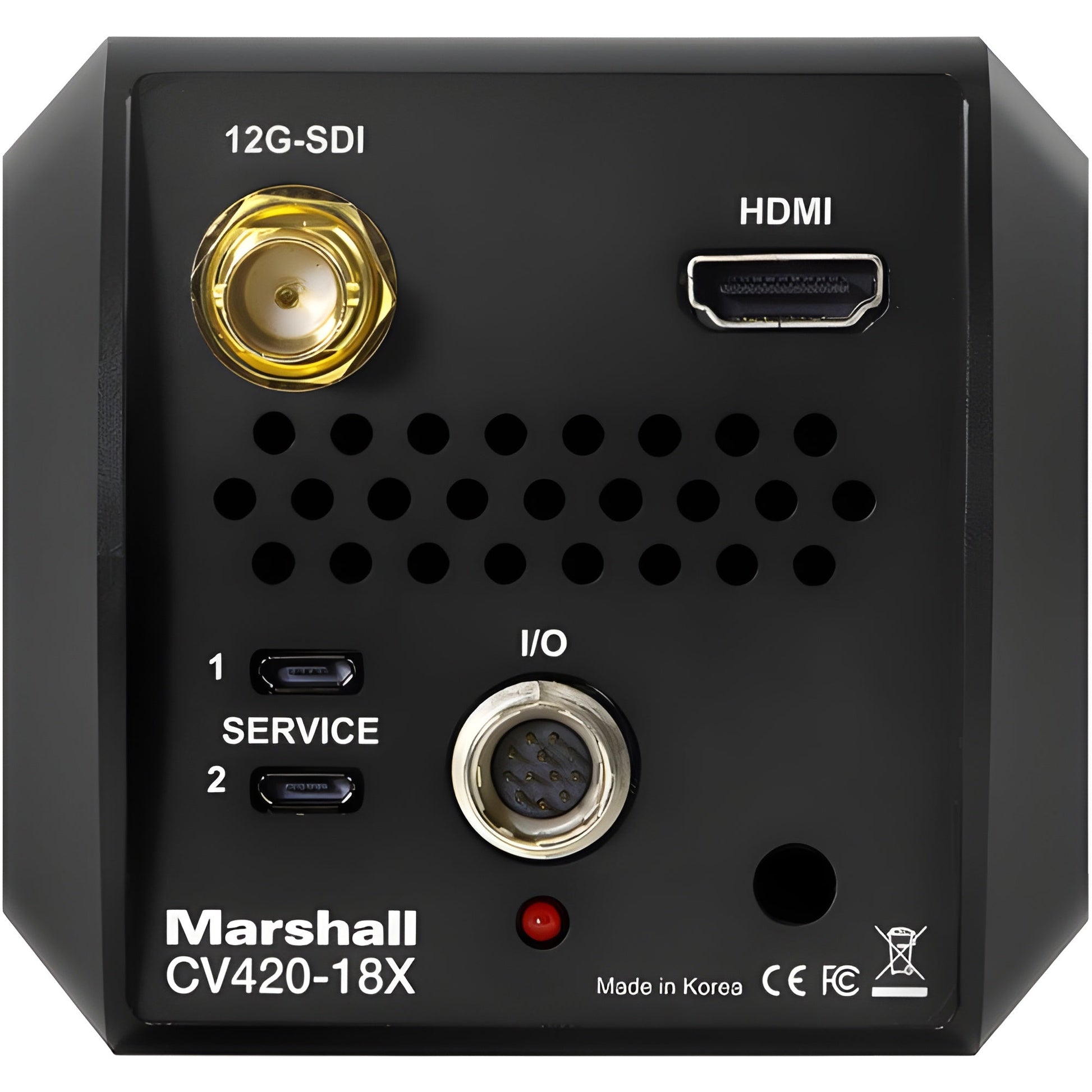

Marshall Electronics CV420-18X features simultaneous 12G-SDI and HDMI outputs and delivers up to DCI 4K60 resolution video. It also has a locking I/O connector for an included breakout cable that carries power, RS-485 control, and 3.5mm mic/line in jacks for embedding audio. The built-in lens offers 18x optical zoom from 6.8 to 120mm in a field of view of 55 to 3.4°.
Zoom, focus, white balance, and many other settings are adjustable via buttons on the breakout cable, a supplied IR remote control, or the downloadable CamControl Windows software. The breakout cable buttons work in combination with an OSD menu on the video feed. To use the CamControl software, the optional Marshall CV-USB-RS485 Converter is required for establishing a connection between your computer and the camera's breakout cable
Features
- Simultaneous 12G-SDI and HDMI Outputs
- Up to DCI 4K60 Resolution Output
- Breakout Cable with Power, RS-485, Audio
- 18x Optical (6.8-120mm), 3x Digital Zoom
- 55 to 3.4° Field of View
- Auto/Manual Focus and White Balance
- Simultaneous 12G-SDI and HDMI outputs
- Up to DCI 4K60 resolution output
- Breakout cable with power, RS-485, and 3.5mm mic/line in jacks (connects to a locking I/O port)
- Built-in lens with 18x optical zoom (6.8 to 120mm)
- Auto/manual focus and white balance
- Controllable via buttons on the breakout cable, an IR remote control, or free-download CamControl software (requires an optional Marshall CV-USB-RS485 Converter)
- 2D/3D noise reduction, image mirror/flip, pedestal (black level), white level, privacy mask, edge enhance, defog, DIS (digital image stabilizer), gamma correction, and more
- Aluminum housing with side impact protection panels to secure cable connections
What Our Experts Think
-
4K60 Resolution: Captures ultra-high-definition video at 60 frames per second for smooth, detailed footage.
-
18x Optical Zoom: Powerful zoom lens for sharp, close-up shots without compromising image quality.
-
SDI & HDMI Outputs: Versatile connectivity options for integration with professional broadcast equipment.
-
Compact Design: Space-saving and lightweight, ideal for tight spaces, mobile productions, and live event setups.
-
Reliable Low-Light Performance: Advanced sensor technology ensures clear and crisp video, even in low-light environments.
-
Professional Build: Built to endure the demands of broadcast, production, and live-streaming applications.
Q&A
Q: What is the Marshall CV420-18X?
A: A compact 4K60 camera with 18x optical zoom, supporting both SDI and HDMI outputs for versatile video capture.
Q: Who is this camera for?
A: Ideal for broadcasters, live streamers, content creators, and production teams needing a high-quality, compact camera.
Q: What video outputs does it support?
A: It offers both SDI and HDMI outputs for flexible connectivity.
Q: What resolution does it support?
A: Supports 4K video at up to 60 frames per second for smooth and detailed footage.
Q: Does it have zoom capabilities?
A: Yes, it features 18x optical zoom for clear, detailed shots from a distance.
Q: What makes it stand out?
A: Its compact size, 4K60 video quality, and versatile connectivity options make it perfect for a wide range of production environments.
Maintenance Tips
-
Lens Cleaning – Gently clean the lens with a microfiber cloth and lens-safe cleaner to prevent smudges.
-
Firmware Updates – Ensure firmware is regularly updated to improve functionality and fix bugs.
-
Check Connections – Confirm SDI, HDMI, and power cables are securely connected to prevent signal loss.
-
Proper Ventilation – Allow sufficient airflow around the camera to prevent overheating during use.
-
Avoid Physical Impact – Use a stable mount and handle with care to avoid damaging internal components.
-
Surge Protection – Use a surge protector to safeguard against power spikes that could damage the camera.
-
Zoom Function Check – Periodically test the optical zoom for smooth and accurate operation.
