Marshall Electronics CV605-U3B Compact PTZ USB/HDMI Camera - CV605U3B

Marshall Electronics CV605-U3B Compact PTZ USB/HDMI Camera - CV605U3B

Experience the ultimate in professional-grade video with the CV605-U3B 5X optical zoom camera by Marshall. This cutting-edge camera is equipped with a high-quality 2 Megapixel sensor, delivering crystal-clear HD video with impressive detail. From a wide-angle 85° view to a stunning 1920x1080p resolution at 60fps, the CV605-U3B ensures that every frame is captured with exceptional clarity.

Versatility is at the core of this camera's design, offering a range of output options including HDMI, USB-C, and IP (H.265/H.264). Whether it's for video conferences, live streaming, or professional audio-visual applications, the CV605-U3B's intuitive setup and user-friendly interface make it a cost-efficient choice for a wide array of uses.

Installation is a breeze with the CV605-U3B, as it can be easily connected through a single Ethernet (CAT) cable, providing seamless video, audio, power (PoE), and control over IP. With compatibility in leading software such as OBS Studio and Zoom (certified), this camera is ready to elevate your video production experience to new heights.

Upgrade your video capabilities with the CV605-U3B and enjoy the convenience, clarity, and versatility it brings to your video conferencing, streaming, and professional applications. Discover the power of top-notch video quality with the Marshall CV605-U3B camera for unparalleled visual experiences.

Ultra-Wide 85° Horizontal AOV

The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.

Flexible USB-C + HDMI + IP options

The CV605-U3B offers a USB-C connection for video conference, collaboration, and streaming. HDMI opens a wide range of options with HDMI workflows and IP provides an easy one-cable to camera setup and operation.

Zoom Certified

The CV605-U3B PTZ camera is certified by Zoom and operates within the Zoom Room infrastructure seamlessly providing a wide-angle, high-quality video source for any Zoom video conference.

Low-light Sensitivity

The CV605-U3B PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.

One Cable to Camera

One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.

Privacy Standby Mode

The CV605-U3B PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

Features

• 2 Megapixel (1/2.8") Full-HD sensor

• 5X Optical Zoom (3~15mm) – starting at 85° AOV

• Full-HD Resolution: 1920x1080p up to 60fps, 1920x1080i & 1280x720p

• Low Illumination capability at 0.5Lux (F1.8) for challenging environments

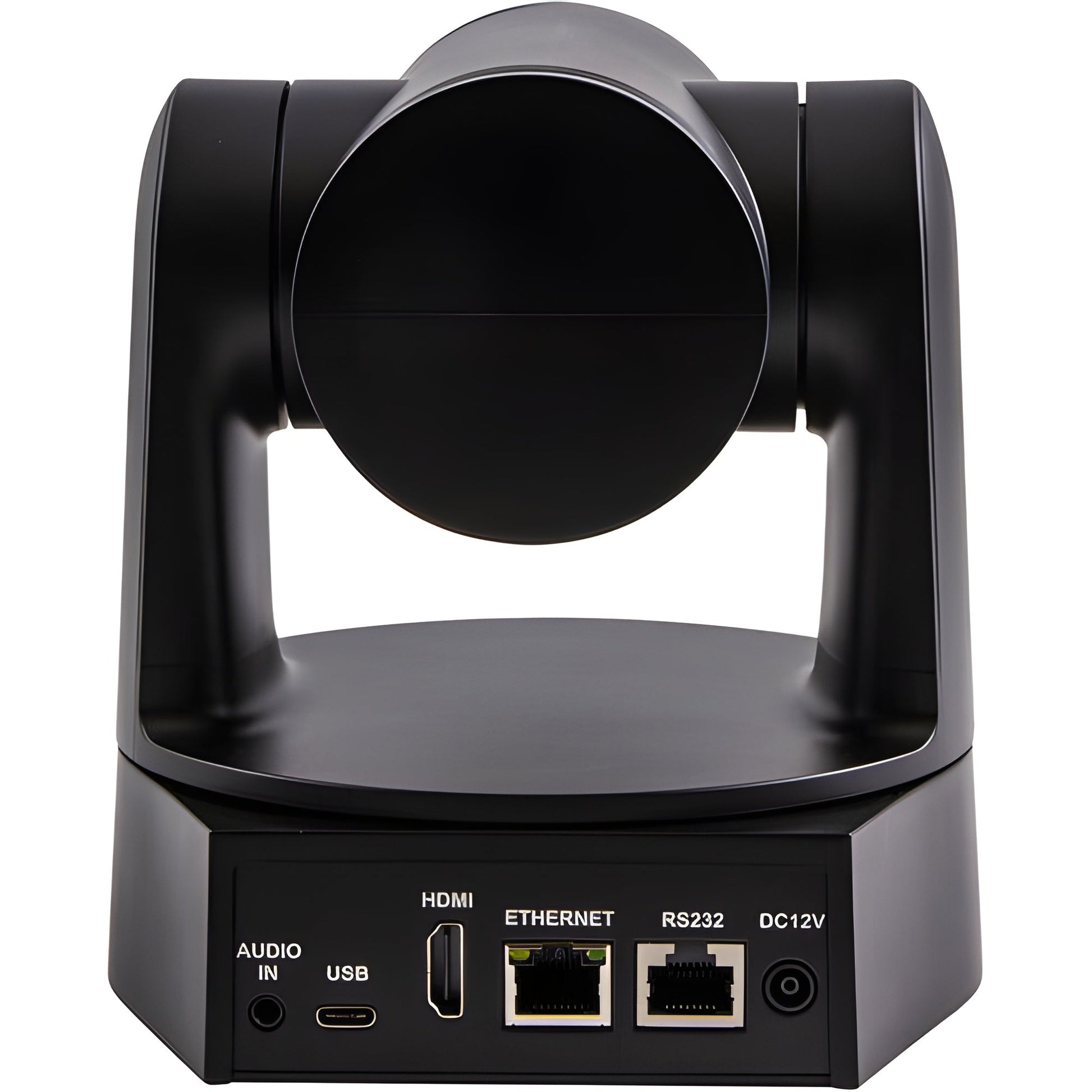

• USB-C (USB3.0/2.0) HDMI and IP (H.265/H.264) or RS232 via RJ45

• Ethernet IP supports video, audio, control, and PoE over one Cat cable

• Control Options: Zoom (certified), software GUI via web, UVC1.5, OBS Studio plugins & docs, IR remote, Marshall VS-PTC-200 (RS232) & VS-PTC-IP (IP/RS232)

• 3.5mm audio linear input (AAC, MP3, G.711A compression)
• 5x optical zoom, 10x digital zoom

• USB Type-C, HDMI, and IP outputs

• Professional grade 2.07MP 1/2.8" CMOS sensor to capture crisp HD video

• Wide-angle up to 85°

• Up to 1920 x 1080p60 resolution

• 3.5mm analog audio input for embedding

• H.265/H.264 RTSP/RTMP streaming

• PoE (Power-over-Ethernet)

What Our Experts Think

• Versatile Connectivity: Supports both USB and HDMI outputs, offering flexibility for various use cases, from live streaming to video conferencing.
• Compact and Lightweight: A small form factor that's perfect for space-constrained environments without sacrificing performance.
• 30x Optical Zoom: Provides excellent clarity and detailed shots, even from long distances, ideal for dynamic environments like conferences or events.
• PTZ Capabilities: Pan, tilt, and zoom functions offer full control over the camera, allowing you to capture a wide range of shots or focus on specific details.
• HD Video Quality: Delivers high-definition video, ensuring crisp and clear image quality for professional-grade video production or virtual meetings.
• Easy Integration: Plug-and-play setup with USB for quick connectivity, simplifying installation for users of all experience levels.

Q&A

Q: What is the Marshall CV605-U3B?
A: The Marshall CV605-U3B is a compact PTZ camera that features both USB and HDMI outputs, ideal for high-quality video production, live streaming, and video conferencing.

Q: Who is this camera for?
A: Perfect for content creators, educators, event producers, and video professionals who need a versatile, easy-to-integrate camera for live streaming, webinars, and conferences.

Q: What outputs does the CV605-U3B support?
A: This camera supports USB and HDMI outputs, making it easy to connect to a wide range of devices for streaming or video capture.

Q: How does the PTZ function enhance the CV605-U3B?
A: The PTZ (Pan, Tilt, Zoom) functionality allows for precise camera control, making it perfect for capturing dynamic video in live event settings, studio environments, or presentations.

Q: What makes the CV605-U3B stand out?
A: Its compact design, ease of use, and flexible USB/HDMI connectivity options make it an excellent choice for those needing professional video quality in a small, portable form.

Maintenance Tips

• Lens Cleaning – Clean the lens regularly using a microfiber cloth and lens-safe cleaner to ensure clear and sharp image quality.
• Firmware Updates – Periodically check for firmware updates to keep the camera running smoothly and take advantage of new features.
• Cable Management – Ensure that the USB and HDMI cables are securely connected to avoid signal loss or disruptions.
• Proper Ventilation – Place the camera in a well-ventilated area to prevent overheating during extended use.
• Surge Protection – Use a surge protector to protect the camera from electrical spikes or power surges.
• Test PTZ Functions – Regularly test the pan, tilt, and zoom functions to ensure smooth and accurate movement.
• Handle with Care – Avoid rough handling or impact to protect internal components and the lens from damage.
