Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera (Black) - CV610U3V2

Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera (Black) - CV610U3V2

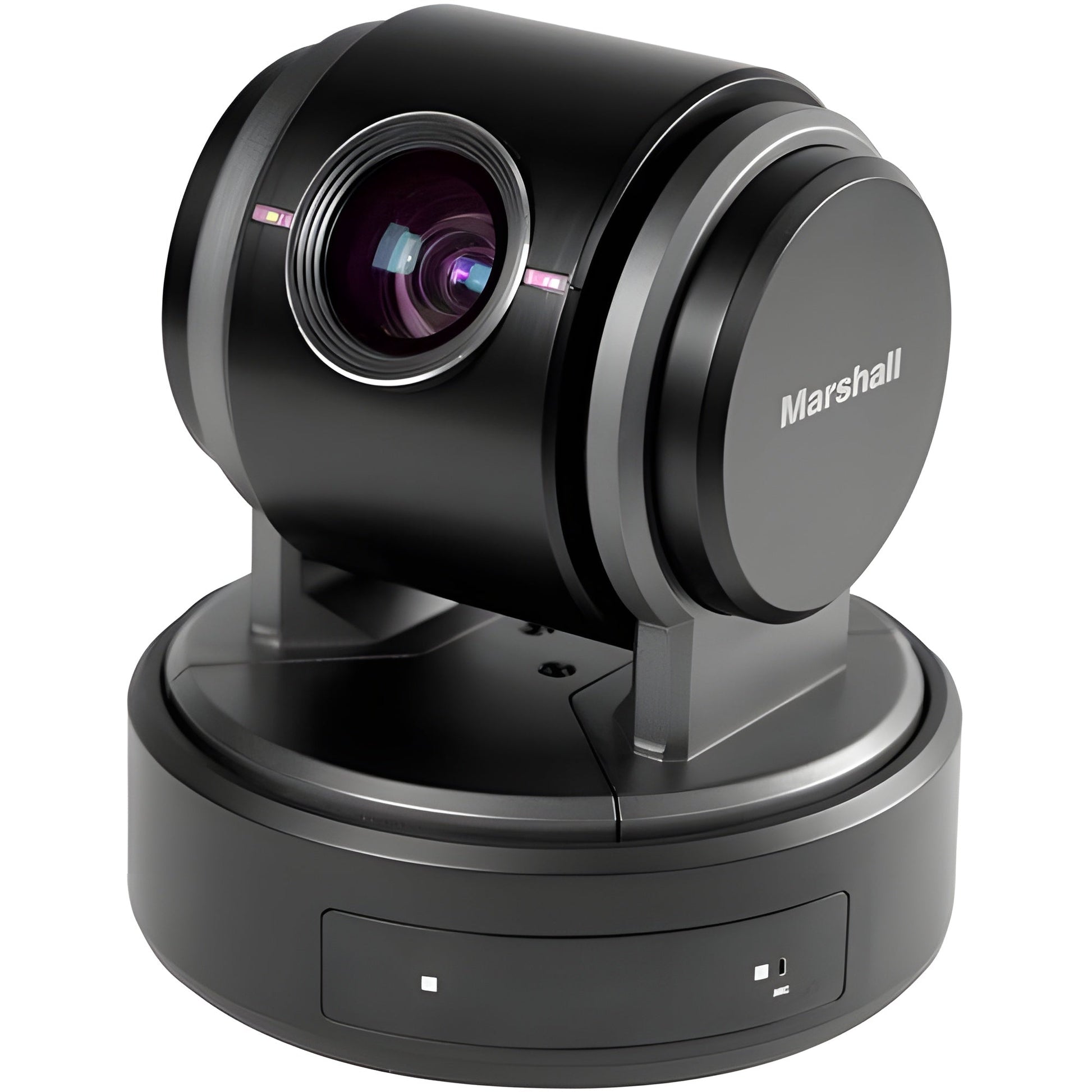

The black Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera is well suited for use as a remotely controlled video conference camera in various environments such as corporate and government meeting rooms, education, houses of worship, live events, courtrooms, healthcare, and broadcast media.

The CV610-U3-V2 features a wide-angle 10x optical zoom lens with 12x digital zoom, and it incorporates a 1/2.8" 2MP CMOS sensor for clear HD output up to 1080p60. The camera utilizes a DC motor servo controller to achieve high speed and quiet positioning, and you can program up to 128 preset positions which can also incorporate preset exposure, white balance, and picture style. It features 350° of pan and 120° of tilt.

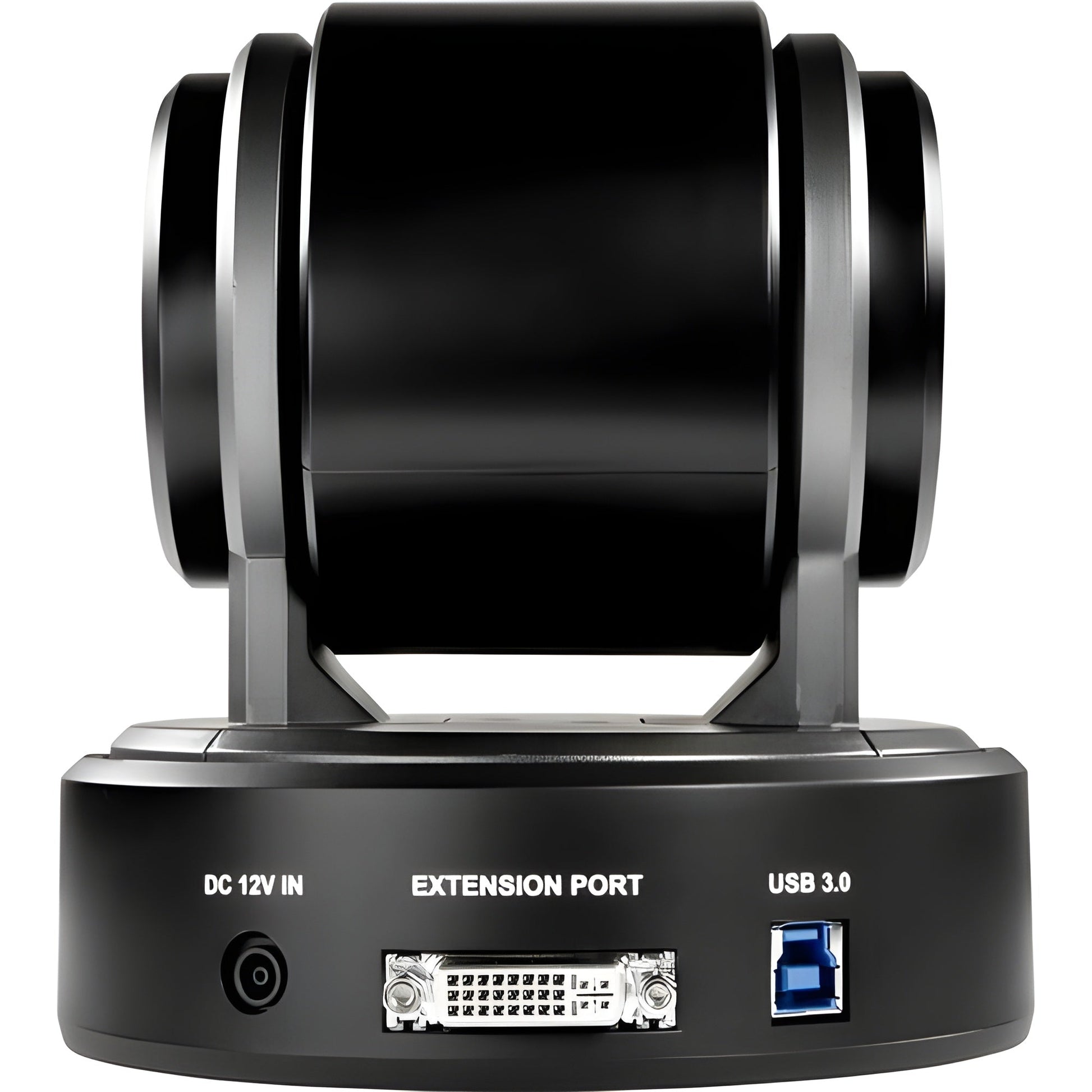

The camera simultaneously outputs via the built-in USB 3.1 Gen 1 port and via the HDMI port by using the included breakout cable that connects to the built-in extension port; the USB port is also backward compatible with USB 2.0. Camera control is achieved via the USB port for use with a Windows or Mac computer, with the included IR remote control, or you can use the breakout cable which provides an RS-232 connector and an RS-422/RS-485 connector to interface with the camera using UVC1.5, UAC2.0, VISCA, or Pelco P/D protocols. The breakout cable also incorporates a 3.5mm audio line input jack.

Features

• 1/2.8" 2MP CMOS Sensor

• 10x Optical/12x Digital Zoom

• Up to 1920 x 1080p60 Video Output

• 128 Preset Positions

• Concurrent USB 3.1/HDMI Output

• 350° Pan, 120° Tilt

• You can store up to six presets of camera direction and camera parameters into the camera, up to six presets on the remote controller, or 128 presets via protocol programming

• Full HD up to 1080p60 via USB and HDMI

• Automatic and manual white balance for complex lighting environments

• 350° pan range

• 120° tilt range

• Breakout cable with HDMI, RS-232, RS-422/485, CVBS, and audio is included

• The camera supports USB 3.1 Gen 1/2.0 video output and control with UVC1.5 compliant software, as well as UAC2.0, VISCA, and Pelco P/D protocols

• Virtual COM port built in for camera movement control capability

• Built-in microphone

• USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s; USB 3.1 Gen 1 and USB 3.0 are synonymous

What Our Experts Think

• Dual Connectivity: Supports both USB and HDMI outputs, ensuring seamless integration for a variety of applications, from video streaming to professional broadcasts.
• Compact Design: Small and lightweight, ideal for setups with limited space, without compromising on performance.
• 20x Optical Zoom: Offers exceptional clarity, allowing you to zoom in on specific subjects with ease, perfect for live events or detailed presentations.
• PTZ Functionality: Pan, tilt, and zoom controls give you full maneuverability to capture any angle, ensuring versatile coverage for dynamic environments.
• HD Video Quality: Delivers sharp and vibrant HD video, making it suitable for high-quality streaming, conferencing, and content creation.
• Plug-and-Play: Easy setup with USB for quick use, making it user-friendly for both beginners and experienced users.

Q&A

Q: What is the Marshall CV610-U3-V2?
A: The Marshall CV610-U3-V2 is a compact PTZ (Pan, Tilt, Zoom) camera that offers both USB and HDMI outputs, designed for professional video production, live streaming, and video conferencing in a small, easy-to-use package.

Q: Who is this camera for?
A: Ideal for content creators, educators, event organizers, and video professionals who need a high-quality, portable camera for streaming, webinars, and conferences.

Q: What outputs does the CV610-U3-V2 support?
A: This camera features both USB and HDMI outputs, offering versatile connectivity for a wide range of devices and platforms.

Q: How does the PTZ feature benefit users?
A: The PTZ functionality provides precise control over the camera's pan, tilt, and zoom, making it easy to capture dynamic and customizable video feeds during live events or broadcasts.

Q: What sets the CV610-U3-V2 apart?
A: Its compact size, high-quality video output, and dual USB/HDMI connectivity make it an excellent choice for anyone needing professional video performance in a portable form factor.

Maintenance Tips

• Lens Cleaning – Use a microfiber cloth and lens-safe cleaner to clean the lens regularly, ensuring clear visuals.
• Firmware Updates – Keep the firmware updated to maintain optimal performance and benefit from the latest improvements.
• Secure Connections – Double-check that the USB and HDMI cables are securely connected to avoid signal disruptions.
• Proper Ventilation – Ensure the camera is in a well-ventilated area to prevent overheating during prolonged use.
• Surge Protection – Use a surge protector to protect the camera from electrical fluctuations or power surges.
• PTZ Function Testing – Test the pan, tilt, and zoom functions regularly to ensure smooth and accurate operation.
• Handle with Care – Avoid impact and handle the camera gently to protect its internal components and external body.
