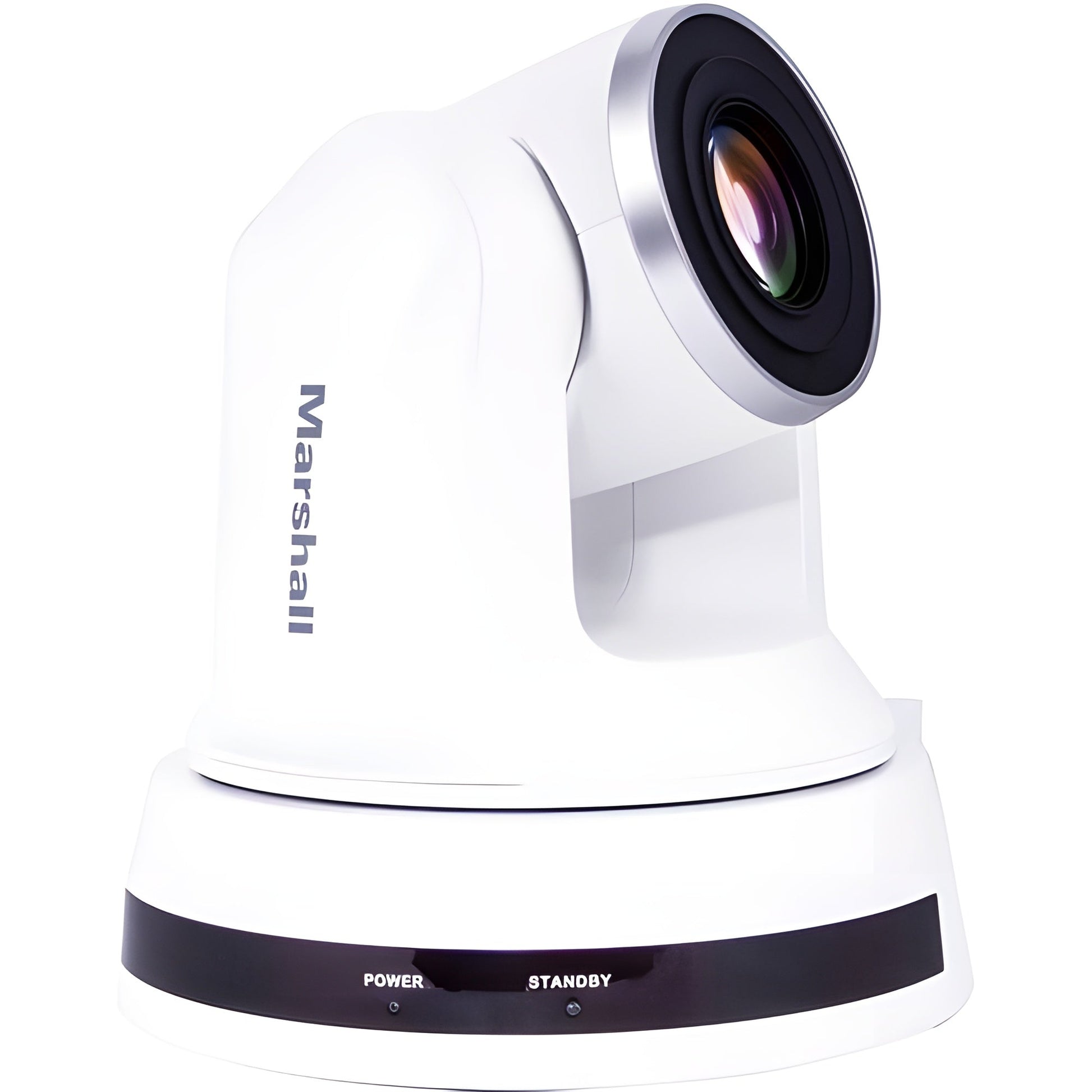

Marshall Electronics CV620-WH4 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White) - CV620WH4
The white CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.

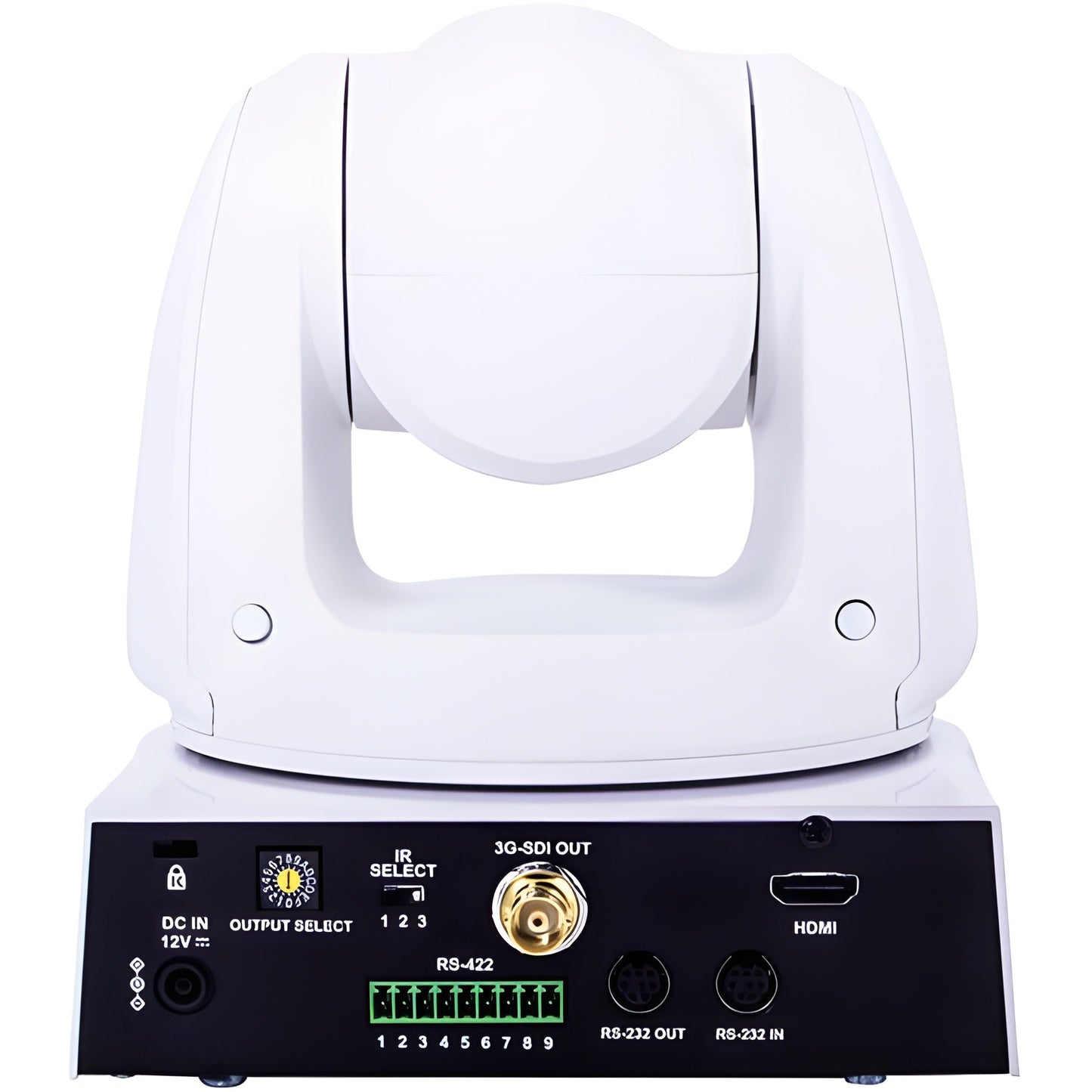

The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It's compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.
- Capture up to 1080p60 Video
- 2MP 1/2.8" Sensor, 5.3 to 110mm Lens
- 20x Optical Zoom, 12x Digital Zoom
- 3G/HD-SDI and HDMI Outputs
- IR, RS-232, and RS-422 Serial Control
What Our Experts Think
-
Full HD 1080p Resolution – Captures crisp, high-quality video at up to 60fps.
-
20x Optical Zoom – Ensures sharp close-ups and smooth zoom transitions for professional applications.
-
3G-SDI & HDMI Outputs – Provides flexible connectivity options for seamless integration into broadcast and AV setups.
-
Smooth & Quiet PTZ Movement – Delivers precise pan, tilt, and zoom control for dynamic productions.
-
Remote Control & Presets – Supports VISCA over IP, RS232, and RS422 control, with programmable camera positions.
-
Excellent Low-Light Performance – Features advanced noise reduction and dynamic range adjustments.
-
Ideal for Broadcast & Live Events – Perfect for conference rooms, houses of worship, streaming, and video production.
Q&A
Q: What is the Marshall Electronics CV620-WH4 PTZ Camera?
A: The Marshall CV620-WH4 is a professional PTZ camera with 3G-SDI and HDMI outputs, featuring 20x optical zoom, designed for broadcast, live streaming, and video conferencing.
Q: What is this camera used for?
A: It is ideal for broadcast studios, houses of worship, live events, education, and corporate conferencing, providing smooth pan, tilt, and zoom functionality with high-quality video output.
Q: What resolution does this camera support?
A: The CV620-WH4 captures Full HD 1080p at 60fps, delivering clear and detailed video suitable for professional applications.
Q: What are the connectivity options?
A: The camera includes 3G-SDI and HDMI outputs for flexible video transmission and integration into various production setups.
Q: Can this camera be controlled remotely?
A: Yes, it supports RS-232 and RS-422 serial control protocols, making it compatible with PTZ camera controllers and remote operation systems.
Maintenance Tips
-
Clean the Lens Regularly – Use a microfiber cloth and lens-safe cleaner to maintain clear image quality.
-
Keep Vents Unblocked – Ensure proper airflow around the camera to prevent overheating.
-
Check Cable Connections – Secure SDI, HDMI, and power cables to avoid signal disruptions.
-
Update Firmware – Regularly check for firmware updates to improve performance and compatibility.
-
Protect Against Power Surges – Use a surge protector or UPS to prevent electrical damage.
-
Adjust Camera Settings – Optimize focus, exposure, and white balance for different lighting conditions.
-
Monitor Network Performance – If using IP control, ensure stable network connectivity for smooth PTZ operation.
-
Secure Mounting Position – Periodically check mounts and screws to prevent misalignment or accidental falls.
