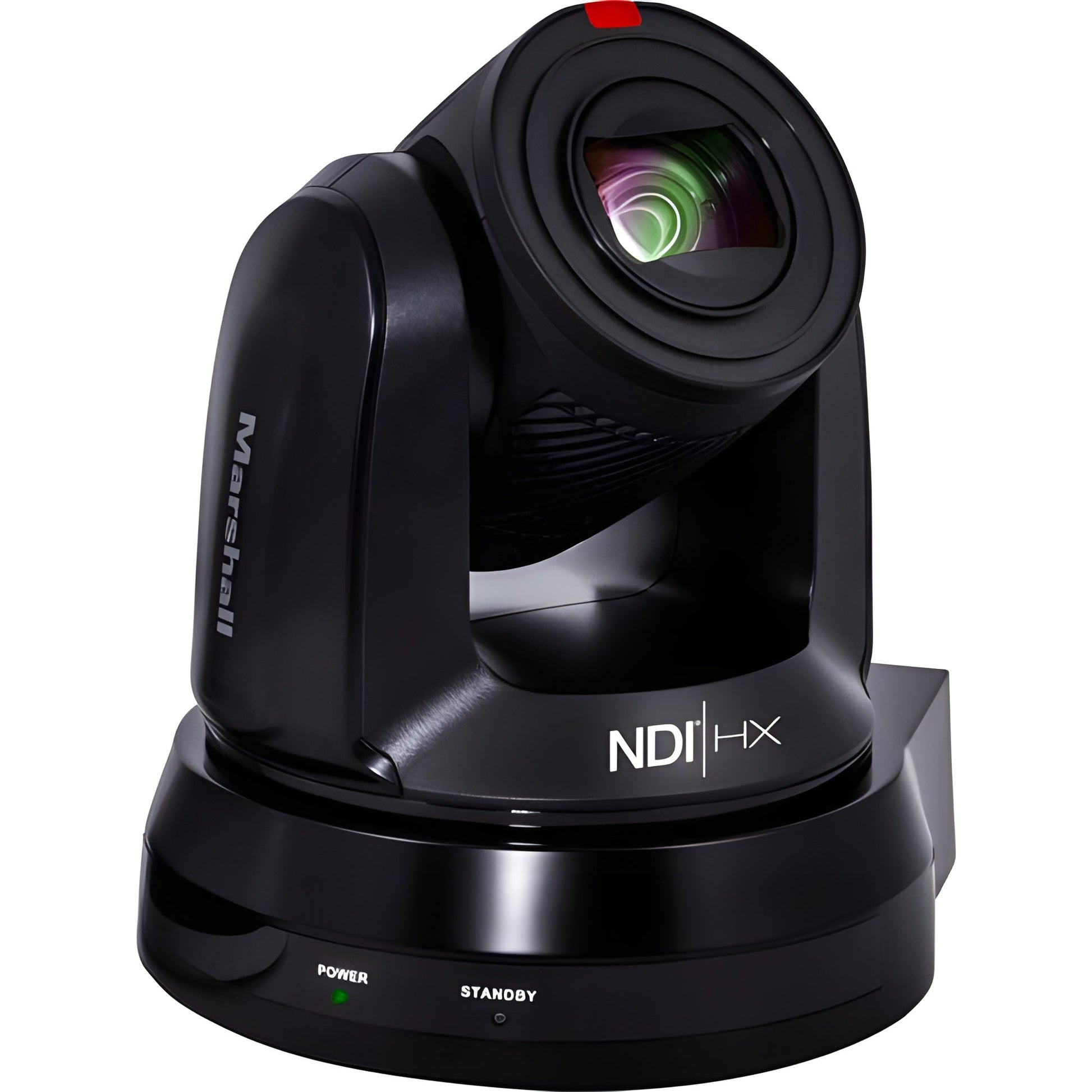

Marshall Electronics CV630-NDI UHD 4K30 NDI|HX PTZ Camera (Black) - CV630NDI

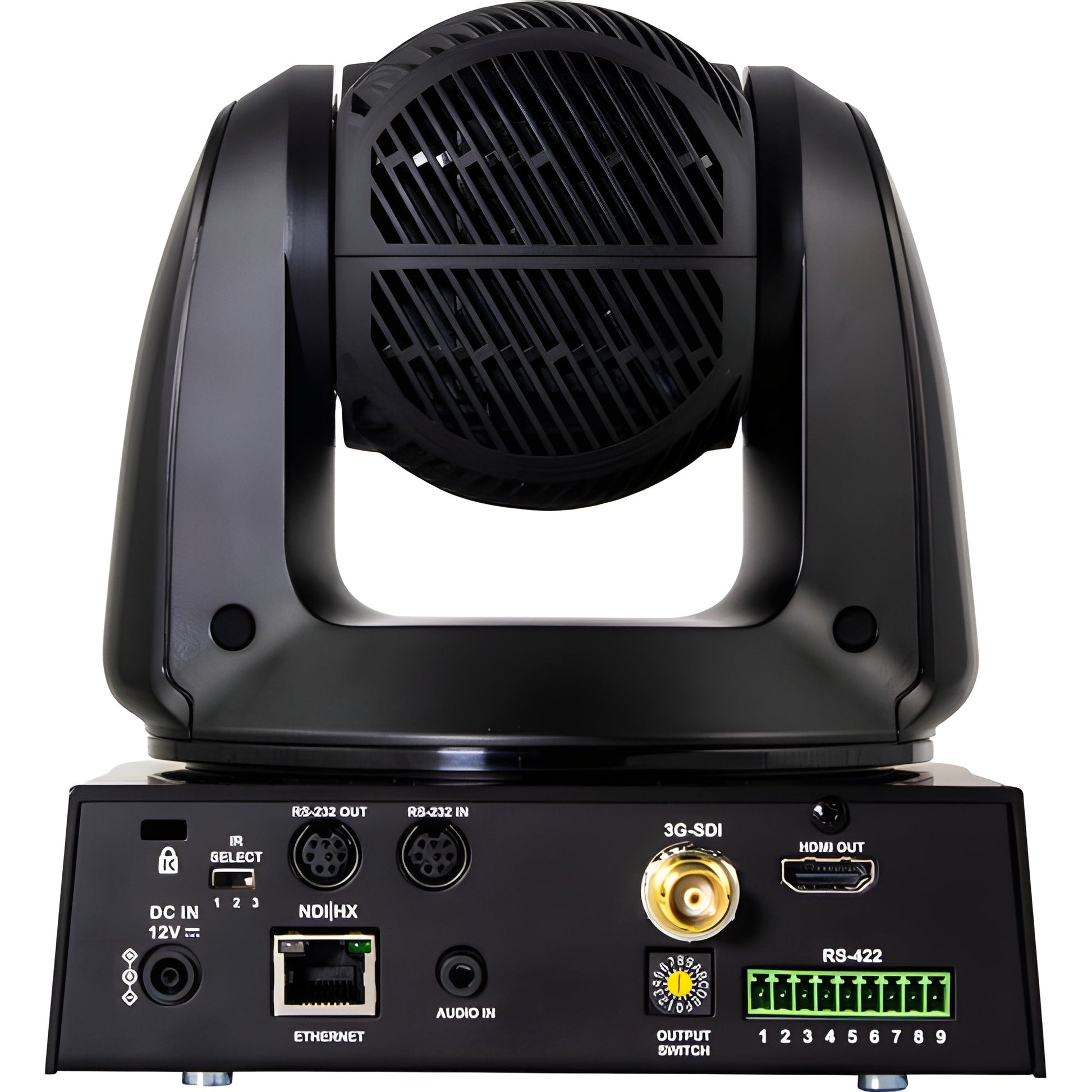

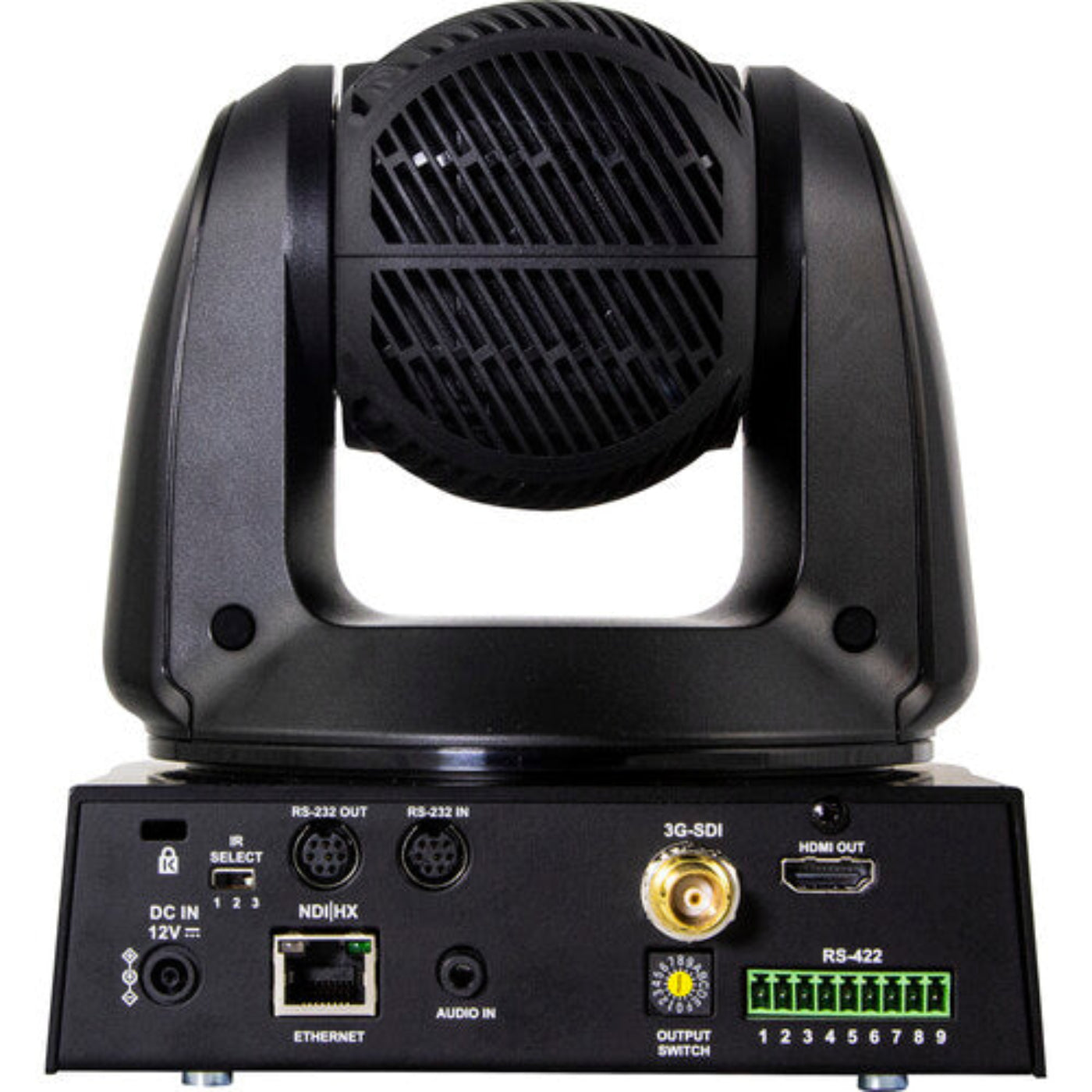

The black CV630-NDI UHD 4K30 NDI|HX PTZ Camera from Marshall Electronics is designed for professional conferencing applications. Its 8MP sensor captures up to 3840 x 2160p UHD 4K30 resolution with a lens with 30x optical zoom from 4.6 to 135mm and a 70° angle of view. Connectivity features include 3G-SDI, HDMI, and NDI|HX over RJ45 LAN output as well as RS-232 and RS-422 serial control. The RJ45 port also supports PoE+ (Power-over-Ethernet) so you can power the camera on a PoE+ supported LAN without additional power cables.
Stream video using H.265 and H.264 compression over IP for high-quality streaming with the RJ45 Ethernet port, and control the unit using IP, RS-232, or RS-422 with VISCA, Pelco, and ONVIF support. The camera is built with smooth and quiet 340° pan, 120° tilt, and it offers simultaneous PTZ and focus control for advanced transitions.
Features
- Up to UHD 4K Resolution, NDI|HX Support
- 30x Optical Zoom, 70° Angle of View
- 3G/HD-SDI, HDMI, and NDI|HX Output
- 35mm Equivalent 4.6 to 135mm Lens
What Our Experts Think
-
Ultra HD 4K Resolution – Captures 4K UHD (3840x2160) video at 30fps for high-quality imaging.
-
NDI|HX Streaming – Supports low-latency, high-efficiency video transmission over IP networks.
-
30x Optical Zoom – Provides detailed close-ups with smooth zoom functionality.
-
Versatile Connectivity – Equipped with NDI|HX, 3G-SDI, HDMI, and IP streaming, ensuring seamless integration.
-
Smooth PTZ Control – Offers precise pan, tilt, and zoom functions for remote operation.
-
Excellent Low-Light Performance – Features HDR and advanced noise reduction for optimal video quality in any lighting condition.
-
Ideal for Professional Use – Perfect for broadcast studios, live streaming, corporate events, houses of worship, and esports.
-
Sleek Black Finish – Designed for professional setups with a discreet, high-end appearance.
Q&A
Q: What is the Marshall Electronics CV630-NDI UHD 4K30 PTZ Camera?
A: The Marshall CV630-NDI is a professional UHD 4K PTZ camera with NDI|HX, 3G-SDI, and HDMI outputs, designed for broadcast, live streaming, conferencing, and video production.
Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, corporate meetings, houses of worship, and remote learning, offering smooth pan, tilt, and zoom functionality for high-quality video capture.
Q: Does this camera support 4K resolution?
A: Yes, it captures UHD 4K video at 30fps, ensuring sharp, high-detail imaging.
Q: What are the connectivity options?
A: The CV630-NDI supports NDI|HX for low-latency IP streaming, along with 3G-SDI and HDMI outputs, offering versatile integration into professional workflows.
Q: Can this camera be controlled remotely?
A: Yes, it supports remote control via IP, NDI, RS-232, and RS-422, making it easy to integrate into various production setups.
Maintenance Tips
-
Clean the Lens Regularly – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges for optimal image clarity.
-
Ensure Proper Ventilation – Keep air vents unobstructed to prevent overheating and maintain performance.
-
Check Cable Connections – Inspect power, Ethernet (NDI|HX), HDMI, and other cables for secure connections and signal stability.
-
Update Firmware – Install the latest firmware updates to enhance functionality, security, and compatibility.
-
Protect Against Power Surges – Use a surge protector or an uninterruptible power supply (UPS) to prevent electrical damage.
-
Avoid Extreme Conditions – Keep the camera away from excessive heat, humidity, and direct sunlight to ensure longevity.
-
Test PTZ Functions – Periodically check pan, tilt, and zoom operations to ensure smooth and responsive movement.
-
Secure Mounting – Ensure the camera is firmly mounted to prevent vibrations or misalignment during operation.
