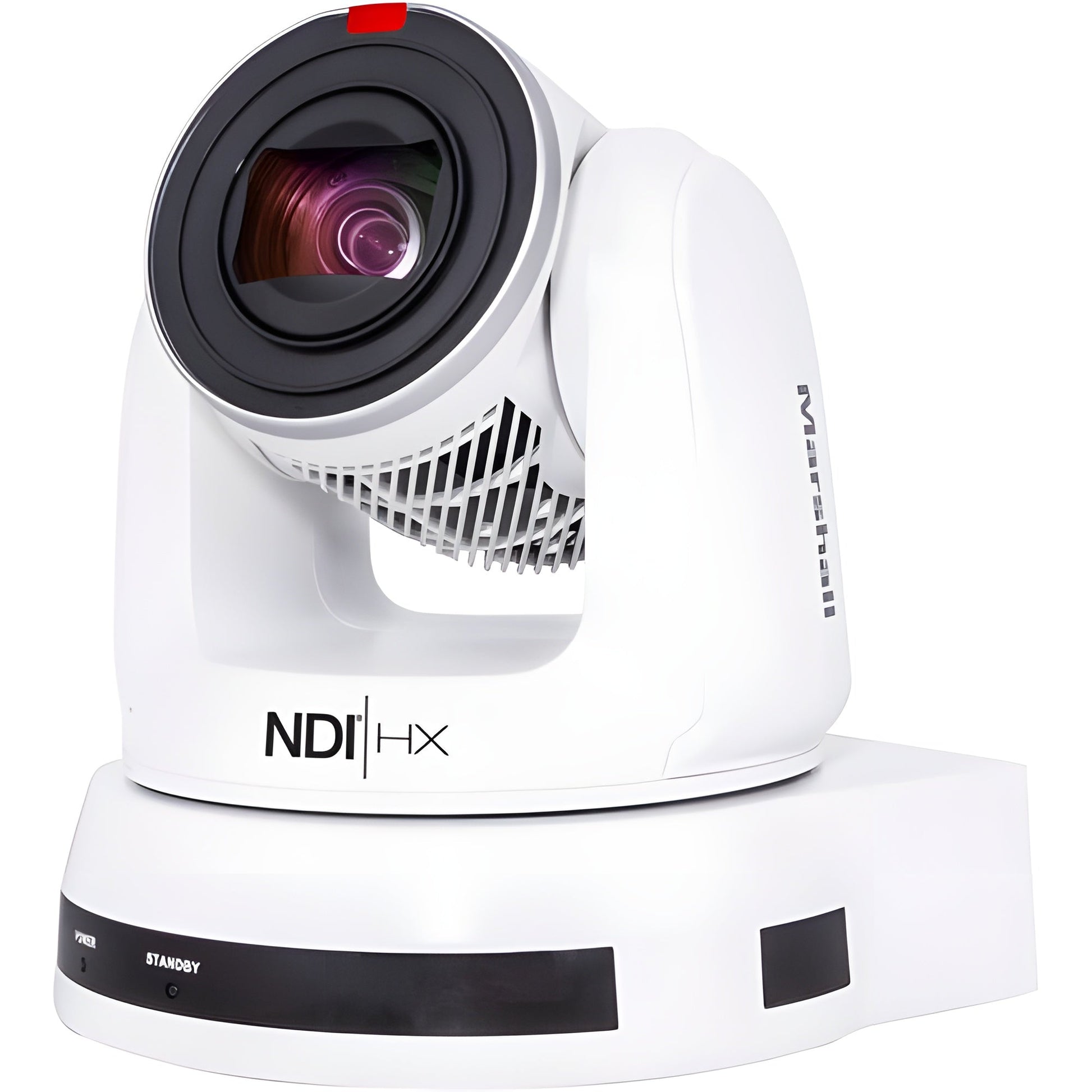

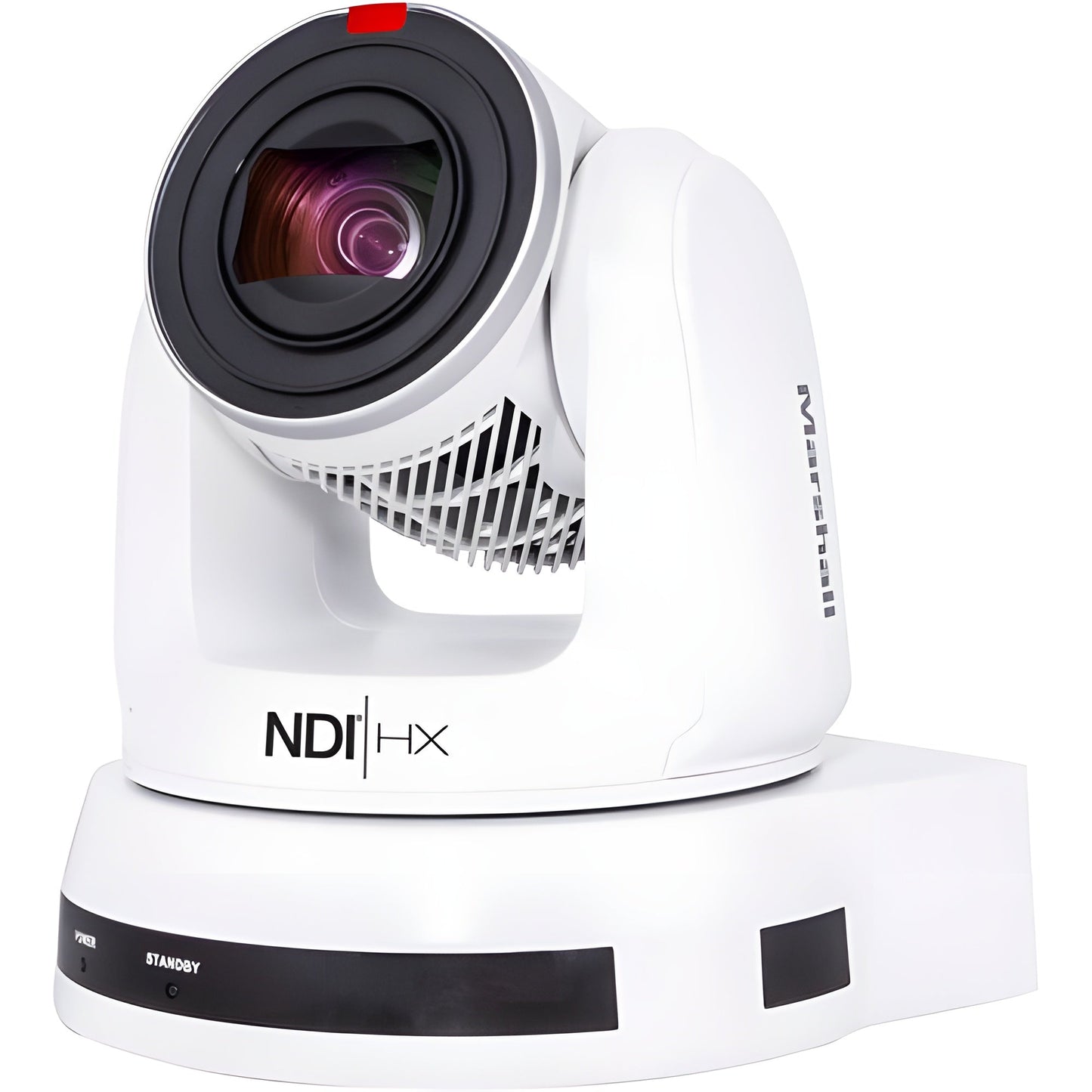

Marshall Electronics CV630-NDIW UHD 4K30 NDI|HX PTZ Camera (White) - CV630NDIW

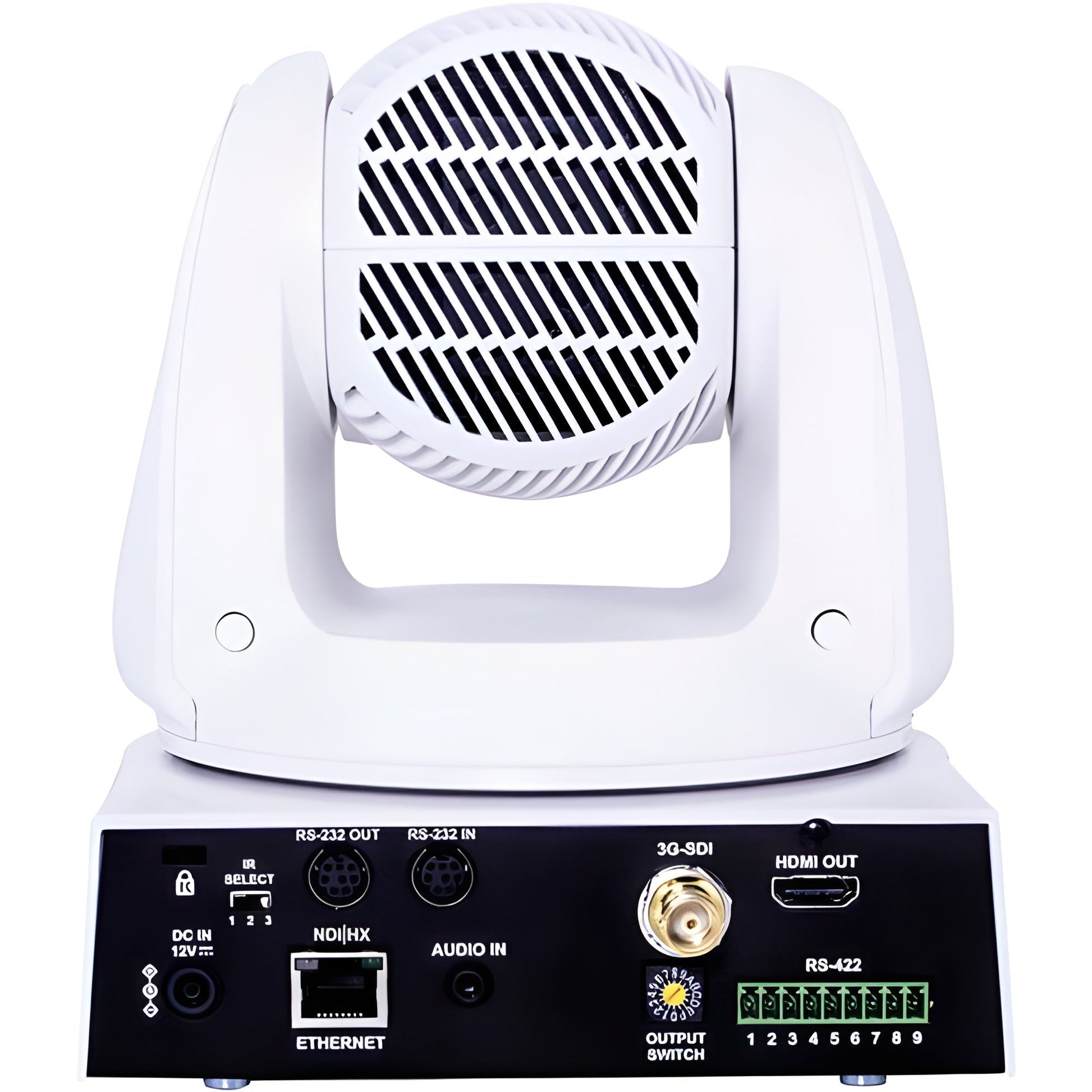

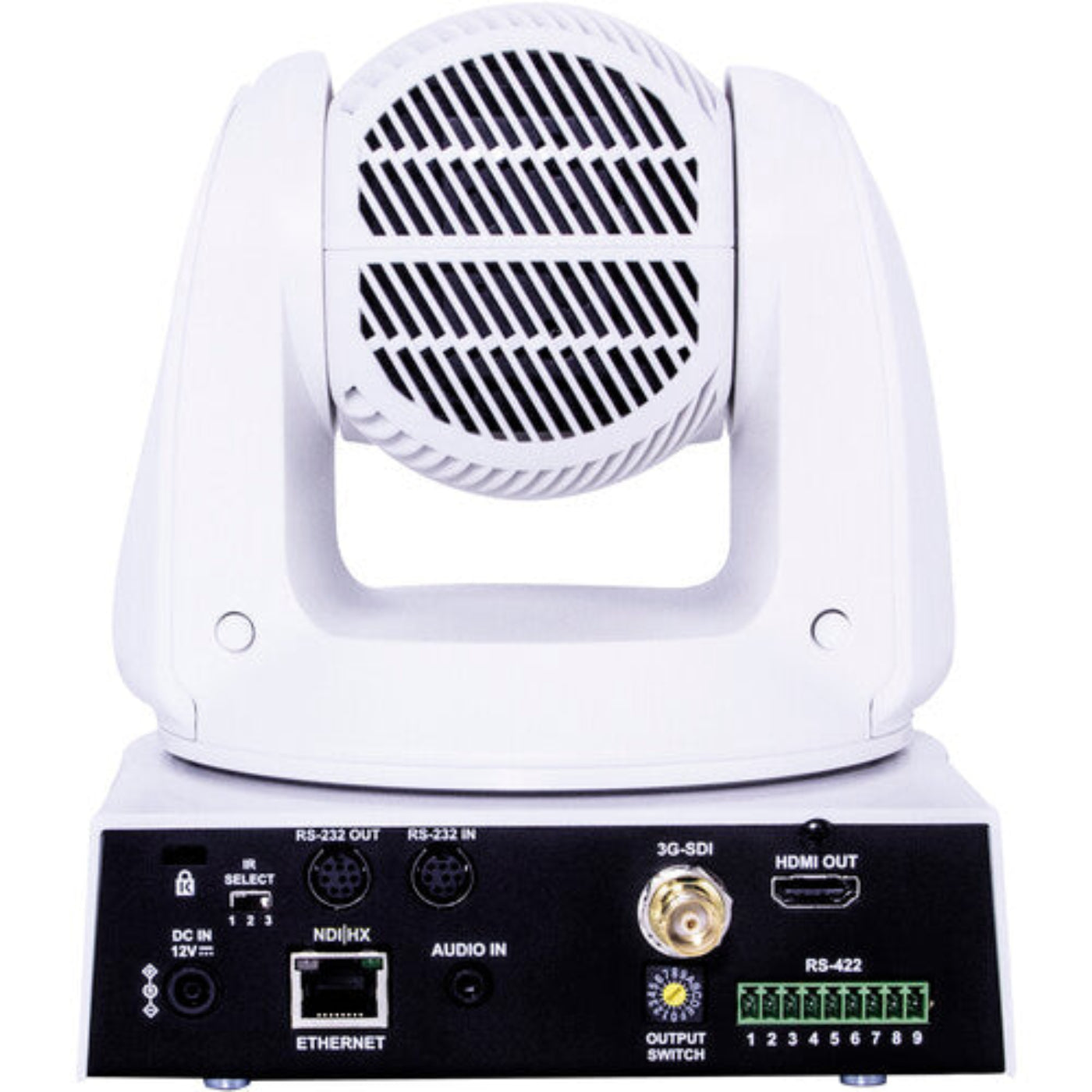

The white CV630-NDIW UHD 4K30 NDI|HX PTZ Camera from Marshall Electronics is designed for professional conferencing applications. Its 8MP sensor captures up to 3840 x 2160p UHD 4K30 resolution with a lens with 30x optical zoom from 4.6 to 135mm and a 70° angle of view. Connectivity features include 3G-SDI, HDMI, and NDI|HX over RJ45 LAN output as well as RS-232 and RS-422 serial control. The RJ45 port also supports PoE+ (Power-over-Ethernet) so you can power the camera on a PoE+ supported LAN without additional power cables.
Stream video using H.265 and H.264 compression over IP for high-quality streaming with the RJ45 Ethernet port, and control the unit using IP, RS-232, or RS-422 with VISCA, Pelco, and ONVIF support. The camera is built with smooth and quiet 340° pan, 120° tilt, and it offers simultaneous PTZ and focus control for advanced transitions.
Features
- Up to UHD 4K Resolution, NDI|HX Support
- 30x Optical Zoom, 70° Angle of View
- 3G/HD-SDI, HDMI, and NDI|HX Output
- 35mm Equivalent 4.6 to 135mm Lens
What Our Experts Think
-
UHD 4K30 Resolution: Delivers stunning 4K resolution at 30 frames per second for crisp, high-quality footage.
-
NDI|HX Connectivity: Seamlessly integrates into IP-based workflows with NDI|HX support for efficient remote production.
-
30x Optical Zoom: Offers smooth zoom capabilities for capturing distant subjects in incredible detail.
-
Flexible Outputs: Features NDI|HX, 12G-SDI, and HDMI outputs for versatile connectivity with broadcast and streaming setups.
-
Precision PTZ Control: Fast and accurate pan, tilt, and zoom for dynamic, high-quality video capture in any production environment.
-
Sleek White Design: A clean, professional aesthetic that blends into various production environments, including studios, houses of worship, and corporate settings.
Q&A
Q: What is the Marshall CV630-NDIW?
A: A UHD 4K30 PTZ camera with NDI|HX support, offering high-quality video for broadcast and live streaming in a white housing.
Q: Who is this camera for?
A: Ideal for broadcasters, live streaming professionals, corporate events, houses of worship, and educational institutions.
Q: What video outputs does it support?
A: It supports NDI|HX, 3G-SDI, HDMI, and IP streaming for versatile video connections.
Q: What resolution does it offer?
A: Provides 4K video at 30fps for detailed and vibrant visuals.
Q: Can it be controlled remotely?
A: Yes, it supports remote control via IP, NDI, RS-232, and RS-422.
Q: What makes it stand out?
A: Its advanced NDI|HX support, smooth 4K30 video capture, and professional PTZ functionality.
Maintenance Tips
-
Lens Cleaning – Use a microfiber cloth and lens-safe cleaner to remove dust and fingerprints for optimal image clarity.
-
Firmware Updates – Keep firmware up to date to ensure the camera runs efficiently and incorporates the latest features.
-
Check Connections – Secure all cables (power, NDI|HX, SDI, HDMI) to prevent signal loss or interruptions.
-
Ventilation – Ensure the camera is placed in a well-ventilated area to avoid overheating during use.
-
Handle with Care – Use a stable mount and avoid sudden physical impacts to protect internal components.
-
Power Surge Protection – Safeguard against power spikes by using a surge protector.
-
Test PTZ Functions – Regularly check pan, tilt, and zoom movements to ensure smooth and accurate operation.
